3-30 — BRAKE MASTER CYLINDER (#32853) — 34 parça

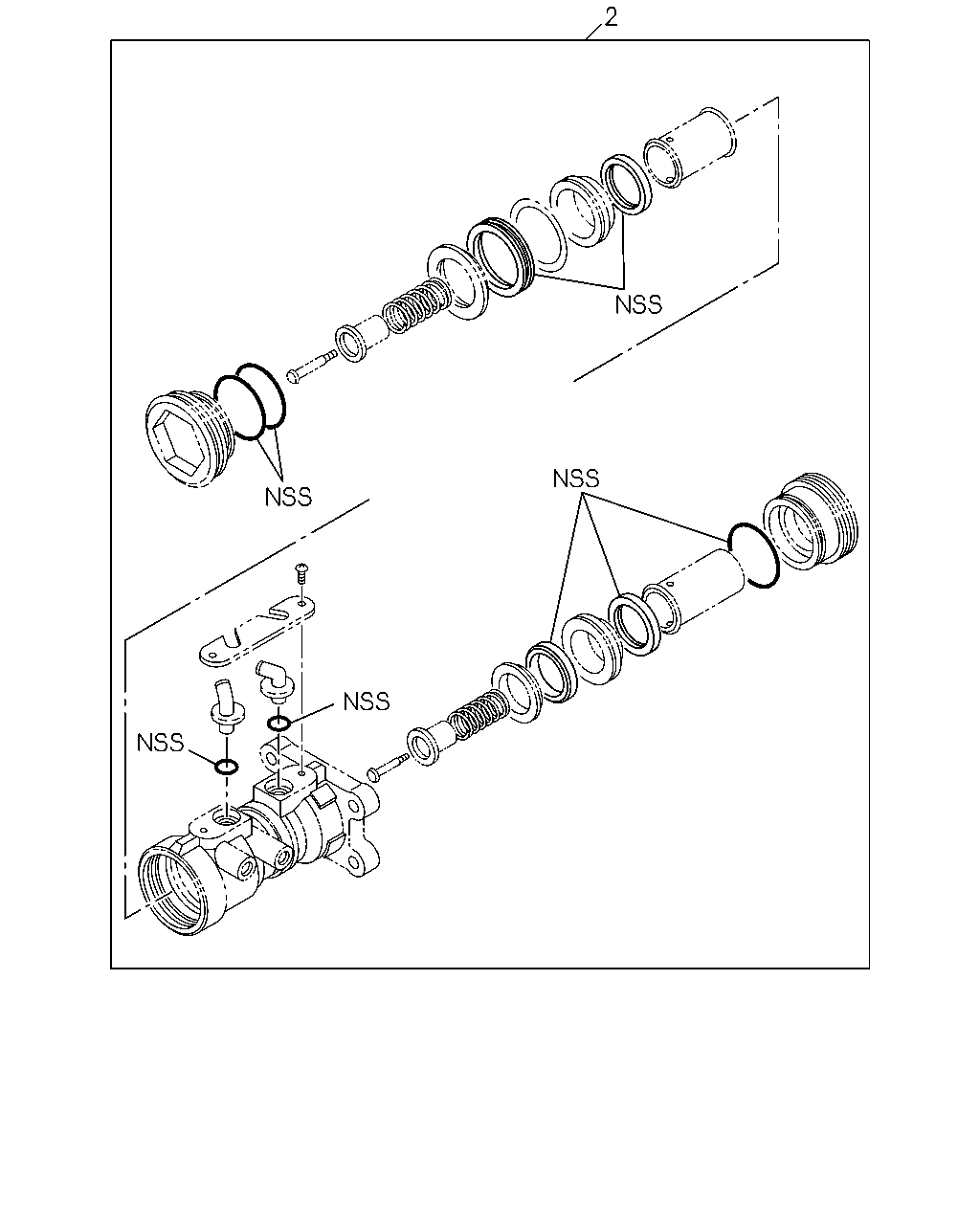

çizim 119496
2
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; BRK,M/CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97141-423-0 01 1 0911-
2 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 0609-0910
2 REPAIR KIT; BRK,M/CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97130-470-0 01 1 0911-

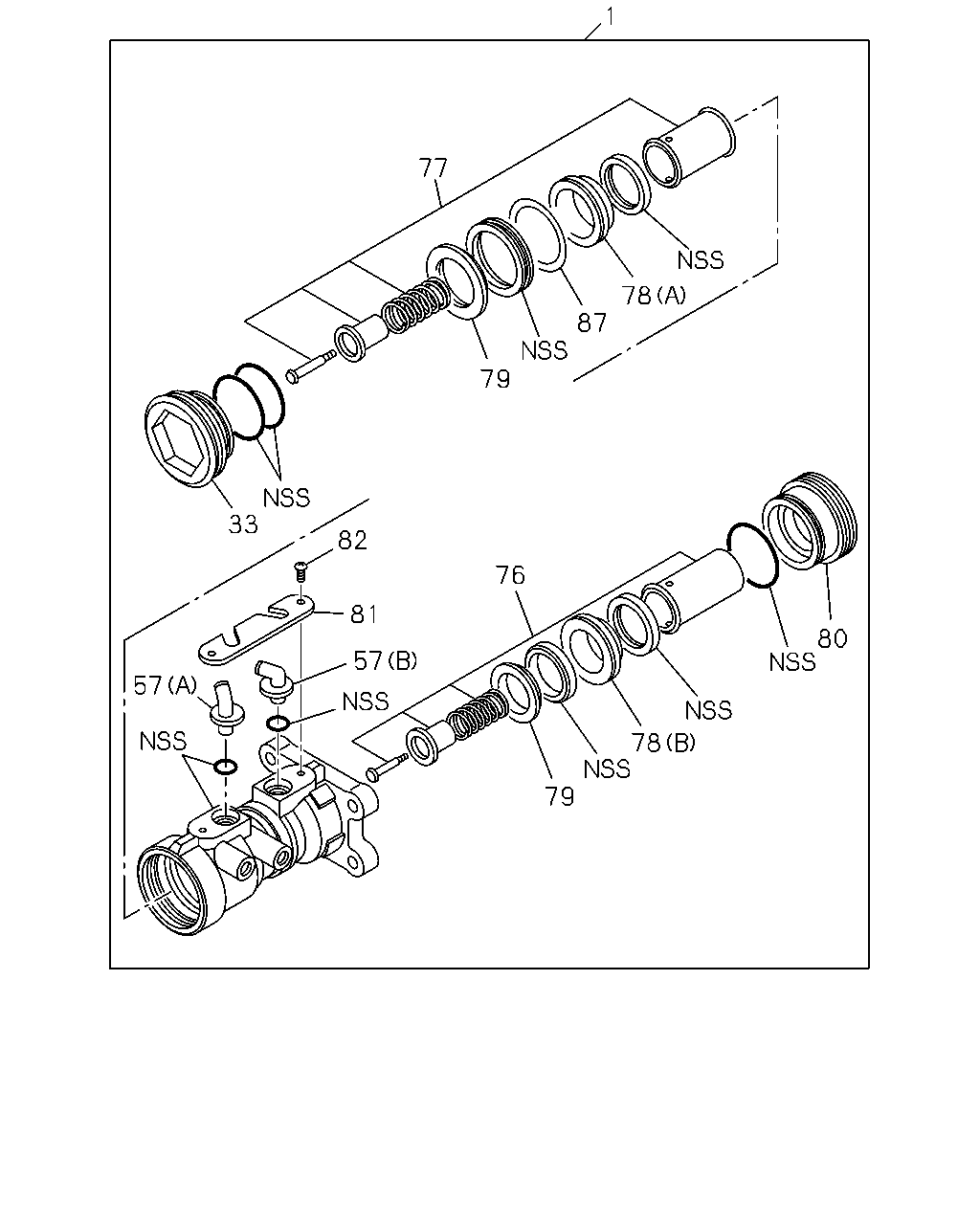

çizim 119506
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; BRK MASTER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97315-165-0 01 1 0911-
1 CYLINDER ASM; BRK MASTER 8-97315-164-0 01 1 0609-0910
1 CYLINDER ASM; BRK MASTER
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97315-164-0 01 1 0911-
33 PLUG; END,M/CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97186-698-0 01 1 0911-
33 PLUG; END,M/CYL 8-97186-696-0 01 1 0609-0910
33 PLUG; END,M/CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97186-696-0 01 1 0911-
57 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 0609-
57 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 0609-
76 PISTON ASM; PRIMARY
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97224-639-0 01 1 0911-
76 PISTON ASM; PRIMARY 8-97224-636-0 01 1 0609-0910
76 PISTON ASM; PRIMARY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97224-636-0 01 1 0911-
77 PISTON ASM; SECONDARY
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97224-637-0 01 1 0911-
77 PISTON ASM; SECONDARY 8-97224-635-0 01 1 0609-0910
77 PISTON ASM; SECONDARY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97224-635-0 01 1 0911-
78 BUSHING; MASTER CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97141-410-0 01 1 0911-
78 BUSHING; MASTER CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97217-830-0 01 1 0911-
78 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 0609-0910
78 BUSHING; MASTER CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97130-454-0 01 1 0911-
78 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 0609-0910
78 BUSHING; MASTER CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97217-310-0 01 1 0911-
79 SUPPORTER; CUP
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97141-417-0 02 1 0911-
79 SUPPORTER; CUP 8-97130-462-0 02 1 0609-0910
79 SUPPORTER; CUP
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97130-462-0 02 1 0911-
80 COVER; MASTER CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97141-404-0 01 1 0911-
80 COVER; MASTER CYL 8-97130-448-0 01 1 0609-0910
80 COVER; MASTER CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97130-448-0 01 1 0911-
81 HOLDER; NIPPLE 8-97315-168-0 01 1 0609-
82 SCREW; HOLDER 8-97130-446-0 02 1 0609-
87 SPACER; CUP
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97141-413-0 01 1 0911-
87 SPACER; CUP 8-97130-458-0 01 1 0609-0910
87 SPACER; CUP
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97130-458-0 01 1 0911-
