Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#32850) — 27 parça
◀
[311A] FIXING PARTS;MSB (6 parça)
[311A] FIXING PARTS;FRONT SIDE (4 parça)

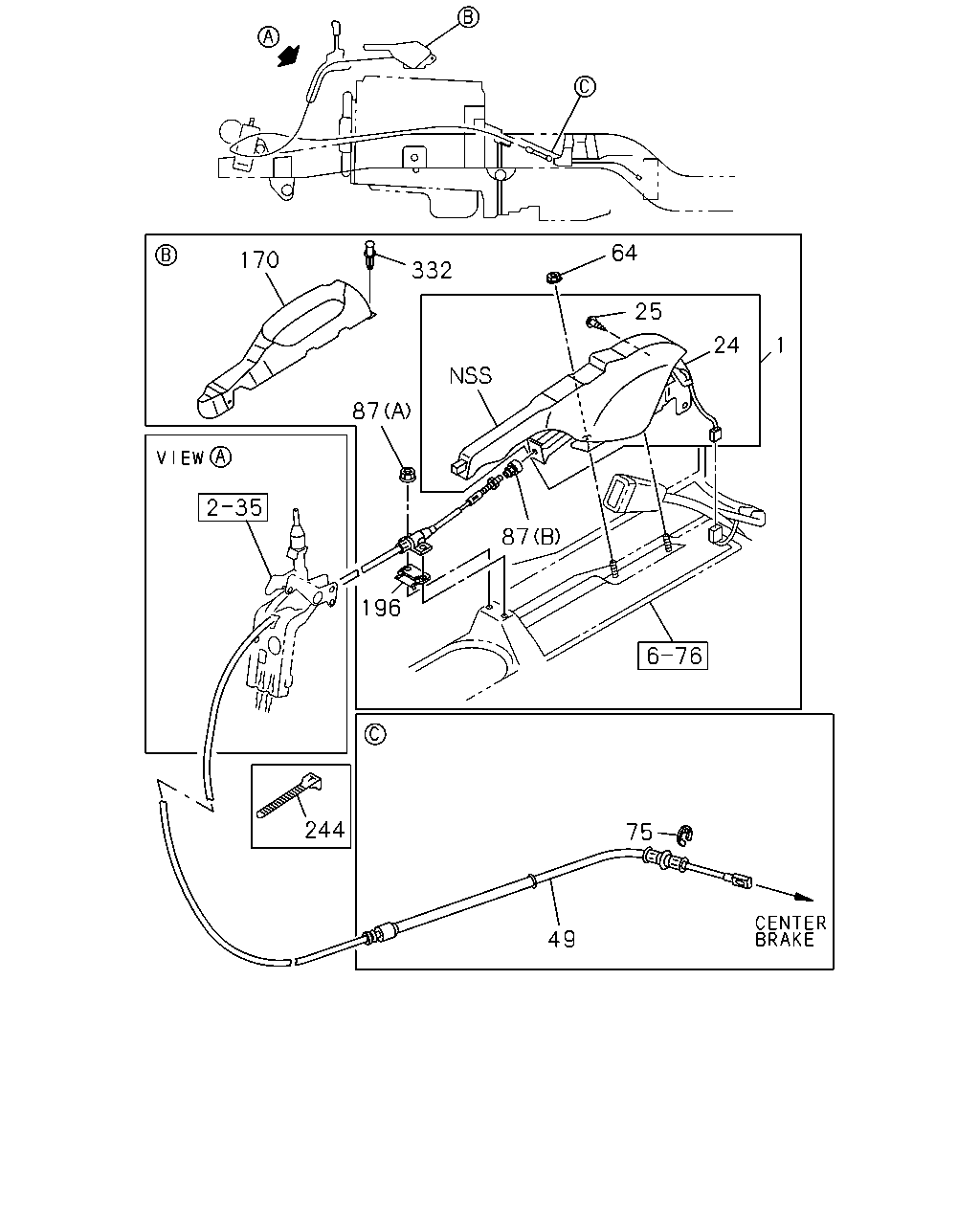

[311A] STEM AND CABLE (17 parça)
▶
225
89
224
91
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
BRACKET; CLIP
8-97113-984-1
01
1
0609-
91
CLIP; PARKING BRK CABLE
ID=13 L=50
0-95235-286-0
01
1
0609-
181
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0609-
181
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0609-
224
BOLT; CABLE CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0609-
225
NUT; CABLE CLIP
M8 FLANGE
0-91180-108-0
01
1
0609-
241
324
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
181
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0609-
181
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0609-
241
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0609-
324
BRACKET
8-97101-815-2
01
1
0609-
64
170
332
25
24
1
87
87
196
244
75
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEM ASM; PARKING BRK
GRAY
8-97585-445-2
01
1
0609-0610
1
STEM ASM; PARKING BRK
GRAY
8-97409-385-0
01
1
0611-1305
1
STEM ASM; PARKING BRK
GRAY
8-97427-522-0
01
1
1306-
24
SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0609-1305
24
SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1306-
25
SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0609-
49
CABLE; PARKING BRK
8-97184-272-0
01
1
0609-
64
NUT; PARKING BRK
M8 W/LK WASHER
8-94327-073-0
02
1
0609-0610
64
NUT; PARKING BRK
M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0611-
75
RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
0609-
87
NUT
(A) M8 FLANGE
0-91180-108-0
02
1
0609-
87
NUT
(B) M6
1-71996-312-0
01
1
0609-0611
87
NUT
(B) M6
8-98034-313-1
01
1
0612-
170
COVER; PARKING BRK LEVER
GRAY
8-97400-347-1
01
1
0609-
196
SPACER; CABLE TO LEVER
8-97095-464-2
01
1
0609-
244
CLIP; BAND
L=140
5-09707-031-1
01
1
0609-
332
CLIP; COVER
D6X12.5
8-94146-425-0
01
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
