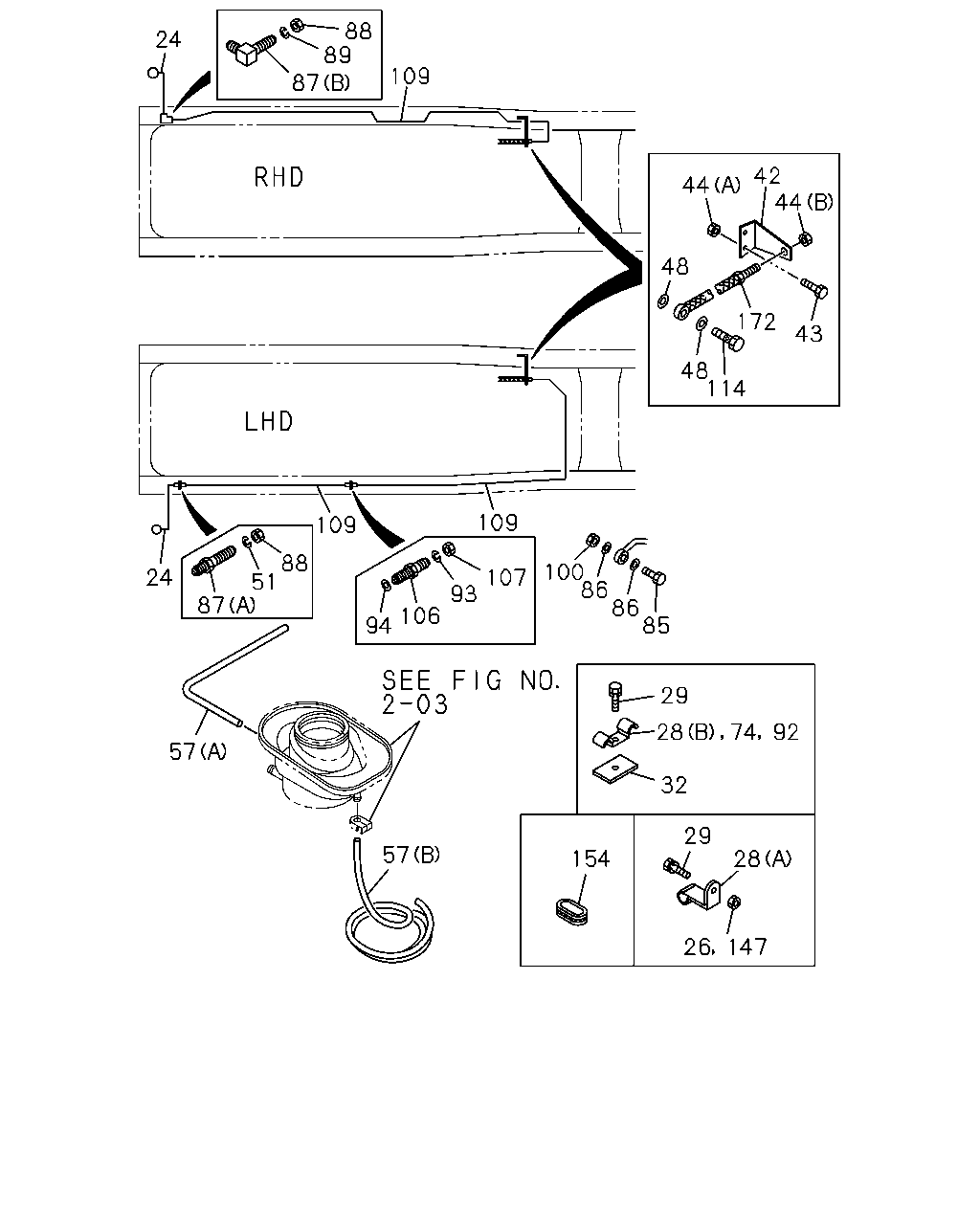

2-05 — CLUTCH PIPING (#3285) — 58 parça
çizim 5171
88 89 87 24 109 42 44 44 48 172 43 48 114 109 109 88 51 100 86 86 85 24 107 93 87 106 94 29 28 74 92 57 32 29 57 154 28 26 147
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 PIPE ASM; CLU,M/CYL TO UNION
RIGHT HAND DRIVE(MRR5FB) L=338 		1-47421-839-0 01 1 9101-9212 ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
RIGHT HAND DRIVE(MRR5FB) L=338 		1-47425-377-0 01 1 9301- ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=464 		1-47421-837-0 01 1 9101-9212 ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=464 		1-47425-376-0 01 1 9301- ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=576 		1-47421-447-0 01 1 9101-9212 ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=576 		1-47425-375-0 01 1 9301- ● ● ●
26 NUT; CLIP,OIL PIPE
RIGHT HAND DRIVE(MRR5FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 		9-09110-408-0 01 1 9101- ● ● ●
26 NUT; CLIP,OIL PIPE
LEFT HAND DRIVE(MRR6FB) M8 		9-09110-408-0 01 1 9101- ● ● ●
26 NUT; CLIP,OIL PIPE
RIGHT HAND DRIVE(MRR5FB) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M8 		9-09110-408-0 02 1 9101- ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9101- ● ● ●
28 CLIP; OIL PIPE
RIGHT HAND DRIVE(MRR5FB) (B) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 01 1 9101- ● ● ●
28 CLIP; OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 01 1 9101- ● ● ●
29 BOLT; CLIP,OIL PIPE
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ● ●
29 BOLT; CLIP,OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ● ●
29 BOLT; CLIP,OIL PIPE
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ● ●
29 BOLT; CLIP,OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ● ●
29 BOLT; CLIP,OIL PIPE
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ● ●
29 BOLT; CLIP,OIL PIPE
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ● ● ●
29 BOLT; CLIP,OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9106-9204 ● ● ●
29 BOLT; CLIP,OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205- ● ● ●
32 BRACKET; CLIP OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50 		1-47475-299-2 01 1 9101-9105 ● ● ●
32 BRACKET; CLIP OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50 		1-47475-299-2 02 1 9106- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47475-709-0 01 1 9101- ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER 0-50140-825-0 02 1 9101- ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
(A) M8 		9-09110-408-0 02 1 9101- ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
(B) M14 		9-99111-414-0 01 1 9101- ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.5 		1-09630-074-1 01 1 9101- ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 		9-09851-004-0 01 1 9101- ● ● ●
51 WASHER; LK 9-09150-514-0 01 1 9101-9312 ● ● ●
57 HOSE; CLU M/CYL TO OIL TANK
(A) L=810 SERVICED BY L=1800 		1-09360-320-0 01 1 9101- ● ● ●
57 HOSE; CLU M/CYL TO OIL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1800 SERVICED BY L=10000 		1-09366-161-0 01 1 9101- ● ● ●
74 CLIP; CLU OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-09700-747-0 01 1 9101- ● ● ●
85 BOLT; EYE JOINT,CLU M/CYL
M14X29 EYE BOLT 		9-09906-325-1 01 1 9101- ● ● ●
86 GASKET; EYE JOINT,CLU M/CYL 9-09571-414-0 02 1 9101- ● ● ●
87 UNION; OIL PIPE
RIGHT HAND DRIVE(MRR5FB) (B) 		9-09225-108-1 01 1 9101- ● ● ●
87 UNION; OIL PIPE
LEFT HAND DRIVE(MRR6FB) (A) 		9-09223-208-1 01 1 9101- ● ● ●
88 NUT; PIPE UNION 9-99111-414-0 01 1 9101- ● ● ●
89 WASHER; LK,PIPE UNION 9-09150-514-0 01 1 9101-9312 ● ● ●
92 CLIP; OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09700-747-0 01 1 9106- ● ● ●
93 WASHER; LK,UNION,OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09150-512-0 01 1 9101-9312 ● ● ●
94 WASHER; PL,UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09160-512-0 01 1 9101- ● ● ●
100 NUT; BRK PIPE,RR AXLE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09110-408-0 01 1 9101- ● ● ●
106 UNION; OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 2WAY 		1-09654-034-2 01 1 9101- ● ● ●
106 UNION; OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M14 STRAIGHT 		9-09223-008-1 01 1 9101- ● ● ●
107 NUT; UNION,OIL PIPE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09840-280-0 01 1 9101- ● ● ●
109 PIPE; AIR,UNION TO UNION
RIGHT HAND DRIVE(MRR5FB) L=1797 SERVICED BY L=1800 		1-47434-413-0 01 1 9101-9212 ● ● ●
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1797 SERVICED BY L=1800 		1-47434-413-0 01 1 9101-9212 ● ● ●
109 PIPE; AIR,UNION TO UNION
RIGHT HAND DRIVE(MRR5FB) L=1797 SERVICED BY L=1800 		1-47426-392-0 01 1 9301- ● ● ●
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1797 SERVICED BY L=1800 		1-47426-392-0 01 1 9301- ● ● ●
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=855 SERVICED BY L=900 		1-47434-407-0 01 1 9101-9212 ● ● ●
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=855 SERVICED BY L=900 		1-47426-384-0 01 1 9301- ● ● ●
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) SERVICED BY L=2700 		1-47426-396-0 01 1 9101- ● ● ●
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=954 SERVICED BY L=1820 		1-47434-394-0 01 1 9101-9212 ● ● ●
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=954 SERVICED BY L=970 		1-47426-385-0 01 1 9301- ● ● ●
114 BOLT; EYE,FLEX HOSE 1-09675-158-0 01 1 9101- ● ● ●
147 NUT; CLIP FIX
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09110-408-0 01 1 9106- ● ● ●
154 GROMMET; CLU OIL PIPE 9-09575-597-0 01 1 9101- ●
172 HOSE; FLEX,CLU BOOSTER 1-09364-581-0 01 1 9101- ● ● ●
