3-05 — REAR WHEEL BRAKE (#32847) — 86 parça

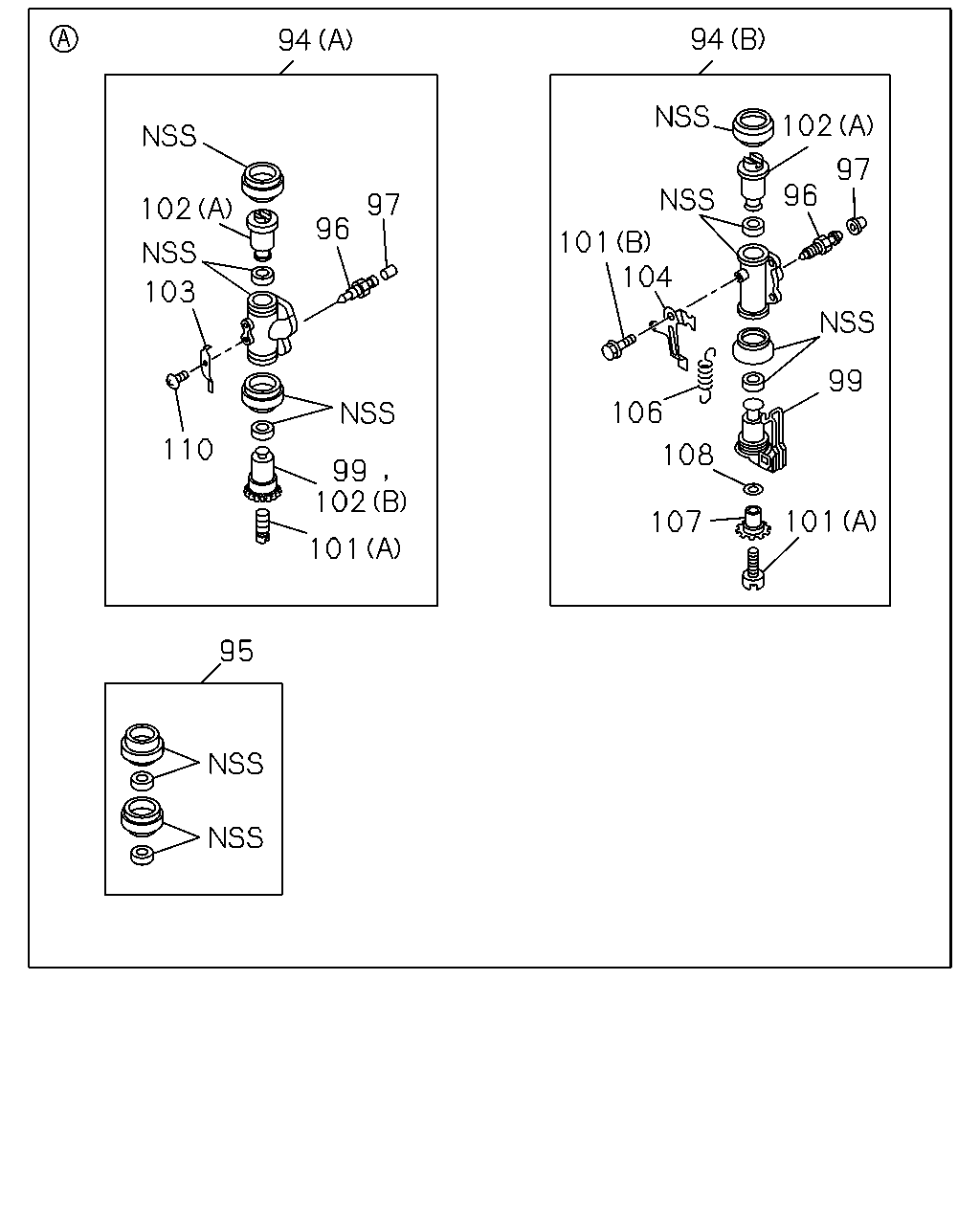

94 94 102 97 96 97 102 96 101 104 103 99 106 110 108 99 102 101 107 101 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	CYLINDER; WHEEL,RR BRK BRK WHL LK CONT LSPV<6PH> (B) REAR	8-97349-689-0	01	1	0911-
94	CYLINDER; WHEEL,RR BRK BRK WHL LK CONT LSPV<6PH> (B) REAR	8-97349-690-0	01	1	0911-
94	CYLINDER; WHEEL,RR BRK BRK WHL LK CONT LSPV<6PH> (B) FRONT	8-97349-691-0	01	1	0911-
94	CYLINDER; WHEEL,RR BRK BRK WHL LK CONT LSPV<6PH> (B) FRONT	8-97349-692-0	01	1	0911-
94	CYLINDER; WHEEL,RR BRK (A)	8-97139-842-0	02	1	0609-0910
94	CYLINDER; WHEEL,RR BRK EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97139-842-0	02	1	0911-
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97139-840-0	01	1	0609-0910
94	CYLINDER; WHEEL,RR BRK EXC. BRK WHL LK CONT LSPV<6PH> (A) FRONT	8-97139-840-0	01	1	0911-
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97139-841-0	01	1	0609-0910
94	CYLINDER; WHEEL,RR BRK EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR	8-97139-841-0	01	1	0911-
95	CUP SET; RR WHEEL CYL BRK WHL LK CONT LSPV<6PH>	5-87831-622-0	01	1	0911-
95	CUP SET; RR WHEEL CYL	5-87831-621-0	01	1	0609-0910
95	CUP SET; RR WHEEL CYL EXC. BRK WHL LK CONT LSPV<6PH>	5-87831-621-0	01	1	0911-
96	SCREW; BLEEDER,RR BRK BRK WHL LK CONT LSPV<6PH>	8-98050-476-0	02	1	0911-
96	SCREW; BLEEDER,RR BRK	9-47615-027-0	01	1	0609-0711
96	SCREW; BLEEDER,RR BRK	8-98050-476-0	01	1	0712-0910
96	SCREW; BLEEDER,RR BRK EXC. BRK WHL LK CONT LSPV<6PH>	8-98050-476-0	01	1	0911-
97	CAP; BLEEDER,RR WHEEL CYL BRK WHL LK CONT LSPV<6PH>	8-98050-479-0	02	1	0911-
97	CAP; BLEEDER,RR WHEEL CYL	1-47619-009-0	01	1	0609-0711
97	CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	01	1	0712-0910
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRK WHL LK CONT LSPV<6PH>	8-98050-479-0	01	1	0911-
99	PISTON; RR WHEEL CYL BRK WHL LK CONT LSPV<6PH>	8-97349-727-0	02	1	0911-
99	PISTON; RR WHEEL CYL BRK WHL LK CONT LSPV<6PH>	8-97349-728-0	02	1	0911-
99	PISTON; RR WHEEL CYL	8-97078-698-0	03	1	0609-0910
99	PISTON; RR WHEEL CYL EXC. BRK WHL LK CONT LSPV<6PH>	8-97078-698-0	03	1	0911-
101	SCREW; ADJ,RR WHEEL CYL BRK WHL LK CONT LSPV<6PH> (A) M12X30.2 RH THREAD	5-47622-003-1	02	1	0911-
101	SCREW; ADJ,RR WHEEL CYL BRK WHL LK CONT LSPV<6PH> (A) M12X30.2 LH THREAD	5-47622-004-1	02	1	0911-
101	SCREW; ADJ,RR WHEEL CYL BRK WHL LK CONT LSPV<6PH> (B)	8-97349-747-0	04	1	0911-
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97078-623-0	04	1	0609-0910
101	SCREW; ADJ,RR WHEEL CYL EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97078-623-0	04	1	0911-
102	PISTON; REAR WHEEL CYL (A) D=25.4	8-94128-531-1	04	1	0609-
102	PISTON; REAR WHEEL CYL (B)	8-97078-698-0	01	1	0609-0910
102	PISTON; REAR WHEEL CYL EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-97078-698-0	01	1	0911-
103	SPRING; LK,RR WHEEL CYL,ADJ	8-94128-486-0	04	1	0609-0910
103	SPRING; LK,RR WHEEL CYL,ADJ EXC. BRK WHL LK CONT LSPV<6PH>	8-94128-486-0	04	1	0911-
104	LEVER; ADJ BRK WHL LK CONT LSPV<6PH>	8-97349-743-0	02	1	0911-
104	LEVER; ADJ BRK WHL LK CONT LSPV<6PH>	8-97349-744-0	02	1	0911-
106	SPRING; ADJ LEVER BRK WHL LK CONT LSPV<6PH>	8-97349-745-0	04	1	0911-
107	GEAR; ADJ,RR W/CYL BRK WHL LK CONT LSPV<6PH>	8-97349-737-0	02	1	0911-
107	GEAR; ADJ,RR W/CYL BRK WHL LK CONT LSPV<6PH>	8-97349-739-0	02	1	0911-
108	WASHER; THRUST,GEAR ADJ BRK WHL LK CONT LSPV<6PH>	8-97029-304-0	04	1	0911-
110	SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	0609-0910
110	SCREW; LOCK SPRING,RR WHEEL CYL EXC. BRK WHL LK CONT LSPV<6PH>	8-94128-727-0	04	1	0911-

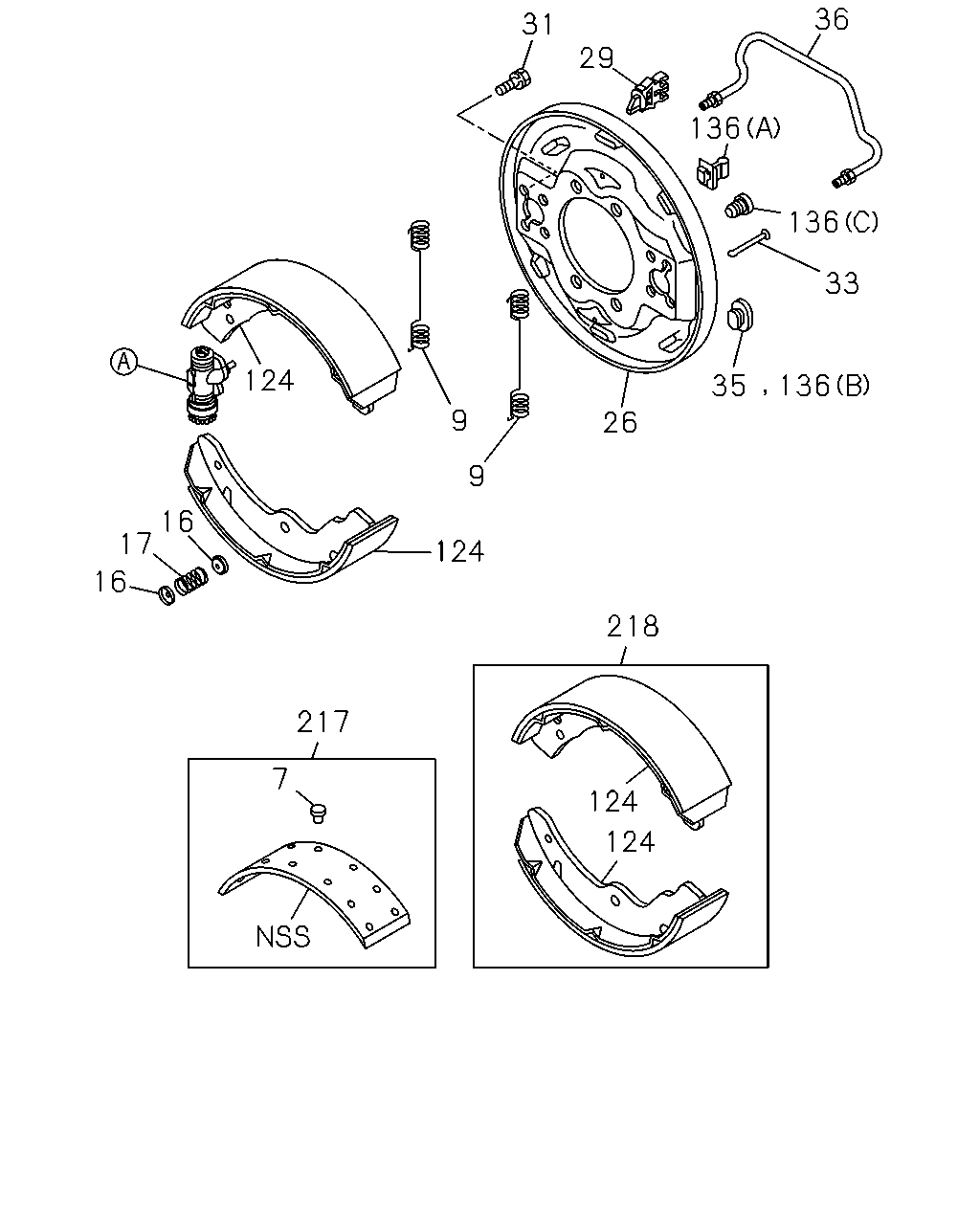

36 31 29 136 136 33 124 136 35 9 26 9 16 17 124 16 218 217 7 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	RIVET; LINING,RR BRK BRK WHL LK CONT LSPV<6PH>	1-09732-029-0	40	1	0911-
9	SPRING; RETURN,BRK SHOE BRK WHL LK CONT LSPV<6PH>	5-09583-118-0	04	1	0911-
9	SPRING; RETURN,BRK SHOE	8-97078-739-0	04	1	0609-0910
9	SPRING; RETURN,BRK SHOE EXC. BRK WHL LK CONT LSPV<6PH>	8-97078-739-0	04	1	0911-
16	CUP; SHOE HOLDING BRK WHL LK CONT LSPV<6PH>	9-47165-096-0	08	1	0911-
16	CUP; SHOE HOLDING	9-47162-033-0	08	1	0609-0910
16	CUP; SHOE HOLDING EXC. BRK WHL LK CONT LSPV<6PH>	9-47162-033-0	08	1	0911-
17	SPRING; SHOE HOLD DOWN BRK WHL LK CONT LSPV<6PH>	5-09580-101-1	04	1	0911-
17	SPRING; SHOE HOLD DOWN	9-09940-989-1	04	1	0609-0910
17	SPRING; SHOE HOLD DOWN EXC. BRK WHL LK CONT LSPV<6PH>	9-09940-989-1	04	1	0911-
26	PLATE; BACK,RR BRK BRK WHL LK CONT LSPV<6PH>	8-97079-854-0	01	1	0911-
26	PLATE; BACK,RR BRK BRK WHL LK CONT LSPV<6PH>	8-97079-855-0	01	1	0911-
26	PLATE; BACK,RR BRK	8-97078-680-0	01	1	0609-0910
26	PLATE; BACK,RR BRK EXC. BRK WHL LK CONT LSPV<6PH>	8-97078-680-0	01	1	0911-
26	PLATE; BACK,RR BRK	8-97078-679-0	01	1	0609-0910
26	PLATE; BACK,RR BRK EXC. BRK WHL LK CONT LSPV<6PH>	8-97078-679-0	01	1	0911-
29	CLIP; PIPE,BRK BRK WHL LK CONT LSPV<6PH>	8-94128-306-0	02	1	0911-
29	CLIP; PIPE,BRK	8-94128-307-0	02	1	0609-0910
29	CLIP; PIPE,BRK EXC. BRK WHL LK CONT LSPV<6PH>	8-94128-307-0	02	1	0911-
31	BOLT; RR WHEEL CYL BRK WHL LK CONT LSPV<6PH>	5-09030-016-1	16	1	0911-
31	BOLT; RR WHEEL CYL	5-09030-036-1	16	1	0609-0910
31	BOLT; RR WHEEL CYL EXC. BRK WHL LK CONT LSPV<6PH>	5-09030-036-1	16	1	0911-
33	PIN; SHOE HOLD DOWN BRK WHL LK CONT LSPV<6PH>	5-47162-001-0	04	1	0911-
33	PIN; SHOE HOLD DOWN	9-47162-607-0	04	1	0609-0910
33	PIN; SHOE HOLD DOWN EXC. BRK WHL LK CONT LSPV<6PH>	9-47162-607-0	04	1	0911-
35	GROMMET; CHECK HOLE BRK WHL LK CONT LSPV<6PH>	8-94171-287-0	02	1	0911-
35	GROMMET; CHECK HOLE	8-94344-919-0	02	1	0609-0910
35	GROMMET; CHECK HOLE EXC. BRK WHL LK CONT LSPV<6PH>	8-94344-919-0	02	1	0911-
36	PIPE; OIL,RR BRK BRK WHL LK CONT LSPV<6PH>	8-94154-916-0	02	1	0911-
36	PIPE; OIL,RR BRK	8-94128-192-0	02	1	0609-0910
36	PIPE; OIL,RR BRK EXC. BRK WHL LK CONT LSPV<6PH>	8-94128-192-0	02	1	0911-
124	SHOE ASM; BRK,RR BRK WHL LK CONT LSPV<6PH>	8-97287-778-0	04	1	0911-
124	SHOE ASM; BRK,RR	8-97035-085-1	04	1	0609-0910
124	SHOE ASM; BRK,RR EXC. BRK WHL LK CONT LSPV<6PH>	8-97035-085-1	04	1	0911-
136	GROMMET BRK WHL LK CONT LSPV<6PH> (C)	1-47154-008-0	04	1	0911-
136	GROMMET BRK WHL LK CONT LSPV<6PH> (B)	8-94171-287-0	04	1	0911-
136	GROMMET (A)	9-09956-640-0	04	1	0609-0910
136	GROMMET EXC. BRK WHL LK CONT LSPV<6PH> (A)	9-09956-640-0	04	1	0911-
217	LINING KIT; RR BRK BRK WHL LK CONT LSPV<6PH>	5-87831-801-0	01	1	0911-
217	LINING KIT; RR BRK BRK WHL LK CONT LSPV<6PH> BEST VALUE PARTS	5-87610-121-0	01	1	0911-
218	SHOE KIT; BRK,RR BRK WHL LK CONT LSPV<6PH>	5-87832-047-0	01	1	0911-
218	SHOE KIT; BRK,RR	5-87832-045-0	01	1	0609-0910
218	SHOE KIT; BRK,RR EXC. BRK WHL LK CONT LSPV<6PH>	5-87832-045-0	01	1	0911-
