3-01 — FRONT WHEEL BRAKE (#32846) — 89 parça

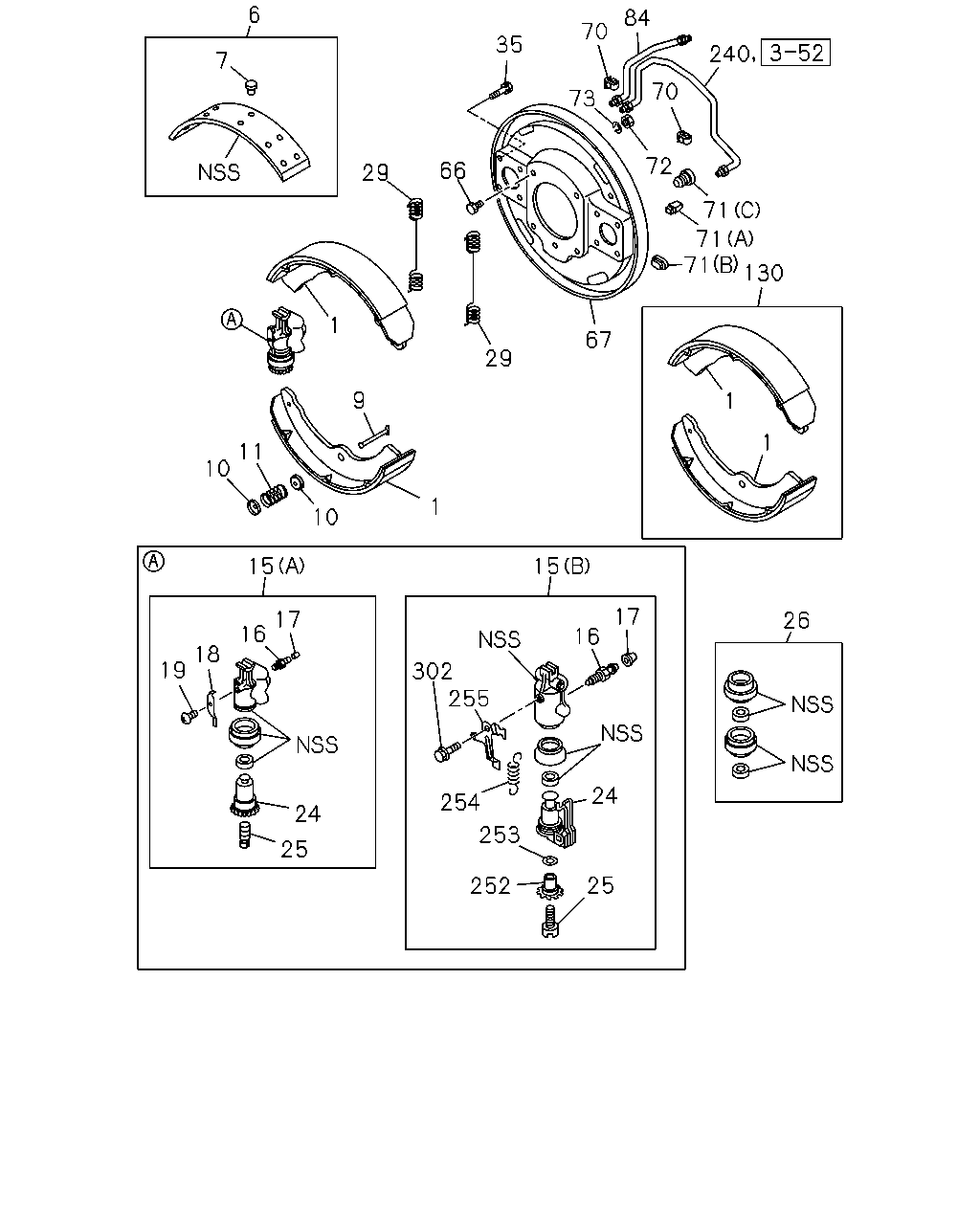

çizim 119531
6 84 70 35 240 7 70 73 72 66 29 71 71 71 130 1 67 29 9 1 1 11 10 1 10 15 15 17 17 26 16 16 18 19 302 255 24 254 24 253 25 25 252
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97287-778-0 04 1 0911-
1 SHOE; BRK,FRT 8-97035-085-1 04 1 0609-0910
1 SHOE; BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-085-1 04 1 0911-
6 LINING KIT; FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87831-801-0 01 1 0911-
6 LINING KIT; FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS 		5-87610-121-0 01 1 0911-
7 RIVET; LINING,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		1-09732-029-0 40 1 0911-
9 PIN; SHOE HOLDER
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-47162-001-0 04 1 0911-
9 PIN; SHOE HOLDER 8-97019-207-0 04 1 0609-0910
9 PIN; SHOE HOLDER
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97019-207-0 04 1 0911-
10 CUP; SHOE HOLDING
4 WHEEL ANTI LOCK BRAKE<JE5> 		9-47165-096-0 08 1 0911-
10 CUP; SHOE HOLDING 9-47162-033-0 08 1 0609-0910
10 CUP; SHOE HOLDING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		9-47162-033-0 08 1 0911-
11 SPRING; SHOE HOLDING
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-09580-101-1 04 1 0911-
11 SPRING; SHOE HOLDING 9-09940-989-1 04 1 0609-0910
11 SPRING; SHOE HOLDING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		9-09940-989-1 04 1 0911-
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-98081-324-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-98081-325-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-98081-326-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-98081-327-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
(A) REAR 		8-97179-358-0 01 1 0609-0910
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR 		8-97179-358-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
(A) FRONT 		8-97179-360-0 01 1 0609-0910
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-97179-360-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
(A) REAR 		8-97179-357-0 01 1 0609-0910
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR 		8-97179-357-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
(A) FRONT 		8-97179-359-0 01 1 0609-0910
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-97179-359-0 01 1 0911-
16 SCREW; BLEEDER,FRT BRK 9-47615-027-0 02 1 0609-0711
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 0712-
17 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 02 1 0609-0711
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 0712-
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0609-0910
18 STOPPER; ADJ SCREW
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-486-0 04 1 0911-
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0609-0910
19 SCREW; STOPPER SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-727-0 04 1 0911-
24 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98081-284-0 02 1 0911-
24 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98081-285-0 02 1 0911-
24 PISTON; FRT WHEEL CYL 8-97078-621-0 04 1 0609-0910
24 PISTON; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-621-0 04 1 0911-
25 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> M12X30.2 RH THREAD 		5-47622-003-1 02 1 0911-
25 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> M12X30.2 LH THREAD 		5-47622-004-1 02 1 0911-
25 SCREW; ADJ,FRT WHEEL CYL 8-97078-623-0 04 1 0609-0910
25 SCREW; ADJ,FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-623-0 04 1 0911-
26 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87831-599-0 01 1 0911-
26 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 0609-0910
26 CUP SET; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87831-602-0 01 1 0911-
29 SPRING; RETURN,FRT BRK SHOE
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-09583-118-0 04 1 0911-
29 SPRING; RETURN,FRT BRK SHOE 8-97078-739-0 04 1 0609-0910
29 SPRING; RETURN,FRT BRK SHOE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-739-0 04 1 0911-
35 BOLT; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-09030-016-1 16 1 0911-
35 BOLT; FRT WHEEL CYL 8-97025-734-0 16 1 0609-0910
35 BOLT; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97025-734-0 16 1 0911-
66 BOLT; OIL SHIELD COVER
M12X33 		9-09600-043-3 08 1 0609-0611
66 BOLT; OIL SHIELD COVER
M12X33 		8-98009-493-2 08 1 0612-
67 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98133-289-0 01 1 0911-
67 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98133-290-0 01 1 0911-
67 PLATE; BACK,FRT BRK 8-97302-587-0 01 1 0609-0910
67 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97302-587-0 01 1 0911-
67 PLATE; BACK,FRT BRK 8-97302-586-0 01 1 0609-0910
67 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97302-586-0 01 1 0911-
70 CLIP; PIPE HOLD
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-306-0 02 1 0911-
70 CLIP; PIPE HOLD 8-94128-306-0 04 1 0609-0910
70 CLIP; PIPE HOLD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-306-0 04 1 0911-
71 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		1-47154-008-0 04 1 0911-
71 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-94171-287-0 06 1 0911-
71 GROMMET; CHECK HOLE
(B) 		8-94171-287-0 02 1 0609-0910
71 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-94171-287-0 02 1 0911-
71 GROMMET; CHECK HOLE
(A) 		9-09756-034-0 02 1 0609-0910
71 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		9-09756-034-0 02 1 0911-
72 NUT; OIL SHIELD COVER
M12 		0-91110-512-0 08 1 0609-
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-612-0 08 1 0609-0611
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-812-0 08 1 0612-
84 PIPE; BRK,WHEEL CYL TO HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94154-917-0 01 1 0911-
84 PIPE; BRK,WHEEL CYL TO HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94154-918-0 01 1 0911-
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97019-225-0 01 1 0609-0910
84 PIPE; BRK,WHEEL CYL TO HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97019-225-0 01 1 0911-
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97019-224-0 01 1 0609-0910
84 PIPE; BRK,WHEEL CYL TO HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97019-224-0 01 1 0911-
130 SHOE KIT; BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87832-047-0 01 1 0911-
130 SHOE KIT; BRK,FRT 5-87832-045-0 01 1 0609-0910
130 SHOE KIT; BRK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87832-045-0 01 1 0911-
240 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94154-916-0 02 1 0911-
252 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-737-0 02 1 0911-
252 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-739-0 02 1 0911-
253 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97029-304-0 04 1 0911-
254 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-745-0 04 1 0911-
255 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-743-0 02 1 0911-
255 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-744-0 02 1 0911-
302 SCREW; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-747-0 04 1 0911-
