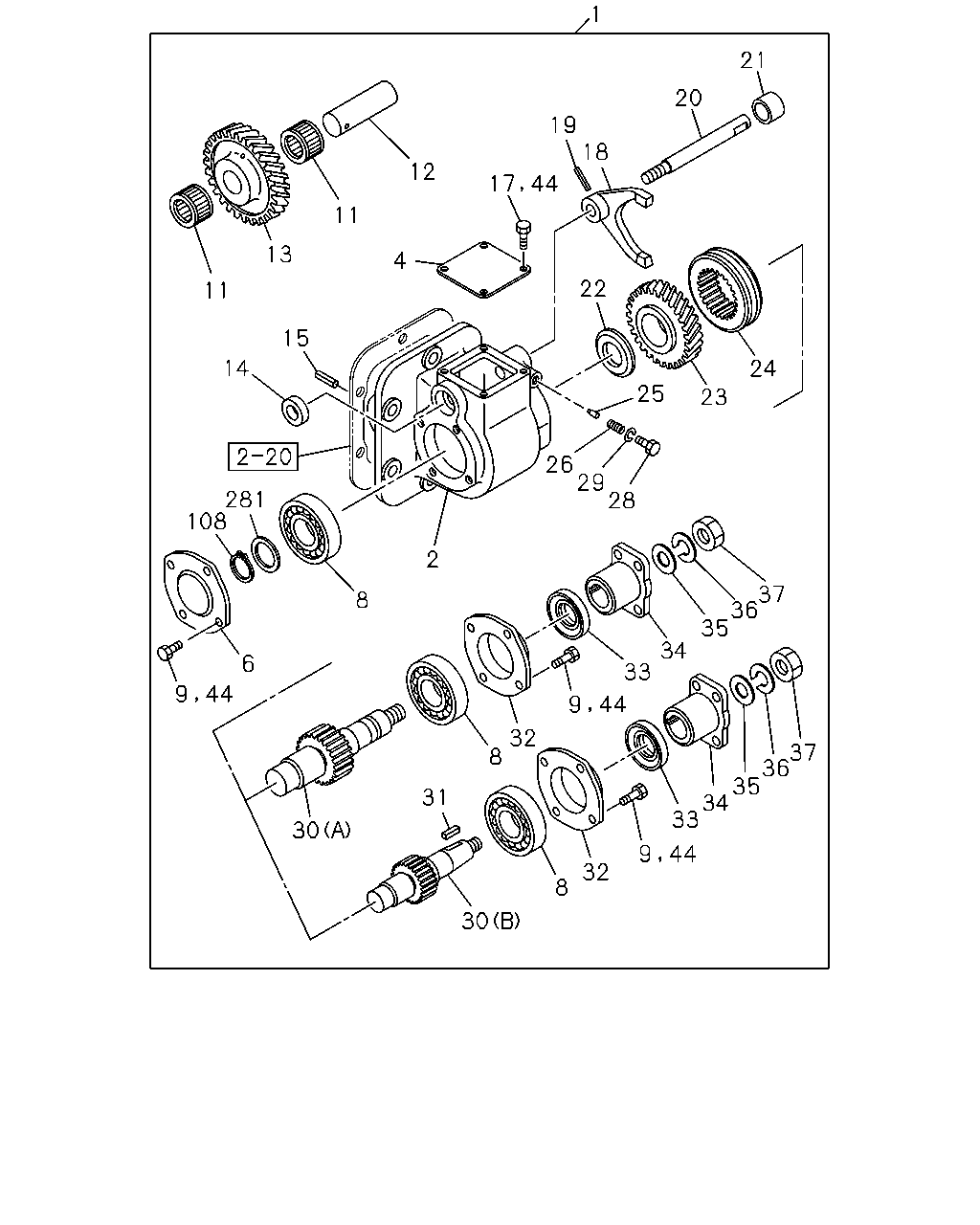

1 |
POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66)
IDENTIFICATION=B
|
8-97313-682-4 |
01 |
1 |
0609-1210 |
| |
1 |
POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66)
IDENTIFICATION=B
|
8-98223-525-0 |
01 |
1 |
1211-1305 |
| |
1 |
POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66)
IDENTIFICATION=B
|
8-98233-782-1 |
01 |
1 |
1306- |
| |
2 |
CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97319-357-1 |
01 |
1 |
0609-1409 |
| |
2 |
CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98282-380-0 |
01 |
1 |
1410- |
| |
4 |
COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97106-718-1 |
01 |
1 |
0609-0611 |
| |
4 |
COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98046-613-0 |
01 |
1 |
0612- |
| |
6 |
COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97333-347-0 |
01 |
1 |
0609-0611 |
| |
6 |
COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98046-612-0 |
01 |
1 |
0612-1305 |
| |
6 |
COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98233-778-0 |
01 |
1 |
1306- |
| |
8 |
BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
ID=25 OD=62
|
8-94343-031-1 |
02 |
1 |
0609- |
| |
9 |
BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66)
M8X16 FLANGE
|
0-28050-816-0 |
08 |
1 |
1211- |
| |
11 |
BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
NSK
|
9-00096-646-0 |
02 |
1 |
0609- |
| |
12 |
SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-38211-606-0 |
01 |
1 |
0609- |
| |
13 |
GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=34
|
9-38241-614-1 |
01 |
1 |
0609- |
| |
14 |
SEAL; OIL,GEAR CASE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98028-789-0 |
01 |
1 |
0609- |
| |
15 |
PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
L=16
|
9-09878-613-0 |
01 |
1 |
0609- |
| |
17 |
BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1211- |
| |
18 |
ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97027-045-0 |
01 |
1 |
0609-0611 |
| |
18 |
ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97224-702-0 |
01 |
1 |
0612- |
| |
19 |
PIN; SPR,SHIFT ARM,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
L=25 OD=5
|
8-94135-771-0 |
01 |
1 |
0609- |
| |
20 |
ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97224-714-0 |
01 |
1 |
0609-0611 |
| |
20 |
ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98046-622-0 |
01 |
1 |
0612- |
| |
21 |
COVER; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-33545-602-0 |
01 |
1 |
0609-0611 |
| |
21 |
COVER; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98046-617-0 |
01 |
1 |
0612- |
| |
22 |
COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE(V66)
|
9-38245-603-1 |
01 |
1 |
0609- |
| |
23 |
GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=22
|
9-38241-612-1 |
01 |
1 |
0609-0805 |
| |
23 |
GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=22
|
8-98120-612-0 |
01 |
1 |
0806- |
| |
24 |
SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97231-316-1 |
01 |
1 |
0609- |
| |
25 |
PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-94169-071-0 |
01 |
1 |
0609- |
| |
26 |
SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-09940-380-0 |
01 |
1 |
0609- |
| |
28 |
BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97318-428-0 |
01 |
1 |
0609-0611 |
| |
28 |
BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66)
M8
|
8-98038-424-0 |
01 |
1 |
0612- |
| |
29 |
WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66)
ID=8.2
|
9-09150-508-0 |
01 |
1 |
0609-0611 |
| |
29 |
WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66)
ID=8.2
|
0-91510-808-0 |
01 |
1 |
0612- |
| |
30 |
SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
(A)
|
8-97118-183-1 |
01 |
1 |
0609-1210 |
| |
30 |
SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
(B)
|
8-98223-518-0 |
01 |
1 |
1211-1305 |
| |
30 |
SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
(B)
|
8-98233-777-0 |
01 |
1 |
1306- |
| |
31 |
KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
L=25
|
8-98068-088-0 |
01 |
1 |
1211- |
| |
32 |
COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
1-38152-024-0 |
01 |
1 |
0609-0611 |
| |
32 |
COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98046-610-0 |
01 |
1 |
0612- |
| |
33 |
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
1-38159-007-0 |
01 |
1 |
0609- |
| |
34 |
FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97118-184-0 |
01 |
1 |
0609-0710 |
| |
34 |
FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98046-624-0 |
01 |
1 |
0711-1210 |
| |
34 |
FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-98223-519-0 |
01 |
1 |
1211- |
| |
35 |
WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
ID=15
|
9-09160-514-0 |
01 |
1 |
0609-0611 |
| |
35 |
WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
ID=15
|
0-91610-514-0 |
01 |
1 |
0612- |
| |
36 |
WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
ID=14.2
|
9-09150-514-0 |
01 |
1 |
0609-0611 |
| |
36 |
WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
ID=14.2
|
0-91510-814-0 |
01 |
1 |
0612- |
| |
37 |
NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
M14
|
9-99111-414-0 |
01 |
1 |
0609-0611 |
| |
37 |
NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
M14
|
0-91111-514-0 |
01 |
1 |
0612- |
| |
44 |
BOLT; COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
M8X16 FLANGE
|
0-28080-816-0 |
12 |
1 |
0609-0611 |
| |
44 |
BOLT; COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
M8X16 FLANGE
|
0-28050-816-0 |
12 |
1 |
0612-1210 |
| |
108 |
RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
ID=23.2
|
9-09180-025-0 |
01 |
1 |
1306- |
| |
281 |
SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE(V66)
T=1.85
|
8-97106-729-0 |
01 |
1 |
1306- |
