2-30 — GEAR SHIFTER AND QUADRANT BOX (#32840) — 116 parça

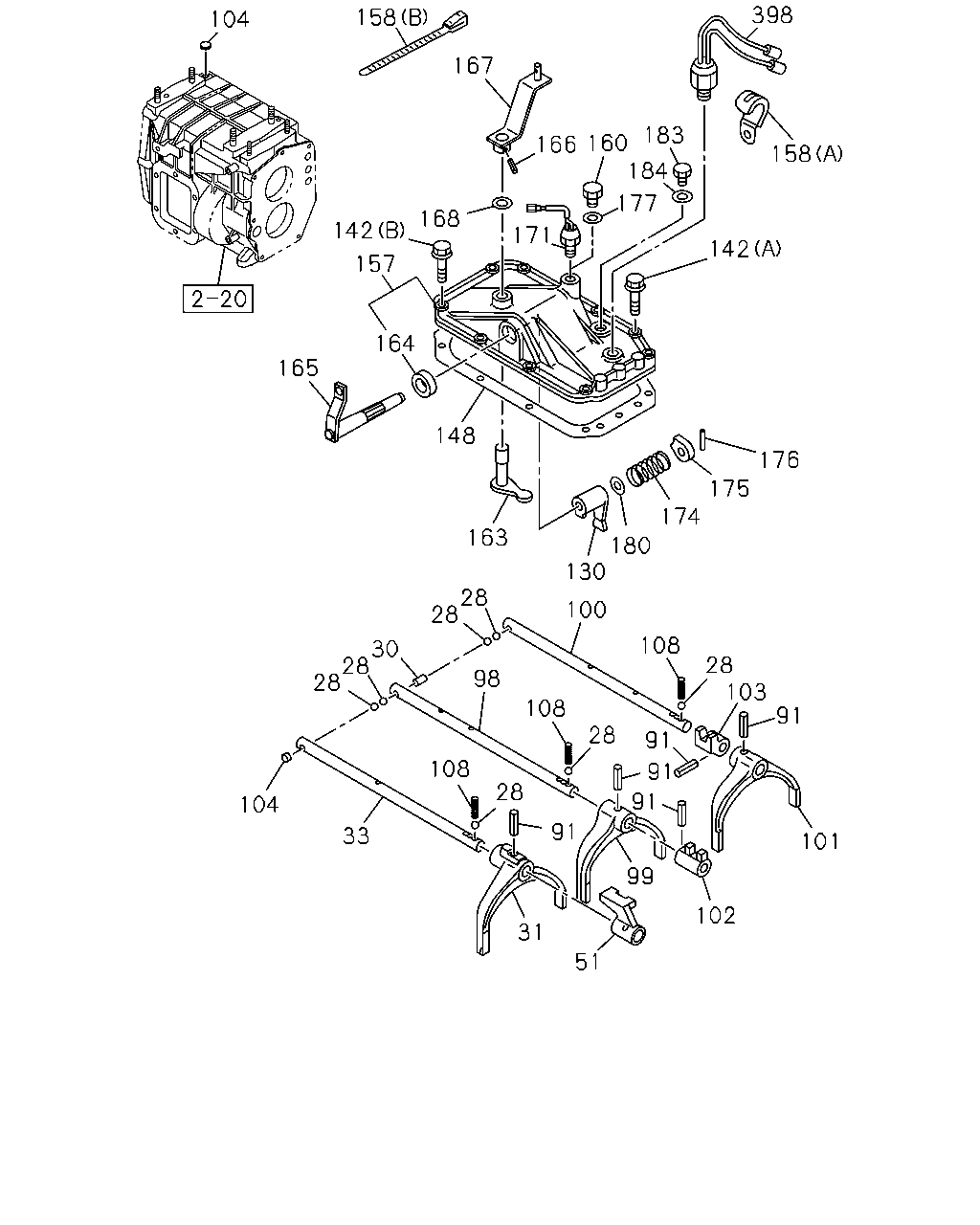

çizim 119554
158 398 183 184 177 142 168 142 157 164 165 148 163 171 166 160 158 104 167 180 174 175 176 130 100 28 28 30 28 28 104 33 108 98 108 28 91 28 91 91 91 108 28 103 91 101 102 99 31 51
BalonParca AdiParca NoAdetTipApplied Date
28 BALL; INTER LK 9-00097-010-0 07 1 0609-
30 PIN; INTER LK
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-971-0 01 1 1211-
30 PIN; INTER LK 5-33534-001-0 01 1 0609-1210
30 PIN; INTER LK
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		5-33534-001-0 01 1 1211-
31 ARM; SHIFT,LOW & 2ND
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-300-0 01 1 1211-
31 ARM; SHIFT,LOW & 2ND 8-97011-365-1 01 1 0609-1210
31 ARM; SHIFT,LOW & 2ND
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-365-1 01 1 1211-
33 ROD; SHIFT,LOW & 2ND
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-591-0 01 1 1211-
33 ROD; SHIFT,LOW & 2ND 8-97011-370-1 01 1 0609-1210
33 ROD; SHIFT,LOW & 2ND
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-370-1 01 1 1211-
51 BLOCK; SHIFT,1ST & 2ND
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-589-0 01 1 1211-
51 BLOCK; SHIFT,1ST & 2ND 8-97022-837-2 01 1 0609-1210
51 BLOCK; SHIFT,1ST & 2ND
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97022-837-2 01 1 1211-
91 PIN; SPR,SHIFT ARM
IN-HOUSE PRODUCTION VAR.2<TMW> L=25 OD=5 		1-09748-032-0 06 1 1211-
91 PIN; SPR,SHIFT ARM
L=25 OD=5 		8-94135-771-0 06 1 0609-1210
91 PIN; SPR,SHIFT ARM
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=25 OD=5 		8-94135-771-0 06 1 1211-
98 ROD; SHIFT,TOP & 3RD
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-590-0 01 1 1211-
98 ROD; SHIFT,TOP & 3RD 8-97011-371-1 01 1 0609-1210
98 ROD; SHIFT,TOP & 3RD
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-371-1 01 1 1211-
99 ARM; SHIFT,4TH & 3RD
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-301-0 01 1 1211-
99 ARM; SHIFT,4TH & 3RD 8-97011-366-1 01 1 0609-1210
99 ARM; SHIFT,4TH & 3RD
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-366-1 01 1 1211-
100 ROD; SHIFT,REV & 5TH
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-592-0 01 1 1211-
100 ROD; SHIFT,REV & 5TH 8-94316-923-0 01 1 0609-1210
100 ROD; SHIFT,REV & 5TH
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94316-923-0 01 1 1211-
101 ARM; SHIFT,REV & 5TH
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-303-0 01 1 1211-
101 ARM; SHIFT,REV & 5TH 8-97107-545-0 01 1 0609-1210
101 ARM; SHIFT,REV & 5TH
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97107-545-0 01 1 1211-
102 BLOCK; SHIFT,3RD & 4TH
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-588-0 01 1 1211-
102 BLOCK; SHIFT,3RD & 4TH 8-97017-573-1 01 1 0609-1210
102 BLOCK; SHIFT,3RD & 4TH
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97017-573-1 01 1 1211-
103 BLOCK; SHIFT,REV TO OD
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-587-0 01 1 1211-
103 BLOCK; SHIFT,REV TO OD 8-94135-719-4 01 1 0609-1210
103 BLOCK; SHIFT,REV TO OD
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94135-719-4 01 1 1211-
104 PLUG; PLATE
IN-HOUSE PRODUCTION VAR.2<TMW> OD=16 		0-92001-416-0 01 1 1211-
104 PLUG; PLATE
OD=16 		9-09201-316-0 01 1 0609-1210
104 PLUG; PLATE
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> OD=16 		9-09201-316-0 01 1 1211-
108 SPRING; LOCK BALL
IN-HOUSE PRODUCTION VAR.2<TMW> OD=6.8 L=31.6 		8-98188-917-0 03 1 1211-
108 SPRING; LOCK BALL
OD=6.8 L=31.6 		9-09740-114-0 03 1 0609-1210
108 SPRING; LOCK BALL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> OD=6.8 L=31.6 		9-09740-114-0 03 1 1211-
130 LEVER; SHIFT,INTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-340-0 01 1 1211-
130 LEVER; SHIFT,INTERNAL 8-94105-141-2 01 1 0609-1210
130 LEVER; SHIFT,INTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94105-141-2 01 1 1211-
142 BOLT; QUAD BOX
IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25 FLANGE 		0-28050-825-0 08 1 1211-
142 BOLT; QUAD BOX
IN-HOUSE PRODUCTION VAR.2<TMW> (B) M8X30 FLANGE 		0-28050-830-0 02 1 1211-
142 BOLT; QUAD BOX
(A) M8X25 		8-94128-786-0 08 1 0609-1210
142 BOLT; QUAD BOX
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25 		8-94128-786-0 08 1 1211-
142 BOLT; QUAD BOX
(B) M8X30 		8-97029-705-0 02 1 0609-1210
142 BOLT; QUAD BOX
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) M8X30 		8-97029-705-0 02 1 1211-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-273-0 01 1 1211-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-94257-162-0 01 1 0609-1210
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94257-162-0 01 1 1211-
157 BOX; QUAD,TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-265-0 01 1 1211-
157 BOX; QUAD,TRANS
EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94340-146-0 01 1 0609-
157 BOX; QUAD,TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-94340-145-0 01 1 0609-1210
157 BOX; QUAD,TRANS
EXHAUST BRAKE<NF8> 		8-94340-145-0 01 1 0609-1210
157 BOX; QUAD,TRANS
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94340-145-0 01 1 1211-
158 CLIP; HARNESS
IN-HOUSE PRODUCTION VAR.2<TMW> (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0803-
158 CLIP; HARNESS
(A) ID=8.5 		5-09700-275-0 01 1 0609-0802
158 CLIP; HARNESS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) ID=8.5 		5-09700-275-0 01 1 0803-
158 CLIP; HARNESS
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> (B) L=140 		5-09707-031-1 01 1 0609-0802
158 CLIP; HARNESS
EXHAUST BRAKE<NF8> (B) L=140 		5-09707-031-1 01 1 0609-0802
158 CLIP; HARNESS
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) L=140 		5-09707-031-1 01 1 0803-0806
158 CLIP; HARNESS
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> (B) L=140 		5-09707-031-1 01 1 0807-
158 CLIP; HARNESS
EXHAUST BRAKE<NF8> (B) L=140 		5-09707-031-1 01 1 0807-
160 PLUG; BLIND
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> M14X9 		9-99202-314-0 01 1 0609-0805
160 PLUG; BLIND
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> M14X9 		8-98042-944-0 01 1 0806-
163 LEVER; SELECT,INTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-302-0 01 1 1211-
163 LEVER; SELECT,INTERNAL 8-94159-268-1 01 1 0609-1210
163 LEVER; SELECT,INTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94159-268-1 01 1 1211-
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=27 		8-97304-068-0 02 1 0609-
165 LEVER; SHIFT
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-282-0 01 1 1211-
165 LEVER; SHIFT
EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97035-557-0 01 1 0609-
165 LEVER; SHIFT
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97036-221-0 01 1 0609-1210
165 LEVER; SHIFT
EXHAUST BRAKE<NF8> 		8-97036-221-0 01 1 0609-1210
165 LEVER; SHIFT
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97036-221-0 01 1 1211-
166 PIN; SPR,SELECT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> L=25 OD=5 		1-09748-032-0 01 1 1211-
166 PIN; SPR,SELECT LEVER
L=25 OD=5 		8-94135-771-0 01 1 0609-1210
166 PIN; SPR,SELECT LEVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=25 OD=5 		8-94135-771-0 01 1 1211-
167 LEVER; SELECT,EXTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-276-0 01 1 1211-
167 LEVER; SELECT,EXTERNAL 8-97035-560-1 01 1 0609-1210
167 LEVER; SELECT,EXTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97035-560-1 01 1 1211-
168 WASHER; LK,SELECT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-433-0 01 1 1211-
168 WASHER; LK,SELECT LEVER 8-94249-250-1 01 1 0609-1210
168 WASHER; LK,SELECT LEVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-250-1 01 1 1211-
171 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97165-946-1 01 1 0709-0802
171 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-227-0 01 1 0803-1210
171 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-415-0 01 1 1211-
171 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-97165-946-1 01 1 0609-0707
171 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-98037-159-0 01 1 0708-0708
171 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98037-159-0 01 1 0709-
174 SPRING; REV
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-419-0 01 1 1211-
174 SPRING; REV 8-97031-927-0 01 1 0609-1210
174 SPRING; REV
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97031-927-0 01 1 1211-
175 RING; STOPPER,SHIFT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-338-0 01 1 1211-
175 RING; STOPPER,SHIFT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-94249-048-2 01 1 0609-1210
175 RING; STOPPER,SHIFT LEVER
EXHAUST BRAKE<NF8> 		8-94249-048-2 01 1 0609-1210
175 RING; STOPPER,SHIFT LEVER
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-048-2 01 1 1211-
176 PIN; SPR,STOPPER
IN-HOUSE PRODUCTION VAR.2<TMW> L=30 OD=4 		1-09748-031-0 02 1 1211-
176 PIN; SPR,STOPPER
L=30 OD=4 		9-09678-549-0 02 1 0609-1210
176 PIN; SPR,STOPPER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=30 OD=4 		9-09678-549-0 02 1 1211-
177 GASKET; CONT BOX
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> ID=14.2 OD=20.0 		9-09571-414-0 01 1 0609-
180 WASHER; REV STOP SPRING
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-423-0 01 1 1211-
180 WASHER; REV STOP SPRING 8-94249-244-0 01 1 0609-1210
180 WASHER; REV STOP SPRING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-244-0 01 1 1211-
183 PLUG; SCREW,OIL FILTER
IN-HOUSE PRODUCTION VAR.2<TMW> M18 		8-98190-432-0 01 1 1211-
183 PLUG; SCREW,OIL FILTER
M18 		8-94337-946-1 01 1 0609-1210
183 PLUG; SCREW,OIL FILTER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M18 		8-94337-946-1 01 1 1211-
184 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5 		8-98189-969-0 01 1 1211-
184 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.3 		8-94336-511-0 01 1 0609-1210
184 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.3 		8-94336-511-0 01 1 1211-
398 SWITCH; REV LAMP
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-229-0 01 1 0803-1210
398 SWITCH; REV LAMP
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-417-0 01 1 1211-
398 SWITCH; REV LAMP 8-97165-947-1 01 1 0609-0707
398 SWITCH; REV LAMP 8-98037-160-0 01 1 0708-0802
398 SWITCH; REV LAMP
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98037-160-0 01 1 0803-
