◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51126 - NKR(IRAN) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#32837) — 171 parça
çizim 119484
1 4 18 34 434 430 406 433 420 67 50 88 85 456 439 421 90 93 95 11 9 435 71 72 86 73 92 94 91 117 68 70 5
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97373-583-0 01 1 0609-1210
1 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98203-858-0 01 1 1211-
1 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97161-660-1 01 1 0609-
1 TRANSMISSION ASM; MANUAL
EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97161-672-1 01 1 0609-
1 TRANSMISSION ASM; MANUAL
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97373-584-0 01 1 0609-1210
1 TRANSMISSION ASM; MANUAL
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-98203-859-0 01 1 1211-
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28051-035-0 02 1 1507-
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28051-035-0 01 1 0609-1506
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28051-035-0 01 1 0609-1506
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28051-035-0 01 1 1507-
4 BOLT; FLYWHEEL HSG
M10X40 FLANGE 		0-28051-040-0 01 1 0609-
5 BOLT; REAR PLATE
M10X35 FLANGE 		0-28051-035-0 01 1 0609-1506
9 STIFFENER; C/BL 8-97074-108-3 01 1 0609-
9 STIFFENER; C/BL 8-97084-390-2 01 1 0609-
11 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0609-1204
18 SUPPORT; DRAW LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5 		8-98189-389-0 01 1 1211-
18 SUPPORT; DRAW LEVER
L=47.5 		8-97225-469-1 01 1 0609-1210
18 SUPPORT; DRAW LEVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5 		8-97225-469-1 01 1 1211-
34 COVER; DUST,SHIFT FORK
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-416-0 01 1 1211-
34 COVER; DUST,SHIFT FORK 8-97034-880-0 01 1 0609-1210
34 COVER; DUST,SHIFT FORK
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97034-880-0 01 1 1211-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5 		8-98189-969-0 01 1 1211-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.3 		8-94336-511-0 01 1 0609-1210
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.3 		8-94336-511-0 01 1 1211-
67 STUD; CASE TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-390-0 06 1 1211-
67 STUD; CASE TRANS 9-09631-004-0 06 1 0609-1210
67 STUD; CASE TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-09631-004-0 06 1 1211-
68 NUT; REAR PLATE
M10 FLANGE 		0-91180-110-0 01 1 0609-1506
68 NUT; REAR PLATE
M10 FLANGE 		0-91180-110-0 02 1 1507-
70 NUT; REAMER BOLT
M10 FLANGE 		0-91180-110-0 01 1 0609-1506
71 COVER; SIDE,TRANS CASE
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-244-0 01 1 1211-
71 COVER; SIDE,TRANS CASE 9-33141-601-2 01 1 0609-1210
71 COVER; SIDE,TRANS CASE
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-33141-601-2 01 1 1211-
72 BOLT; SIDE COVER
IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE 		0-28051-012-0 06 1 1211-
72 BOLT; SIDE COVER
M10X12 FLANGE 		8-94128-791-0 06 1 0609-1210
72 BOLT; SIDE COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE 		8-94128-791-0 06 1 1211-
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-272-0 01 1 1211-
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		9-33142-601-0 01 1 0609-1210
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-33142-601-0 01 1 1211-
85 BREATHER; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-454-0 01 1 1211-
85 BREATHER; RR COVER 8-97165-939-0 01 1 0609-1210
85 BREATHER; RR COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97165-939-0 01 1 1211-
86 BOLT; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> M8X25 		8-94128-786-0 04 1 0609-1210
86 BOLT; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> M8X25 FLANGE 		0-28050-825-0 04 1 1211-
86 BOLT; RR COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X25 		8-94128-786-0 07 1 0609-
88 SCREW; SPEEDOMETER BUSHING
IN-HOUSE PRODUCTION VAR.2<TMW> M8X12 FLANGE 		0-28050-812-0 01 1 1211-
88 SCREW; SPEEDOMETER BUSHING
M8X12 		8-94128-785-0 01 1 0609-1210
88 SCREW; SPEEDOMETER BUSHING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X12 		8-94128-785-0 01 1 1211-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-98189-443-0 01 1 1211-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97257-296-0 01 1 0609-1210
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-97257-296-0 01 1 1211-
91 DRIVER; COUPLING
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-298-0 01 1 1211-
91 DRIVER; COUPLING 8-97207-215-0 01 1 0609-1210
91 DRIVER; COUPLING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97207-215-0 01 1 1211-
92 BOLT; COUPLING DRIVER
IN-HOUSE PRODUCTION VAR.2<TMW> M10X33 		8-98189-989-0 04 1 1211-
92 BOLT; COUPLING DRIVER
M10X33 		8-97109-696-1 04 1 0609-1210
92 BOLT; COUPLING DRIVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X33 		8-97109-696-1 04 1 1211-
93 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-967-0 01 1 1211-
93 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-94178-725-0 01 1 0609-1210
93 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94178-725-0 01 1 1211-
94 WASHER; COUPLING DRIVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-951-0 01 1 1211-
94 WASHER; COUPLING DRIVER 8-94249-240-0 01 1 0609-1210
94 WASHER; COUPLING DRIVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-240-0 01 1 1211-
95 NUT; MAINSHAFT
IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE 		8-98189-932-0 01 1 1211-
95 NUT; MAINSHAFT
M24 FLANGE 		8-97087-750-0 01 1 0609-1210
95 NUT; MAINSHAFT
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE 		8-97087-750-0 01 1 1211-
117 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) M10X25 W/LK WASHER 		0-50541-025-0 04 1 0609-
117 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) M10X30 W/LK WASHER 		0-50541-030-0 02 1 0609-
406 NUT; BRKT
PTO TRANSMISSION SIDE(V66) M8 FLANGE 		0-91180-108-0 01 1 0609-
420 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-98189-424-0 01 1 1211-
420 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-94326-441-0 01 1 0609-1210
420 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-94326-441-0 01 1 1211-
421 COVER; RR,TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97112-986-2 01 1 0609-
430 PLUG; OIL DRAIN
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-430-0 01 1 1211-
430 PLUG; OIL DRAIN 8-94336-512-1 01 1 0609-1210
430 PLUG; OIL DRAIN
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94336-512-1 01 1 1211-
433 LABEL; TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97084-051-1 01 1 0609-
434 HOUSING; CLU
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97204-108-0 01 1 0609-
434 HOUSING; CLU
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97034-879-2 01 1 0609-
435 CASE; TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97373-564-0 01 1 0609-
435 CASE; TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97240-847-0 01 1 0609-
439 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X35 FLANGE 		0-28650-835-0 01 1 0609-
456 BOLT; STIFFENER
PTO TRANSMISSION SIDE(V66) M12X35 FLANGE 		0-28051-235-0 03 1 0609-
456 BOLT; STIFFENER
PTO TRANSMISSION SIDE(V66) M12X40 FLANGE 		0-28051-240-0 01 1 0609-
456 BOLT; STIFFENER
EXC. PTO TRANSMISSION SIDE(V66) M12X35 FLANGE 		0-28051-235-0 04 1 0609-

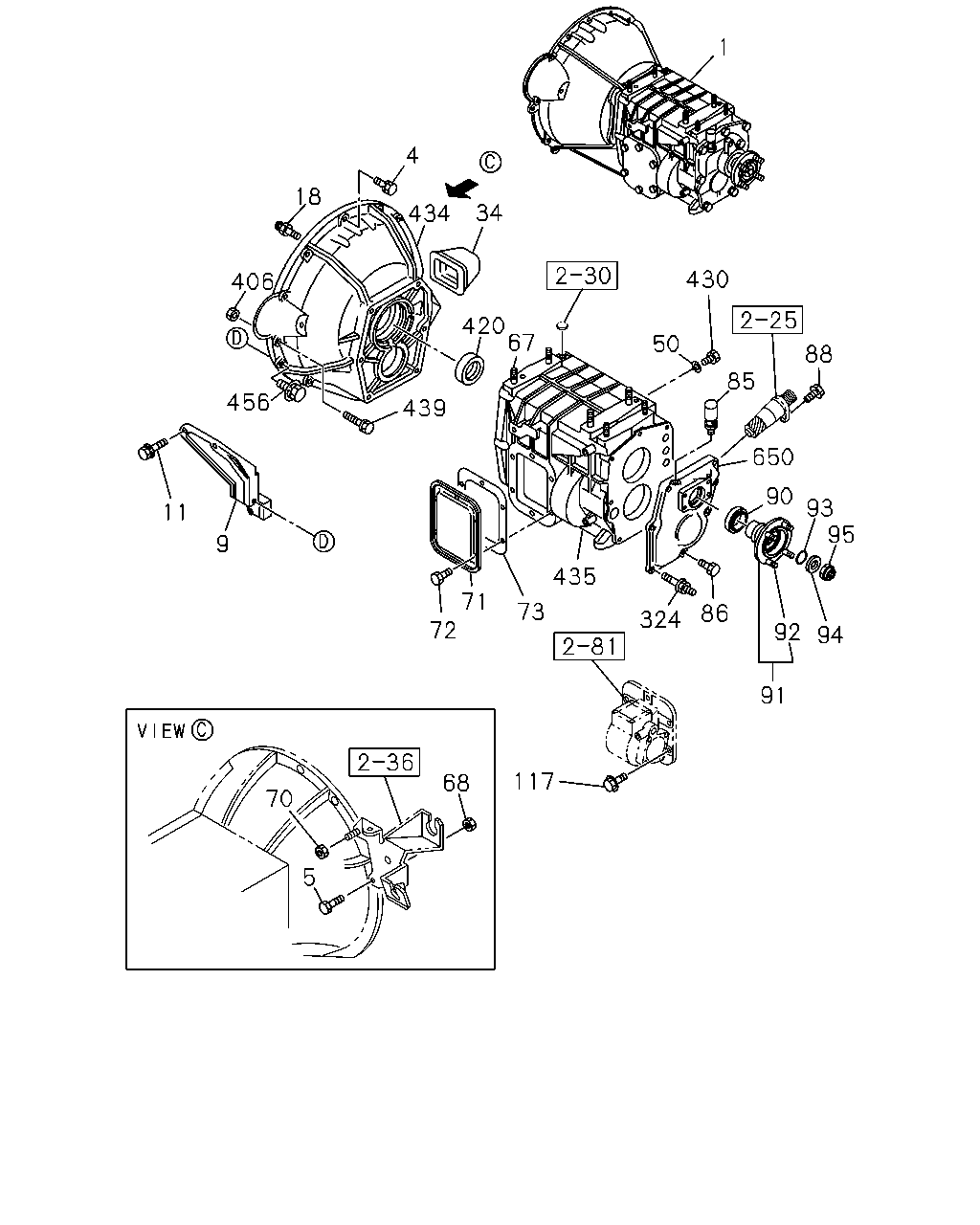

çizim 119646
1 4 18 34 434 430 406 420 67 50 88 85 456 439 650 90 93 95 11 9 435 71 72 73 86 324 92 94 91 117 68 70 5
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97373-583-0 01 1 0609-1210
1 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98203-858-0 01 1 1211-
1 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97161-660-1 01 1 0609-
1 TRANSMISSION ASM; MANUAL
EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97161-672-1 01 1 0609-
1 TRANSMISSION ASM; MANUAL
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97373-584-0 01 1 0609-1210
1 TRANSMISSION ASM; MANUAL
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-98203-859-0 01 1 1211-
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28051-035-0 02 1 1507-
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28051-035-0 01 1 0609-1506
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28051-035-0 01 1 0609-1506
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28051-035-0 01 1 1507-
4 BOLT; FLYWHEEL HSG
M10X40 FLANGE 		0-28051-040-0 01 1 0609-
5 BOLT; REAR PLATE
M10X35 FLANGE 		0-28051-035-0 01 1 0609-1506
9 STIFFENER; C/BL 8-97074-108-3 01 1 0609-
9 STIFFENER; C/BL 8-97084-390-2 01 1 0609-
11 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0609-1204
18 SUPPORT; DRAW LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5 		8-98189-389-0 01 1 1211-
18 SUPPORT; DRAW LEVER
L=47.5 		8-97225-469-1 01 1 0609-1210
18 SUPPORT; DRAW LEVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5 		8-97225-469-1 01 1 1211-
34 COVER; DUST,SHIFT FORK
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-416-0 01 1 1211-
34 COVER; DUST,SHIFT FORK 8-97034-880-0 01 1 0609-1210
34 COVER; DUST,SHIFT FORK
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97034-880-0 01 1 1211-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5 		8-98189-969-0 01 1 1211-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.3 		8-94336-511-0 01 1 0609-1210
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.3 		8-94336-511-0 01 1 1211-
67 STUD; CASE TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-390-0 06 1 1211-
67 STUD; CASE TRANS 9-09631-004-0 06 1 0609-1210
67 STUD; CASE TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-09631-004-0 06 1 1211-
68 NUT; REAR PLATE
M10 FLANGE 		0-91180-110-0 01 1 0609-1506
68 NUT; REAR PLATE
M10 FLANGE 		0-91180-110-0 02 1 1507-
70 NUT; REAMER BOLT
M10 FLANGE 		0-91180-110-0 01 1 0609-1506
71 COVER; SIDE,TRANS CASE
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-244-0 01 1 1211-
71 COVER; SIDE,TRANS CASE 9-33141-601-2 01 1 0609-1210
71 COVER; SIDE,TRANS CASE
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-33141-601-2 01 1 1211-
72 BOLT; SIDE COVER
IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE 		0-28051-012-0 06 1 1211-
72 BOLT; SIDE COVER
M10X12 FLANGE 		8-94128-791-0 06 1 0609-1210
72 BOLT; SIDE COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE 		8-94128-791-0 06 1 1211-
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-272-0 01 1 1211-
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		9-33142-601-0 01 1 0609-1210
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-33142-601-0 01 1 1211-
85 BREATHER; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-454-0 01 1 1211-
85 BREATHER; RR COVER 8-97165-939-0 01 1 0609-1210
85 BREATHER; RR COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97165-939-0 01 1 1211-
86 BOLT; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> M8X25 		8-94128-786-0 04 1 0609-1210
86 BOLT; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> M8X25 FLANGE 		0-28050-825-0 04 1 1211-
86 BOLT; RR COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X25 		8-94128-786-0 07 1 0609-
88 SCREW; SPEEDOMETER BUSHING
IN-HOUSE PRODUCTION VAR.2<TMW> M8X12 FLANGE 		0-28050-812-0 01 1 1211-
88 SCREW; SPEEDOMETER BUSHING
M8X12 		8-94128-785-0 01 1 0609-1210
88 SCREW; SPEEDOMETER BUSHING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X12 		8-94128-785-0 01 1 1211-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-98189-443-0 01 1 1211-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97257-296-0 01 1 0609-1210
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-97257-296-0 01 1 1211-
91 DRIVER; COUPLING
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-298-0 01 1 1211-
91 DRIVER; COUPLING 8-97207-215-0 01 1 0609-1210
91 DRIVER; COUPLING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97207-215-0 01 1 1211-
92 BOLT; COUPLING DRIVER
IN-HOUSE PRODUCTION VAR.2<TMW> M10X33 		8-98189-989-0 04 1 1211-
92 BOLT; COUPLING DRIVER
M10X33 		8-97109-696-1 04 1 0609-1210
92 BOLT; COUPLING DRIVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X33 		8-97109-696-1 04 1 1211-
93 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-967-0 01 1 1211-
93 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-94178-725-0 01 1 0609-1210
93 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94178-725-0 01 1 1211-
94 WASHER; COUPLING DRIVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-951-0 01 1 1211-
94 WASHER; COUPLING DRIVER 8-94249-240-0 01 1 0609-1210
94 WASHER; COUPLING DRIVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-240-0 01 1 1211-
95 NUT; MAINSHAFT
IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE 		8-98189-932-0 01 1 1211-
95 NUT; MAINSHAFT
M24 FLANGE 		8-97087-750-0 01 1 0609-1210
95 NUT; MAINSHAFT
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE 		8-97087-750-0 01 1 1211-
117 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) M10X25 W/LK WASHER 		0-50541-025-0 04 1 0609-
117 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) M10X30 W/LK WASHER 		0-50541-030-0 02 1 0609-
324 STUD; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97320-356-0 03 1 0609-1210
324 STUD; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-391-0 03 1 1211-
406 NUT; BRKT
PTO TRANSMISSION SIDE(V66) M8 FLANGE 		0-91180-108-0 01 1 0609-
420 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-98189-424-0 01 1 1211-
420 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-94326-441-0 01 1 0609-1210
420 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-94326-441-0 01 1 1211-
430 PLUG; OIL DRAIN
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-430-0 01 1 1211-
430 PLUG; OIL DRAIN 8-94336-512-1 01 1 0609-1210
430 PLUG; OIL DRAIN
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94336-512-1 01 1 1211-
434 HOUSING; CLU
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97204-108-0 01 1 0609-
434 HOUSING; CLU
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97034-879-2 01 1 0609-
435 CASE; TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97373-564-0 01 1 0609-
435 CASE; TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97240-847-0 01 1 0609-
439 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X35 FLANGE 		0-28650-835-0 01 1 0609-
456 BOLT; STIFFENER
PTO TRANSMISSION SIDE(V66) M12X35 FLANGE 		0-28051-235-0 03 1 0609-
456 BOLT; STIFFENER
PTO TRANSMISSION SIDE(V66) M12X40 FLANGE 		0-28051-240-0 01 1 0609-
456 BOLT; STIFFENER
EXC. PTO TRANSMISSION SIDE(V66) M12X35 FLANGE 		0-28051-235-0 04 1 0609-
650 COVER; RR
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97174-087-0 01 1 0609-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
