Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

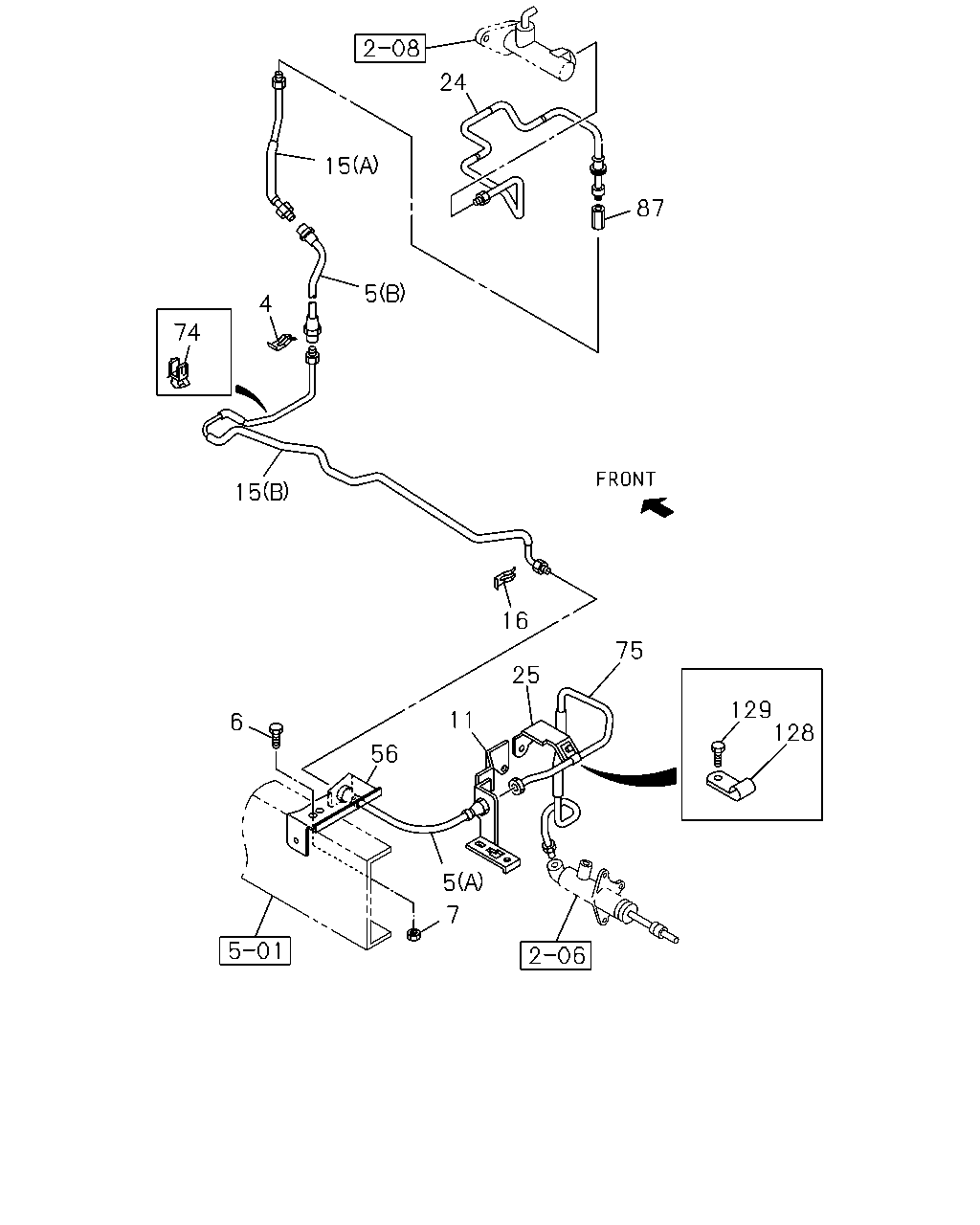

2-05 — CLUTCH PIPING
(#32833) — 26 parça
24
15
87
5
4
74
15
16
75
25
129
128
11
6
56
5
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; FLEX HOSE,CLU CONT
8-94167-006-0
02
1
0609-0610
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
02
1
0611-
5
HOSE; FLEX,CLU PIPE
(B)
8-94248-702-2
01
1
0609-0609
5
HOSE; FLEX,CLU PIPE
(B)
8-98004-775-0
01
1
0610-0706
5
HOSE; FLEX,CLU PIPE
(B)
8-98090-655-0
01
1
0707-
5
HOSE; FLEX,CLU PIPE
(A)
8-94374-552-1
01
1
0609-
6
BOLT; BRKT,FLEX HOSE
M8X20 FLANGE
0-28650-820-0
01
1
0609-
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE
0-91180-108-0
01
1
0609-
11
BRACKET; FLEX HOSE,CLU
8-97091-929-0
01
1
0609-
15
PIPE; CLU,FLEX HOSE
(A)
8-97328-481-0
01
1
0609-
15
PIPE; CLU,FLEX HOSE
(B)
8-97122-637-0
01
1
0609-1201
15
PIPE; CLU,FLEX HOSE
(B)
8-98204-484-0
01
1
1202-
16
CLIP; FLEX HOSE
8-94167-006-0
01
1
0609-0610
16
CLIP; FLEX HOSE
8-94167-006-0
01
1
0609-0610
16
CLIP; FLEX HOSE
8-97365-304-0
01
1
0611-
16
CLIP; FLEX HOSE
8-97365-304-0
01
1
0611-
24
PIPE ASM; CLU,M/CYL TO UNION
8-97094-343-2
01
1
0609-
25
BRACKET; OIL PIPE
8-97013-211-1
01
1
0609-
56
BRACKET; FLEX HOSE
8-97090-299-0
01
1
0609-
74
CLIP; CLU OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> H=28.5
8-94486-808-0
01
1
0911-
74
CLIP; CLU OIL PIPE
H=28.5
8-94486-808-0
02
1
0609-0910
74
CLIP; CLU OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> H=28.5
8-94486-808-0
02
1
0911-
75
PIPE ASM; CLU,HSG
8-97063-756-2
01
1
0609-
87
UNION; OIL PIPE
M12 STRAIGHT
0-92107-006-0
01
1
0609-
128
CLIP; AIR PIPE
ID=7 L=16
0-95234-622-0
02
1
0609-
129
BOLT; PIPE CLIP
M6X12 FLANGE
0-28050-612-0
02
1
0609-
