◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51297 - NPR/NQR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#32811) — 70 parça

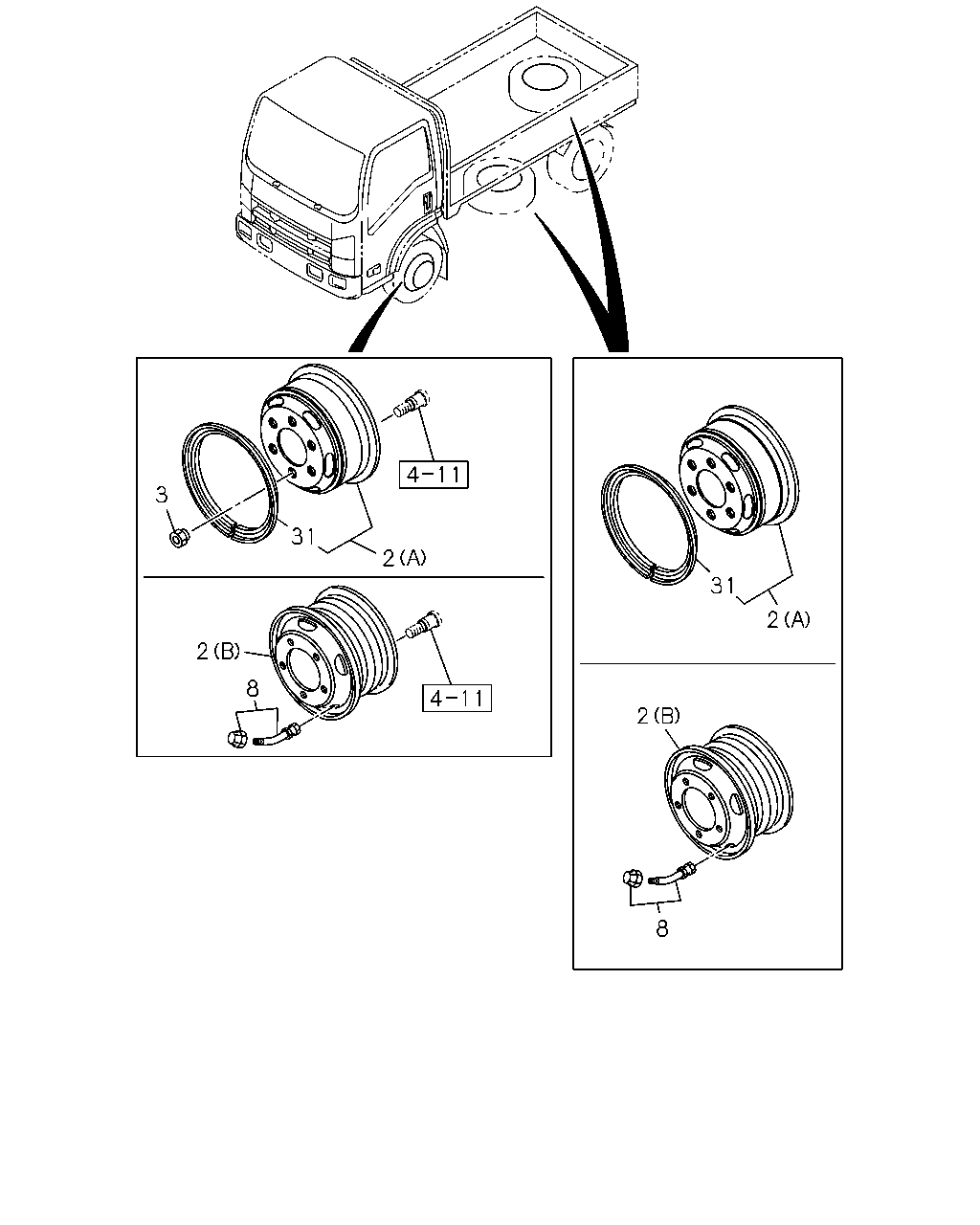

çizim 83861
3 31 2 2 8 31 2 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1012- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1012- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 1012-1109 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 1012-1109 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 6GSX16-127(CWD) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 1012-1109 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 1012-1109 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 6GSX16-127(CWD) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 06 1 1012- ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-97359-807-0 06 1 1012- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-97359-808-0 06 1 1012- ● ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 		8-98221-112-0 01 1 1012- ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR 		8-98221-112-0 06 1 1012- ● ●
8 05.875 VALVE; TIRE
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) SPARE 		8-98221-106-0 01 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) SPARE 		8-98221-106-0 01 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) FRONT,REAR 		8-98221-106-0 06 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) FRONT,REAR 		8-98221-106-0 06 1 1012- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 1012-1109 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 1012-1109 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 1110- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 6GSX16-127(CWD) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 1110- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 1110- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 1012-1109 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 1012-1109 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 1110- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 6GSX16-127(CWD) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 1110- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 1110- ●

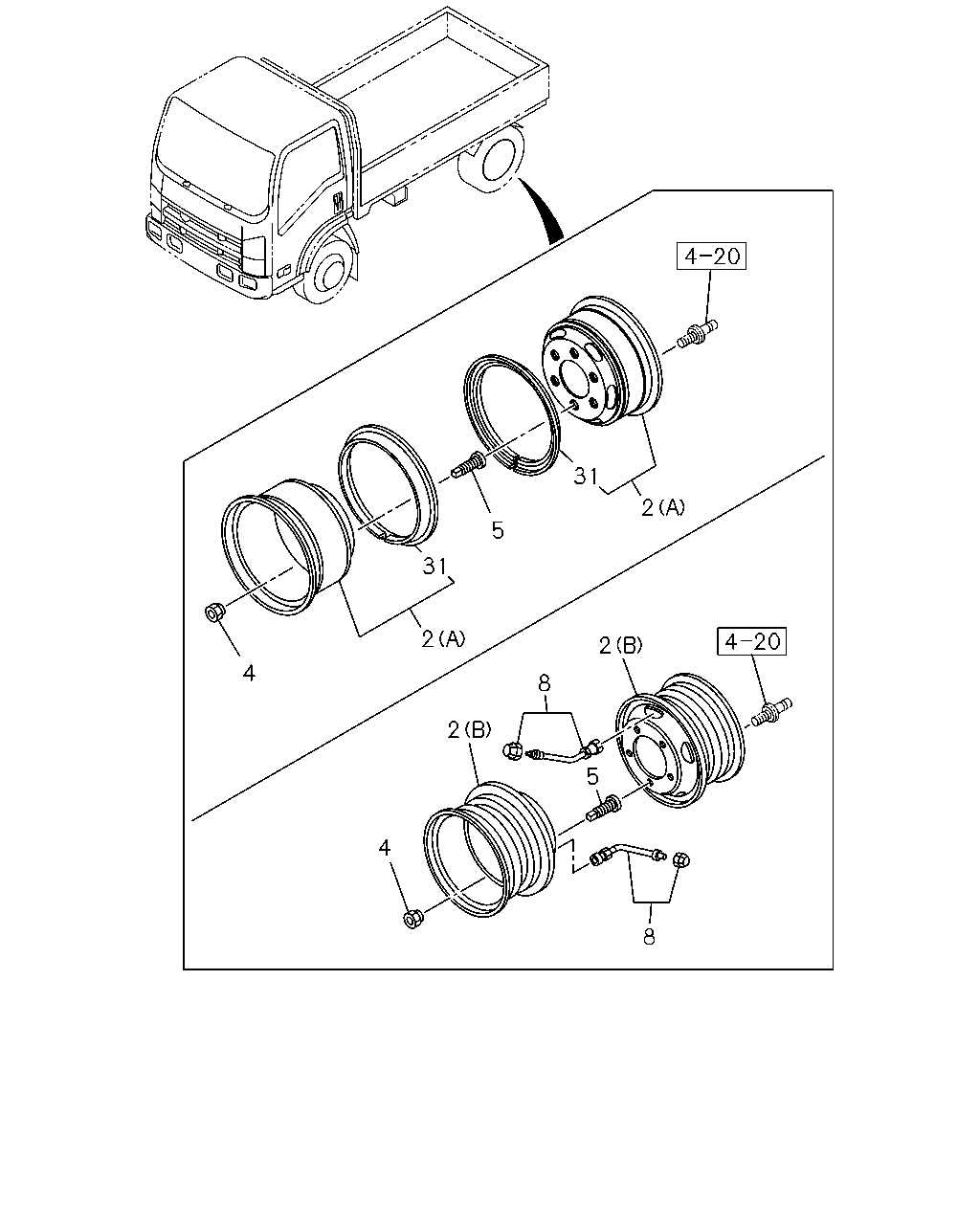

çizim 102865
4 31 5 31 2 2 2 8 2 5 4 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1012- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1012- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 1012-1109 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 1012-1109 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 6GSX16-127(CWD) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 1012-1109 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 1012-1109 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 6GSX16-127(CWD) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 1110- ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 06 1 1012- ●
4 05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 1012- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 1012- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1012- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1012- ● ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 		8-98221-112-0 01 1 1012- ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR 		8-98221-112-0 06 1 1012- ● ●
8 05.875 VALVE; TIRE
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) SPARE 		8-98221-106-0 01 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) SPARE 		8-98221-106-0 01 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) FRONT,REAR 		8-98221-106-0 06 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) FRONT,REAR 		8-98221-106-0 06 1 1012- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 1012-1109 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 1012-1109 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 1110- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 6GSX16-127(CWD) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 1110- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 1110- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 1012-1109 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 1012-1109 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GUL F(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 1110- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 6GSX16-127(CWD) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 1110- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-12 7(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 1110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
