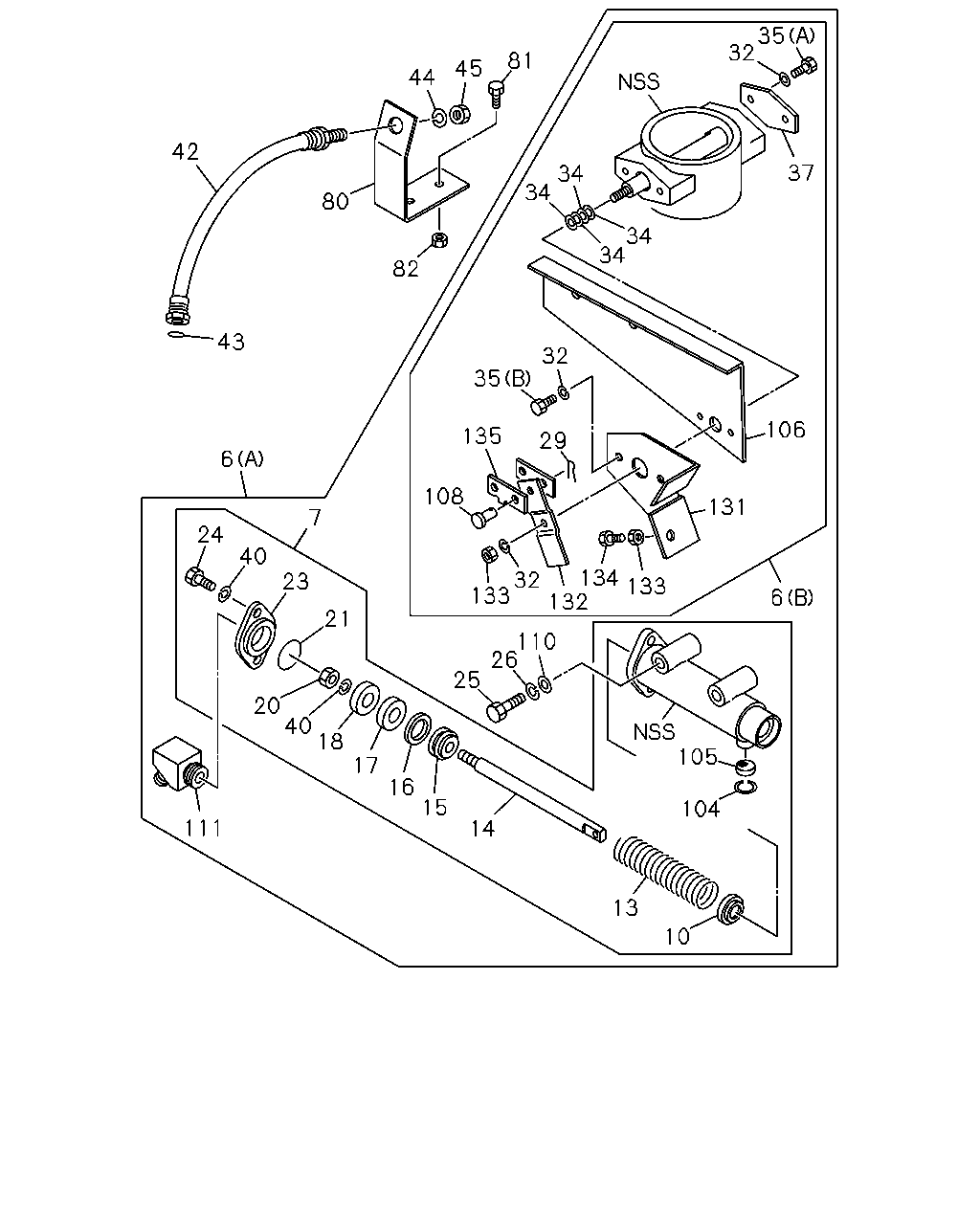

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#3281) — 64 parça

35 32 81 45 44 42 37 34 34 80 34 34 82 43 32 35 106 135 29 6 108 131 7 24 40 134 133 132 32 133 23 6 21 110 26 25 20 40 18 105 17 16 15 104 111 14 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-22180-289-2	01	1	9101-	●	●
6	VALVE; EXH BRAKE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-22181-112-0	01	1	9101-	●	●
6	VALVE; EXH BRAKE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C)	1-22180-224-3	01	1	9101-	●	●
7	CYLINDER ASM; CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22190-489-1	01	1	9101-	●	●
10	SEAL; DUST,CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22189-016-0	01	1	9101-	●	●
13	SPRING; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-88510-374-0	01	1	9101-	●	●
14	SHAFT; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22199-051-0	01	1	9101-	●	●
15	PLATE; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22199-001-0	01	1	9101-	●	●
16	RING; WEAR,CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22199-002-0	01	1	9101-	●	●
17	GASKET; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-88510-373-0	01	1	9101-	●	●
18	RETAINER; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-88510-324-0	01	1	9101-	●	●
20	NUT; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-83315-085-0	01	1	9101-	●	●
21	GASKET; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-88510-372-0	01	1	9101-	●	●
23	COVER; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-88510-375-0	01	1	9101-	●	●
24	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-02050-816-0	02	1	9101-	●	●
25	BOLT; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01056-060-0	02	1	9101-	●	●
26	WASHER; LK,CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09150-510-0	02	1	9101-	●	●
29	PIN; SPLIT,LINK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09747-003-0	02	1	9101-	●	●
32	WASHER; LK	9-09150-508-0	05	1	9101-	●	●
34	RING; SEAL ID=13	1-22189-009-0	02	1	9101-	●	●
34	RING; SEAL ID=11.7	1-22189-010-0	02	1	9101-	●	●
35	BOLT; PLATE FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16	9-02050-816-0	02	1	9101-	●	●
35	BOLT; PLATE FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20	9-02050-820-0	02	1	9101-	●	●
35	BOLT; PLATE FIX BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M8X16	9-02050-816-0	04	1	9101-	●	●
37	COVER; BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22189-149-0	01	1	9101-	●	●
37	COVER; BODY BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-22189-139-0	01	1	9101-	●	●
40	WASHER; LK,COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09150-508-0	03	1	9101-	●	●
42	HOSE; FLEX,EXH BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-07120-280-0	01	1	9101-	●	●
43	GASKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09572-510-0	01	1	9101-	●	●
44	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09150-512-0	01	1	9101-	●	●
45	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09840-280-0	01	1	9101-	●	●
80	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-560-0	01	1	9101-	●	●
81	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-825-0	02	1	9101-	●	●
82	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	02	1	9101-	●	●
104	RING; RET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-88510-331-0	01	1	9101-	●	●
105	FILTER; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-88510-330-0	01	1	9101-	●	●
106	BRACKET; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22186-112-0	01	1	9101-	●	●
108	PIN; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22199-054-0	02	1	9101-	●	●
110	WASHER; PL,CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22199-052-0	02	1	9101-	●	●
111	ELBOW; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09650-133-0	01	1	9101-	●	●
131	PLATE; BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22196-236-0	01	1	9101-	●	●
131	PLATE; BODY BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-22196-101-0	01	1	9101-	●	●
132	LEVER; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22196-235-0	01	1	9101-	●	●
132	LEVER; BRK VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-22189-140-0	01	1	9101-	●	●
133	NUT; LK	9-09111-408-0	03	1	9101-	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9101-	●	●
135	CLEVIS; CONT CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22199-053-0	01	1	9101-	●	●

6 35 32 37 133 134 131 32 35 34 34 132 32 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-22180-289-2	01	1	9101-	●	●
6	VALVE; EXH BRAKE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-22181-112-0	01	1	9101-	●	●
6	VALVE; EXH BRAKE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C)	1-22180-224-3	01	1	9101-	●	●
32	WASHER; LK	9-09150-508-0	05	1	9101-	●	●
34	RING; SEAL ID=13	1-22189-009-0	02	1	9101-	●	●
34	RING; SEAL ID=11.7	1-22189-010-0	02	1	9101-	●	●
35	BOLT; PLATE FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16	9-02050-816-0	02	1	9101-	●	●
35	BOLT; PLATE FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20	9-02050-820-0	02	1	9101-	●	●
35	BOLT; PLATE FIX BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M8X16	9-02050-816-0	04	1	9101-	●	●
37	COVER; BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22189-149-0	01	1	9101-	●	●
37	COVER; BODY BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-22189-139-0	01	1	9101-	●	●
131	PLATE; BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22196-236-0	01	1	9101-	●	●
131	PLATE; BODY BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-22196-101-0	01	1	9101-	●	●
132	LEVER; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22196-235-0	01	1	9101-	●	●
132	LEVER; BRK VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-22189-140-0	01	1	9101-	●	●
133	NUT; LK	9-09111-408-0	03	1	9101-	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9101-	●	●
