4-55B — FRONT LEAF SPRING (#32805) — 227 parça
çizim 83435
20 17 24 24 15 20 20 20 6 5 4 19 3 24 19 19 2 24 1 17 17 16 19
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-370-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-379-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-387-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-395-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-293-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-299-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-086-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-093-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-114-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-121-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-371-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-380-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-388-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-396-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-294-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-300-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-087-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-094-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-115-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-122-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-372-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-381-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-389-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-397-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-295-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-301-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-088-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-095-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-116-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-123-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-373-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-382-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-390-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-398-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-296-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-302-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-089-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-096-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-117-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-124-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-374-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-383-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-391-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-399-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-297-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-303-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-090-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-097-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-118-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-125-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-375-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-384-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-392-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-400-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-298-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-304-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-091-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-098-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-119-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-126-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540 		8-98081-376-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=105 ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-98081-393-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=115 ASM PART: E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98152-295-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-94130-354-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-97084-845-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-97084-845-0 04 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98039-233-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-98039-233-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-98041-368-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540 		8-98041-368-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(D) ASM PART: E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98094-959-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
(A) ASM PART: G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-97084-848-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
(B) ASM PART: G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540 		8-98193-187-0 02 1 -1505
24 07.436 LINER; LEAF SPR,FWD FRT
(B) ASM PART: I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98193-187-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
07.506, (B) ASM PART: G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540 		8-98193-188-0 02 1 1506-

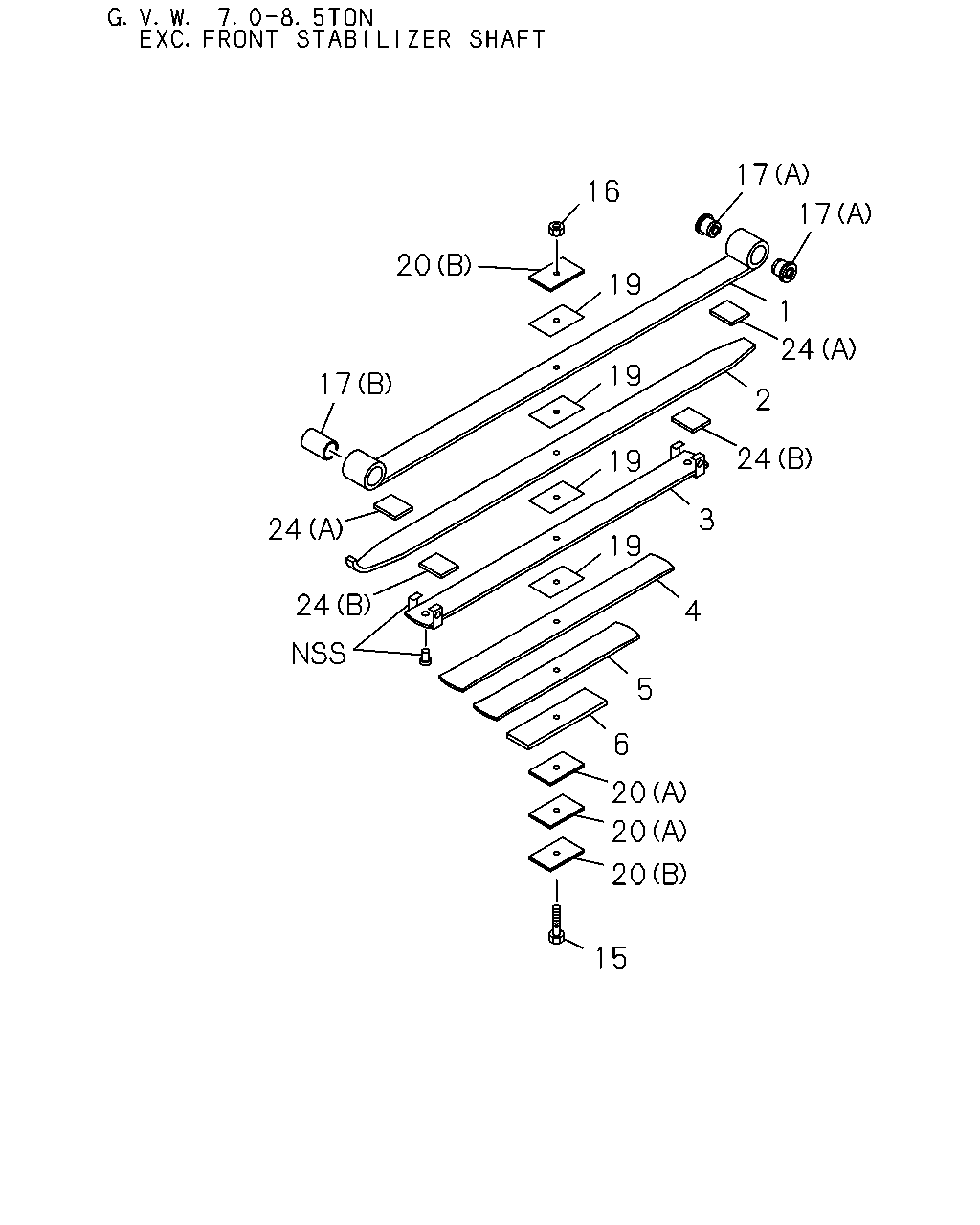

çizim 83474
17 16 17 20 19 1 24 19 17 2 24 19 3 24 19 24 4 5 6 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-370-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-379-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-387-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-395-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-293-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-299-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-086-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-093-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-114-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-121-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-371-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-380-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-388-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-396-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-294-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-300-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-087-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-094-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-115-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-122-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-372-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-381-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-389-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-397-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-295-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-301-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-088-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-095-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-116-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-123-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-373-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-382-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-390-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-398-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-296-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-302-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-089-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-096-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-117-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-124-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-374-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-383-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-391-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-399-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-297-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-303-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-090-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-097-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-118-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-125-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-375-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-384-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-392-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-400-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-298-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-304-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-091-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-098-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-119-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-126-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540 		8-98081-376-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=105 ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-98081-393-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=115 ASM PART: E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98152-295-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-94130-354-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-97084-845-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-97084-845-0 04 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98039-233-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-98039-233-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-98041-368-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540 		8-98041-368-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(D) ASM PART: E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98094-959-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
(A) ASM PART: G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-97084-848-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
(B) ASM PART: G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540 		8-98193-187-0 02 1 -1505
24 07.436 LINER; LEAF SPR,FWD FRT
(B) ASM PART: I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98193-187-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
07.506, (B) ASM PART: G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540 		8-98193-188-0 02 1 1506-
çizim 83904
17 16 17 20 19 1 2 17 3 4 5 6 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-370-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-379-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-387-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-395-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-293-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-299-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-086-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-093-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-114-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-121-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-371-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-380-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-388-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-396-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-294-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-300-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-087-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-094-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-115-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-122-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-372-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-381-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-389-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-397-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-295-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-301-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-088-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-095-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-116-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-123-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-373-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-382-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-390-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-398-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-296-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-302-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-089-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-096-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-117-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-124-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-374-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-383-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-391-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-399-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-297-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-303-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-090-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-097-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-118-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-125-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: D = 8-98079-924-0, 98079924 		8-98081-375-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: C = 8-98079-923-0, 98079923 		8-98081-384-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-98079-910-0, 98079910 		8-98081-392-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-98079-912-0, 98079912 		8-98081-400-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: E = 8-98141-456-0, 98141456 		8-98094-298-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: F = 8-98141-457-0, 98141457 		8-98094-304-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: G = 8-98190-539-1, 98190539 		8-98193-091-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: H = 8-98190-540-1, 98190540 		8-98193-098-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: I = 8-98190-543-0, 98190543 		8-98193-119-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: J = 8-98190-544-0, 98190544 		8-98193-126-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540 		8-98081-376-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=105 ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-98081-393-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=115 ASM PART: E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98152-295-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912, C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-94130-354-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-97084-845-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-97084-845-0 04 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98039-233-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-98039-233-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98079-910-0, 98079910, B = 8-98079-912-0, 98079912 		8-98041-368-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: C = 8-98079-923-0, 98079923, D = 8-98079-924-0, 98079924, G = 8-98190-539-1, 98190539, H = 8-98190-540-1, 98190540 		8-98041-368-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(D) ASM PART: E = 8-98141-456-0, 98141456, F = 8-98141-457-0, 98141457, I = 8-98190-543-0, 98190543, J = 8-98190-544-0, 98190544 		8-98094-959-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
