4-36 — POWER STEERING CONTROL; ENGINE SIDE (#32800) — 29 parça

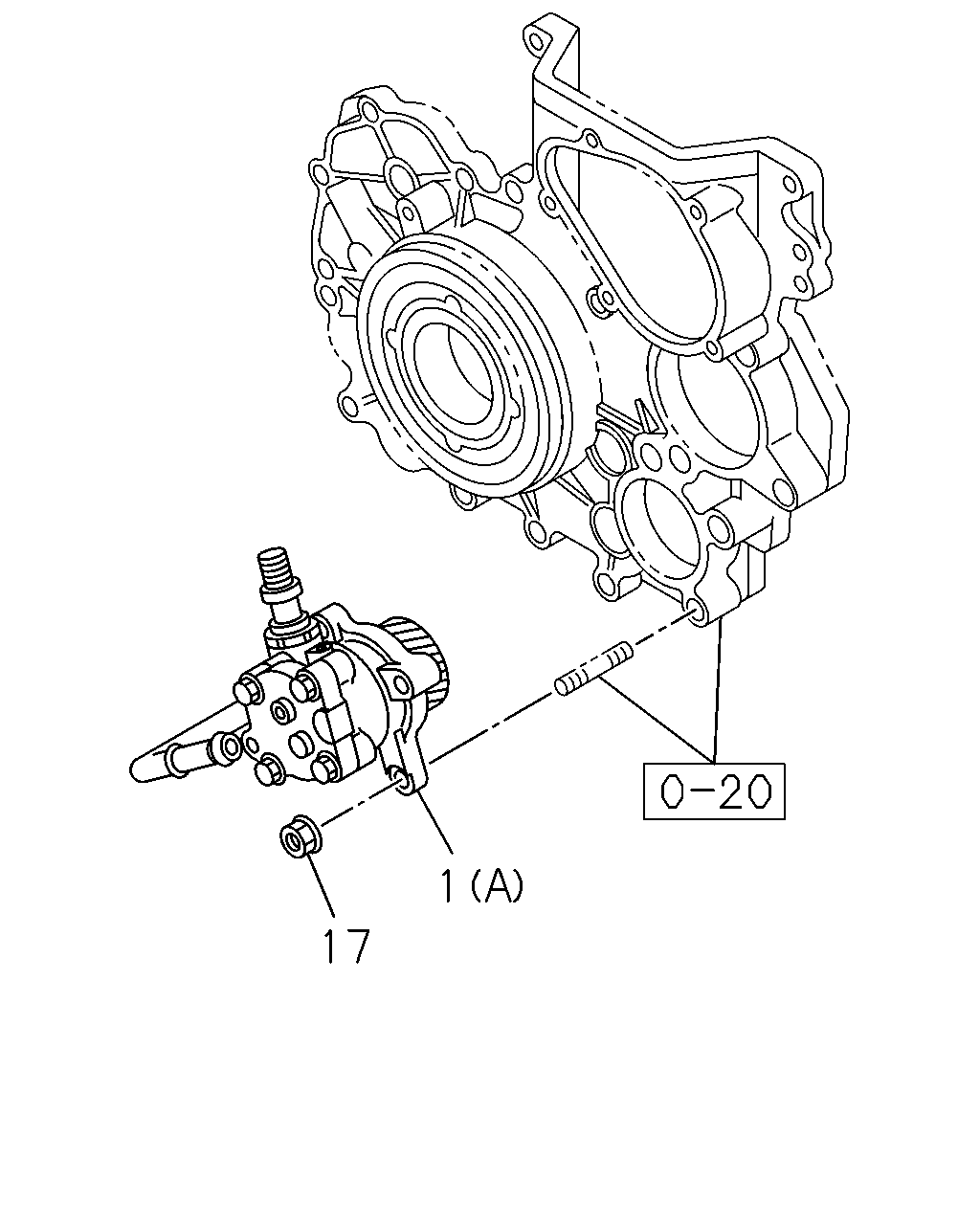

çizim 83469
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98055-007-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98006-793-4 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH) (B) 		8-98006-793-4 01 1 1012- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A) 		8-98043-204-4 01 1 1012- ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1012- ● ●
çizim 102823
29 1 36 7 42
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98055-007-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98006-793-4 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH) (B) 		8-98006-793-4 01 1 1012- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A) 		8-98043-204-4 01 1 1012- ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1012- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 1012- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH) M14X20 FLANGE 		0-28851-420-0 01 1 1012- ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 1012- ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) 		8-98036-532-0 01 1 1012- ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
çizim 102825
23 24 42 1 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98055-007-2 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98006-793-4 01 1 1012- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH) (B) 		8-98006-793-4 01 1 1012- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A) 		8-98043-204-4 01 1 1012- ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1012- ● ●
23 06.660 GEAR; OIL PUMP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 1012- ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE 		0-91180-212-0 01 1 1012- ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
