1-50 — EXHAUST PIPE AND SILENCER (#3280) — 64 parça

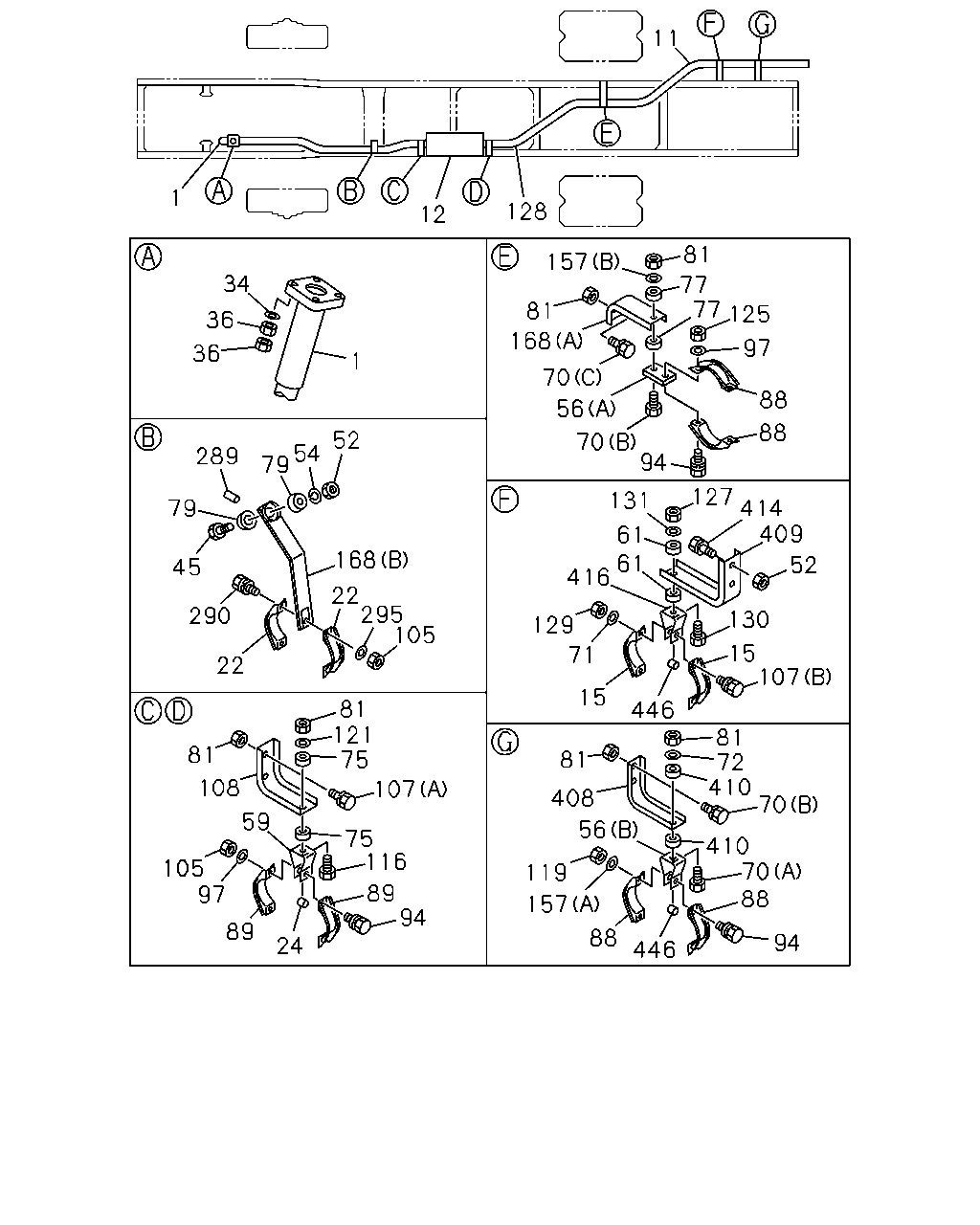

çizim 6937
11 1 128 12 81 157 34 77 77 81 125 36 168 97 36 1 70 88 56 88 52 70 94 54 79 289 127 414 409 131 79 61 61 416 168 52 45 22 295 105 290 130 129 15 107 71 22 15 81 121 75 446 81 72 410 70 81 81 108 107 408 59 56 75 116 410 70 88 105 97 119 89 94 157 89 88 94 24 446
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 1-22121-767-1 01 1 9101- ● ●
11 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) L=2150 		1-22121-699-1 01 1 9101- ● ●
11 PIPE; EXH,RR
WHEEL BASE 4200MM(42W) 		1-22121-696-1 01 1 9101- ● ●
12 SILENCER ASM; EXH 1-22140-121-1 01 1 9101- ● ●
15 CLAMP; RR PIPE 1-22133-231-0 02 1 9101- ● ●
22 CLAMP; EXH PIPE 1-22133-231-0 02 1 9101- ● ●
24 COLLAR; DIST,CLAMP 1-22139-026-0 02 1 9101- ● ●
34 WASHER; EXH PIPE 1-09500-007-0 04 1 9101- ● ●
36 NUT; EXH PIPE 9-09842-016-0 08 1 9101- ● ●
45 BOLT; BRKT 0-10806-055-0 01 1 9101- ● ●
52 NUT; BRKT 9-09110-410-0 03 1 9101-9307 ● ●
52 NUT; BRKT 9-09110-510-0 03 1 9308- ● ●
54 WASHER; LK,BRKT 9-09150-510-0 01 1 9101- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22131-333-0 01 1 9101- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-046-0 01 1 9101- ● ●
59 BRACKET; EXH SILENCER,FRT 1-22139-046-0 02 1 9101- ● ●
61 SUPPORT; RUBBER,BRKT 1-22159-106-1 02 1 9101- ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 9101- ● ●
70 BOLT; BRKT
(B) M10X55 		0-10806-055-0 01 1 9101- ● ●
70 BOLT; BRKT
(C) M10X30 W/LK WASHER 		0-50041-030-0 03 1 9101- ● ●
71 WASHER; PL,BRKT TO CLAMP 9-09164-510-0 02 1 9101- ● ●
72 WASHER; LK,BRKT 9-09164-810-0 01 1 9101- ● ●
75 RUBBER; SUPPORT,BRKT 1-22159-106-1 04 1 9101- ● ●
77 RUBBER; CUSHION,BRKT 1-22159-106-1 02 1 9101- ● ●
79 SUPPORT; BRKT 9-22159-008-0 02 1 9101-9805 ● ●
79 SUPPORT; BRKT
OD=40 		1-22159-193-0 02 1 9806- ● ●
81 NUT; BRKT 9-09110-410-0 05 1 9101-9307 ● ●
81 NUT; BRKT 9-09110-510-0 05 1 9308- ● ●
81 NUT; BRKT 9-09131-510-0 04 1 9101- ● ●
88 CLAMP; EXH PIPE 1-22133-231-0 04 1 9101- ● ●
89 CLAMP; EXH SILENCER,RR 1-22133-231-0 04 1 9101- ● ●
94 BOLT; CLAMP 0-50141-045-0 08 1 9101- ● ●
97 WASHER; PL,CLAMP 9-09164-510-0 06 1 9101- ● ●
105 NUT; CLAMP 9-09110-410-0 06 1 9101-9307 ● ●
105 NUT; CLAMP 9-09110-510-0 06 1 9308- ● ●
107 BOLT; BRKT
(A) M10X30 W/LK WASHER 		0-50041-030-0 04 1 9101- ● ●
107 BOLT; BRKT
(B) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9101- ● ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR 1-22151-300-0 02 1 9101- ● ●
116 BOLT; BRKT 0-10806-050-0 02 1 9101- ● ●
119 NUT; BRKT 9-09110-410-0 02 1 9101-9307 ● ●
119 NUT; BRKT 9-09110-510-0 02 1 9308- ● ●
121 WASHER; PL,BRKT 9-09164-810-0 02 1 9101- ● ●
125 NUT; CLAMP 9-09110-410-0 04 1 9101-9307 ● ●
125 NUT; CLAMP 9-09110-510-0 04 1 9308- ● ●
127 NUT; BRKT 9-09131-510-0 01 1 9101- ● ●
128 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22121-768-1 01 1 9101- ● ●
128 PIPE; EXH,RR
WHEEL BASE 4200MM(42W) 		1-22121-769-1 01 1 9101- ● ●
129 NUT; BRKT TO CLAMP 9-09110-510-0 02 1 9101- ● ●
130 BOLT; BRKT 0-10806-050-0 01 1 9101- ● ●
131 WASHER; PL,BRKT 9-09164-810-0 01 1 9101- ● ●
157 WASHER; PL,BRKT
(A) ID=10.5 		9-09164-510-0 02 1 9101- ● ●
157 WASHER; PL,BRKT
(B) ID=10.5 OD=32 		9-09164-810-0 01 1 9101- ● ●
168 BRACKET; EXH PIPE,FRT
(A) 		1-22131-336-0 01 1 9101- ● ●
168 BRACKET; EXH PIPE,FRT
(B) 		1-22151-567-0 01 1 9101- ● ●
289 COLLAR; DIST,SUPPORT RUBBER
L=23.2 		9-22159-009-1 01 1 9101-9109 ● ●
289 COLLAR; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 9110- ● ●
290 BOLT; CLAMP 0-50141-045-0 02 1 9101- ● ●
295 WASHER; PL,CLAMP 9-09164-510-0 02 1 9101- ● ●
408 BRACKET; BRKT TO FRAME,EXH PIPE 1-22131-412-0 01 1 9101- ● ●
409 BRACKET; RR EXH PIPE 1-22131-412-0 01 1 9101- ● ●
410 RUBBER; SUPPORT BRKT 1-22159-106-1 02 1 9101- ● ●
414 BOLT; BRKT 0-50041-030-0 02 1 9101- ● ●
416 BRACKET; RR EXH PIPE 1-22139-046-0 01 1 9101- ● ●
446 PIECE; DIST,EXH PIPE,RR 1-22139-026-0 02 1 9101- ● ●
