◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51297 - NPR/NQR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#32794) — 84 parça

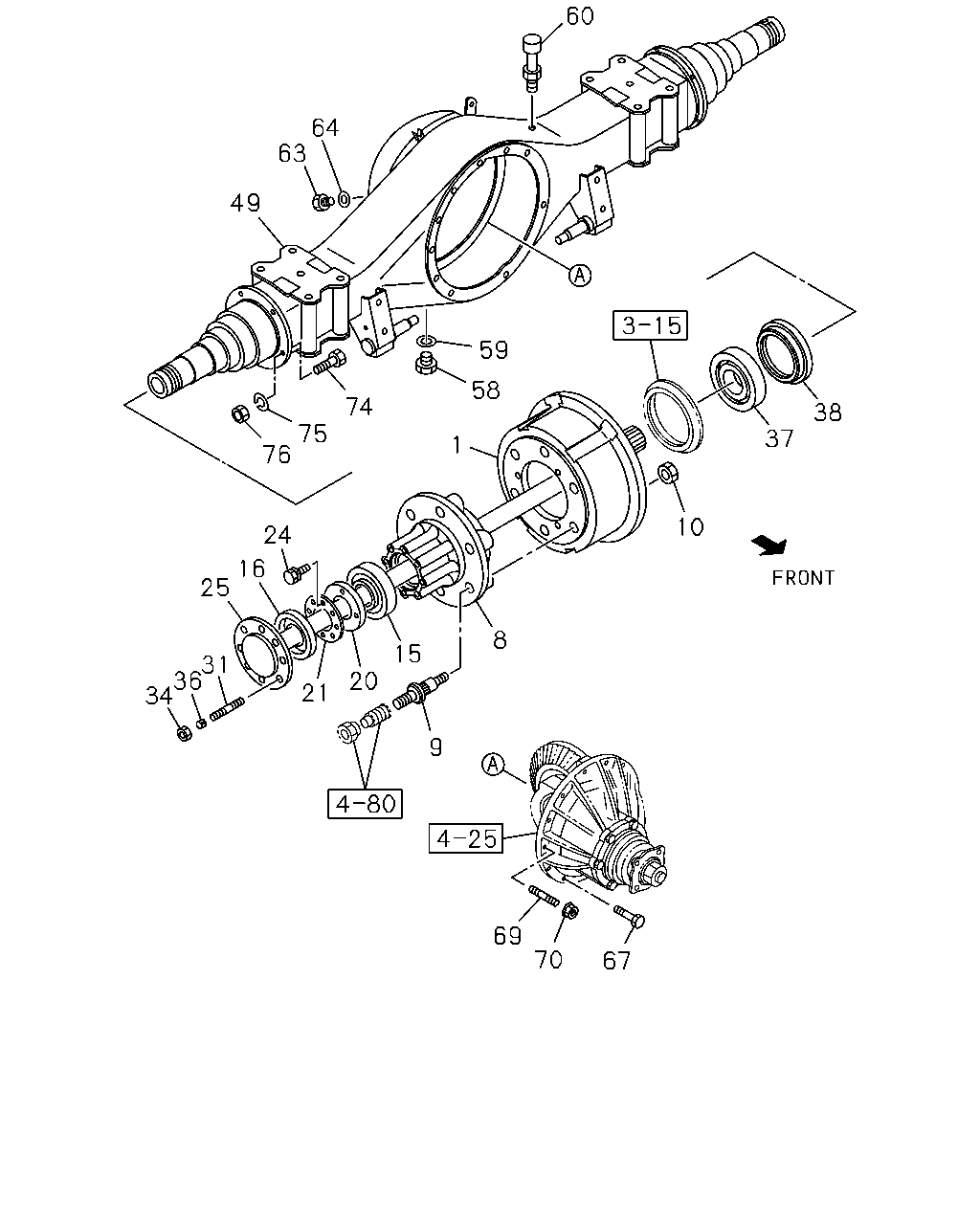

çizim 83467
60 64 63 49 59 58 74 38 75 76 37 1 10 24 16 25 8 15 31 36 34 20 21 9 69 70 67
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97102-001-3 02 1 1012- ●
1 05.809 DRUM; BRK,RR 8-97102-001-3 02 1 1012- ●
1 05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97081-219-2 02 1 1012- ●
1 05.809 DRUM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97081-219-2 02 1 1012- ●
1 05.809 DRUM; BRK,RR 8-97081-219-2 02 1 1012- ●
8 05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97250-321-1 02 1 1012- ●
8 05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97081-323-2 02 1 1012- ●
8 05.809 HUB; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97081-323-2 02 1 1012- ●
8 05.809 HUB; RR AXLE 8-97081-323-2 02 1 1012- ●
8 05.809 HUB; RR AXLE 8-97107-549-2 02 1 1012- ●
9 05.812 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1012- ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1012- ● ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
07.172 M22 		0-91110-522-0 12 1 1012- ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-607-0 02 1 1012- ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-139-0 02 1 1012- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-317-2 02 1 1012-1207 ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-912-0 02 1 1208- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-960-1 02 1 1012-1106 ● ● ●
20 05.830 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 1012- ● ● ●
21 05.830 WASHER; LK,BRG NUT
ID=55 		9-09653-002-1 02 1 1012- ● ● ●
24 05.830 BOLT; LK WASHER
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 1012-1508 ● ● ●
24 05.830 BOLT; LK WASHER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1509- ● ● ●
25 05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> L=885 		8-97134-439-0 02 1 1012- ●
25 05.420 SHAFT; AXLE,RR
L=885 		8-97134-439-0 02 1 1012- ●
25 05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> L=893 		8-97073-871-1 02 1 1012- ●
25 05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) EXC. FRAME STRAIGHT TYPE<7KJ> L=830 		8-94341-974-1 02 1 1012- ●
25 05.420 SHAFT; AXLE,RR
L=830 		8-94341-974-1 02 1 1012- ●
25 05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> L=822 		8-98098-426-0 02 1 1012- ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 1012- ● ● ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 16 1 1012- ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 1012- ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> NSK 		8-97122-938-0 02 1 1012- ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		8-97122-938-0 02 1 1012- ●
37 05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> JTEKT 		8-97123-119-0 02 1 1012- ●
37 05.855 BEARING; HUB INNER,RR AXLE
JTEKT 		8-97123-119-0 02 1 1012- ●
37 05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NSK 		9-00093-624-0 02 1 1012- ●
37 05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) NSK 		9-00093-624-0 02 1 1012- ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-624-0 02 1 1012- ●
37 05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS 		5-87610-141-0 02 1 1012- ●
37 05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS 		5-87610-141-0 02 1 1012- ●
37 05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-141-0 02 1 1012- ●
38 05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97122-937-0 02 1 1012- ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-97122-937-0 02 1 1012- ●
38 05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> TKK 		8-94336-316-1 02 1 1012- ●
38 05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 292MM(G73) TKK 		8-94336-316-1 02 1 1012- ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-316-1 02 1 1012- ●
38 05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-94367-958-0 02 1 1012- ●
38 05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 292MM(G73) NOK 		8-94367-958-0 02 1 1012- ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-958-0 02 1 1012- ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97250-319-3 01 1 1012- ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97222-080-3 01 1 1012- ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 		8-97222-081-3 01 1 1012- ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97036-560-6 01 1 1012- ●
49 05.387 CASE; RR AXLE 8-97036-560-6 01 1 1012- ●
49 05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-97048-635-8 01 1 1012- ●
49 05.387 CASE; RR AXLE 8-97222-079-4 01 1 1012- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1012- ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 1012- ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1012- ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 1012- ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1012- ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 07 1 1012- ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 07 1 1012- ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER 		0-50561-050-0 04 1 1012- ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50561-050-0 04 1 1012- ●
67 05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 1012- ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 1012- ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 1012- ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 1012- ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> M14X40 		8-98007-879-0 12 1 1012- ●
74 05.002 BOLT; RR BRK ASM SETTING
M14X40 		8-98007-879-0 12 1 1012- ●
74 05.002 BOLT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12X32 		8-97359-819-0 12 1 1012- ●
74 05.002 BOLT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73) M12X32 		8-97359-819-0 12 1 1012- ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 1012- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.174 ID=14.2 		0-91510-814-0 12 1 1012- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.174 ID=14.2 		0-91510-814-0 12 1 1012- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.347 ID=12.2 		0-91510-812-0 12 1 1012- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73) 07.347 ID=12.2 		0-91510-812-0 12 1 1012- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
07.347 ID=12.2 		0-91510-812-0 12 1 1012- ●
76 05.002 NUT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 07.833 M14 		0-91110-514-0 12 1 1012- ●
76 05.002 NUT; RR BRK ASM SETTING
07.833 M14 		0-91110-514-0 12 1 1012- ●
76 05.002 NUT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12 		0-91110-512-0 12 1 1012- ●
76 05.002 NUT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73) M12 		0-91110-512-0 12 1 1012- ●
76 05.002 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 12 1 1012- ●
