Sayfa 3-60 - Isuzu EPC

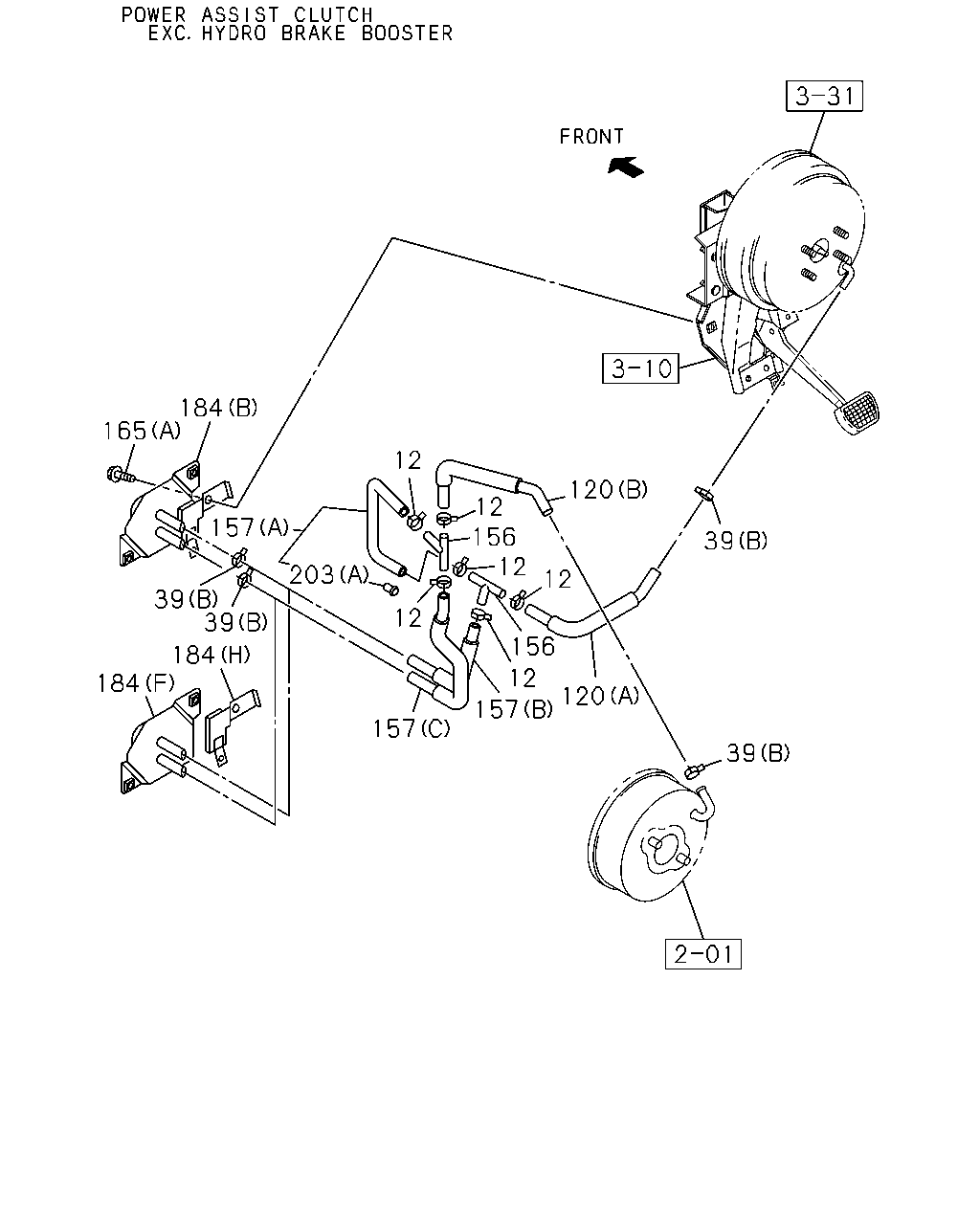

3-60 — BRAKE PIPING; VACUUM (#32790) — 702 parça

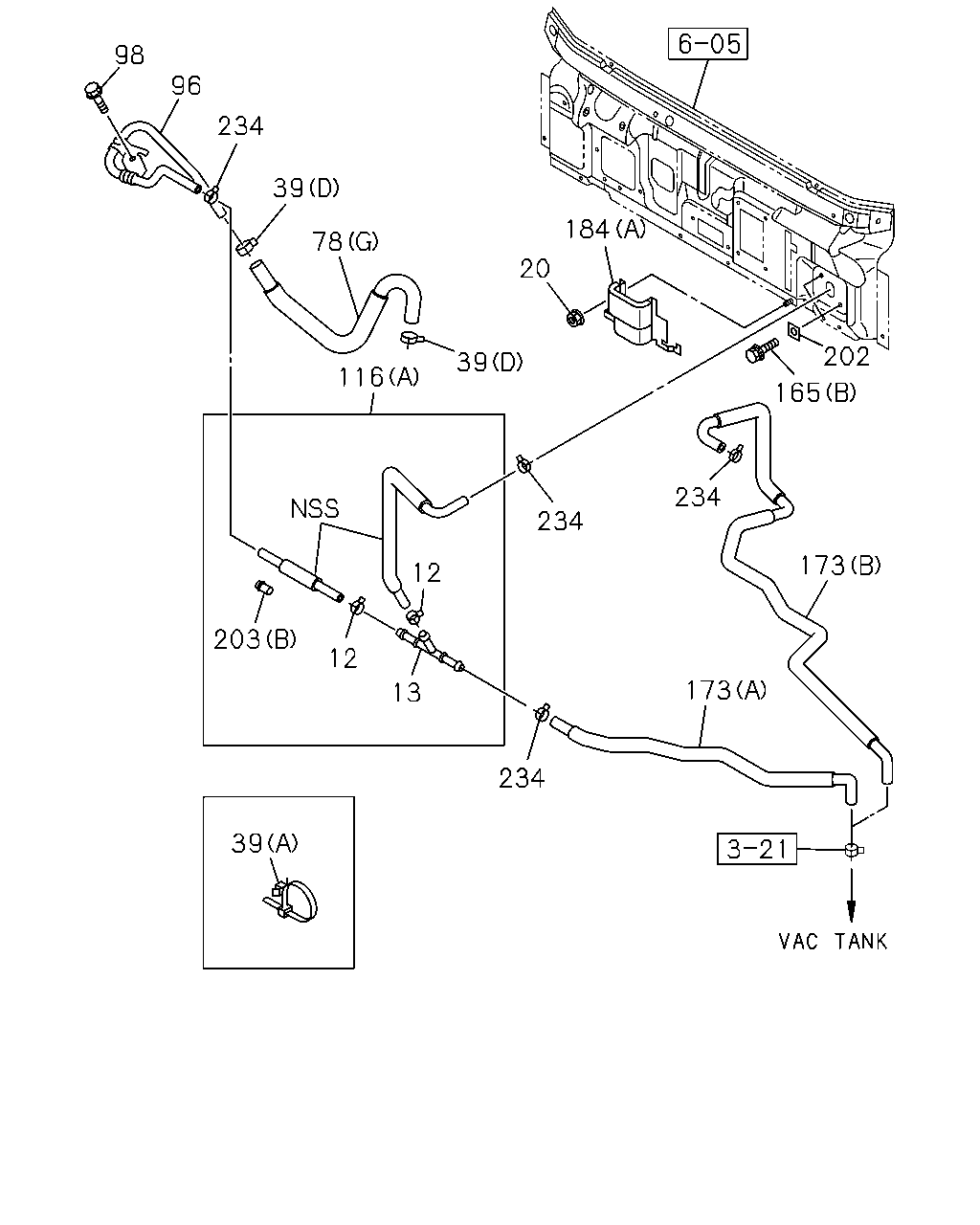

98 96 234 39 184 78 20 202 39 116 165 234 234 173 12 203 12 173 13 234 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1012-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1012-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1012-	●	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-			●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1012-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1012-			●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1012-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1012-	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1012-			●
20	04.686 NUT; BRKT EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-		●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (D) ID=16	8-97329-628-0	02	1	1206-			●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1012-	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1012-		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98057-462-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (E)	8-98057-462-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98171-287-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98112-680-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (F)	8-98112-680-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (G)	8-98081-681-2	01	1	1012-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98106-711-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-288-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-104-4	01	1	1012-1103	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98189-106-0	01	1	1104-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98133-654-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (H)	8-97389-728-2	01	1	1012-			●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-321-0	01	1	1012-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98082-321-0	01	1	1012-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-322-0	01	1	1012-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-322-0	01	1	1012-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP 4JJ1-TCC ENG(RDU)	8-98082-322-0	01	1	1012-			●
98	04.931 BOLT; VAC PIPE FIX EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
98	04.931 BOLT; VAC PIPE FIX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
98	04.931 BOLT; VAC PIPE FIX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
98	04.931 BOLT; VAC PIPE FIX 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
98	04.931 BOLT; VAC PIPE FIX 4HK1-TCN ENG(RDQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-			●
98	04.931 BOLT; VAC PIPE FIX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
98	04.931 BOLT; VAC PIPE FIX 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (C)	8-98158-378-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) (B) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	1012-			●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1012-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	1012-			●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98047-184-2	01	1	1012-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98031-774-1	01	1	1012-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-541-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (H)	8-98255-541-0	01	1	1312-		●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-474-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (H)	8-98156-526-0	01	1	1208-	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1012-1012			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1207			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1208-1311			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-536-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (F)	8-98255-536-0	01	1	1312-			●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98089-764-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-471-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-538-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (G)	8-98255-538-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98150-760-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98150-760-0	01	1	1012-1012			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-466-1	01	1	1101-1207			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-466-1	01	1	1208-1311			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98255-537-0	01	1	1312-			●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204		●	●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-		●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1012-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-	●	●	●
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1012-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-			●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1012-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	1012-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1012-			●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	04	1	1012-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1012-			●

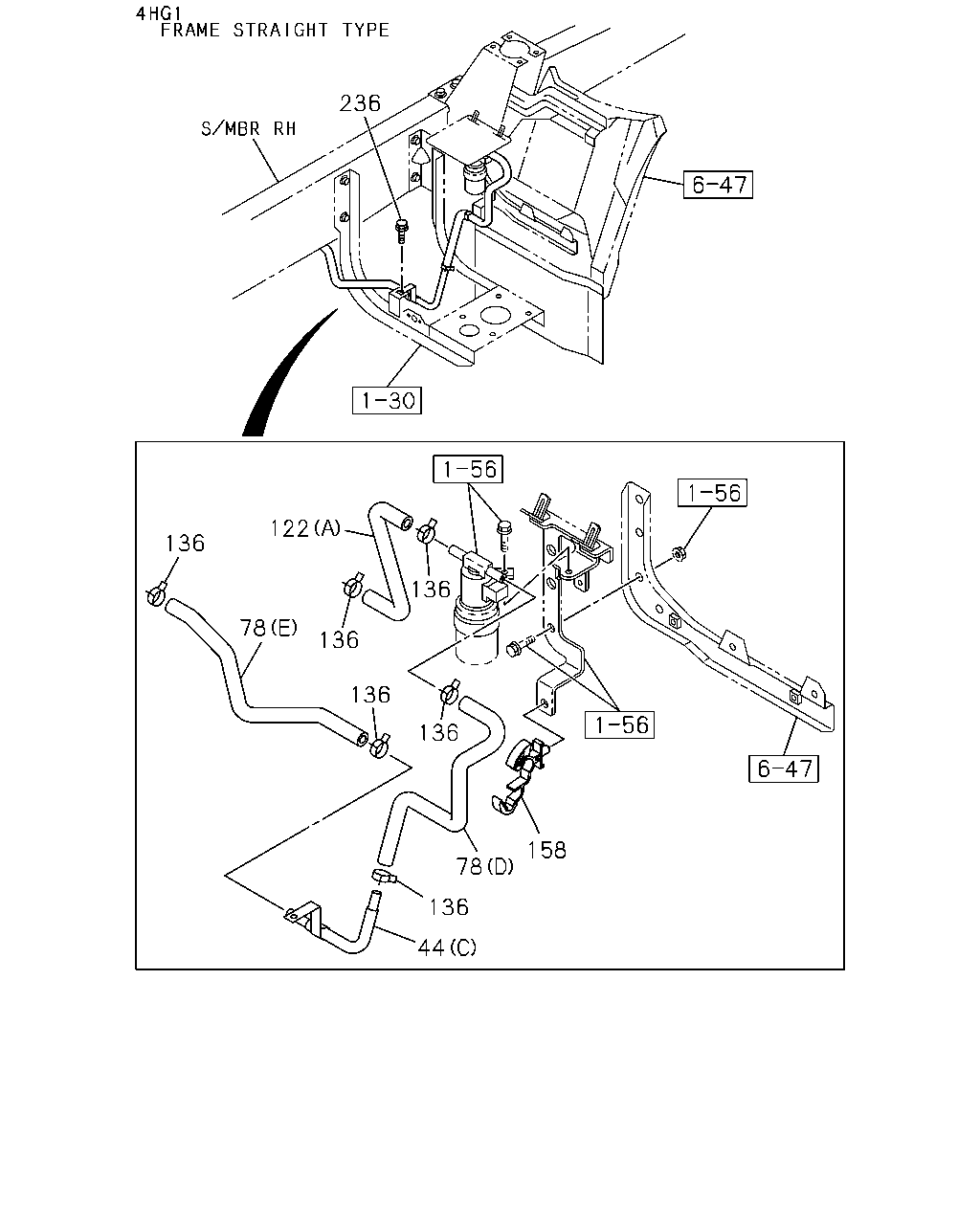

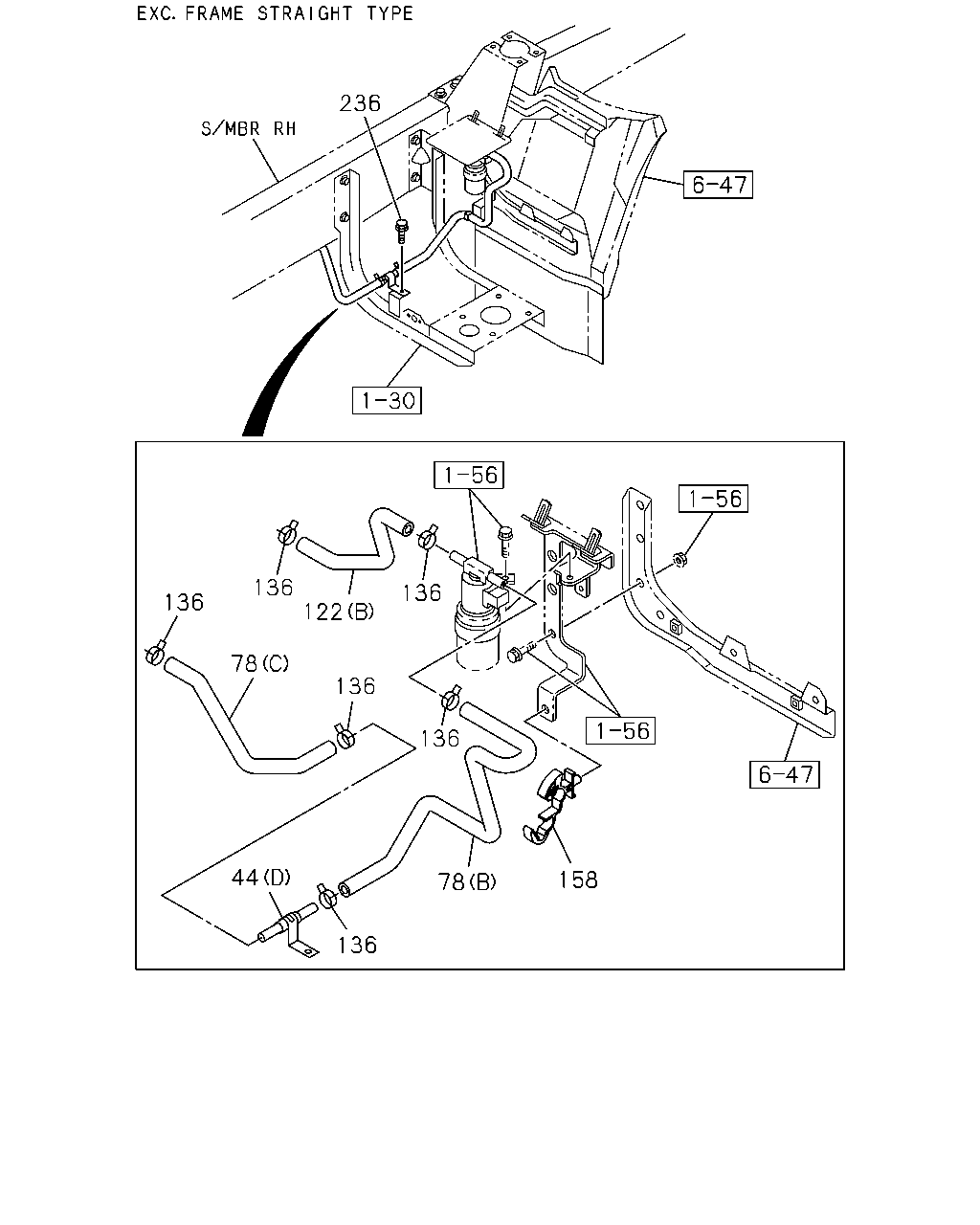

236 122 136 136 78 136 136 136 158 78 136 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (B)	8-98057-425-1	01	1	1012-		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (A)	8-98070-194-0	01	1	1012-		●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98063-777-0	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-281-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98057-462-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (E)	8-98057-462-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98171-287-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98112-680-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (F)	8-98112-680-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (G)	8-98081-681-2	01	1	1012-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98106-711-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-288-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-104-4	01	1	1012-1103	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98189-106-0	01	1	1104-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98133-654-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (H)	8-97389-728-2	01	1	1012-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-103-2	01	1	1012-1103	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ) (A)	8-98034-103-2	01	1	1012-1103		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98189-104-0	01	1	1104-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ) (A)	8-98189-104-0	01	1	1104-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98092-677-0	01	1	1012-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) (C)	8-97389-721-1	01	1	1012-			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	02	1	1012-		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1012-		●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) 03.162 ID=16	8-98008-098-0	04	1	1012-			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1012-	●
158	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) 02.559 ID=14-20	8-97061-603-0	01	1	1012-		●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
236	04.930 BOLT; PIPE 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●

122 136 136 136 78 136 136 78 44 136 158 236 44 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (B)	8-98057-425-1	01	1	1012-		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (A)	8-98070-194-0	01	1	1012-		●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98063-777-0	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-281-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98057-462-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (E)	8-98057-462-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98171-287-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98112-680-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (F)	8-98112-680-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (G)	8-98081-681-2	01	1	1012-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98106-711-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-288-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-104-4	01	1	1012-1103	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98189-106-0	01	1	1104-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98133-654-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (H)	8-97389-728-2	01	1	1012-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-103-2	01	1	1012-1103	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ) (A)	8-98034-103-2	01	1	1012-1103		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98189-104-0	01	1	1104-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ) (A)	8-98189-104-0	01	1	1104-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98092-677-0	01	1	1012-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) (C)	8-97389-721-1	01	1	1012-			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	02	1	1012-		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1012-		●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) 03.162 ID=16	8-98008-098-0	04	1	1012-			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1012-	●
158	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) 02.559 ID=14-20	8-97061-603-0	01	1	1012-		●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
236	04.930 BOLT; PIPE 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●

39 39 120 157 157 12 156 12 12 156 12 12 120 12 203 157 39 39 184 184 165 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

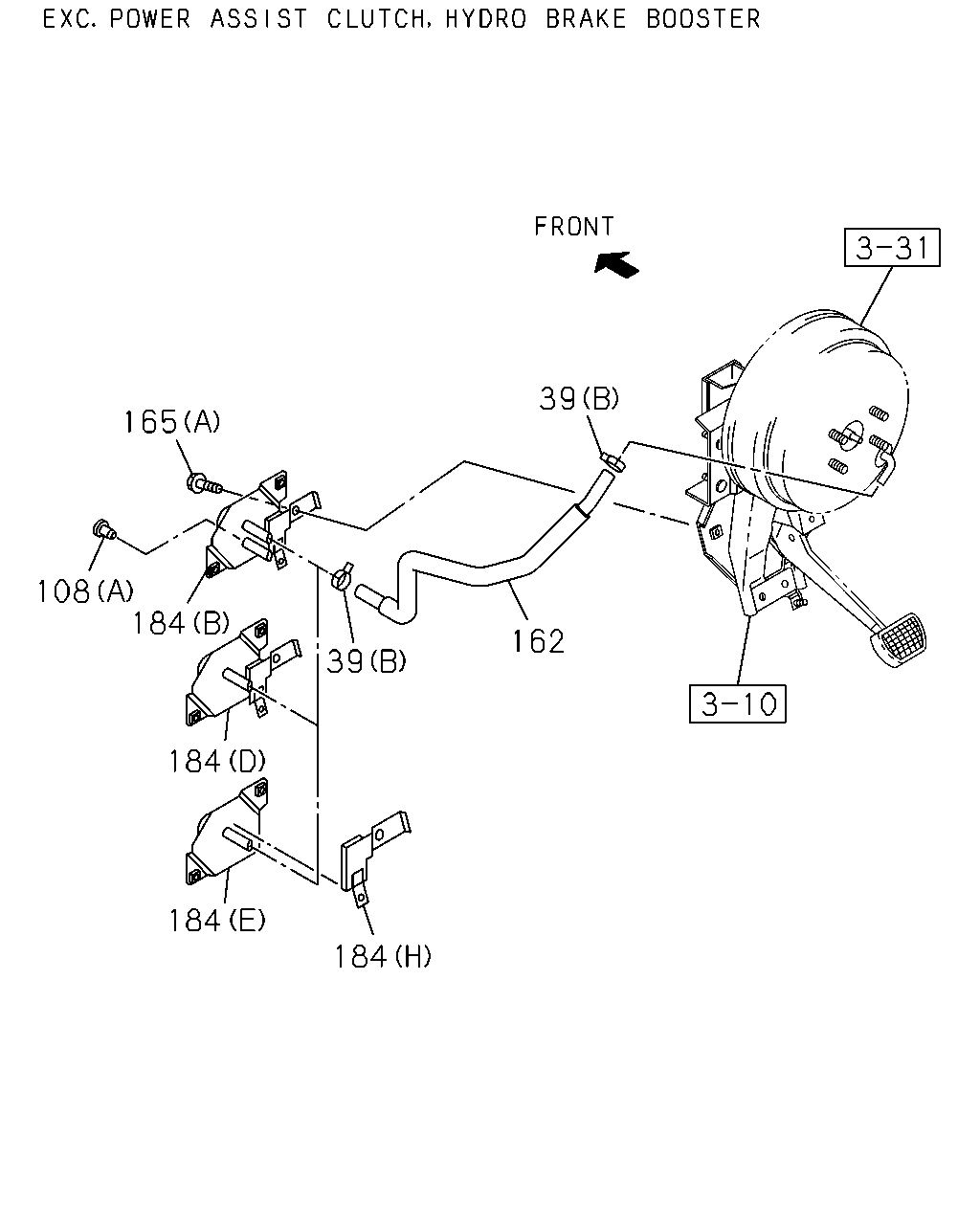

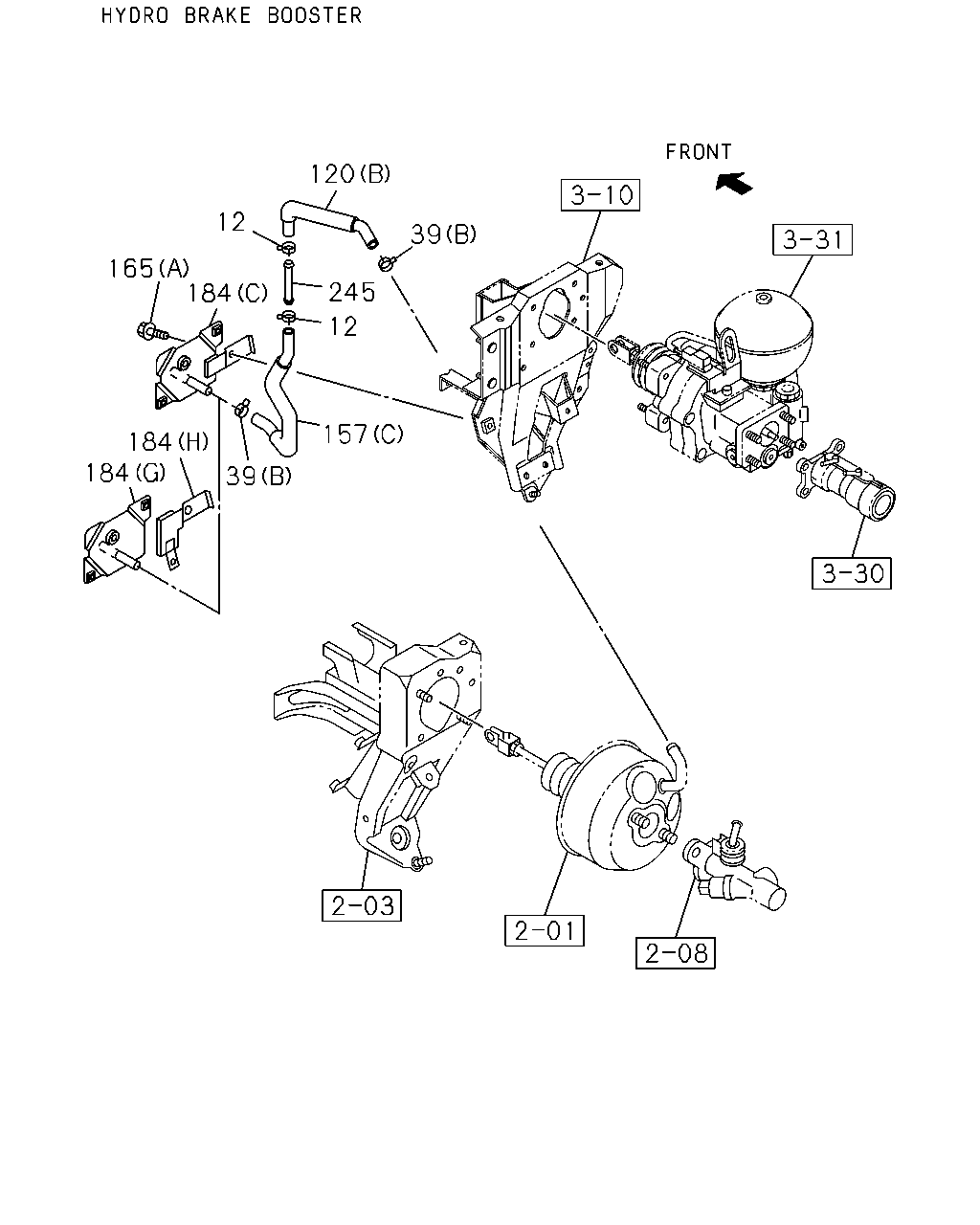

12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1012-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1012-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1012-	●	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-			●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1012-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1012-			●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (D) ID=16	8-97329-628-0	02	1	1206-			●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1012-	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1012-		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-			●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1012-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-856-2	01	1	1012-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1012-			●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681	8-98035-106-0	02	1	1012-	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1012-			●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1012-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	1012-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1012-			●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	1012-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1012-			●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-541-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (H)	8-98255-541-0	01	1	1312-		●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-474-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (H)	8-98156-526-0	01	1	1208-	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1012-1012			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1207			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1208-1311			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-536-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (F)	8-98255-536-0	01	1	1312-			●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98089-764-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-471-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-538-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (G)	8-98255-538-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98150-760-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98150-760-0	01	1	1012-1012			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-466-1	01	1	1101-1207			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-466-1	01	1	1208-1311			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98255-537-0	01	1	1312-			●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204		●	●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-		●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-	●	●	●
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-94386-540-0	01	1	1012-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-			●

80 66 85 66 116 66 80 66 33 33 136 122 158 136 78 136 80 235 108 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

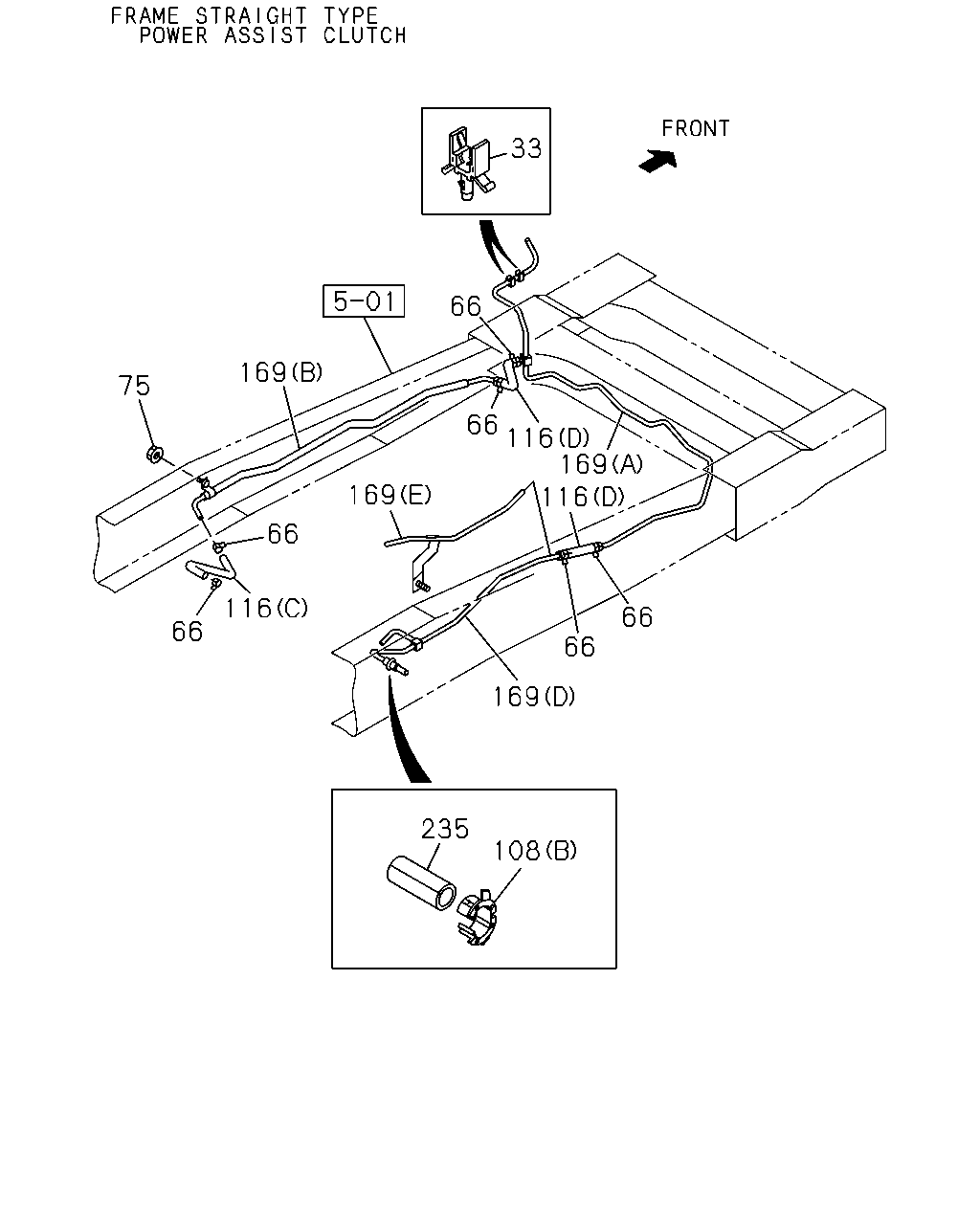

33	04.930 CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1012-	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1012-	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1012-		●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1012-		●
33	04.930 CLIP; VAC PIPE 4JJ1-TCC ENG(RDU) ID=10 H=40	8-94462-219-0	02	1	1012-			●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1012-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCC ENG(RDU) 03.162 ID=16	8-98008-098-0	02	1	1012-			●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98057-462-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (E)	8-98057-462-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98171-287-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98112-680-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (F)	8-98112-680-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (G)	8-98081-681-2	01	1	1012-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98106-711-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-288-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-104-4	01	1	1012-1103	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98189-106-0	01	1	1104-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98133-654-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (H)	8-97389-728-2	01	1	1012-			●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	1012-		●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	1012-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98103-509-0	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98103-509-0	01	1	1012-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYP E<7KJ> (C)	8-98135-522-0	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98135-522-0	01	1	1012-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98056-499-0	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (D)	8-98056-499-0	01	1	1012-			●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97389-705-2	01	1	1012-	●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97389-705-2	01	1	1012-			●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYP E<7KJ>	8-98135-573-0	01	1	1012-	●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1012-			●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-		●
108	04.931 GROMMET; PIPE 4JJ1-TCC ENG(RDU) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-			●
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (C)	8-98158-378-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) (B) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	1012-			●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1012-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	1012-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-103-2	01	1	1012-1103	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ) (A)	8-98034-103-2	01	1	1012-1103		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98189-104-0	01	1	1104-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ) (A)	8-98189-104-0	01	1	1104-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98092-677-0	01	1	1012-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) (C)	8-97389-721-1	01	1	1012-			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	02	1	1012-		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1012-		●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) 03.162 ID=16	8-98008-098-0	04	1	1012-			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1012-	●
158	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) 02.559 ID=14-20	8-97061-603-0	01	1	1012-		●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-		●
235	04.931 RUBBER; SUPPORT,PIPE 4JJ1-TCC ENG(RDU) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-			●

162 39 39 184 184 184 184 108 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (D) ID=16	8-97329-628-0	02	1	1206-			●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1012-	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1012-		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-			●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-		●
108	04.931 GROMMET; PIPE 4JJ1-TCC ENG(RDU) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-			●
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1012-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98034-154-2	01	1	1012-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	1012-			●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-541-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (H)	8-98255-541-0	01	1	1312-		●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-474-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (H)	8-98156-526-0	01	1	1208-	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1012-1012			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1207			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1208-1311			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-536-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (F)	8-98255-536-0	01	1	1312-			●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98089-764-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-471-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-538-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (G)	8-98255-538-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98150-760-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98150-760-0	01	1	1012-1012			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-466-1	01	1	1101-1207			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-466-1	01	1	1208-1311			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98255-537-0	01	1	1312-			●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204		●	●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-		●	●

33 66 169 75 66 116 169 116 169 66 116 66 66 66 169 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	04.930 CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1012-	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1012-	●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1012-		●
33	04.930 CLIP; VAC PIPE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1012-		●
33	04.930 CLIP; VAC PIPE 4JJ1-TCC ENG(RDU) ID=10 H=40	8-94462-219-0	02	1	1012-			●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1012-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCC ENG(RDU) 03.162 ID=16	8-98008-098-0	02	1	1012-			●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-	●
75	04.930 NUT; CLIP,VAC HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
75	04.930 NUT; CLIP,VAC HOSE 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-		●
108	04.931 GROMMET; PIPE 4JJ1-TCC ENG(RDU) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-			●
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (C)	8-98158-378-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) (B) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	1012-			●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1012-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	1012-			●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-98048-903-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) (D)	8-98048-903-0	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-805-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-052-2	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) (B)	8-98041-052-2	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98100-234-2	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98132-683-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98122-739-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98122-739-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98122-740-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98118-156-2	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (A)	8-98130-319-0	01	1	1012-	●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-		●
235	04.931 RUBBER; SUPPORT,PIPE 4JJ1-TCC ENG(RDU) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-			●

116 169 75 66 66 116 169 66 169 116 66 66 66 169 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1012-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCC ENG(RDU) 03.162 ID=16	8-98008-098-0	02	1	1012-			●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-	●
75	04.930 NUT; CLIP,VAC HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
75	04.930 NUT; CLIP,VAC HOSE 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-		●
108	04.931 GROMMET; PIPE 4JJ1-TCC ENG(RDU) 02.343 (B) ID=17	8-94128-319-2	01	1	1012-			●
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (C)	8-98158-378-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) (B) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	1012-			●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (C)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	1012-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	1012-			●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-98048-903-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) (D)	8-98048-903-0	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-805-0	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-052-2	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) (B)	8-98041-052-2	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98100-234-2	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98132-683-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98122-739-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98122-739-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98122-740-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98118-156-2	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (A)	8-98130-319-0	01	1	1012-	●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-		●
235	04.931 RUBBER; SUPPORT,PIPE 4JJ1-TCC ENG(RDU) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-			●

236 136 136 136 122 78 136 136 44 158 78 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (B)	8-98057-425-1	01	1	1012-		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (A)	8-98070-194-0	01	1	1012-		●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98063-777-0	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-281-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98057-462-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (E)	8-98057-462-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98171-287-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98112-680-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (F)	8-98112-680-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (G)	8-98081-681-2	01	1	1012-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98106-711-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-288-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-104-4	01	1	1012-1103	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98189-106-0	01	1	1104-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98133-654-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (H)	8-97389-728-2	01	1	1012-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-103-2	01	1	1012-1103	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ) (A)	8-98034-103-2	01	1	1012-1103		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98189-104-0	01	1	1104-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ) (A)	8-98189-104-0	01	1	1104-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98092-677-0	01	1	1012-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) (C)	8-97389-721-1	01	1	1012-			●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	02	1	1012-		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1012-		●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) 03.162 ID=16	8-98008-098-0	04	1	1012-			●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1012-	●
158	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) 02.559 ID=14-20	8-97061-603-0	01	1	1012-		●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
236	04.930 BOLT; PIPE 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●

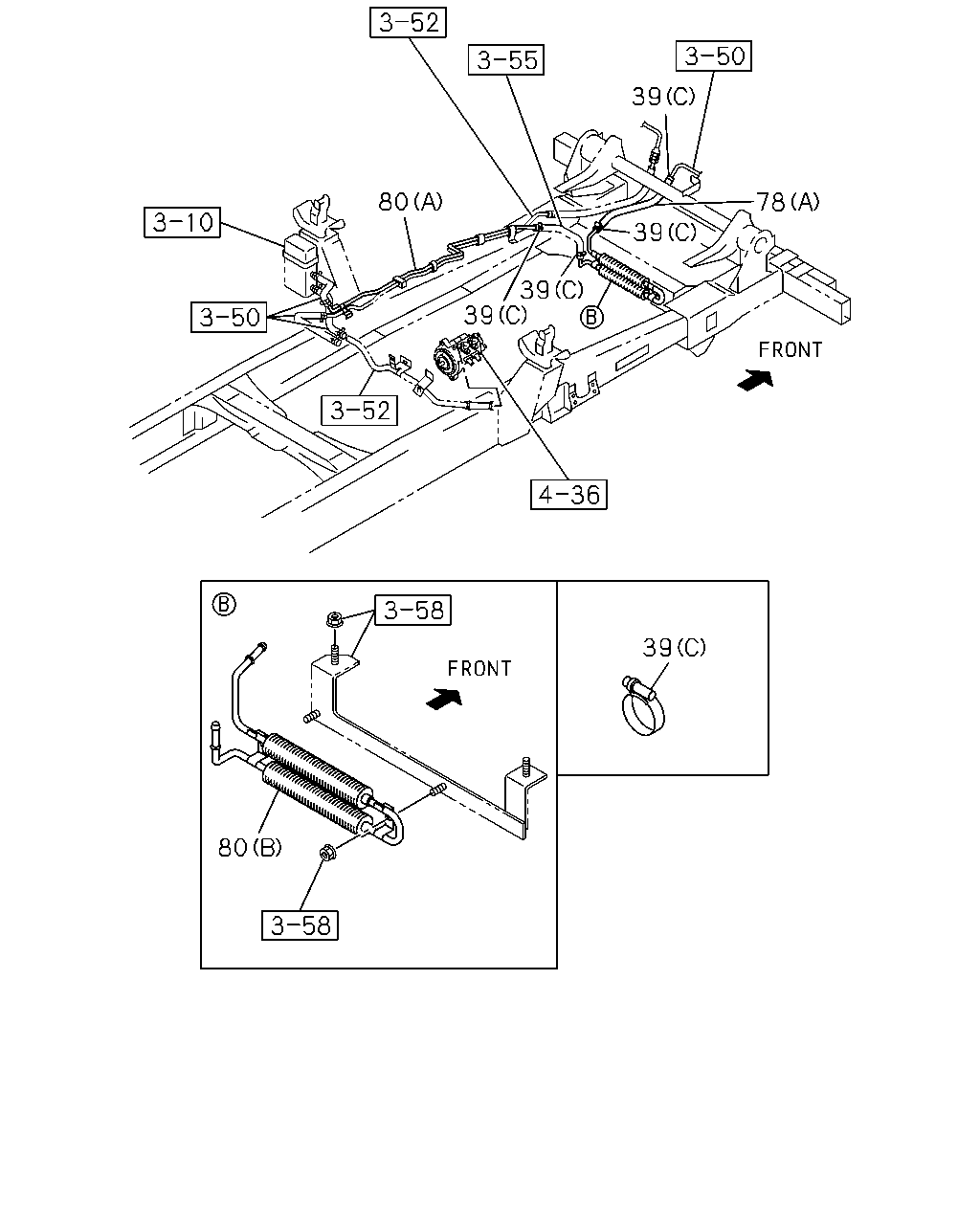

39 80 78 39 39 39 39 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (D) ID=16	8-97329-628-0	02	1	1206-			●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1012-	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1012-		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98057-462-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (E)	8-98057-462-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98171-287-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98171-287-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98112-680-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (F)	8-98112-680-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (G)	8-98081-681-2	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (G)	8-98081-681-2	01	1	1012-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98106-711-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-288-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-104-4	01	1	1012-1103	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98189-106-0	01	1	1104-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98133-654-1	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) (H)	8-97389-728-2	01	1	1012-			●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	1012-		●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	1012-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98103-509-0	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98103-509-0	01	1	1012-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYP E<7KJ> (C)	8-98135-522-0	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98135-522-0	01	1	1012-			●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98056-499-0	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) (D)	8-98056-499-0	01	1	1012-			●

39 184 184 157 165 12 184 245 12 120 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1012-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	02	1	1012-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1012-	●	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-			●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5	8-98008-097-0	06	1	1012-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1012-			●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 4JJ1-TCC ENG(RDU) 03.162 (D) ID=16	8-98008-098-0	02	1	1012-1205			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-	●	●
39	04.681 CLIP; HOSE,VAC 01.097 (D) ID=16	8-97329-628-0	02	1	1206-			●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1012-	●
39	04.681 CLIP; HOSE,VAC 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1012-		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-			●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-			●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1012-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-856-2	01	1	1012-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1012-			●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1012-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	1012-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1012-			●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	1012-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1012-			●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (H)	8-98255-541-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (H)	8-98255-541-0	01	1	1312-		●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98183-468-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98183-474-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (H)	8-98156-526-0	01	1	1208-	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98183-469-1	01	1	1208-	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1012-1012			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1207			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1208-1311			●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-536-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (F)	8-98255-536-0	01	1	1312-			●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98089-764-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-471-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-538-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (G)	8-98255-538-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98150-760-0	01	1	1012-1012	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98150-760-0	01	1	1012-1012			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1101-1207	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-466-1	01	1	1101-1207			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-466-1	01	1	1208-1311	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1208-1311		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-466-1	01	1	1208-1311			●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-537-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98255-537-0	01	1	1312-			●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1012-1204		●	●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-		●	●
245	04.931 JOINT; 2 WAY POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681	8-98048-075-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
