◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51297 - NPR/NQR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#32789) — 108 parça

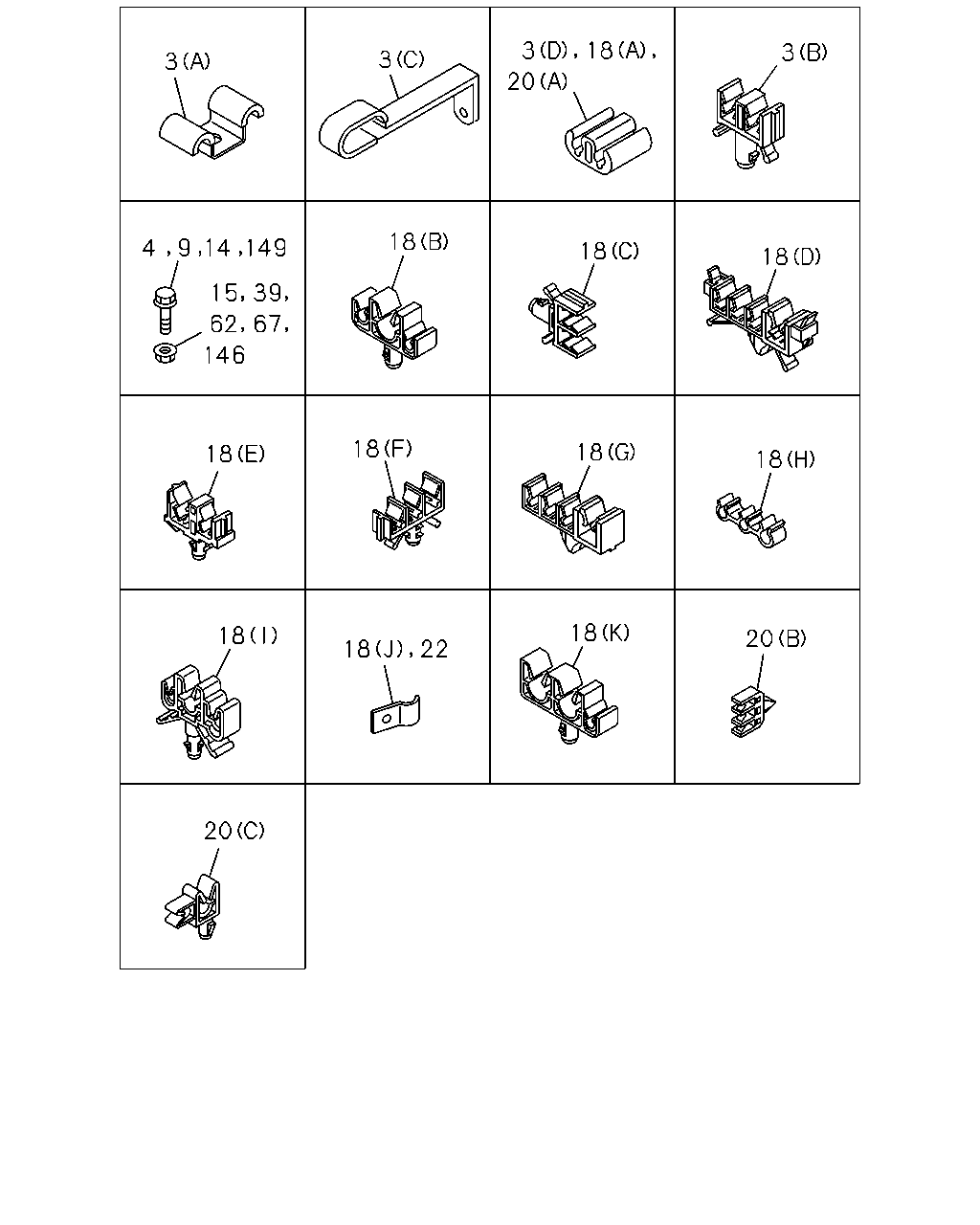

çizim 83430
20 18 18 22 18 20 18 18 18 18 4 9 14 149 15 39 62 67 146 18 18 18 3 18 3 20 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 04.685 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.047 (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 1012- ●
3 04.685 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 04.047 (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 1012- ●
3 04.685 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.047 (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1012- ●
3 04.685 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 04.047 (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1012- ●
3 04.685 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22 		8-94252-455-2 03 1 1012- ●
3 04.685 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22 		8-94252-455-2 03 1 1012- ●
3 04.685 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 1012- ●
3 04.685 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 1012- ●
4 04.686 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1012- ●
4 04.686 BOLT; BRKT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1012- ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ● ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
14 04.686 BOLT; CLIP,OIL PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
14 04.686 BOLT; CLIP,OIL PIPE
4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
14 04.686 BOLT; CLIP,OIL PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
14 04.686 BOLT; CLIP,OIL PIPE
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
15 04.686 NUT; CLIP,OIL PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
15 04.686 NUT; CLIP,OIL PIPE
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
15 04.686 NUT; CLIP,OIL PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
15 04.686 NUT; CLIP,OIL PIPE
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (I) ID=12 & 6.35 & 4.76 		8-97202-954-1 02 1 1408- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (I) ID=12 & 6.35 & 4.76 		8-97202-954-1 02 1 1408- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.128 (K) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1303- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=4.8X2 		8-94455-816-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (E) ID=4.8X2 		8-94455-816-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2 		8-94316-410-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (J) B=18 L=20 		1-09700-372-0 02 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (J) B=18 L=20 		1-09700-372-0 02 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (I) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 1012-1407 ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (I) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 1012-1407 ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (I) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1408- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (I) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1408- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 02 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) (C) ID=4.8X2 		8-94316-410-0 02 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 06 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 06 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) (B) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1012- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (D) ID=10 & 4.76X3 		8-97326-158-1 02 1 1012- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1012-1110 ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1012-1110 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1111- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1111- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1111- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1012- ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 02 1 1012- ● ● ●
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1012- ● ● ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D) ID=10 & 4.76X3 		8-97326-158-1 06 1 1012-1501 ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 06 1 1502- ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D) ID=10 & 4.76X3 		8-97326-158-1 06 1 1502- ●
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1012- ● ●
20 04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1012- ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1012- ● ●
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 03 1 1012- ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1012- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 1012- ● ●
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 1012- ●
22 04.686 CLIP; PIPE TO FRAME
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> B=18 L=20 		1-09700-372-0 01 1 1012- ●
22 04.686 CLIP; PIPE TO FRAME
4JJ1-TCC ENG(RDU) B=18 L=20 		1-09700-372-0 01 1 1012- ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
62 04.686 NUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
62 04.686 NUT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
67 04.686 NUT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.515 M14 		0-91111-514-0 01 1 1012- ●
67 04.686 NUT; BRKT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 06.515 M14 		0-91111-514-0 01 1 1012- ●
67 04.686 NUT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
67 04.686 NUT; BRKT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
67 04.686 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
67 04.686 NUT; BRKT
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
67 04.686 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
67 04.686 NUT; BRKT
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
67 04.686 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10 		8-98034-487-1 01 1 1012- ●
67 04.686 NUT; BRKT
4JJ1-TCC ENG(RDU) 00.837 M10 		8-98034-487-1 01 1 1012- ●
146 04.686 NUT; PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
146 04.686 NUT; PIPE
4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
146 04.686 NUT; PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
146 04.686 NUT; PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
146 04.686 NUT; PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
149 04.686 BOLT; HOSE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1012- ●
149 04.686 BOLT; HOSE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1012- ●
çizim 103557
19 49 49 49 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C
19 04.686 BRACKET; OIL PIPE 8-97389-845-2 01 1 1012- ● ● ●
49 04.686 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) 		8-97387-196-0 01 1 1012- ●
49 04.686 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98033-802-1 01 1 1012- ●
49 04.686 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98033-802-1 01 1 1012- ●
49 04.686 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98036-116-2 01 1 1012-1103 ●
49 04.686 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98036-116-2 01 1 1012-1103 ●
49 04.686 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98187-801-0 01 1 1104- ●
49 04.686 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98187-801-0 01 1 1104- ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-98049-137-1 01 1 1012- ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) (A) 		8-98049-137-1 01 1 1012- ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (D) 		8-98060-016-3 01 1 1012- ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) (D) 		8-98060-016-3 01 1 1012- ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98017-159-0 01 1 1012- ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) (B) 		8-98017-159-0 01 1 1012- ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-786-0 01 1 1012- ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) (C) 		8-98034-786-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
