Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#32786) — 180 parça

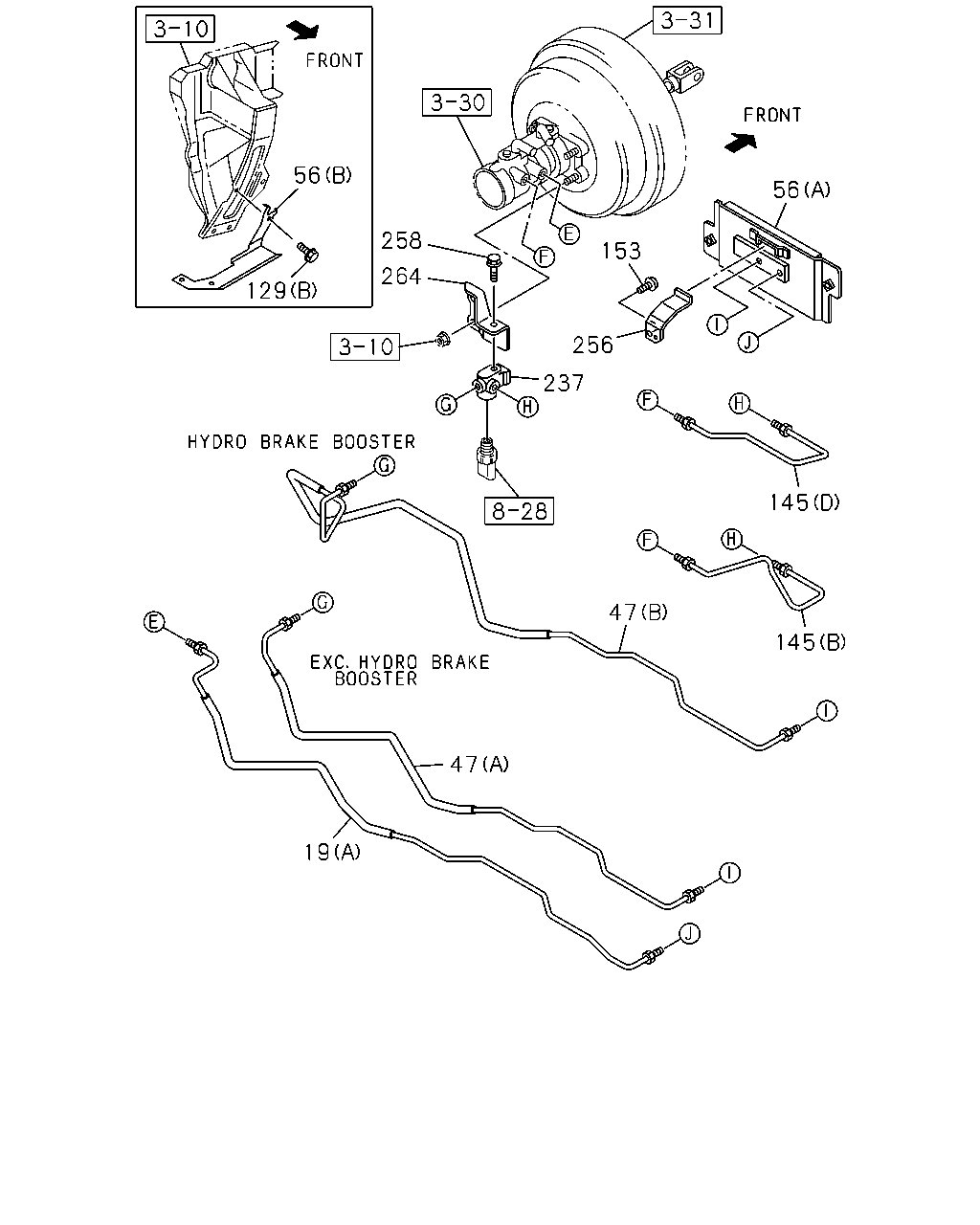

56 56 258 153 264 129 256 237 145 47 145 47 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCC ENG(RDU) (B)	8-98056-155-1	02	1	1012-			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	1012-			●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=1059	8-98099-808-0	01	1	1012-1505	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=1059	8-98099-808-0	01	1	1506-	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-807-0	01	1	1012-1406	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1012-		●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1012-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-			●
129	04.710 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
129	04.710 BOLT; BRKT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=228	8-98133-411-0	01	1	1012-1505	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=228	8-98133-411-0	01	1	1506-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) L=247	8-98133-410-0	01	1	1012-1406	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=1052	8-98099-793-0	01	1	1012-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (A) L=1052	8-98099-793-0	01	1	1012-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1012-1505	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1012-1505		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1012-1505			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1506-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1506-			●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1012-1207	●	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1208-	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1208-		●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	1012-	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-521-0	01	1	1012-1207	●	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1208-	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-521-0	01	1	1208-		●	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1012-	●

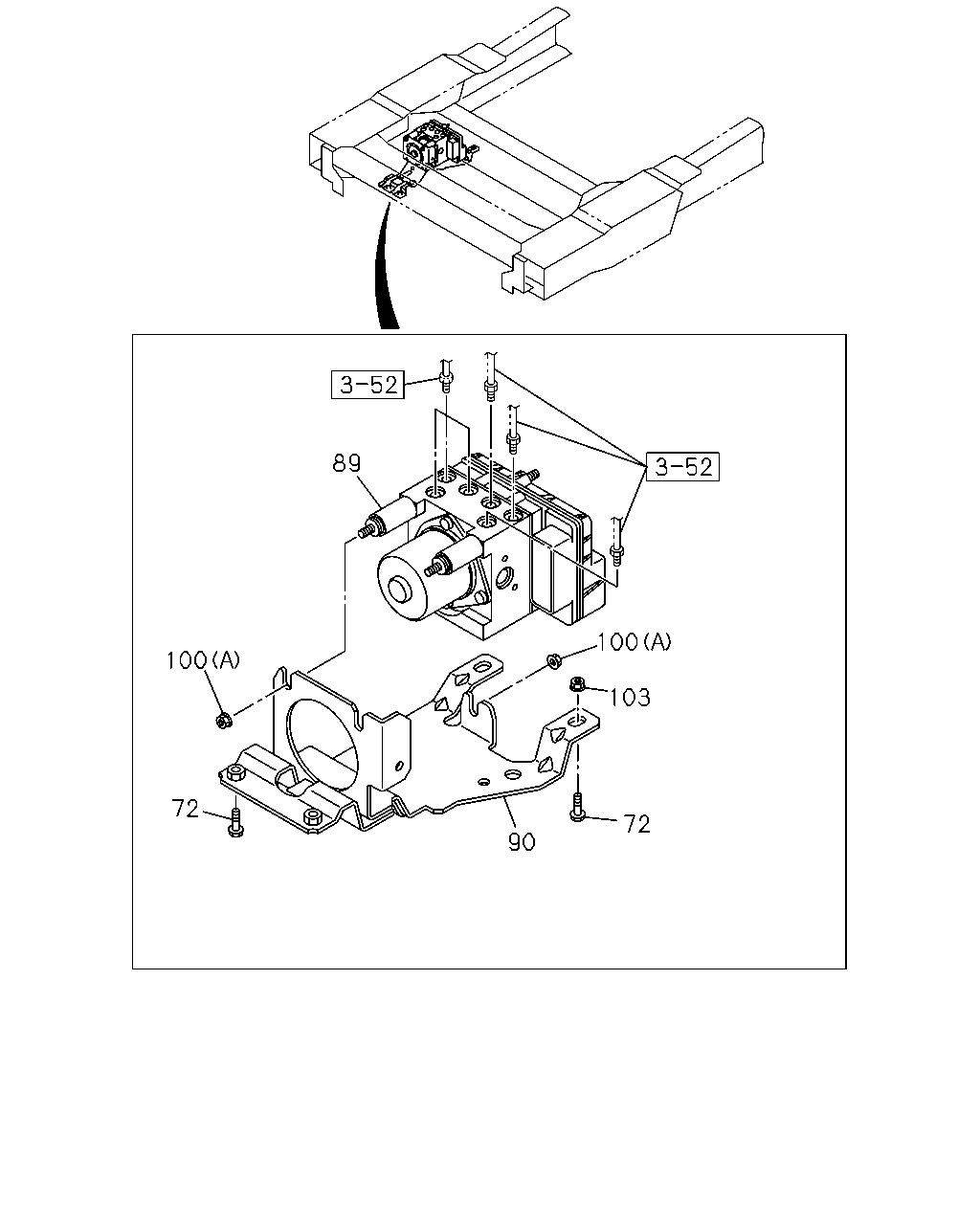

89 100 100 103 72 72 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1012-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1012-1409	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98158-006-1	01	1	1410-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	1012-	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1012-	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1012-	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1012-		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1303-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1302	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1303-	●

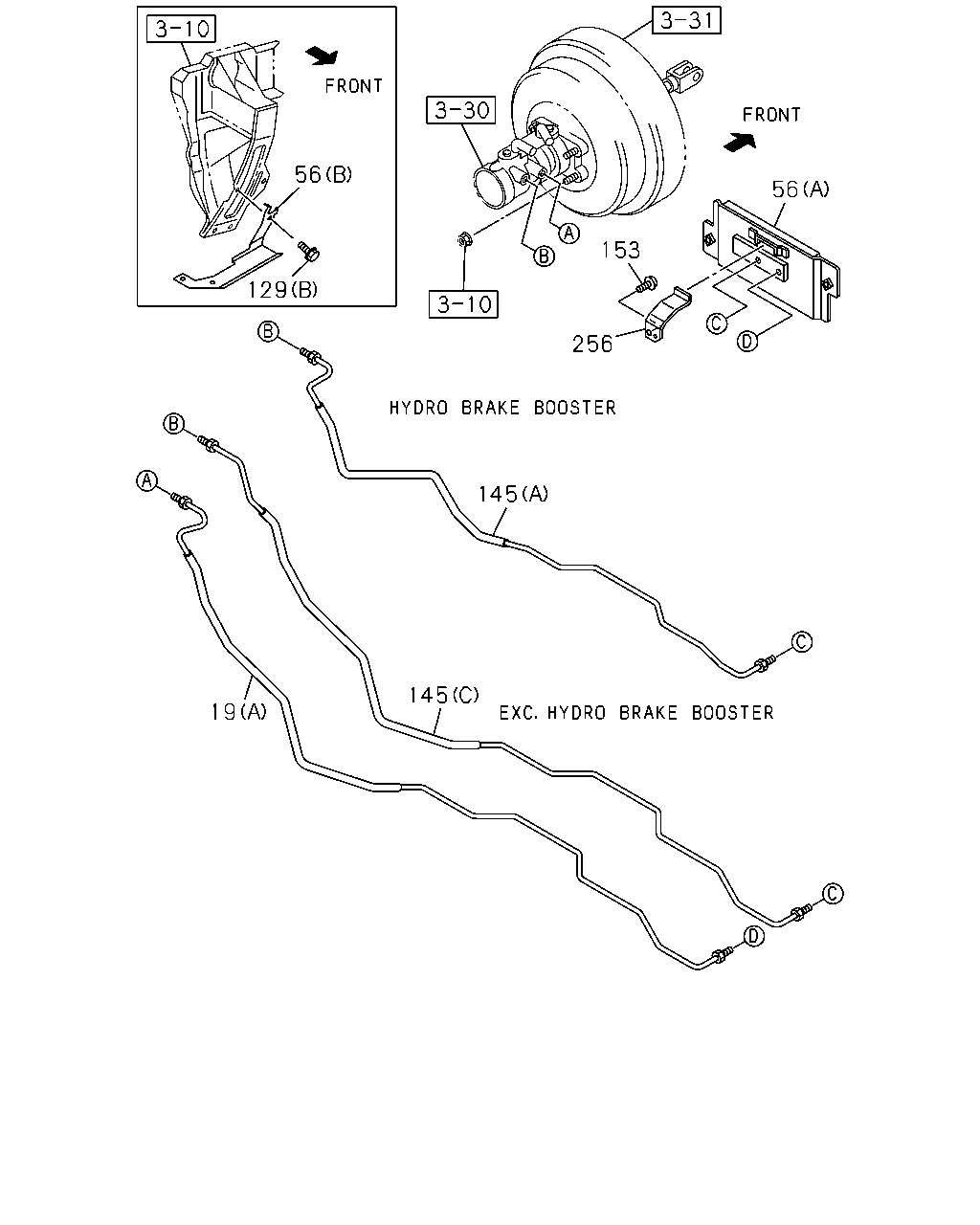

56 56 153 129 256 145 145 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCC ENG(RDU) (B)	8-98056-155-1	02	1	1012-			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1012-		●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1012-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-			●
129	04.710 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
129	04.710 BOLT; BRKT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=228	8-98133-411-0	01	1	1012-1505	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=228	8-98133-411-0	01	1	1506-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) L=247	8-98133-410-0	01	1	1012-1406	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=1052	8-98099-793-0	01	1	1012-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (A) L=1052	8-98099-793-0	01	1	1012-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1012-1505	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1012-1505		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1012-1505			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98097-179-1	01	1	1506-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98097-179-1	01	1	1506-			●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1012-1207	●	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1208-	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1208-		●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-521-0	01	1	1012-1207	●	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1208-	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-521-0	01	1	1208-		●	●

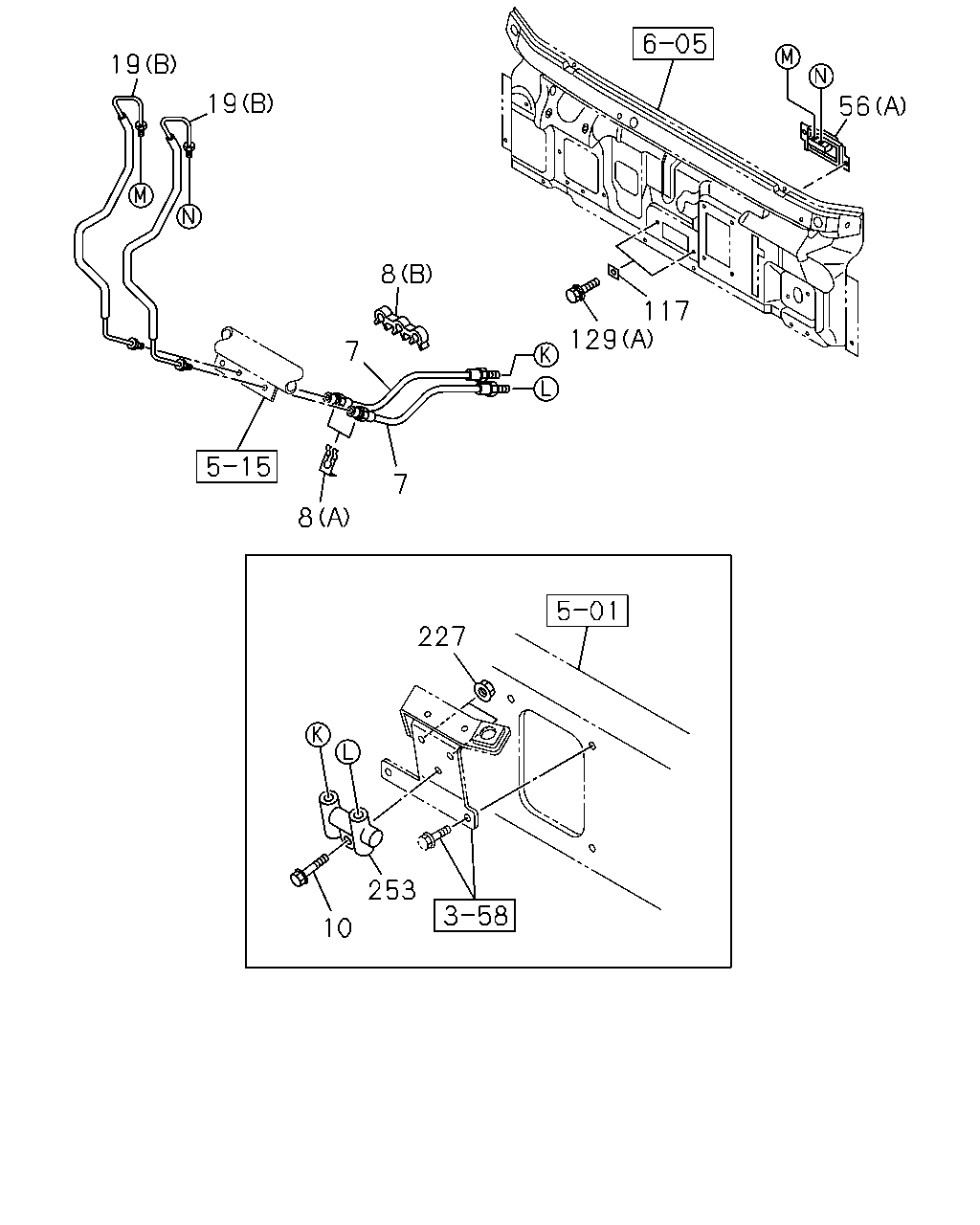

19 19 56 8 117 129 7 7 8 227 253 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1012-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1012-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1012-	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1012-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCC ENG(RDU) (B)	8-98056-155-1	02	1	1012-			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	1012-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1012-		●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1012-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-			●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1012-	●	●	●
129	04.710 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
129	04.710 BOLT; BRKT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-	●	●	●
227	04.685 NUT; JOINT 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
227	04.685 NUT; JOINT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
227	04.685 NUT; JOINT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●
227	04.685 NUT; JOINT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-			●
253	04.840 JOINT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1012-	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	1012-	●
253	04.840 JOINT 4HK1-TCN ENG(RDQ) 04.686	5-47456-009-1	01	1	1012-		●
253	04.840 JOINT 4JJ1-TCC ENG(RDU) 04.686	5-47456-009-1	01	1	1012-			●

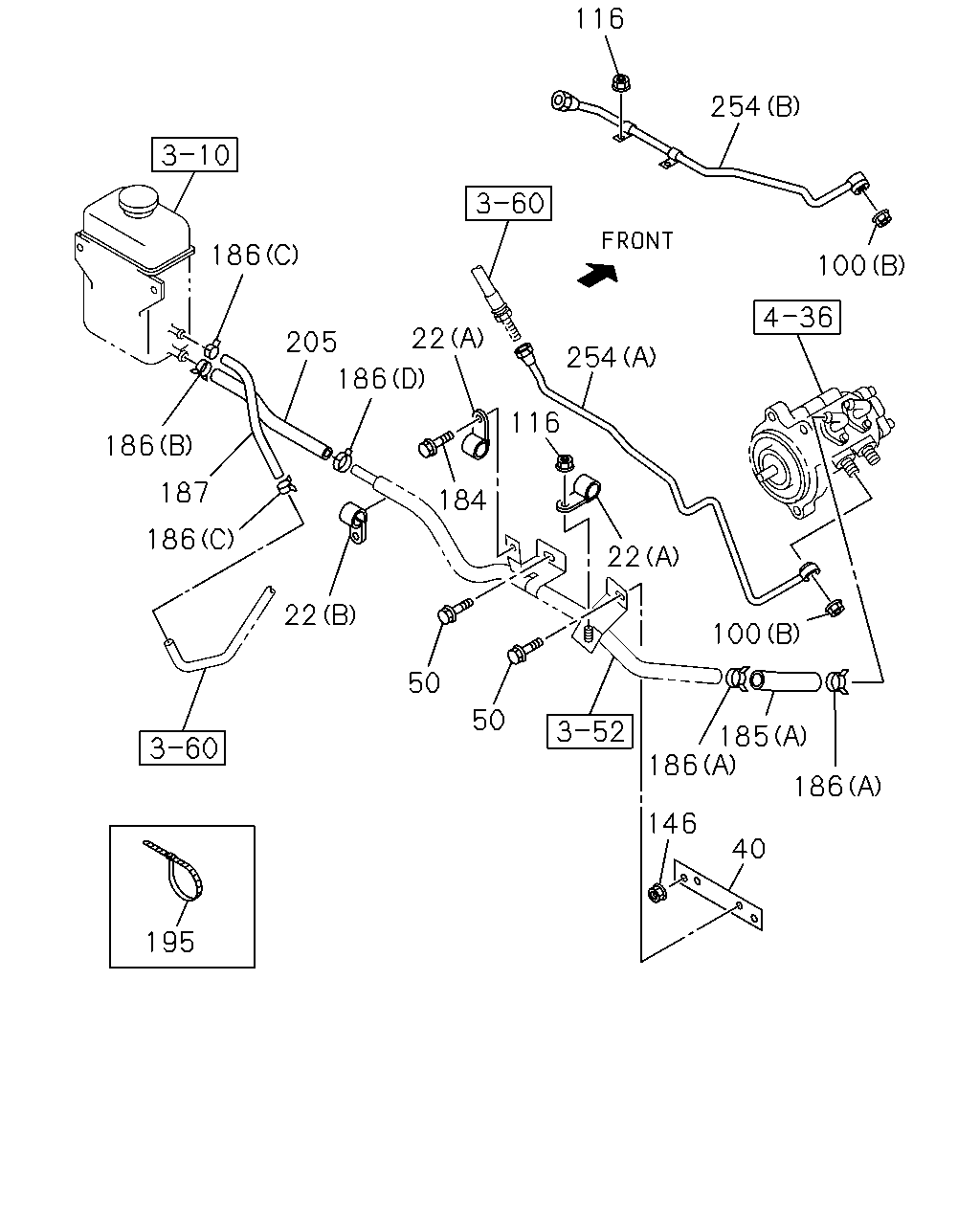

116 254 186 100 22 205 254 186 116 186 187 184 186 22 22 100 50 50 185 186 186 146 40 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.685 CLIP 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	1012-	●	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	1012-	●	●
40	04.690 BRACKET 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ)	8-97370-408-0	01	1	1012-	●
50	04.710 BOLT; PIPE 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
50	04.710 BOLT; PIPE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1012-	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1012-	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1012-		●
116	04.686 NUT 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
116	04.686 NUT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
146	04.685 NUT; BRKT 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1012-	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1012-		●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1012-	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1012-		●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	02	1	1012-	●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	02	1	1012-		●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22	8-97359-141-0	01	1	1012-		●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16	8-98008-098-0	02	1	1012-	●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16	8-98008-098-0	02	1	1012-		●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=21	8-98150-355-0	01	1	1012-	●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (D) ID=21	8-98150-355-0	01	1	1012-		●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1012-	●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1012-		●
187	04.681 HOSE; RUBBER,OIL TANK 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98100-245-0	01	1	1012-	●
195	04.681 CLIP; HOSE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 02.559 L=250	5-09707-030-1	02	1	1012-	●
205	04.681 HOSE; TANK TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1012-	●
205	04.681 HOSE; TANK TO PIPE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1012-		●
205	04.681 HOSE; TANK TO PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-97334-259-1	01	1	1012-	●
254	04.685 PIPE; BRAKE,2WAY 4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97334-118-1	01	1	1012-	●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98036-161-0	01	1	1012-	●	●

130 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98141-581-0	02	1	1208-	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97080-060-2	02	1	1012-	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-	●

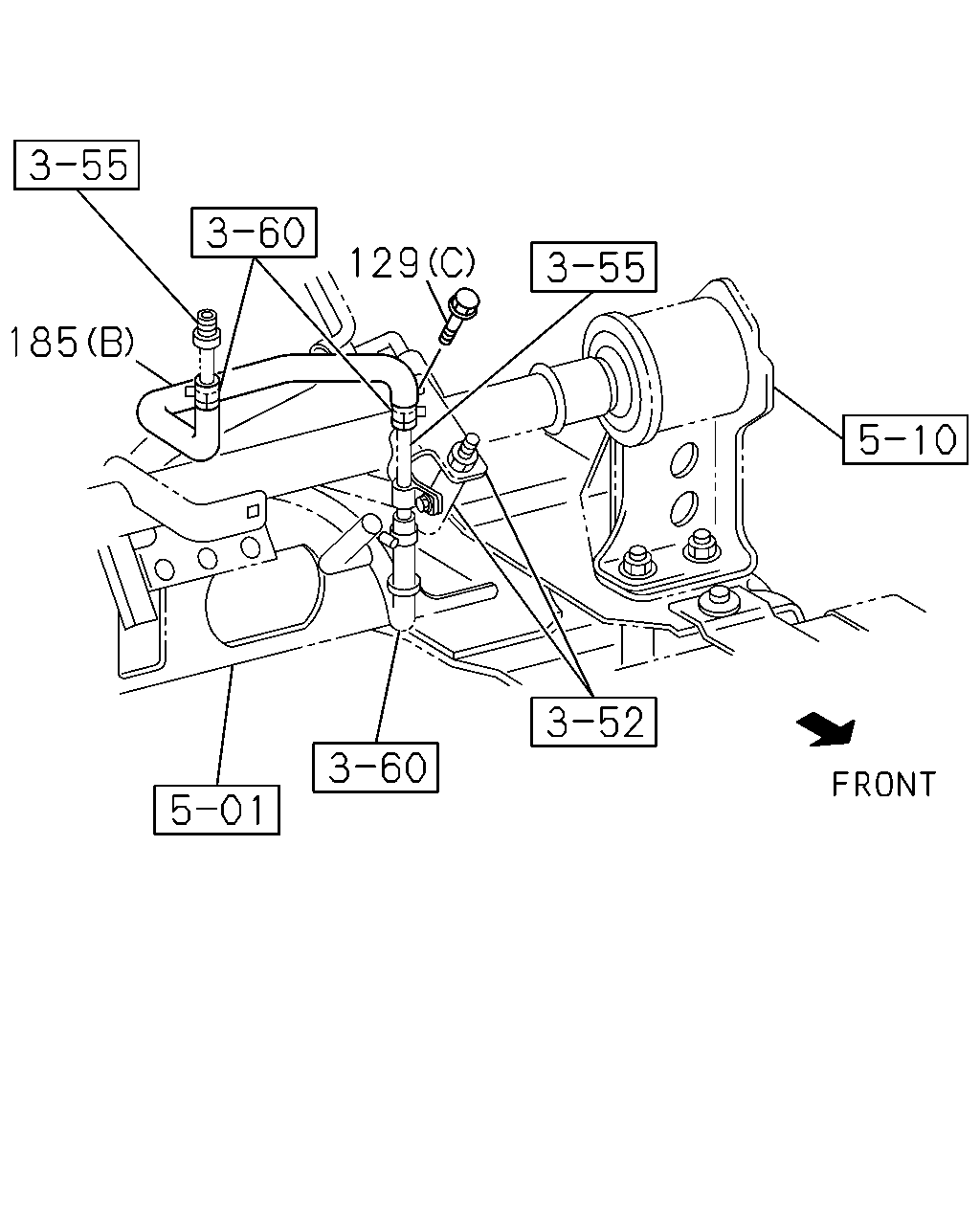

19 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	1012-		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	1012-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCC ENG(RDU) (B)	8-98056-155-1	02	1	1012-			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	1012-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	1012-			●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1012-	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1012-		●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1012-	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1012-		●

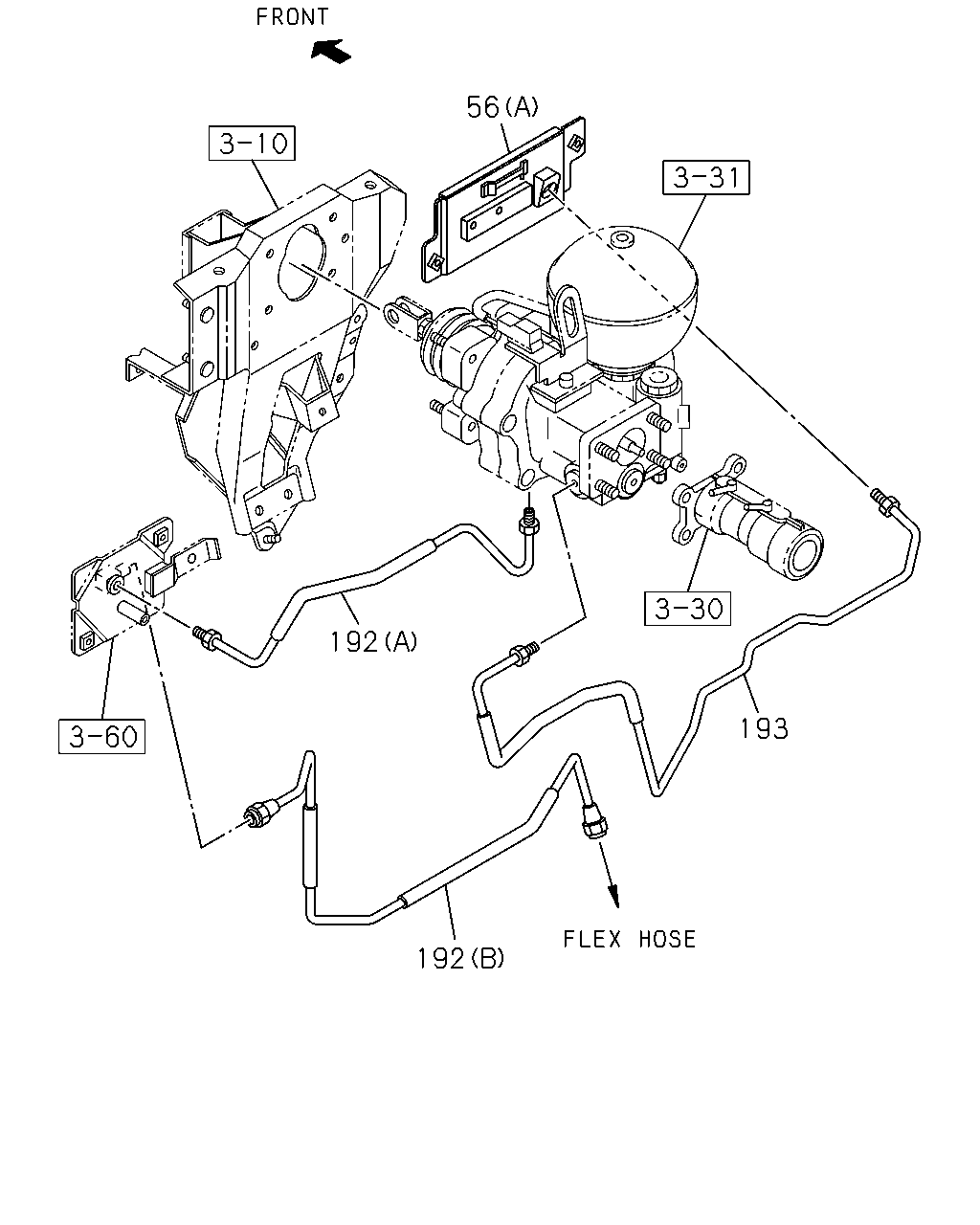

56 192 193 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1012-		●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1012-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1012-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-			●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-960-0	01	1	1012-	●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-961-3	01	1	1012-	●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98099-795-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
