◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51297 - NPR/NQR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#32781) — 276 parça

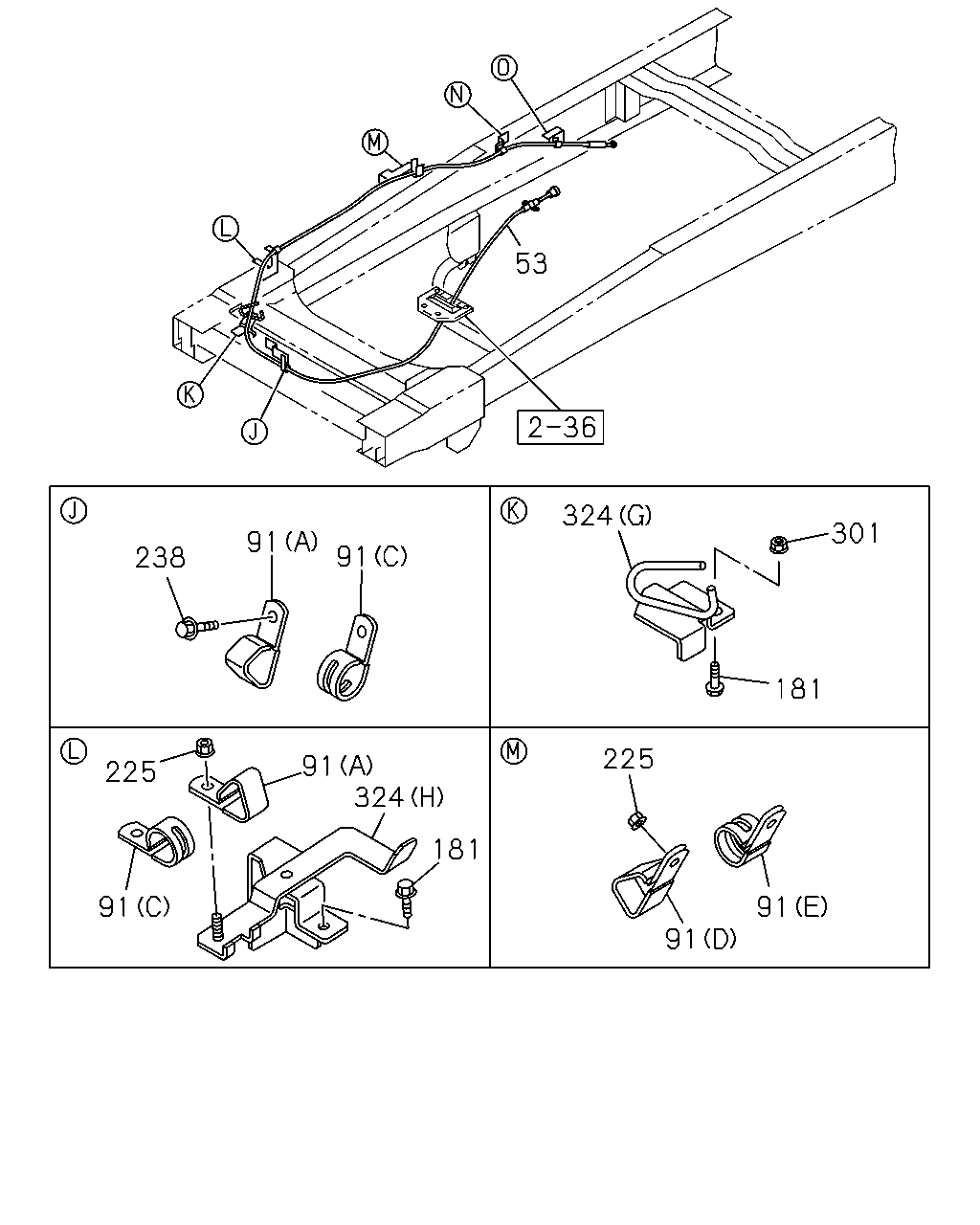

çizim 83298
53 91 238 91 324 301 181 225 91 91 181 324 91 225 91
BalonParca AdiParca NoAdetTipApplied Date A B C
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-098-4 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98060-996-3 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-096-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) 		8-98049-096-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98100-229-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1303- ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1012-1302 ●
91 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1012-1302 ●
91 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1303- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1303- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) 04.047 (A) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) 04.047 (D) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1012- ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ●
238 04.785 BOLT; CLIP TO BRKT
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111- ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
324 04.785 BRACKET
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98111-394-1 01 1 1012- ●
324 04.785 BRACKET
(E) 		8-98111-394-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.047 (B) 		8-98061-626-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (B) 		8-98061-626-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (C) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98094-197-0 01 1 1012-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) (D) 		8-98094-197-0 01 1 1012-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98091-693-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (H) 		8-98091-693-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98101-848-0 01 1 1012-1110 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (G) 		8-98101-848-0 01 1 1012-1110 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) 04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (F) 		8-98014-921-0 01 1 1012- ●
çizim 83330
338 181 8 324 237 235 237 238 85 238 235 238 85 225 237 235
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.592 GUIDE; PARKING BRK
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 		8-98110-964-0 01 1 1012- ●
8 04.592 GUIDE; PARKING BRK 8-98110-964-0 01 1 1012- ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98106-986-1 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98106-986-1 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (C) 		8-98087-322-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(D) 		8-98034-410-3 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ●
238 04.785 BOLT; CLIP TO BRKT
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111- ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
324 04.785 BRACKET
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98111-394-1 01 1 1012- ●
324 04.785 BRACKET
(E) 		8-98111-394-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.047 (B) 		8-98061-626-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (B) 		8-98061-626-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (C) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98094-197-0 01 1 1012-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) (D) 		8-98094-197-0 01 1 1012-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98091-693-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (H) 		8-98091-693-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98101-848-0 01 1 1012-1110 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (G) 		8-98101-848-0 01 1 1012-1110 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) 04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (F) 		8-98014-921-0 01 1 1012- ●
338 04.785 SCREW; GUIDE
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
338 04.785 SCREW; GUIDE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●

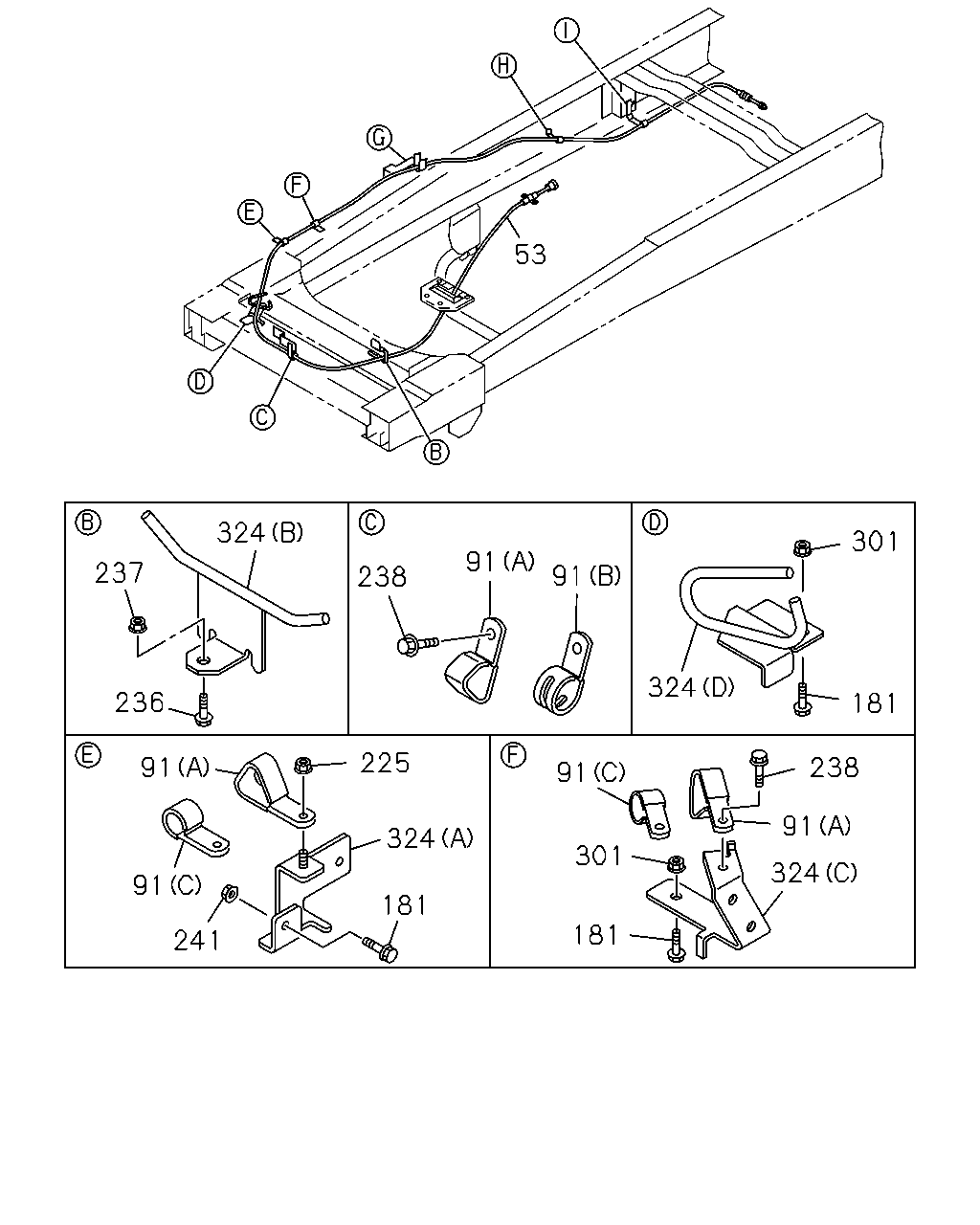

çizim 83331
53 324 301 91 237 91 238 324 236 181 225 91 238 91 91 324 301 324 91 181 181 241
BalonParca AdiParca NoAdetTipApplied Date A B C
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-098-4 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98060-996-3 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-096-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) 		8-98049-096-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98100-229-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1303- ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1012-1302 ●
91 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1012-1302 ●
91 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1303- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1303- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) 04.047 (A) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) 04.047 (D) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 1012- ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1012- ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110 ●
238 04.785 BOLT; CLIP TO BRKT
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111- ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
241 04.785 NUT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1303- ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
324 04.785 BRACKET
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98111-394-1 01 1 1012- ●
324 04.785 BRACKET
(E) 		8-98111-394-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.047 (B) 		8-98061-626-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (B) 		8-98061-626-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (C) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98094-197-0 01 1 1012-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) (D) 		8-98094-197-0 01 1 1012-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98091-693-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (H) 		8-98091-693-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98101-848-0 01 1 1012-1110 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (G) 		8-98101-848-0 01 1 1012-1110 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) 04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (F) 		8-98014-921-0 01 1 1012- ●

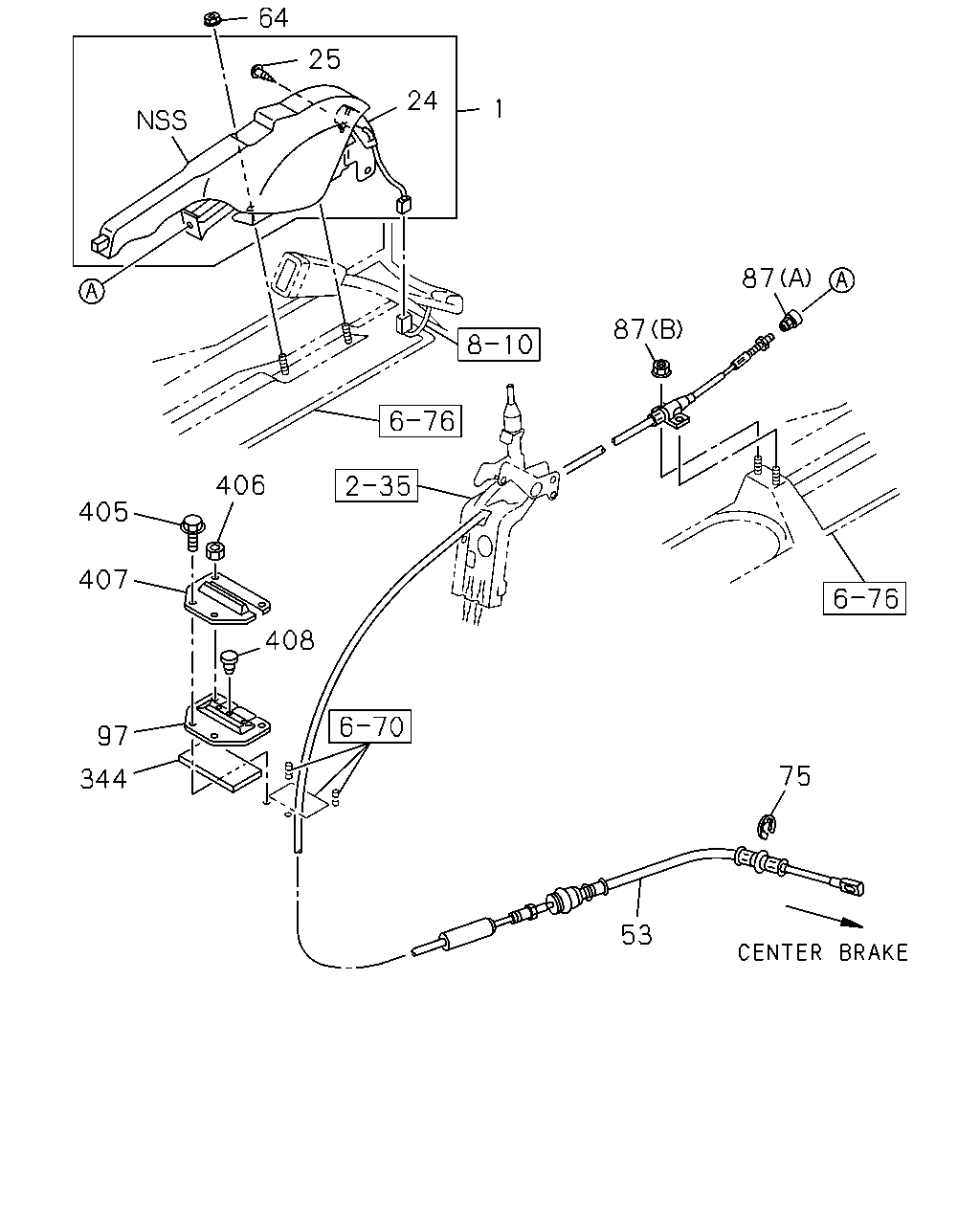

çizim 83399
64 25 24 1 87 87 406 405 407 408 97 75 344 53
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 1012-1303 ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1012-1303 ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1012- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-098-4 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98060-996-3 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-096-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) 		8-98049-096-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1 ENG(RJH) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98100-229-1 01 1 1012- ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1012- ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1012- ● ● ●
87 04.785 NUT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1303- ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1012- ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1012- ● ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1012- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1012- ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1012- ● ● ●
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 1012- ●
çizim 103318
181 324 241 87 223 368 237 235 85 225 301
BalonParca AdiParca NoAdetTipApplied Date A B C
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1012- ● ● ●
87 04.785 NUT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1303- ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
223 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1303- ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98106-986-1 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98106-986-1 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (C) 		8-98087-322-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(D) 		8-98034-410-3 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
241 04.785 NUT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1303- ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
324 04.785 BRACKET
EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98111-394-1 01 1 1012- ●
324 04.785 BRACKET
(E) 		8-98111-394-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.047 (B) 		8-98061-626-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (B) 		8-98061-626-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (C) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98094-197-0 01 1 1012-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) (D) 		8-98094-197-0 01 1 1012-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98091-693-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (H) 		8-98091-693-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98101-848-0 01 1 1012-1110 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (G) 		8-98101-848-0 01 1 1012-1110 ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) 04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (F) 		8-98014-921-0 01 1 1012- ●
368 04.785 BRACKET; T/M SIDE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97372-863-1 01 1 1303- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
