Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#32776) — 284 parça

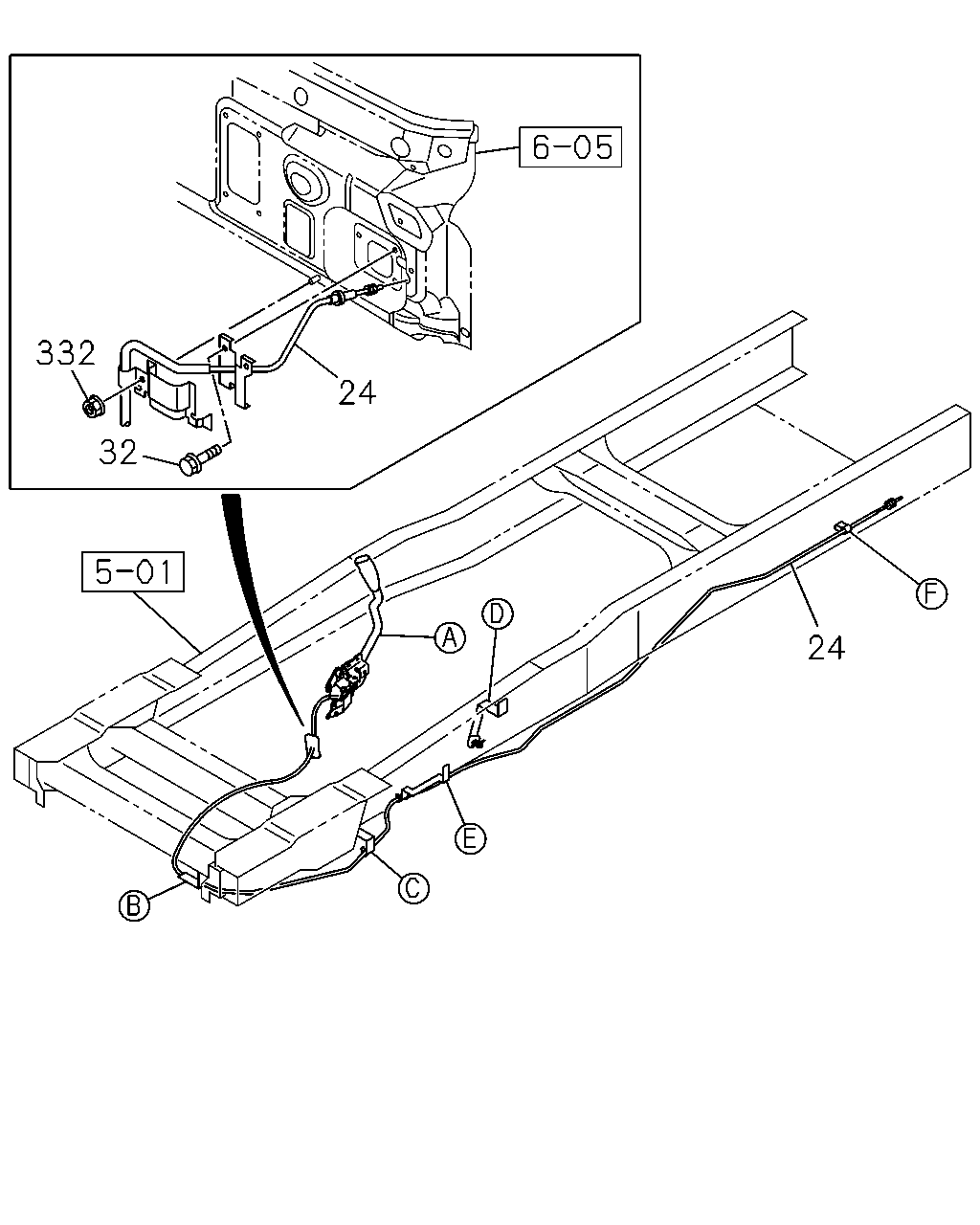

332 24 32 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98115-258-0	01	1	1012-1204	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98212-288-0	01	1	1205-1207	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98223-301-1	01	1	1208-1507	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98328-269-1	01	1	1508-	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98085-645-1	01	1	1012-1204	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98212-275-0	01	1	1205-1207	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3477	8-98223-355-1	01	1	1208-	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3413	8-98085-646-1	01	1	1012-1204	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3413	8-98212-276-0	01	1	1205-1207	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3399	8-98223-354-1	01	1	1208-	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) L=4163	8-98173-263-0	01	1	1012-1207	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) L=4149	8-98216-301-1	01	1	1208-1507	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) L=4149	8-98328-273-1	01	1	1508-	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3323	8-98085-644-2	01	1	1012-1204	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3323	8-98212-274-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3309	8-98223-348-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3376	8-98125-321-0	01	1	1012-1204		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3376	8-98212-277-0	01	1	1205-1207		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3362	8-98223-361-1	01	1	1208-		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98128-392-0	01	1	1012-1204		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98212-285-0	01	1	1205-1207		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98223-303-0	01	1	1208-1507		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98328-271-1	01	1	1508-		●
32	04.439 BOLT; CLIP,CABLE DUMP CHASSIS(V4D) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	1012-	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	1012-	●	●
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1012-1511	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1012-1511	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1512-	●	●
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97129-397-0	01	1	1512-	●	●
332	04.439 NUT; PTO CONT CABLE DUMP CHASSIS(V4D) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●

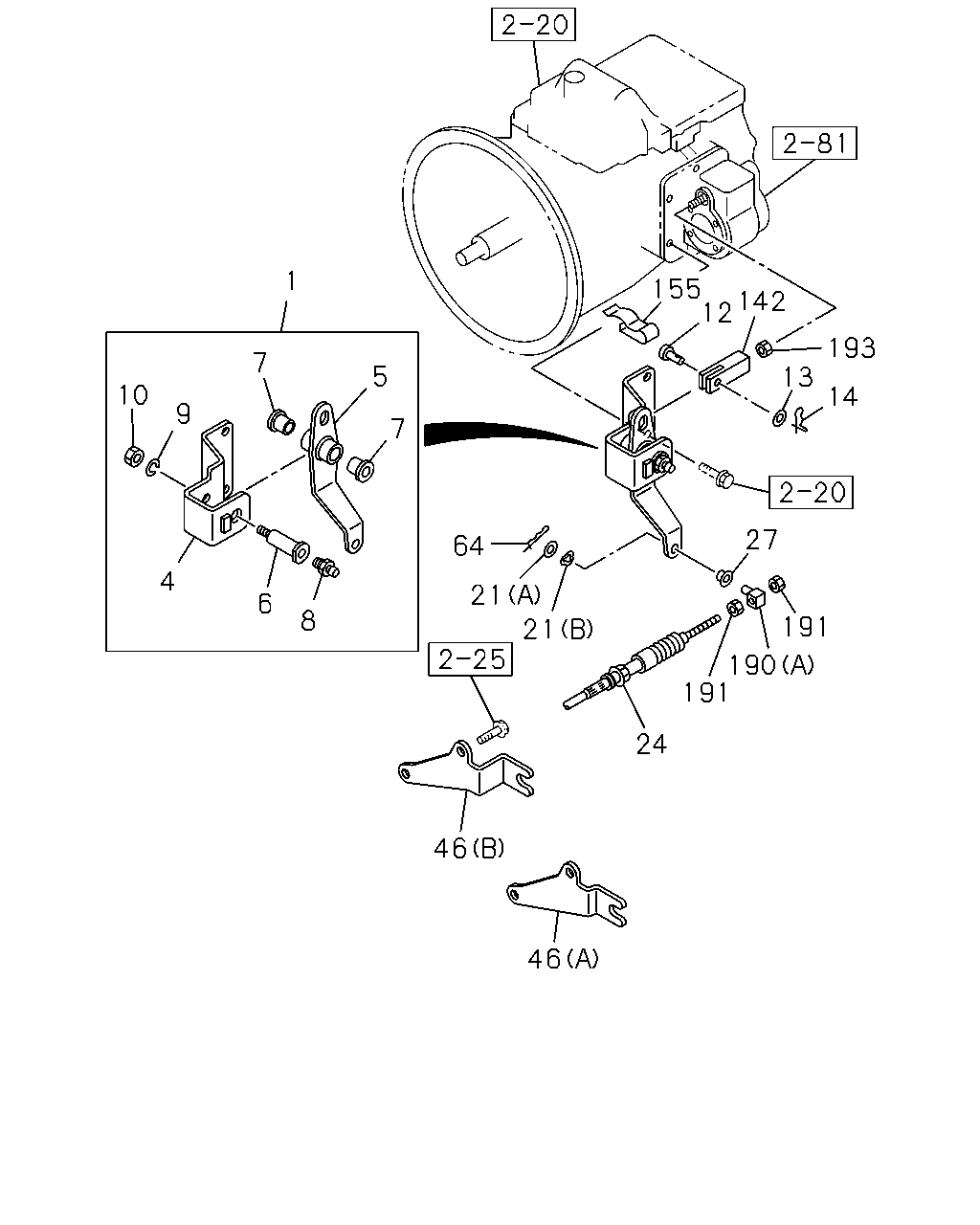

1 155 142 12 193 7 5 13 10 14 9 7 64 4 21 21 6 8 191 190 191 24 46 46 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-714-0	01	1	1012-1107	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-089-1	01	1	1108-1301	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1302-	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-717-0	01	1	1012-1107	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-099-1	01	1	1108-1301	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1302-	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-718-0	01	1	1012-1301	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1302-	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-720-0	01	1	1012-1107	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-101-0	01	1	1108-1301	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1302-	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	5-33659-053-0	02	1	1012-1301	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1302-	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1012-1301	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1302-	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=8.2	0-91510-508-0	01	1	1012-1301	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1302-	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.334 M8	0-91110-508-0	01	1	1012-1301	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1302-	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-692-0	01	1	1012-1301	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1302-	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=12.5 OD=22	0-91610-512-0	01	1	1012-1301	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1302-	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97581-216-0	01	1	1012-1301	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1302-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1012-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1012-	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98115-258-0	01	1	1012-1204	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98212-288-0	01	1	1205-1207	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98223-301-1	01	1	1208-1507	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98328-269-1	01	1	1508-	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98085-645-1	01	1	1012-1204	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98212-275-0	01	1	1205-1207	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3477	8-98223-355-1	01	1	1208-	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3413	8-98085-646-1	01	1	1012-1204	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3413	8-98212-276-0	01	1	1205-1207	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3399	8-98223-354-1	01	1	1208-	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) L=4163	8-98173-263-0	01	1	1012-1207	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) L=4149	8-98216-301-1	01	1	1208-1507	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) L=4149	8-98328-273-1	01	1	1508-	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3323	8-98085-644-2	01	1	1012-1204	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3323	8-98212-274-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3309	8-98223-348-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3376	8-98125-321-0	01	1	1012-1204		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3376	8-98212-277-0	01	1	1205-1207		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3362	8-98223-361-1	01	1	1208-		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98128-392-0	01	1	1012-1204		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98212-285-0	01	1	1205-1207		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98223-303-0	01	1	1208-1507		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98328-271-1	01	1	1508-		●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	1012-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98081-815-0	01	1	1012-	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98032-829-2	01	1	1012-	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	1012-	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-691-0	01	1	1012-1301	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1302-	●	●
155	04.439 CLIP; CABLE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.240 T=5.5	5-09709-047-0	01	1	1012-1301	●
155	04.439 CLIP; CABLE 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	1302-	●
190	04.439 BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1012-1511	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1012-1511	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1512-	●	●
190	04.439 BOSS; LEVER,PTO DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98029-878-0	01	1	1512-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	1012-	●	●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	1012-	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M12	0-91111-512-0	01	1	1012-1301	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1302-	●	●
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1012-1511	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1012-1511	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1512-	●	●
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97129-397-0	01	1	1512-	●	●

173 195 173 195 195 195 173 36 195 173 195 36 36 195 16 195 173 31

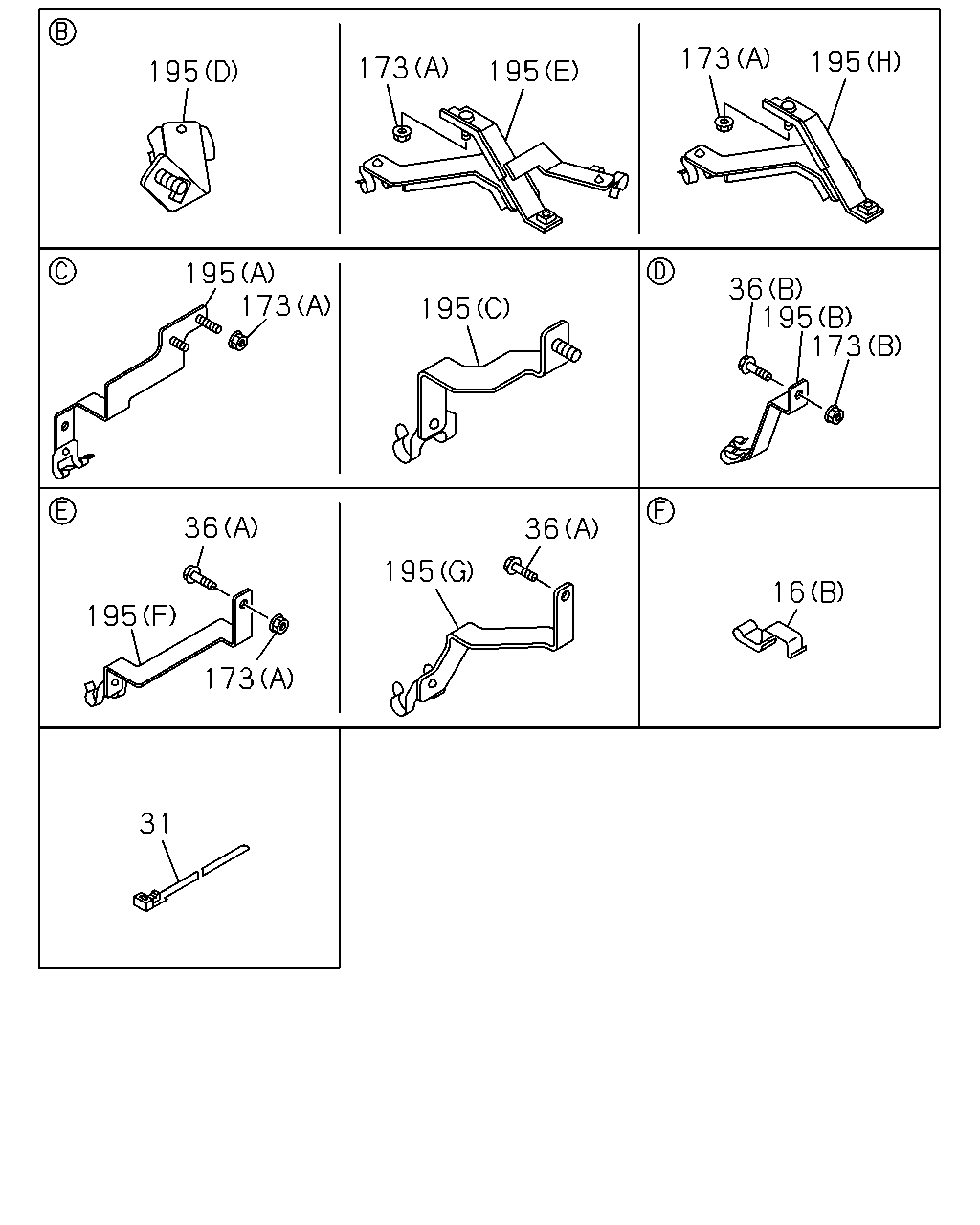

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) EXC. FRAME STRAIGHT TYPE<7KJ> 02.525 (B) T=9.2 & 9	5-09709-025-0	02	1	1412-	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	1012-1411	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	1412-	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1012-	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1012-	●	●
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	1012-	●	●
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	1012-	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	1012-	●	●
31	04.439 CLIP; BAND,CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	1012-	●
36	04.439 BOLT; PTO BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
36	04.439 BOLT; PTO BRKT DUMP CHASSIS(V4D) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
36	04.439 BOLT; PTO BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411	●	●
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411	●	●
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411	●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH) DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411		●
173	04.439 NUT; BRKT 4HG1 ENG(RJH) DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411		●
173	04.439 NUT; BRKT 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411		●
173	04.439 NUT; BRKT 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411		●
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1411	●
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-	●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH) DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-		●
173	04.439 NUT; BRKT 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-		●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) (F)	8-98086-269-2	01	1	1012-	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (F)	8-98086-269-2	01	1	1012-	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (G)	8-98119-504-0	01	1	1012-1112	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (G)	8-98119-504-0	01	1	1012-1112	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (H)	8-98203-717-0	01	1	1201-	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (H)	8-98203-717-0	01	1	1201-	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) (B)	8-98101-144-0	01	1	1012-	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98101-144-0	01	1	1012-	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) (A)	8-98101-145-0	01	1	1012-	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98101-145-0	01	1	1012-	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) (E)	8-98112-829-0	01	1	1012-1112	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (E)	8-98112-829-0	01	1	1012-1112	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) (E)	8-98203-716-0	01	1	1201-	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (E)	8-98203-716-0	01	1	1201-	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH) DUMP CHASSIS(V4D) (G)	8-98122-800-0	01	1	1012-1407		●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (G)	8-98122-800-0	01	1	1012-1407		●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH) DUMP CHASSIS(V4D) (G)	8-98122-800-0	01	1	1408-		●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (G)	8-98122-800-0	01	1	1408-		●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> DUMP CHASSIS(V4D) (G)	8-98122-800-0	01	1	1408-	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH) DUMP CHASSIS(V4D) (C)	8-98124-679-1	01	1	1012-1407		●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (C)	8-98124-679-1	01	1	1012-1407		●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH) DUMP CHASSIS(V4D) (C)	8-98124-679-1	01	1	1408-		●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (C)	8-98124-679-1	01	1	1408-		●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) FRONT UNDER RUN PROTECTOR<EBE> DUMP CHASSIS(V4D) (C)	8-98124-679-1	01	1	1408-	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH) DUMP CHASSIS(V4D) (D)	8-98139-185-0	01	1	1012-		●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (D)	8-98139-185-0	01	1	1012-		●
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1012-1511	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1012-1511	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1512-	●	●
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97129-397-0	01	1	1512-	●	●

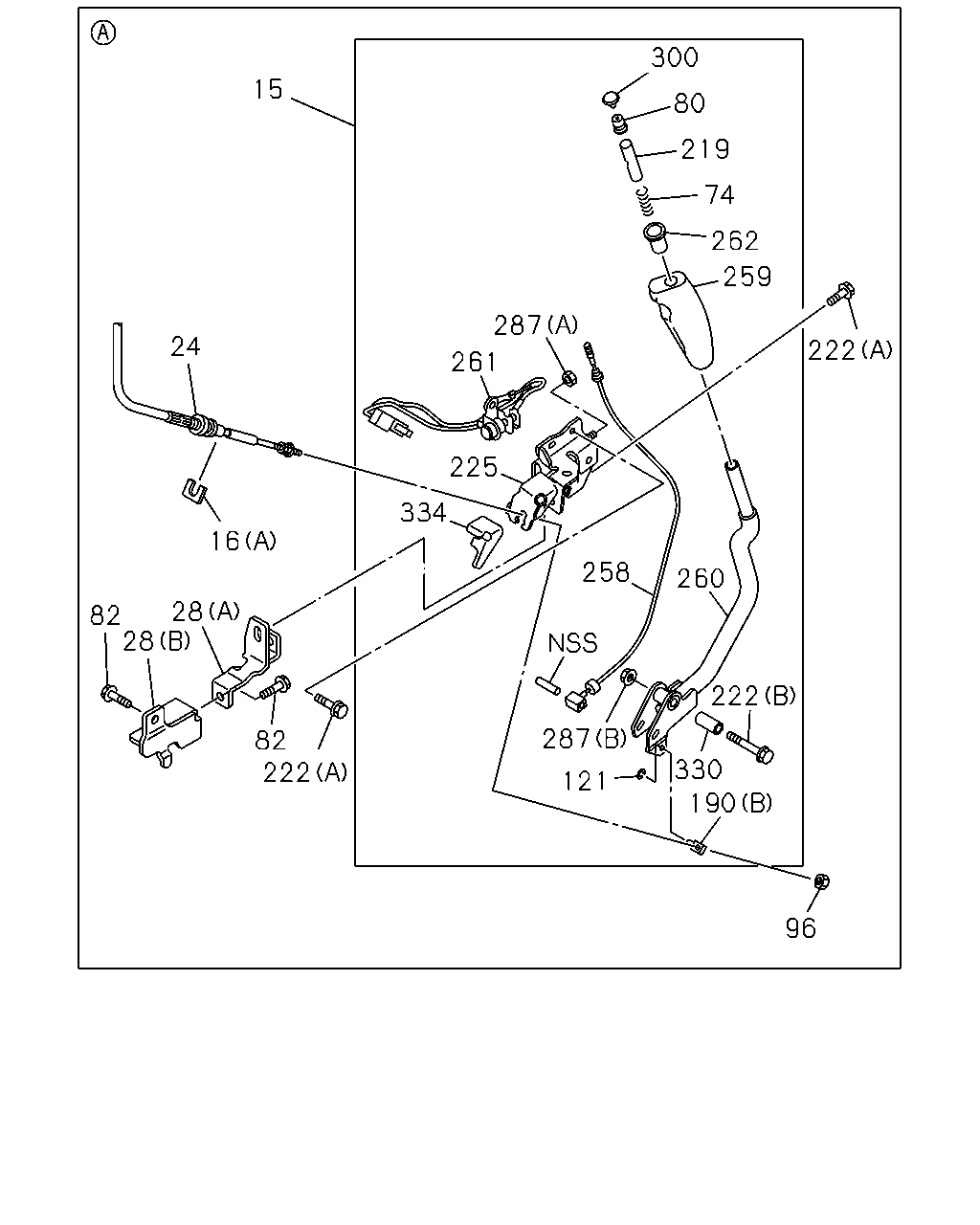

15 24 16 28 28 82 82 222 287 121 330 190 222 260 258 225 334 261 287 96 222 259 261 74 219 80 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	04.439 LEVER ASM; PTO CONT 4HG1 ENG(RJH) DUMP CHASSIS(V4D)	8-98124-519-0	01	1	1012-1511		●
15	04.439 LEVER ASM; PTO CONT 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98124-519-0	01	1	1012-1511		●
15	04.439 LEVER ASM; PTO CONT 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98124-519-0	01	1	1512-		●
15	04.439 LEVER ASM; PTO CONT 4HG1 ENG(RJH) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98124-519-0	01	1	1512-		●
15	04.439 LEVER ASM; PTO CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D)	8-98070-129-3	01	1	1012-1511	●
15	04.439 LEVER ASM; PTO CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98070-129-3	01	1	1012-1511	●
15	04.439 LEVER ASM; PTO CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98070-129-3	01	1	1512-	●
15	04.439 LEVER ASM; PTO CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98070-129-3	01	1	1512-	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) EXC. FRAME STRAIGHT TYPE<7KJ> 02.525 (B) T=9.2 & 9	5-09709-025-0	02	1	1412-	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	1012-1411	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	1412-	●	●
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1012-	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	1012-	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98115-258-0	01	1	1012-1204	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98212-288-0	01	1	1205-1207	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98223-301-1	01	1	1208-1507	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) L=4163	8-98328-269-1	01	1	1508-	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98085-645-1	01	1	1012-1204	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98212-275-0	01	1	1205-1207	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3477	8-98223-355-1	01	1	1208-	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3413	8-98085-646-1	01	1	1012-1204	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3413	8-98212-276-0	01	1	1205-1207	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3399	8-98223-354-1	01	1	1208-	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) L=4163	8-98173-263-0	01	1	1012-1207	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) L=4149	8-98216-301-1	01	1	1208-1507	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) L=4149	8-98328-273-1	01	1	1508-	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3323	8-98085-644-2	01	1	1012-1204	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3323	8-98212-274-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3309	8-98223-348-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3376	8-98125-321-0	01	1	1012-1204		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3376	8-98212-277-0	01	1	1205-1207		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3362	8-98223-361-1	01	1	1208-		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98128-392-0	01	1	1012-1204		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98212-285-0	01	1	1205-1207		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98223-303-0	01	1	1208-1507		●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH) DUMP CHASSIS(V4D) L=4149	8-98328-271-1	01	1	1508-		●
28	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) (A)	8-98096-005-2	01	1	1012-1511	●	●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98096-005-2	01	1	1012-1511	●	●
28	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	1512-	●	●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	1512-	●	●
28	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) (B)	8-98096-006-0	01	1	1012-1511	●	●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98096-006-0	01	1	1012-1511	●	●
28	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) EXC. PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	1512-	●	●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	1512-	●	●
74	04.439 SPRING; RETURN,CONT LEVER DUMP CHASSIS(V4D)	8-98029-874-0	01	1	1012-1511	●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-874-0	01	1	1012-1511	●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-874-0	01	1	1512-	●	●
74	04.439 SPRING; RETURN,CONT LEVER DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98029-874-0	01	1	1512-	●	●
80	04.439 COVER; CONT LEVER DUMP CHASSIS(V4D)	8-97122-741-0	01	1	1012-1511	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-741-0	01	1	1012-1511	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-741-0	01	1	1512-	●	●
80	04.439 COVER; CONT LEVER DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97122-741-0	01	1	1512-	●	●
82	04.128 BOLT; CONT LEVER DUMP CHASSIS(V4D) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-1511	●	●
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-1511	●	●
82	04.128 BOLT; CONT LEVER DUMP CHASSIS(V4D) EXC. PTO MANUAL CONTROL(6WC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
96	04.439 NUT DUMP CHASSIS(V4D) 03.330 M6	0-91110-506-0	01	1	1012-	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.330 M6	0-91110-506-0	01	1	1012-	●	●
121	04.439 RING; SNAP DUMP CHASSIS(V4D) 03.485 ID=4	0-91805-504-0	01	1	1012-1511	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.485 ID=4	0-91805-504-0	01	1	1012-1511	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.485 ID=4	0-91805-504-0	01	1	1512-	●	●
121	04.439 RING; SNAP DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.485 ID=4	0-91805-504-0	01	1	1512-	●	●
190	04.439 BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1012-1511	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1012-1511	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1512-	●	●
190	04.439 BOSS; LEVER,PTO DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98029-878-0	01	1	1512-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	1012-	●	●
219	04.439 KNOB; LEVER DUMP CHASSIS(V4D)	8-97122-736-0	01	1	1012-1511	●	●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-736-0	01	1	1012-1511	●	●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-736-0	01	1	1512-	●	●
219	04.439 KNOB; LEVER DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97122-736-0	01	1	1512-	●	●
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	1012-1511	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	1012-1511	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	1512-	●	●
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) M8X60	0-10855-860-0	01	1	1512-	●	●
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-1511	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-1511	●	●
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) EXC. PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1512-	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1512-	●	●
225	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D)	8-98077-250-2	01	1	1012-1511	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-250-2	01	1	1012-1511	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-250-2	01	1	1512-	●	●
225	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98077-250-2	01	1	1512-	●	●
258	04.439 CABLE; DUMP CONT . DUMP CHASSIS(V4D)	8-98077-160-1	01	1	1012-1511	●	●
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-160-1	01	1	1012-1511	●	●
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-160-1	01	1	1512-	●	●
258	04.439 CABLE; DUMP CONT . DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98077-160-1	01	1	1512-	●	●
259	04.439 GRIP; CONT LEVER DUMP CHASSIS(V4D)	8-97141-653-0	01	1	1012-1511	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97141-653-0	01	1	1012-1511	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97141-653-0	01	1	1512-	●	●
259	04.439 GRIP; CONT LEVER DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97141-653-0	01	1	1512-	●	●
260	04.439 LEVER; DUMP CONT DUMP CHASSIS(V4D)	8-98077-136-1	01	1	1012-1511	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-136-1	01	1	1012-1511	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-136-1	01	1	1512-	●	●
260	04.439 LEVER; DUMP CONT DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98077-136-1	01	1	1512-	●	●
261	04.439 SWITCH; DUMP CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D)	8-98081-899-2	01	1	1012-1511	●
261	04.439 SWITCH; DUMP CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98081-899-2	01	1	1012-1511	●
261	04.439 SWITCH; DUMP CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98081-899-2	01	1	1512-	●
261	04.439 SWITCH; DUMP CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98081-899-2	01	1	1512-	●
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1012-1511	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1012-1511	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1512-	●	●
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97129-397-0	01	1	1512-	●	●
287	04.439 NUT; SWITCH,CONT LEVER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) 03.330 (A) M6	0-91110-506-0	01	1	1012-1511	●
287	04.439 NUT; SWITCH,CONT LEVER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.330 (A) M6	0-91110-506-0	01	1	1012-1511	●
287	04.439 NUT; SWITCH,CONT LEVER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.330 (A) M6	0-91110-506-0	01	1	1512-	●
287	04.439 NUT; SWITCH,CONT LEVER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.330 (A) M6	0-91110-506-0	01	1	1512-	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1012-1511	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1012-1511	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1512-	●	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1512-	●	●
300	04.439 CAP; KNOB DUMP CHASSIS(V4D)	8-97122-740-0	01	1	1012-1511	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-740-0	01	1	1012-1511	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-740-0	01	1	1512-	●	●
300	04.439 CAP; KNOB DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97122-740-0	01	1	1512-	●	●
330	04.439 COLOR; DUMP CONT DUMP CHASSIS(V4D)	8-98049-802-0	01	1	1012-1511	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98049-802-0	01	1	1012-1511	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98049-802-0	01	1	1512-	●	●
330	04.439 COLOR; DUMP CONT DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98049-802-0	01	1	1512-	●	●
334	04.439 SHEET; PTO DUMP CHASSIS(V4D)	8-98109-990-1	01	1	1012-1511	●	●
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98109-990-1	01	1	1012-1511	●	●
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98109-990-1	01	1	1512-	●	●
334	04.439 SHEET; PTO DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98109-990-1	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
