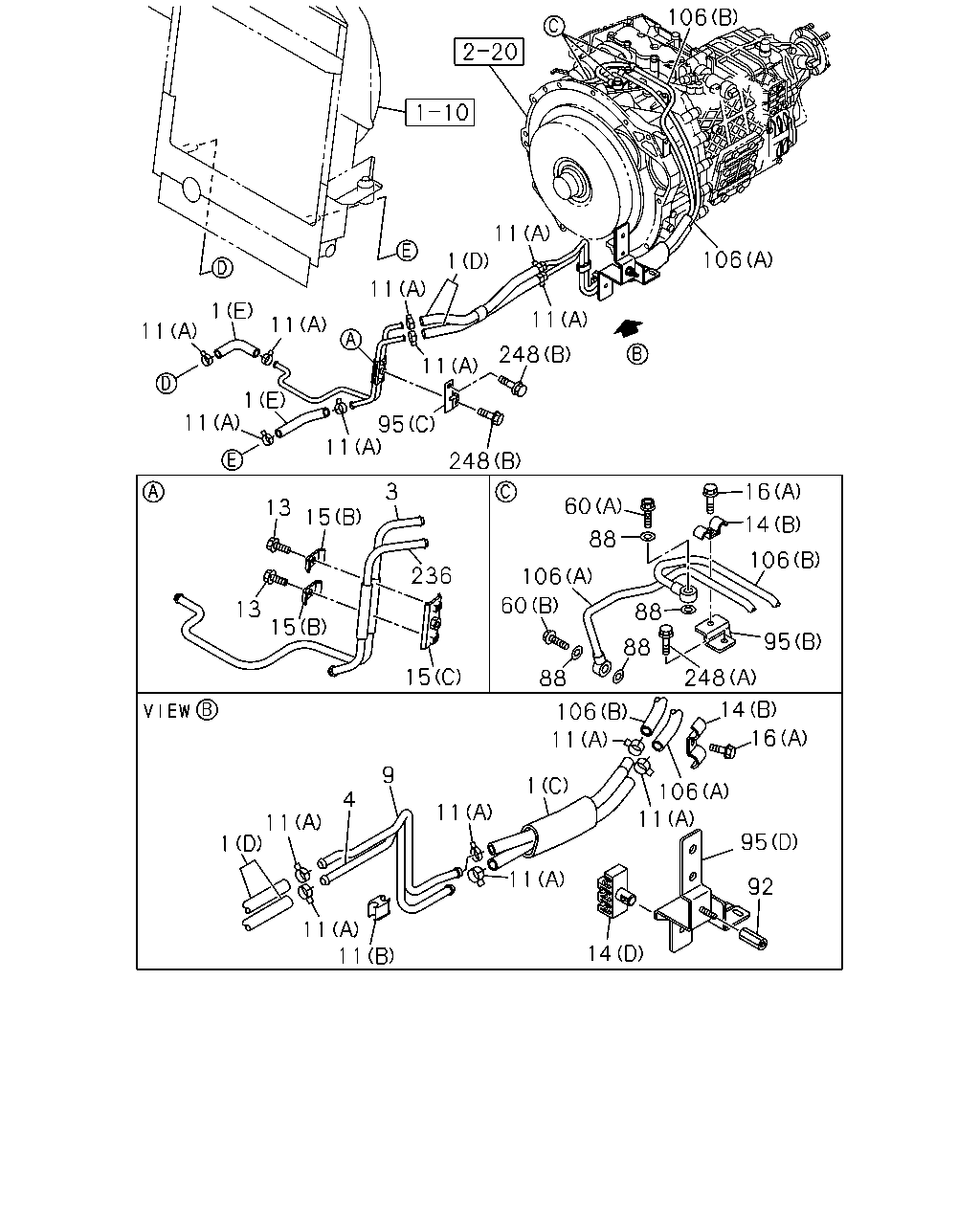

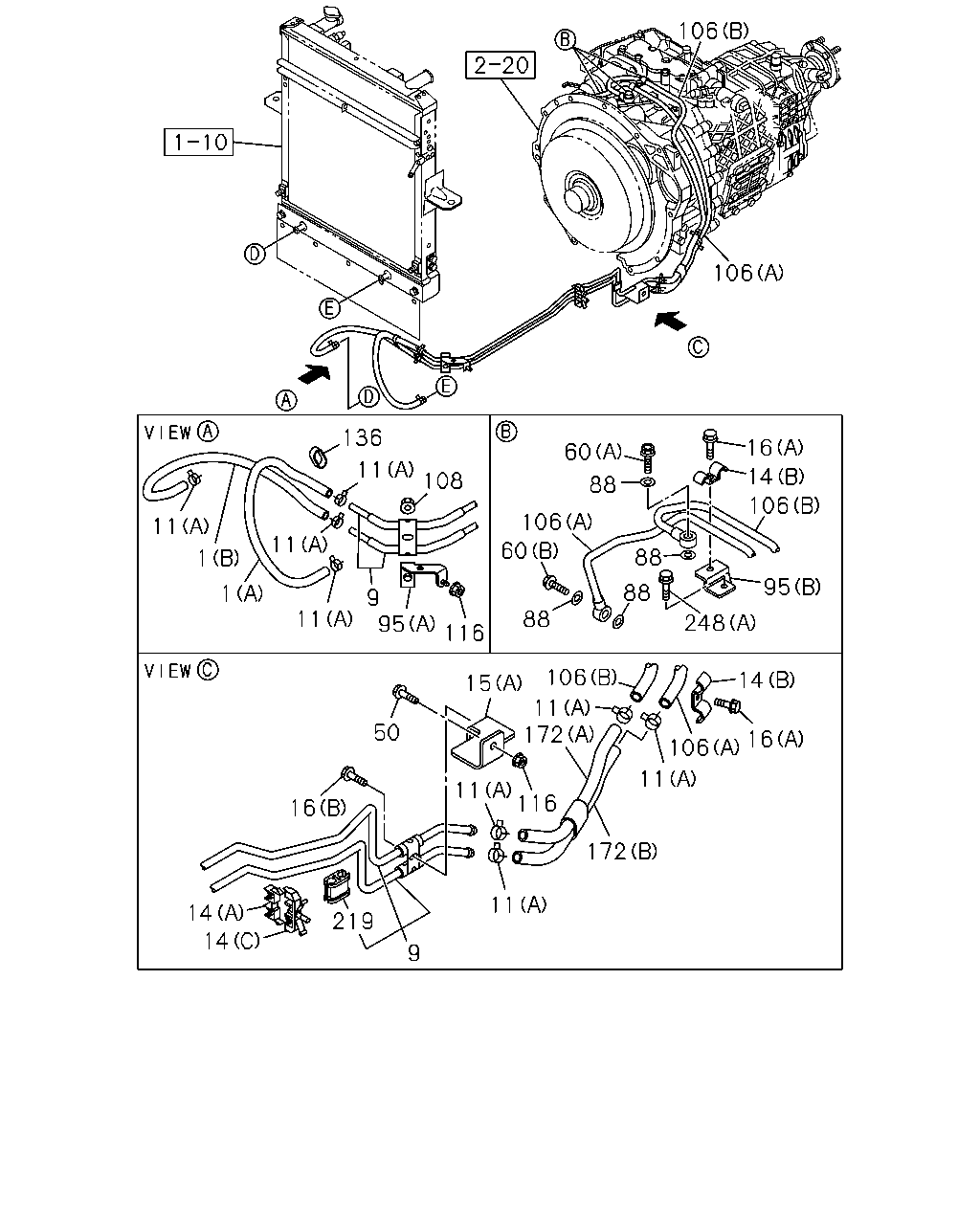

2-53 — TRANSMISSION OIL COOLER SYSTEM (#32774) — 79 parça

11 1 1 11 11 9 95 116 108 11 136 60 88 106 60 88 88 88 248 95 106 14 16 14 16 106 11 172 11 116 11 172 11 106 15 50 16 14 14 219 9 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	1303-
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98086-374-0	01	1	1303-
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98086-380-0	02	1	1303-
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-422-2	01	1	1012-
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-425-2	01	1	1012-
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-505-0	01	1	1303-
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-324-0	01	1	1012-1402
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1403-
11	04.128 CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	01	1	1303-
11	04.128 CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (A) ID=16	8-97329-628-0	12	1	1303-
11	04.128 CLIP; PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (A) ID=16	8-97329-628-0	08	1	1012-
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1303-
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1012-
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1012-
15	04.128 BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-763-0	01	1	1303-
15	04.128 BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	1303-
15	04.128 BRACKET; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-180-3	01	1	1012-
16	04.128 BOLT; CLIP,ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1012-
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-
50	04.128 BOLT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1302
50	04.128 BOLT; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1303-
50	04.128 BOLT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1303-
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1012-
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1012-
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-
95	04.128 BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-762-0	01	1	1303-
95	04.128 BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98057-619-0	01	1	1303-
95	04.128 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98033-840-5	01	1	1012-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-876-0	01	1	1012-
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	1012-1302
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	1303-
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	1012-
108	04.128 NUT; PIPE CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-
116	04.128 NUT; BRKT,FLEX HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-
136	04.128 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	1012-
172	04.128 HOSE; FLEX,ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98135-562-0	01	1	1012-
172	04.128 HOSE; FLEX,ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98135-563-0	01	1	1012-
219	04.128 CLIP; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	1012-1402
219	04.128 CLIP; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1403-
248	04.128 BOLT; RETAINER 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-

11 1 11 11 248 11 95 11 11 1 11 1 11 248 106 106 16 14 106 95 248 88 60 106 60 88 3 236 15 15 13 13 15 9 4 11 1 11 11 11 11 1 11 106 11 106 95 92 14 16 14 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	1303-
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98086-374-0	01	1	1303-
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98086-380-0	02	1	1303-
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-422-2	01	1	1012-
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-425-2	01	1	1012-
3	04.128 PIPE; OIL,A/T TO OIL COOLER 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-093-1	01	1	1303-
4	04.128 PIPE; ATF,OUTLET,A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-506-0	01	1	1303-
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-505-0	01	1	1303-
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-324-0	01	1	1012-1402
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1403-
11	04.128 CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	01	1	1303-
11	04.128 CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (A) ID=16	8-97329-628-0	12	1	1303-
11	04.128 CLIP; PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (A) ID=16	8-97329-628-0	08	1	1012-
13	04.128 BOLT; BRKT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 W/LK WASHER	0-50540-625-0	02	1	1303-
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1303-
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1012-
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1012-
15	04.128 BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-763-0	01	1	1303-
15	04.128 BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	1303-
15	04.128 BRACKET; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-180-3	01	1	1012-
16	04.128 BOLT; CLIP,ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1012-
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1012-
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1012-
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-
92	04.128 NUT; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10	8-98034-487-1	01	1	1303-
95	04.128 BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-762-0	01	1	1303-
95	04.128 BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98057-619-0	01	1	1303-
95	04.128 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98033-840-5	01	1	1012-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-876-0	01	1	1012-
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	1012-1302
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	1303-
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	1012-
236	04.128 PIPE; OIL,OIL COOLER TO A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-094-1	01	1	1303-
248	04.128 BOLT; RETAINER 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-
