◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#3277) — 46 parça

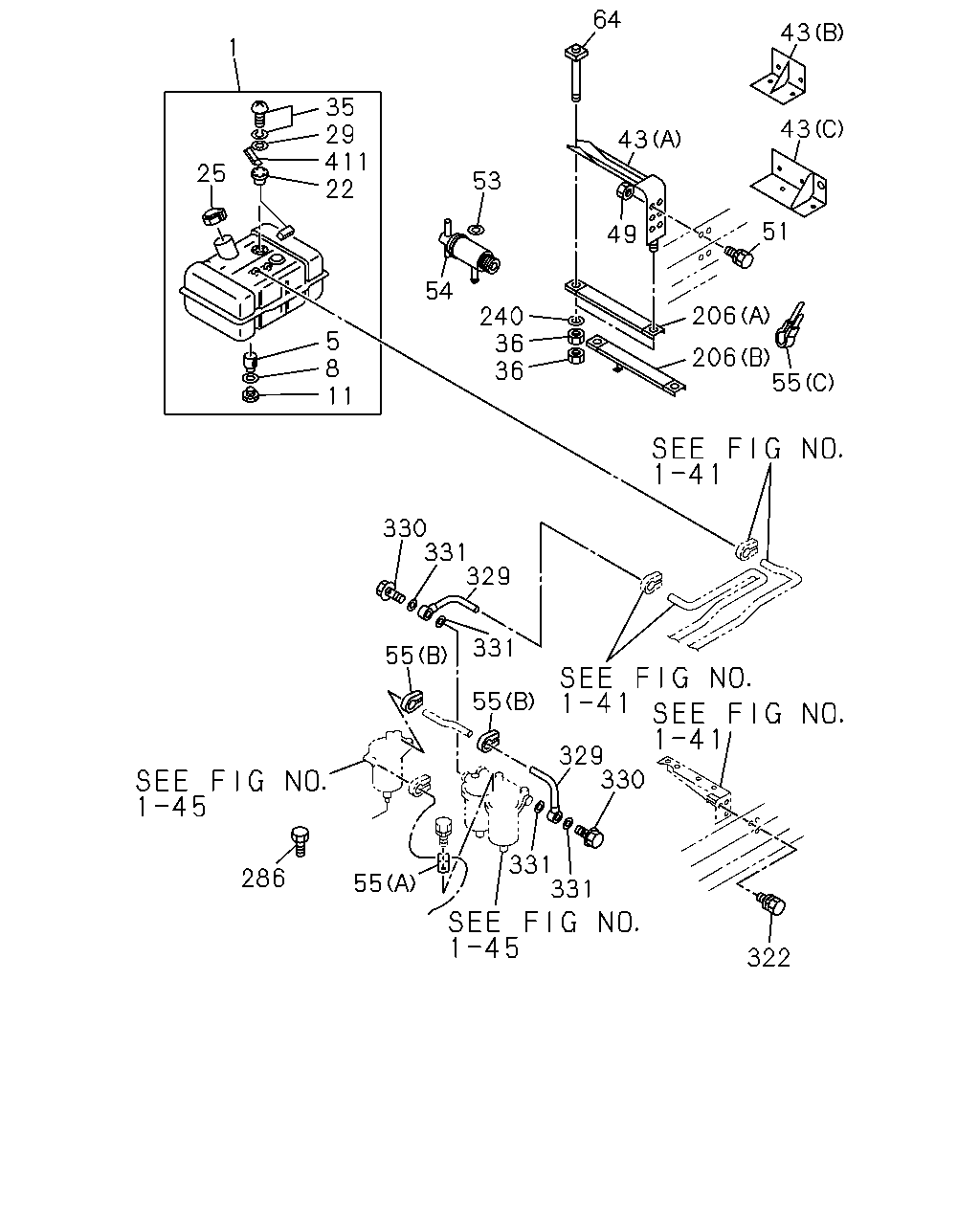

çizim 5526
64 43 1 35 29 411 22 43 43 25 53 51 49 54 206 240 36 36 5 8 11 206 55 330 331 329 331 55 55 329 330 331 331 286 55 322
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
FUEL TANK 100L+100L<NL6> W/TANK UNIT 		1-22400-721-2 01 1 9101- ● ●
1 TANK; FUEL
FUEL TANK 100L+100L<NL6> WO/TANK UNIT 		1-22400-722-2 01 1 9101- ● ●
1 TANK; FUEL
EXC. FUEL TANK 100L+100L<NL6> W/TANK UNIT 		1-22400-618-2 01 1 9101- ● ●
5 STRAINER; FUEL TANK
FUEL TANK 100L+100L<NL6> 		1-22460-001-1 02 1 9101- ● ●
5 STRAINER; FUEL TANK
EXC. FUEL TANK 100L+100L<NL6> 		1-22460-001-1 01 1 9101- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100L+100L<NL6> T=2.0 		9-09923-030-0 02 1 9101- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
EXC. FUEL TANK 100L+100L<NL6> T=2.0 		9-09923-030-0 01 1 9101- ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 100L+100L<NL6> 		1-09604-052-0 02 1 9101- ● ●
11 PLUG; DRAIN,FUEL TANK
EXC. FUEL TANK 100L+100L<NL6> 		1-09604-052-0 01 1 9101- ● ●
22 UNIT; FUEL TANK 1-83141-062-0 01 1 9101- ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 100L+100L<NL6> 		1-22440-029-5 02 1 9101- ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK 100L+100L<NL6> 		1-22440-029-5 01 1 9101- ● ●
29 WASHER; PL,FUEL TANK UNIT
EXC. FUEL TANK 100L+100L<NL6> 		9-09160-505-0 01 1 9101- ● ●
35 SCREW; FUEL TANK UNIT
EXC. FUEL TANK 100L+100L<NL6> 		9-03910-510-0 05 1 9101- ● ●
36 NUT; SPACER,FUEL TANK 9-99110-412-0 08 1 9101-9307 ● ●
36 NUT; SPACER,FUEL TANK 9-99110-512-0 08 1 9308- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 100L+100L<NL6> (B) 		1-53461-162-0 02 1 9101- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 100L+100L<NL6> (A) 		1-53461-291-0 04 1 9101- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 100L+100L<NL6> (C) 		1-53461-298-0 02 1 9101- ● ●
43 BRACKET; FUEL TANK
EXC. FUEL TANK 100L+100L<NL6> (A) 		1-53461-248-0 02 1 9101- ● ●
49 NUT; BRKT
FUEL TANK 100L+100L<NL6> 		9-09110-410-0 32 1 9101-9307 ● ●
49 NUT; BRKT
FUEL TANK 100L+100L<NL6> 		9-09110-510-0 32 1 9308- ● ●
49 NUT; BRKT
EXC. FUEL TANK 100L+100L<NL6> 		9-09110-410-0 12 1 9101-9307 ● ●
49 NUT; BRKT
EXC. FUEL TANK 100L+100L<NL6> 		9-09110-510-0 12 1 9308- ● ●
51 BOLT; BRKT TO FRAME
FUEL TANK 100L+100L<NL6> M10X28 W/LK WASHER 		0-50041-028-0 32 1 9101-9307 ● ●
51 BOLT; BRKT TO FRAME
FUEL TANK 100L+100L<NL6> M10X25 FLANGE 		0-28081-025-0 32 1 9308- ● ●
51 BOLT; BRKT TO FRAME
EXC. FUEL TANK 100L+100L<NL6> M10X28 W/LK WASHER 		0-50041-028-0 12 1 9101-9307 ● ●
51 BOLT; BRKT TO FRAME
EXC. FUEL TANK 100L+100L<NL6> M10X25 FLANGE 		0-28081-025-0 12 1 9308- ● ●
53 GASKET; COCK,FUEL TANK
FUEL TANK 100L+100L<NL6> T=1.60 		1-22416-001-0 02 1 9101- ● ●
53 GASKET; COCK,FUEL TANK
FUEL TANK 100L+100L<NL6> T=0.80 		1-22416-004-0 02 1 9101- ● ●
54 COCK ASM; FUEL TANK
FUEL TANK 100L+100L<NL6> 		9-09904-176-0 02 1 9101- ● ●
55 CLIP; FUEL PIPE
(A) ID=15 		9-09521-565-0 01 1 9101- ● ●
55 CLIP; FUEL PIPE
(B) ID=15 		9-09715-098-0 02 1 9101- ● ●
55 CLIP; FUEL PIPE
FUEL TANK 100L+100L<NL6> (C) ID=14 L=44 		9-09917-427-0 02 1 9101- ● ●
64 BOLT; FUEL TANK
FUEL TANK 100L+100L<NL6> 		9-22559-032-2 04 1 9101- ● ●
64 BOLT; FUEL TANK
EXC. FUEL TANK 100L+100L<NL6> 		9-22559-032-2 02 1 9101- ● ●
206 SLEEPER; FUEL TANK
(A) 		1-22555-008-0 02 1 9101- ● ●
206 SLEEPER; FUEL TANK
FUEL TANK 100L+100L<NL6> (B) 		1-22555-013-0 02 1 9101- ● ●
240 WASHER; PL,FUEL TANK 9-09164-612-0 04 1 9101- ● ●
286 BOLT; CLIP 9-01900-812-0 01 1 9101-9204 ● ●
286 BOLT; CLIP 0-50040-812-0 01 1 9205- ● ●
322 BOLT; BRKT FIX 0-50141-035-0 03 1 9101- ● ●
329 JOINT ASM; EYE,FUEL PIPE 5-15411-472-0 02 1 9101- ● ●
330 BOLT; EYE,JOINT 1-09675-086-0 02 1 9101- ● ●
331 GASKET; EYE JOINT 1-09630-085-0 04 1 9101- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 100L+100L<NL6> 		1-09700-708-0 01 1 9101- ● ●
