◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#3276) — 27 parça

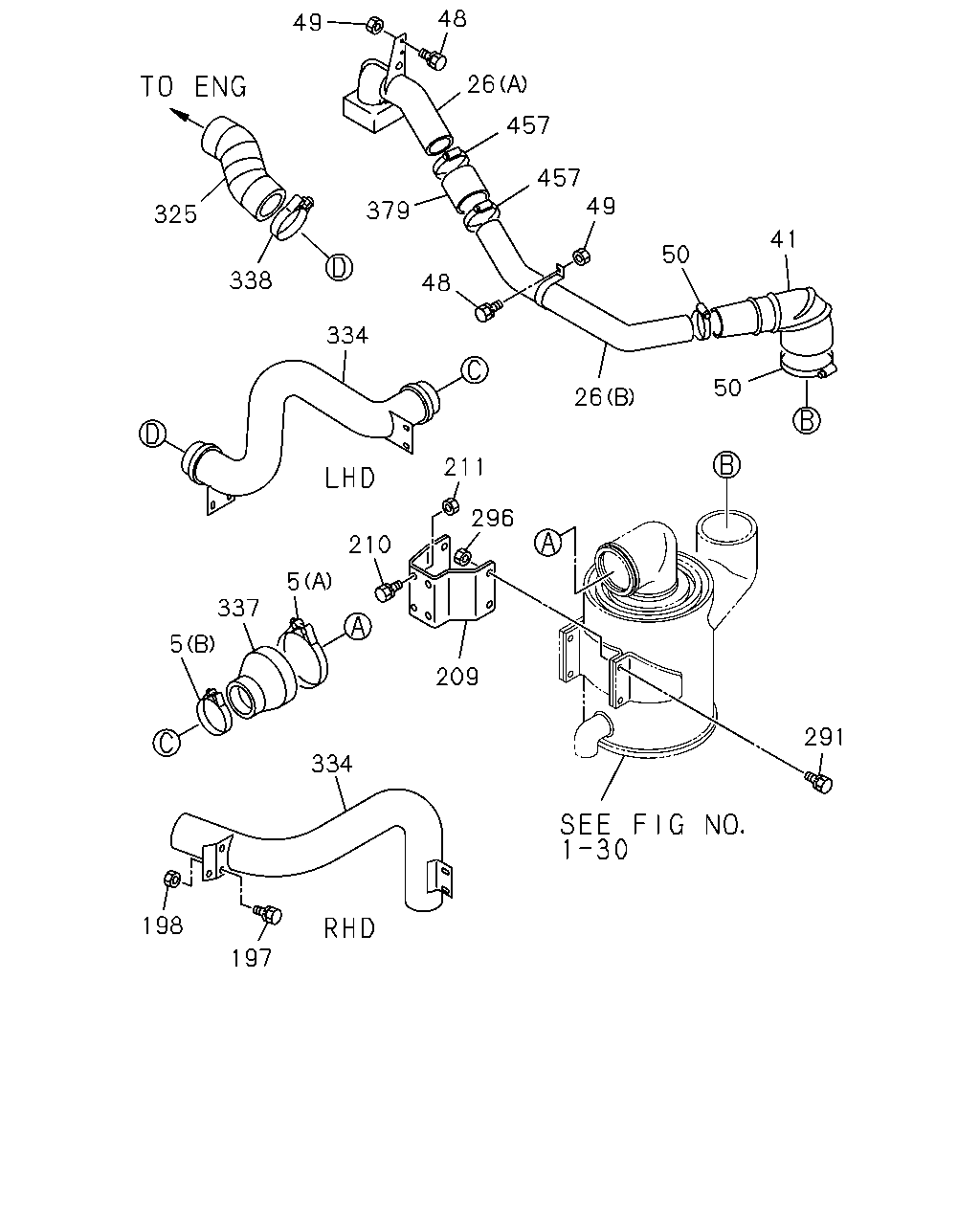

çizim 36663
48 49 26 457 457 49 379 325 41 50 338 48 334 50 26 211 296 210 5 337 5 209 291 334 198 197
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 02 1 9101- ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 9101- ● ●
26 DUCT; AIR INT
VERTICAL AIR CLEANER SNORKEL<PP3> (A) 		1-14231-855-0 01 1 9112- ● ●
26 DUCT; AIR INT
VERTICAL AIR CLEANER SNORKEL<PP3> (B) 		1-14231-856-0 01 1 9112- ● ●
41 HOSE; RUBBER,ACL TO AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-14231-791-0 01 1 9112- ● ●
48 BOLT; AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9112- ● ●
48 BOLT; AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9112- ● ●
49 NUT; AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> M8 		9-09110-408-0 02 1 9112- ● ●
49 NUT; AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> M10 		9-09110-410-0 02 1 9112-9307 ● ●
49 NUT; AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> M10 		9-09110-510-0 02 1 9308- ● ●
50 CLIP; JOINT HOSE
VERTICAL AIR CLEANER SNORKEL<PP3> ID=77-95 		1-09707-114-0 01 1 9112- ● ●
50 CLIP; JOINT HOSE
VERTICAL AIR CLEANER SNORKEL<PP3> ID=130-169 		1-09707-157-0 01 1 9112- ● ●
197 BOLT; CLAMP 0-50140-820-0 04 1 9101- ● ●
198 NUT; CLAMP 9-09110-408-0 04 1 9101- ● ●
209 BRACKET; ACL 1-53497-200-1 01 1 9101- ● ●
210 BOLT; ACL BRKT 0-50041-025-0 04 1 9101- ● ●
211 NUT; BRKT 9-09110-410-0 04 1 9101-9307 ● ●
211 NUT; BRKT 9-09110-510-0 04 1 9308- ● ●
291 BOLT; ACL 1-09030-030-2 04 1 9101- ● ●
296 NUT; ACL 9-09110-408-0 04 1 9101- ● ●
325 HOSE; RUBBER,ENG TO PIPE 1-14231-498-1 01 1 9101- ● ●
334 PIPE; JOINT,AIR DUCT
RIGHT HAND DRIVE(MRR5FB) 		1-14114-838-0 01 1 9101- ● ●
334 PIPE; JOINT,AIR DUCT
LEFT HAND DRIVE(MRR6FB) 		1-14114-754-1 01 1 9101- ● ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-497-0 01 1 9101- ● ●
338 CLIP; PIPE 1-09707-114-0 01 1 9101- ● ●
379 HOSE; RUBBER
VERTICAL AIR CLEANER SNORKEL<PP3> L=80 		9-09912-513-0 01 1 9112- ● ●
457 CLIP; RUBBER HOSE,AIR INT
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-09707-114-0 02 1 9112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
