◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51297 - NPR/NQR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#32759) — 46 parça

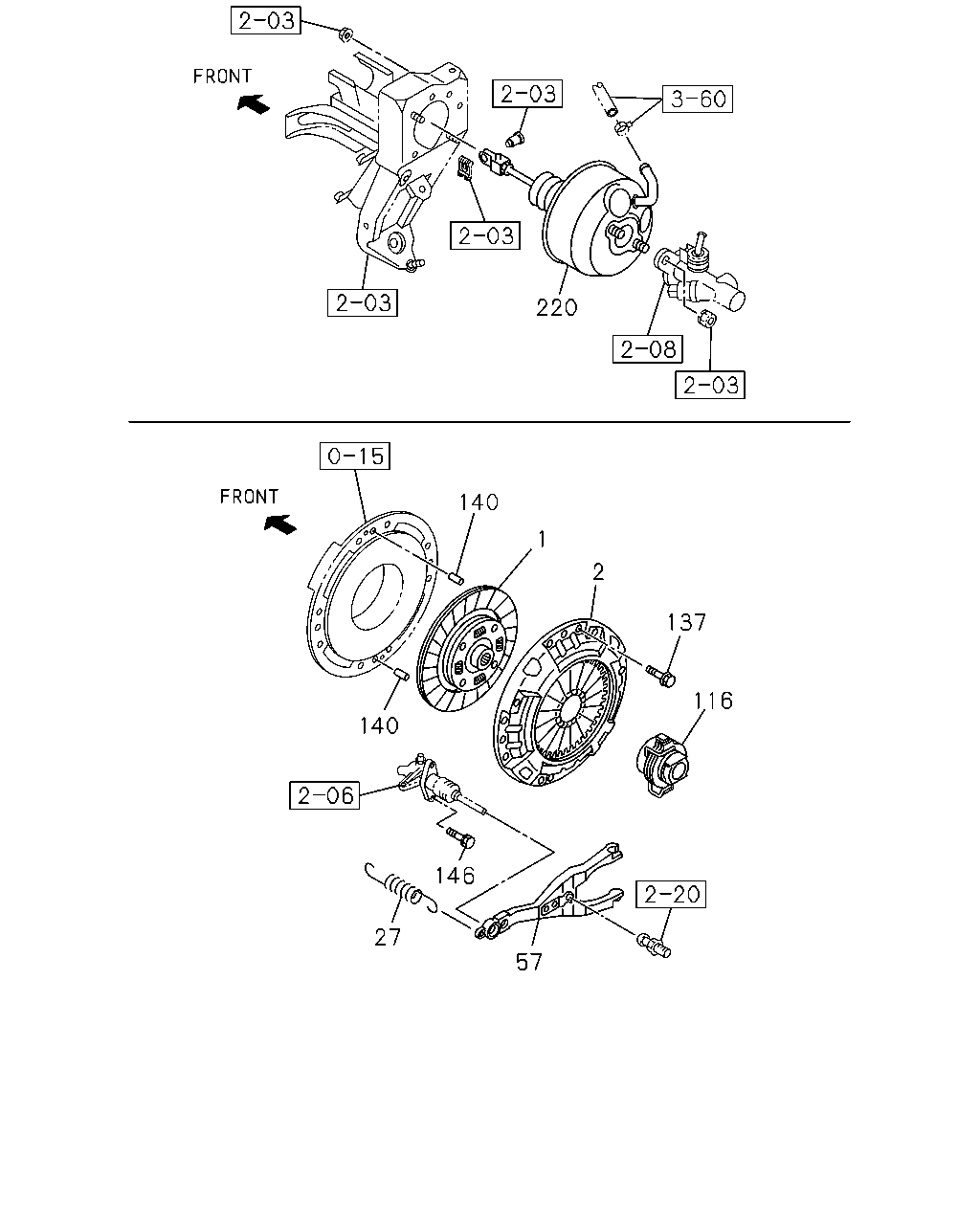

çizim 83291
220 140 1 2 137 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH) 		8-97377-149-0 01 1 1012-1402 ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH) 		8-98255-959-1 01 1 1403- ●
1 00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) 		8-97362-235-1 01 1 1012-1402 ●
1 00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) 		8-98255-140-1 01 1 1403- ●
1 00.886 DISC; CLUTCH
4JJ1-TCC ENG(RDU) 		8-98037-004-2 01 1 1012-1401 ●
1 00.886 DISC; CLUTCH
4JJ1-TCC ENG(RDU) 		8-98255-139-1 01 1 1402- ●
1 00.886 DISC; CLUTCH
4JJ1-TCC ENG(RDU) BEST VALUE PARTS 		5-87610-077-1 01 1 1012- ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH) BEST VALUE PARTS 		5-87610-049-2 01 1 1012- ●
1 00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) BEST VALUE PARTS 		5-87610-080-0 01 1 1012-1402 ●
1 00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) BEST VALUE PARTS 		5-87610-080-1 01 1 1502- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) 		8-97310-796-0 01 1 1012- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) 08.859 		8-97351-794-0 01 1 1012-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) 		8-97038-831-2 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCC ENG(RDU) 		8-98040-093-0 01 1 1012- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCC ENG(RDU) BEST VALUE PARTS 		5-87610-091-0 01 1 1012- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) BEST VALUE PARTS 		5-87610-081-0 01 1 1012-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) BEST VALUE PARTS 		5-87610-104-0 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) BEST VALUE PARTS 		5-87610-050-1 01 1 1012- ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-313-0 01 1 1012- ● ●
57 00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-303-0 01 1 1012- ● ●
116 00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-313-0 01 1 1012- ● ●
116 00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-110-0 01 1 1012- ● ●
137 00.862 BOLT; CLU COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1012- ● ●
140 00.862 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25 		8-94410-361-0 02 1 1012- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1012- ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98033-837-0 01 1 1012- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98043-208-0 01 1 1012- ● ●
çizim 83293
296 209 297 296 292 299 299 293 294 295 300 298 298 302 306 291 301 303
BalonParca AdiParca NoAdetTipApplied Date A B
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-930-2 01 1 1012-1412 ●
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-320-0 01 1 1501- ●
291 00.863 COUPLING; FLUID
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98087-659-2 01 1 1302- ●
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98087-661-1 01 1 1012-1301 ●
291 00.863 COUPLING; FLUID
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98087-661-2 01 1 1302- ●
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 1012- ●
293 00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-651-0 01 1 1012- ●
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 1012- ●
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 1012- ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 1012- ●
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 1012- ●
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-924-1 01 1 1012- ●
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 1012- ●
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 1012- ●
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 1012- ●
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 1012- ●
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-265-2 01 1 1012- ●
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100 		8-94279-939-0 03 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
