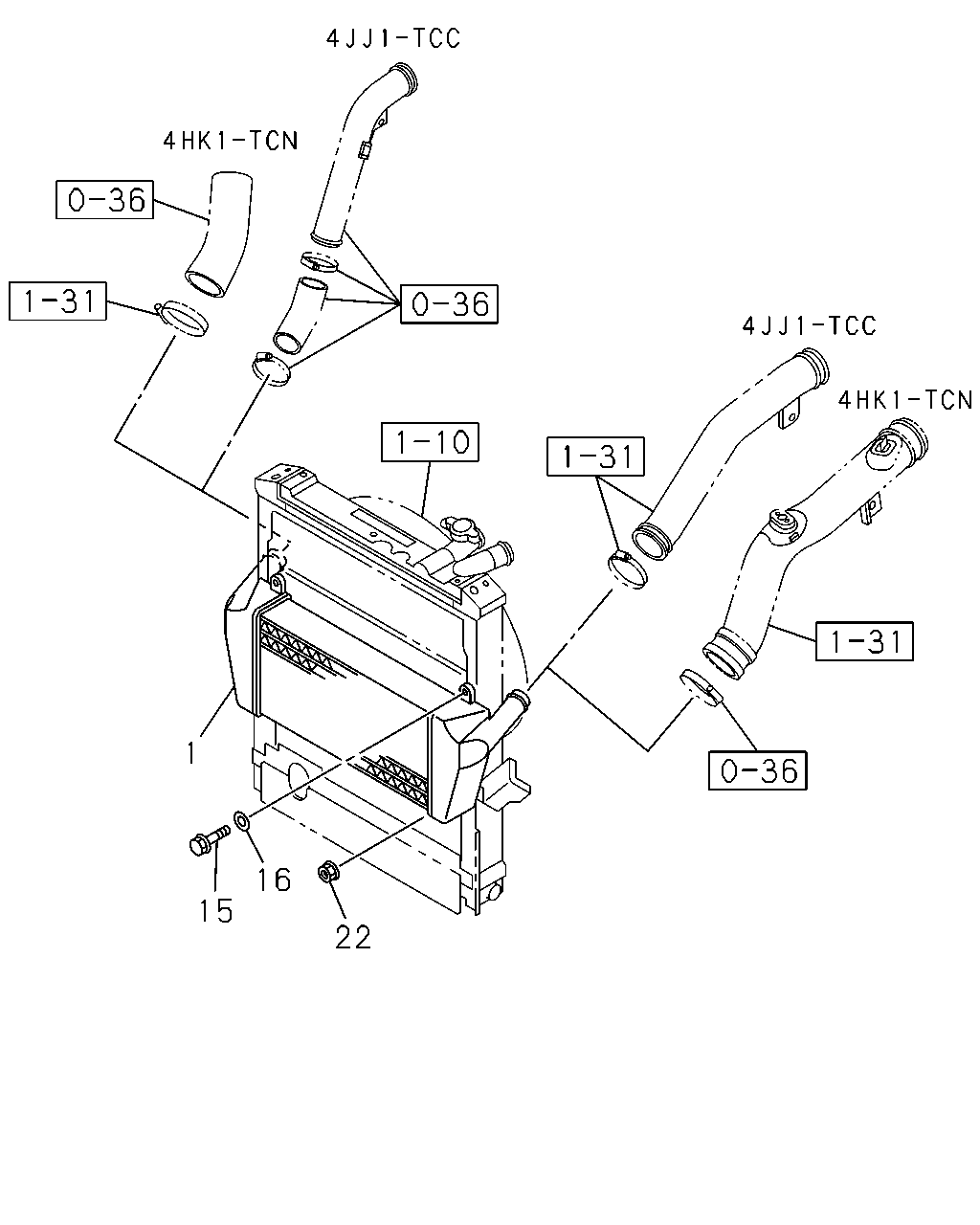

1-35 — CHARGE AIR COOLER (#32752) — 26 parça

1 16 15 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.374 COOLER; CHARGE AIR 4HK1-TCN ENG(RDQ)	8-98006-479-1	01	1	1012-	●	●
1	03.374 COOLER; CHARGE AIR 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-033-0	01	1	1012-1112	●
1	03.374 COOLER; CHARGE AIR 4JJ1-TCC ENG(RDU)	8-97387-033-0	01	1	1012-1112			●
1	03.374 COOLER; CHARGE AIR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-033-0	01	1	1201-	●
1	03.374 COOLER; CHARGE AIR 4JJ1-TCC ENG(RDU)	8-97387-033-0	01	1	1201-			●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1112	●	●
15	03.374 BOLT; CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1112	●
15	03.374 BOLT; CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1112			●
15	03.374 BOLT; CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1201-	●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1201-	●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1201-		●
15	03.374 BOLT; CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1201-			●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1112	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1112	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1112			●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1201-	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1201-	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1201-		●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1201-			●
22	03.374 NUT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112	●	●
22	03.374 NUT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112	●
22	03.374 NUT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112			●
22	03.374 NUT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1201-	●
22	03.374 NUT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1201-	●
22	03.374 NUT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1201-		●
22	03.374 NUT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1201-			●
