◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#3275) — 20 parça

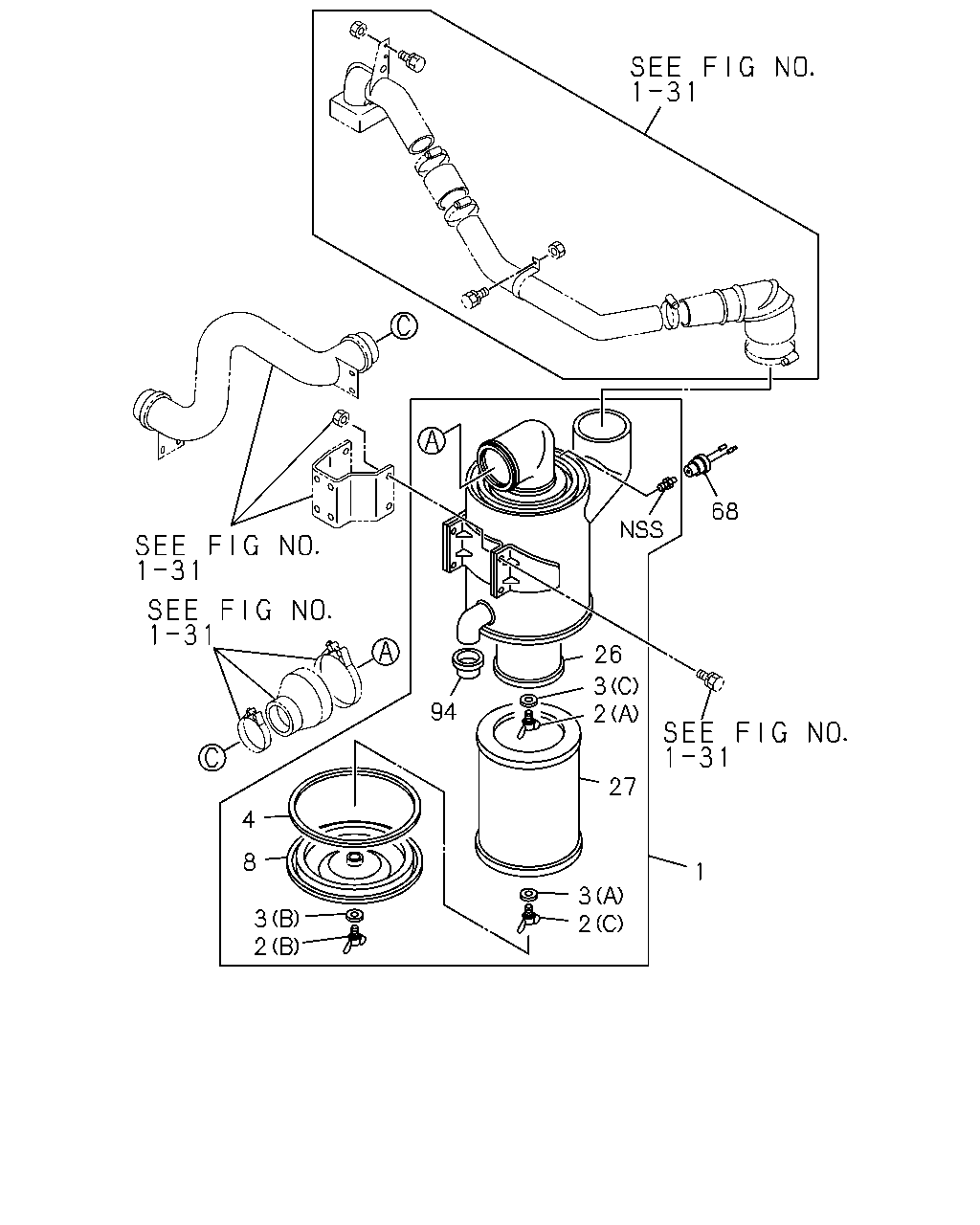

çizim 36899
68 26 3 2 94 27 4 8 1 3 2 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
RIGHT HAND DRIVE(MRR5FB) 		1-14210-610-1 01 1 9101- ● ●
1 CLEANER ASM; AIR
LEFT HAND DRIVE(MRR6FB) TAIWAN EQUIPMENT<WW5> 		1-14210-645-1 01 1 9101- ● ●
1 CLEANER ASM; AIR
LEFT HAND DRIVE(MRR6FB) EXC. TAIWAN EQUIPMENT<WW5> 		1-14210-611-1 01 1 9101- ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9101- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9101- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9101- ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9101- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9101- ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9101- ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9101- ● ●
8 COVER ASM; ACL
LEFT HAND DRIVE(MRR6FB) TAIWAN EQUIPMENT<WW5> 		1-14212-095-0 01 1 9101- ● ●
26 FILTER; ACL,INNER
RIGHT HAND DRIVE(MRR5FB) 		1-14215-145-0 01 1 9101- ● ●
26 FILTER; ACL,INNER
LEFT HAND DRIVE(MRR6FB) EXC. TAIWAN EQUIPMENT<WW5> 		1-14215-145-0 01 1 9101- ● ●
26 FILTER; ACL,INNER
LEFT HAND DRIVE(MRR6FB) TAIWAN EQUIPMENT<WW5> 		1-14215-111-0 01 1 9101- ● ●
27 FILTER; ACL,OUTER
RIGHT HAND DRIVE(MRR5FB) 		1-14215-171-0 01 1 9101- ● ●
27 FILTER; ACL,OUTER
LEFT HAND DRIVE(MRR6FB) EXC. TAIWAN EQUIPMENT<WW5> 		1-14215-171-0 01 1 9101- ● ●
27 FILTER; ACL,OUTER
LEFT HAND DRIVE(MRR6FB) TAIWAN EQUIPMENT<WW5> 		1-14215-172-0 01 1 9101- ● ●
68 INDICATOR; SERVICE
VENEZUELA ENCAVAPACKAGE(WN4) 		1-81530-015-0 01 1 9101- ● ●
68 INDICATOR; SERVICE
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-81530-011-0 01 1 9101- ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
