Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#32748) — 283 parça

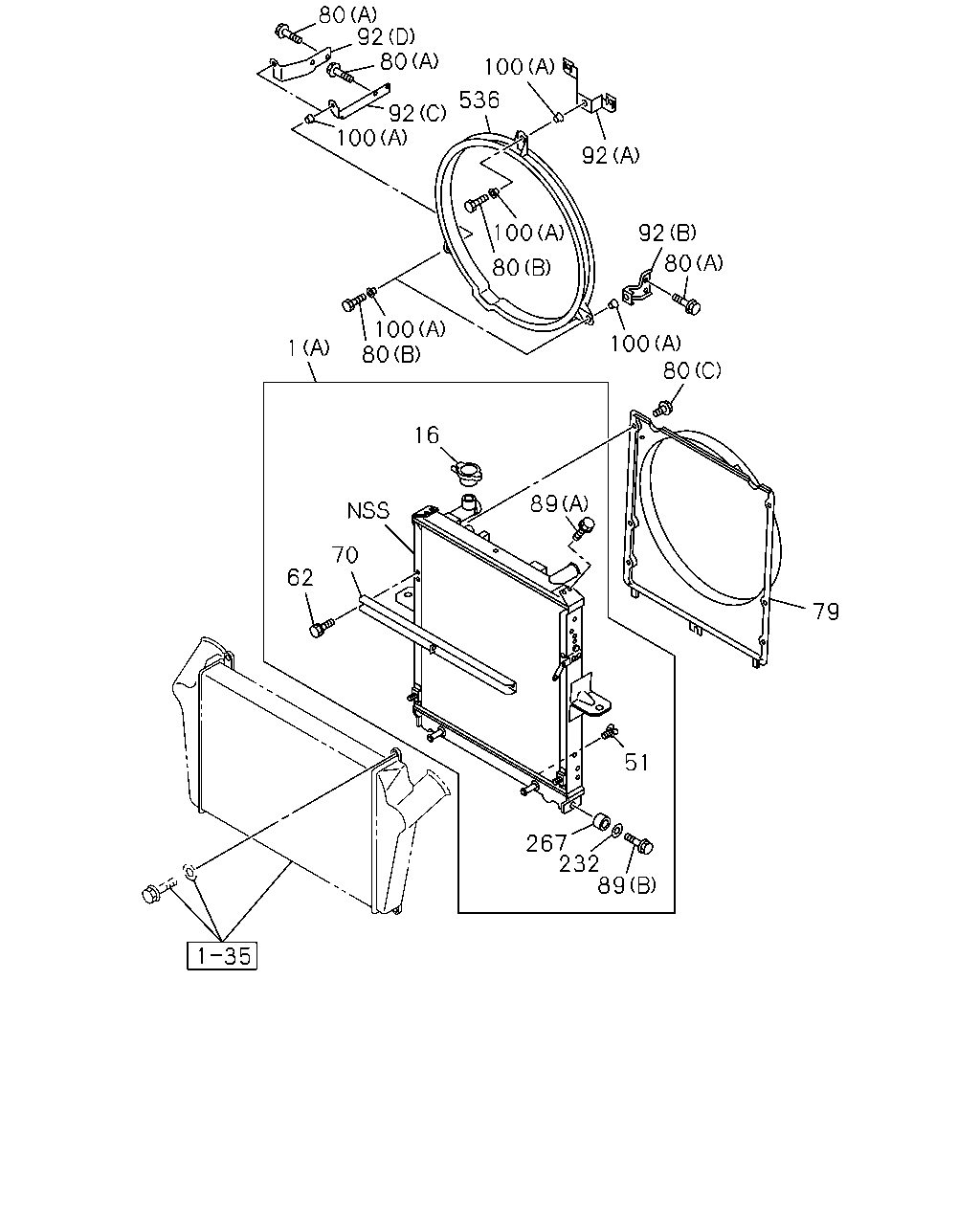

80 92 80 100 536 92 100 92 92 100 80 80 100 80 100 80 1 16 89 70 62 79 51 267 232 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98174-423-0	01	1	1012-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98174-422-0	01	1	1012-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (A)	8-98174-422-0	01	1	1012-		●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98172-906-0	01	1	1012-1112	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) (B)	8-98172-906-0	01	1	1012-1112			●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98172-906-0	01	1	1201-	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) (B)	8-98172-906-0	01	1	1201-			●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98172-916-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98095-588-2	01	1	1202-	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1012-	●	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	1012-	●	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-940-0	01	1	1012-1112	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU)	8-98018-940-0	01	1	1012-1112			●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-940-0	01	1	1201-	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU)	8-98018-940-0	01	1	1201-			●
70	01.271 STAY; RAD 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98034-644-0	01	1	1012-	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ)	8-98172-924-0	01	1	1012-	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98172-923-0	01	1	1012-1012	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98172-923-0	01	1	1012-1012			●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-081-1	01	1	1012-1112	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-081-1	01	1	1012-1112			●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-081-1	01	1	1201-1410	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-081-1	01	1	1201-1410			●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-712-0	01	1	1411-	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98234-712-0	01	1	1411-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) (C) M6X16	1-21559-481-0	04	1	1012-	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1012-1104	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1012-1104	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-1104	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1105-	●		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	1012-	●		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) M6X12	8-98039-672-0	02	1	1012-1112	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (E) M6X12	8-98039-672-0	02	1	1012-1112			●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) M6X12	8-98039-672-0	02	1	1201-1410	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (E) M6X12	8-98039-672-0	02	1	1201-1410			●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) M6X12	8-98039-672-0	04	1	1411-	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (E) M6X12	8-98039-672-0	04	1	1411-			●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-1112	●	●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-1112	●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-1112			●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1201-	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1201-	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1201-		●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1201-			●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-1112	●	●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-1112	●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-1112			●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1201-	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1201-	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1201-		●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1201-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97386-233-0	01	1	1012-1104	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97382-827-2	01	1	1012-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1012-1104	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1012-1104	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) (E)	8-97381-550-1	01	1	1012-1303	●		●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) (E)	8-98237-770-0	01	1	1304-	●		●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	1012-1104	●	●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	03	1	1012-	●		●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) (C) OD=32	8-98058-502-1	03	1	1012-	●		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98141-232-0	02	1	1411-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	8-98141-232-0	02	1	1411-			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	1012-1112	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-87410-723-0	02	1	1012-1112	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	1-87410-723-0	02	1	1012-1112			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-87410-723-0	02	1	1201-1410	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	1-87410-723-0	02	1	1201-1410	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	1201-1410		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	1-87410-723-0	02	1	1201-1410			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	1411-	●	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	1012-1112	●	●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-21467-023-0	02	1	1012-1112	●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU)	1-21467-023-0	02	1	1012-1112			●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-21467-023-0	02	1	1201-	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	1-21467-023-0	02	1	1201-	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	1201-		●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU)	1-21467-023-0	02	1	1201-			●
536	01.020 SHROUD; FAN 4HK1-TCN ENG(RDQ) 01.277	8-97350-995-0	01	1	1012-1104	●	●

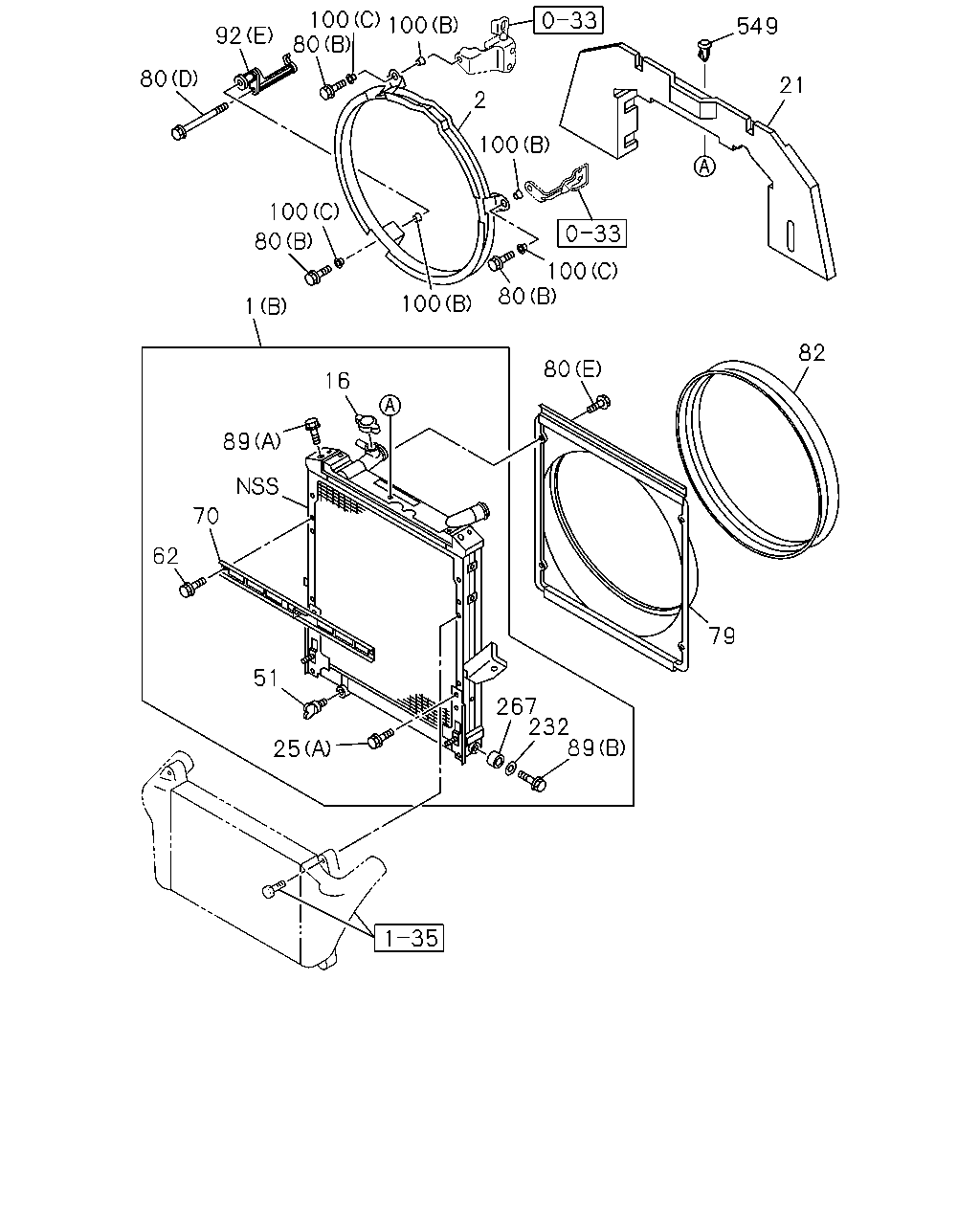

100 100 80 549 92 80 21 2 100 100 80 100 80 100 1 82 80 16 89 70 62 79 51 267 232 89 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98174-423-0	01	1	1012-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98174-422-0	01	1	1012-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (A)	8-98174-422-0	01	1	1012-		●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98172-906-0	01	1	1012-1112	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) (B)	8-98172-906-0	01	1	1012-1112			●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98172-906-0	01	1	1201-	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) (B)	8-98172-906-0	01	1	1201-			●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98172-916-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98095-588-2	01	1	1202-	●
2	01.277 GUIDE; FAN 4JJ1-TCC ENG(RDU)	8-98054-659-0	01	1	1012-	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98095-606-0	01	1	1012-	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1012-	●	●	●
21	01.276 SEAL; RAD 4JJ1-TCC ENG(RDU)	8-98025-371-0	01	1	1012-	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98097-689-0	01	1	1012-1201	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1012-	●		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012			●
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	1012-	●	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-940-0	01	1	1012-1112	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU)	8-98018-940-0	01	1	1012-1112			●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-940-0	01	1	1201-	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU)	8-98018-940-0	01	1	1201-			●
70	01.271 STAY; RAD 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98034-644-0	01	1	1012-	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ)	8-98172-924-0	01	1	1012-	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98172-923-0	01	1	1012-1012	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98172-923-0	01	1	1012-1012			●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-081-1	01	1	1012-1112	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-081-1	01	1	1012-1112			●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-081-1	01	1	1201-1410	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-081-1	01	1	1201-1410			●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-712-0	01	1	1411-	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98234-712-0	01	1	1411-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) (C) M6X16	1-21559-481-0	04	1	1012-	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1012-1104	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1012-1104	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-1104	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1105-	●		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	1012-	●		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) M6X12	8-98039-672-0	02	1	1012-1112	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (E) M6X12	8-98039-672-0	02	1	1012-1112			●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) M6X12	8-98039-672-0	02	1	1201-1410	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (E) M6X12	8-98039-672-0	02	1	1201-1410			●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) M6X12	8-98039-672-0	04	1	1411-	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (E) M6X12	8-98039-672-0	04	1	1411-			●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-085-1	01	1	1012-1112	●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-085-1	01	1	1012-1112			●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-085-1	01	1	1201-	●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-085-1	01	1	1201-			●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-1112	●	●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-1112	●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-1112			●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1201-	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1201-	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1201-		●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1201-			●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-1112	●	●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-1112	●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-1112			●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1201-	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1201-	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1201-		●
89	01.277 BOLT 4JJ1-TCC ENG(RDU) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1201-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97386-233-0	01	1	1012-1104	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97382-827-2	01	1	1012-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1012-1104	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1012-1104	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) (E)	8-97381-550-1	01	1	1012-1303	●		●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) (E)	8-98237-770-0	01	1	1304-	●		●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ) (A)	1-09337-027-0	06	1	1012-1104	●	●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	03	1	1012-	●		●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) (C) OD=32	8-98058-502-1	03	1	1012-	●		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98141-232-0	02	1	1411-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	8-98141-232-0	02	1	1411-			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	1012-1112	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-87410-723-0	02	1	1012-1112	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	1-87410-723-0	02	1	1012-1112			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-87410-723-0	02	1	1201-1410	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	1-87410-723-0	02	1	1201-1410	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	1201-1410		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	1-87410-723-0	02	1	1201-1410			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	1411-	●	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	1012-1112	●	●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-21467-023-0	02	1	1012-1112	●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU)	1-21467-023-0	02	1	1012-1112			●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-21467-023-0	02	1	1201-	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	1-21467-023-0	02	1	1201-	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	1201-		●
267	01.277 RUBBER; CUSHION 4JJ1-TCC ENG(RDU)	1-21467-023-0	02	1	1201-			●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCC ENG(RDU) 01.276	8-97228-568-0	05	1	1012-	●		●

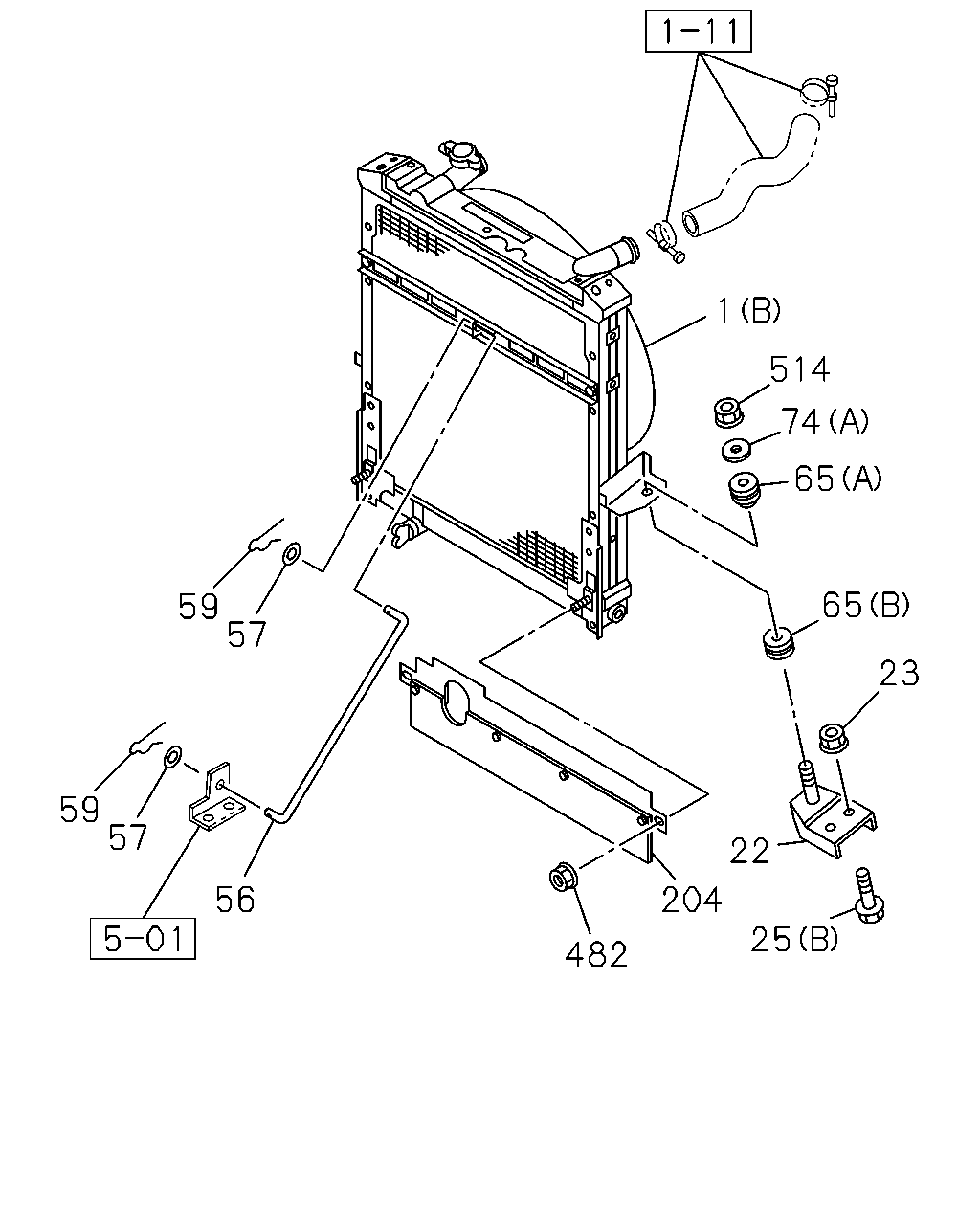

1 514 74 65 65 59 57 23 59 57 22 56 204 25 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98174-423-0	01	1	1012-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98174-422-0	01	1	1012-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (A)	8-98174-422-0	01	1	1012-		●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98172-906-0	01	1	1012-1112	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) (B)	8-98172-906-0	01	1	1012-1112			●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98172-906-0	01	1	1201-	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) (B)	8-98172-906-0	01	1	1201-			●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98172-916-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98095-588-2	01	1	1202-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) 01.277	8-97330-527-1	02	1	1012-	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-640-0	01	1	1012-	●		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-641-0	01	1	1012-	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-97074-093-0	01	1	1012-	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●		●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1012-	●		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012			●
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98049-051-0	01	1	1012-	●	●
56	01.270 STAY; RAD 4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1012-	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-98058-497-0	01	1	1012-	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1012-	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1012-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1012-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) (B) ID=10.5	0-91610-710-0	01	1	1012-	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	1012-	●	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCC ENG(RDU)	8-97383-928-1	01	1	1012-	●		●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH)	8-97387-572-1	01	1	1012-1112	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112			●
482	01.277 NUT; AIR GUIDE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1201-	●		●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●

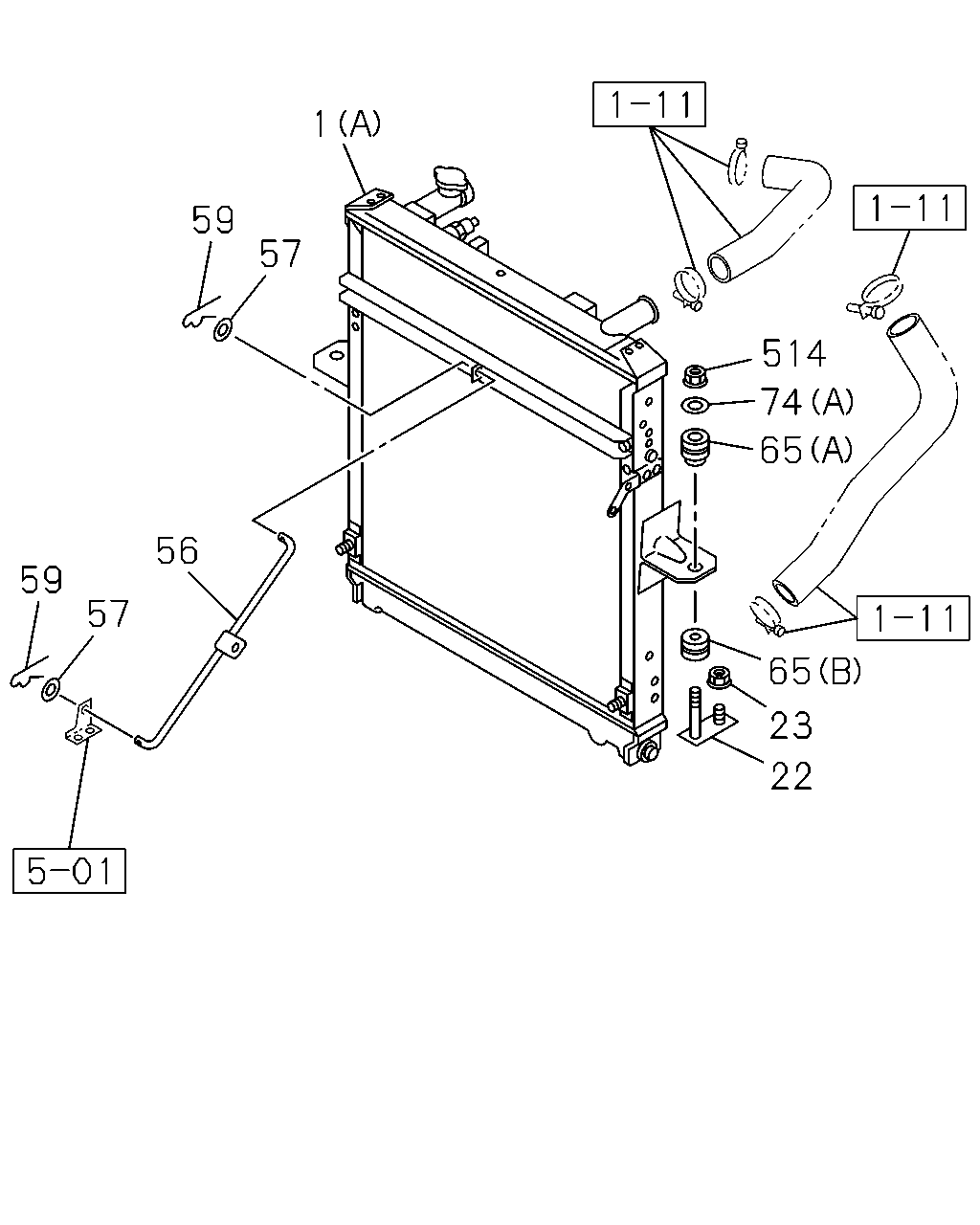

1 59 57 514 74 65 56 59 57 65 23 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98174-423-0	01	1	1012-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98174-422-0	01	1	1012-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (A)	8-98174-422-0	01	1	1012-		●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98172-906-0	01	1	1012-1112	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) (B)	8-98172-906-0	01	1	1012-1112			●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98172-906-0	01	1	1201-	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) (B)	8-98172-906-0	01	1	1201-			●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98172-916-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98095-588-2	01	1	1202-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) 01.277	8-97330-527-1	02	1	1012-	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-640-0	01	1	1012-	●		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-641-0	01	1	1012-	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-97074-093-0	01	1	1012-	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●		●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98049-051-0	01	1	1012-	●	●
56	01.270 STAY; RAD 4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1012-	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-98058-497-0	01	1	1012-	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1012-	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1012-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1012-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) (B) ID=10.5	0-91610-710-0	01	1	1012-	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	1012-	●	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●

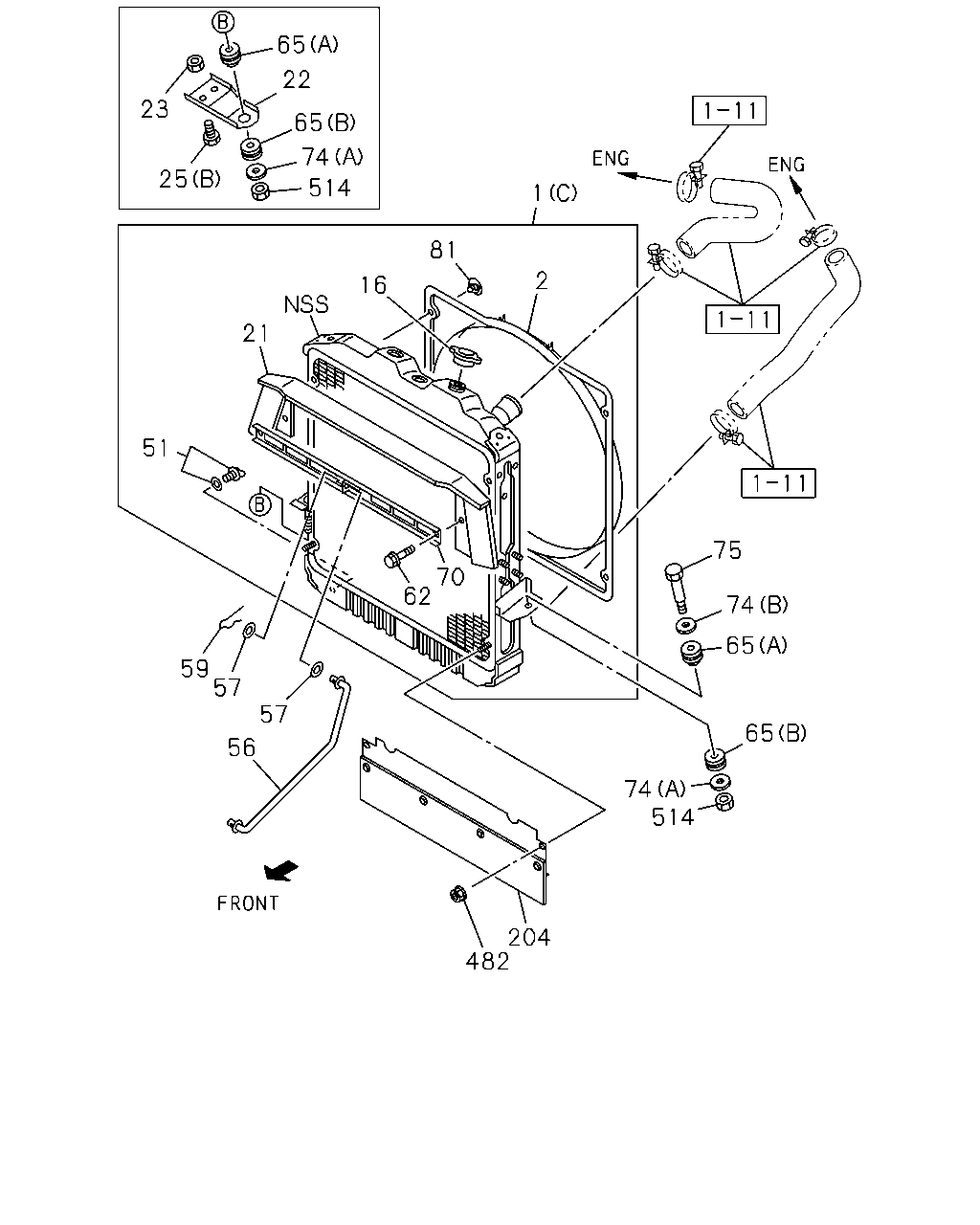

65 22 23 65 74 25 514 1 81 2 16 21 51 75 70 62 74 65 59 57 57 65 56 74 514 204 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98174-423-0	01	1	1012-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98174-422-0	01	1	1012-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (A)	8-98174-422-0	01	1	1012-		●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98172-906-0	01	1	1012-1112	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) (B)	8-98172-906-0	01	1	1012-1112			●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98172-906-0	01	1	1201-	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) (B)	8-98172-906-0	01	1	1201-			●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98172-916-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98095-588-2	01	1	1202-	●
2	01.277 GUIDE; FAN 4JJ1-TCC ENG(RDU)	8-98054-659-0	01	1	1012-	●		●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98095-606-0	01	1	1012-	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1012-	●	●	●
21	01.276 SEAL; RAD 4JJ1-TCC ENG(RDU)	8-98025-371-0	01	1	1012-	●		●
21	01.276 SEAL; RAD 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98097-689-0	01	1	1012-1201	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) 01.277	8-97330-527-1	02	1	1012-	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-640-0	01	1	1012-	●		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-641-0	01	1	1012-	●		●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-97074-093-0	01	1	1012-	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●		●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1012-	●		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012			●
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98049-051-0	01	1	1012-	●	●
56	01.270 STAY; RAD 4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1012-	●		●
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-98058-497-0	01	1	1012-	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1012-	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1012-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1012-	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	1012-	●	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-940-0	01	1	1012-1112	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU)	8-98018-940-0	01	1	1012-1112			●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-940-0	01	1	1201-	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU)	8-98018-940-0	01	1	1201-			●
70	01.271 STAY; RAD 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98034-644-0	01	1	1012-	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) (B) ID=10.5	0-91610-710-0	01	1	1012-	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	1012-	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	1012-	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97088-810-0	02	1	1012-	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCC ENG(RDU)	8-97383-928-1	01	1	1012-	●		●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH)	8-97387-572-1	01	1	1012-1112	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112			●
482	01.277 NUT; AIR GUIDE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1201-	●		●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
