0-85 — AUTO TIMER; INJECTION PUMP (#32744) — 53 parça

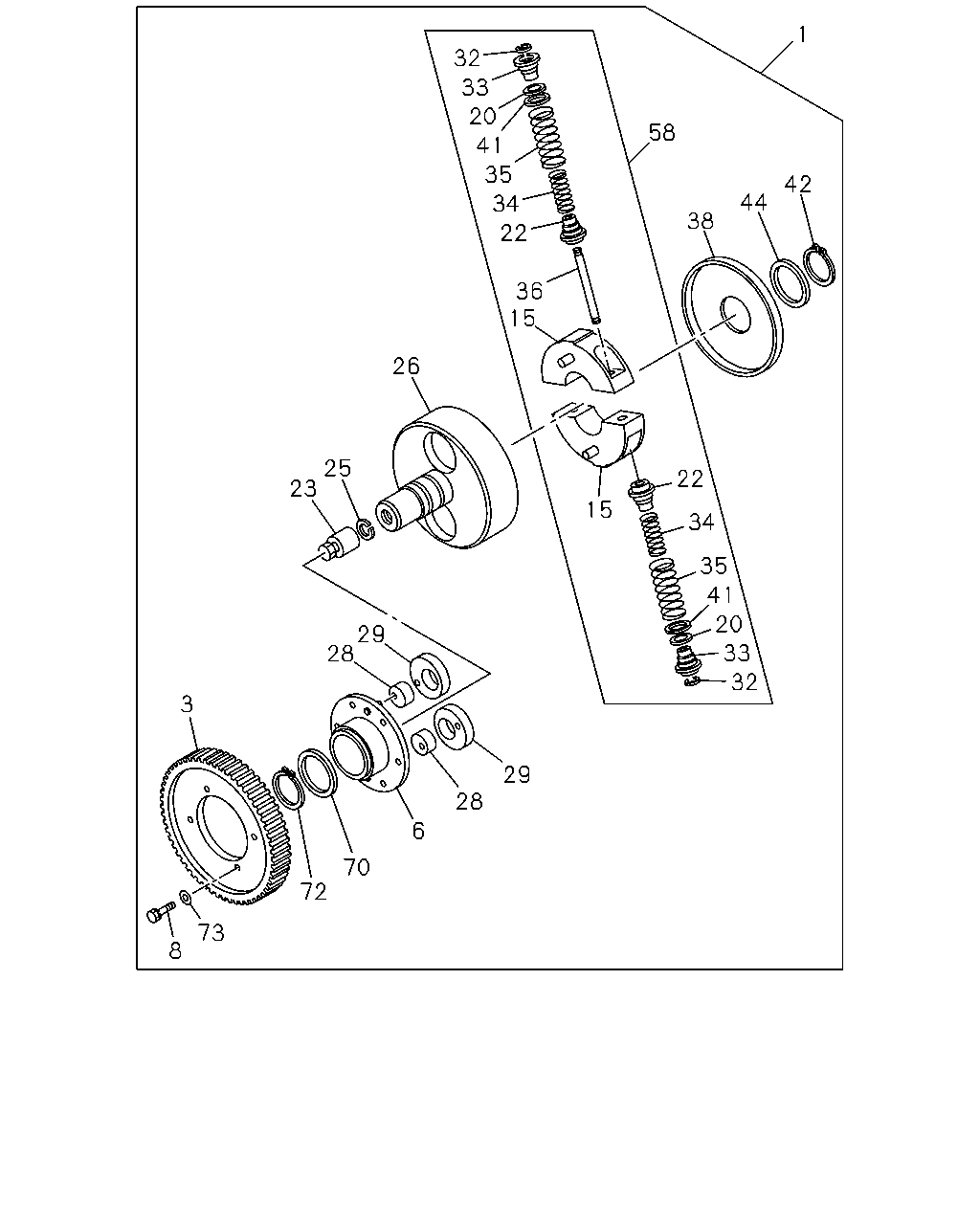

çizim 103075
1 32 33 20 58 41 35 42 44 34 38 22 36 15 26 25 23 22 15 34 35 41 20 29 28 33 32 3 29 28 6 70 72 73 8
BalonParca AdiParca NoAdetTipApplied Date
1 03.340 TIMER ASM; INJ PUMP
ASM PART: C = 8-97385-476-0, 97385476 		8-97224-397-0 01 1 -
1 03.340 TIMER ASM; INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102 		8-97224-581-0 01 1 -
3 03.340 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97203-920-0 01 1 -
6 03.340 FLANGE; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-031-0 01 1 -
8 03.340 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-049-0 04 1 -
15 03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: C = 8-97385-476-0, 97385476 		8-97121-654-0 02 1 -
15 03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102 		8-97125-962-0 02 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.10 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-394-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-395-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-396-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=1.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-397-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.40 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-495-0 AR 1 -
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.70 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-496-0 AR 1 -
22 03.340 SEAT; INNER SPRING,TIMER,INJ PUM
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-026-0 04 1 -
23 03.340 NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-144-0 01 1 -
25 03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-145-0 01 1 -
26 03.330 FLANGE; TIMER,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97125-966-0 01 1 -
28 03.330 CAM; INNER,ECCENTRIC,TIMER,INJ P
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-94172-269-0 02 1 -
29 03.330 CAM; OUTER,ECCENTRIC,TIMER,INJ P
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-030-0 02 1 -
32 03.330 RING; SNAP,SPRING SEAT,TIMER,INJ
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-159-0 04 1 -
33 03.340 SEAT; OUTER SPRING,TIMER,INJ PUM
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-026-0 04 1 -
34 03.340 SPRING; TIMER,INNER,INJ PUMP
ASM PART: C = 8-97385-476-0, 97385476 		8-97121-656-0 04 1 -
34 03.340 SPRING; TIMER,INNER,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102 		8-97125-963-0 04 1 -
35 03.340 SPRING; TIMER,OUTER,INJ PUMP
ASM PART: C = 8-97385-476-0, 97385476 		8-97121-655-0 04 1 -
35 03.340 SPRING; TIMER,OUTER,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102 		8-97125-967-0 04 1 -
36 03.340 PIN; PILOT,TIMER SPRING,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-029-0 02 1 -
38 03.318 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-037-0 01 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.10 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-390-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-391-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-392-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-393-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.40 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-493-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.70 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-494-0 AR 1 -
42 03.340 RING; SNAP,TIMER COVER,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-185-0 01 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=0.10 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-038-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=0.12 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-039-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=0.14 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-040-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=0.16 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-041-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=0.18 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-042-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=0.90 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-043-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=1.10 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-044-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=1.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-045-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=1.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-046-0 AR 1 -
44 03.340 SHIM; TIMER COVER,INJ PUMP
T=1.70 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-047-0 AR 1 -
58 03.340 FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: C = 8-97385-476-0, 97385476 		8-97121-652-0 01 1 -
58 03.340 FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102 		8-97125-961-0 01 1 -
70 03.340 SHIM; FLANGE,TIMER
T=0.20 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-032-0 AR 1 -
70 03.340 SHIM; FLANGE,TIMER
T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-033-0 AR 1 -
70 03.340 SHIM; FLANGE,TIMER
T=0.40 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-034-0 AR 1 -
70 03.340 SHIM; FLANGE,TIMER
T=0.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-035-0 AR 1 -
70 03.340 SHIM; FLANGE,TIMER
T=0.80 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		8-97085-036-0 AR 1 -
72 03.340 RING; SNAP,FLANGE TIMER
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-15749-205-0 01 1 -
73 03.340 WASHER; DRIVE GEAR,INJ PUMP
00.669, ID=8 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476 		1-14319-034-0 04 1 -
