Sayfa 0-82 - Isuzu EPC

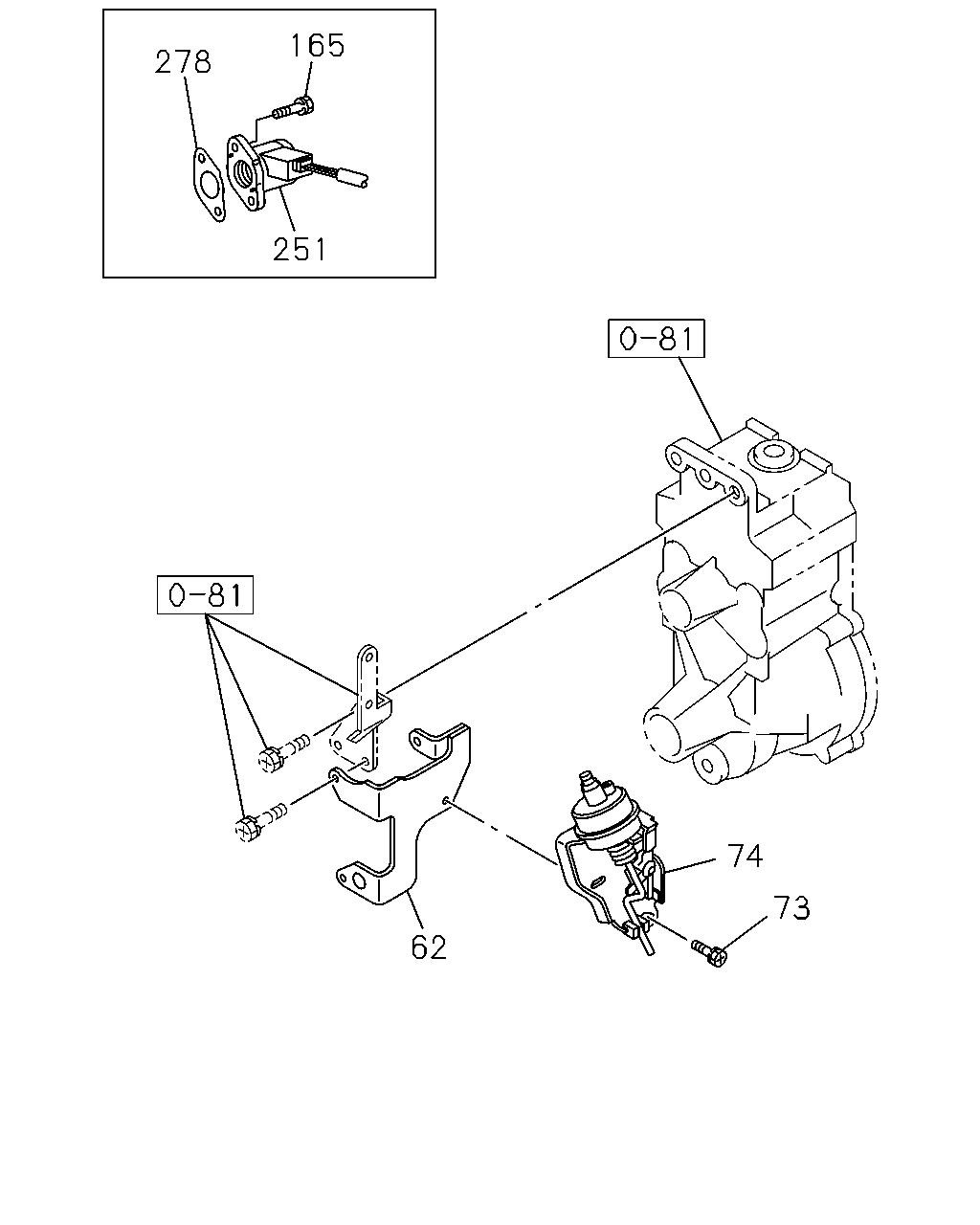

0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#32741) — 6 parça

165 278 251 74 73 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	03.314 BRACKET; ACTUATOR ASM PART: A = 8-97385-476-0, 97385476	8-97121-647-0	01	1	-
73	03.330 BOLT; ACTUATOR 03.314 ASM PART: A = 8-97385-476-0, 97385476	8-94121-627-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ ASM PART: A = 8-97385-476-0, 97385476	8-97037-274-4	01	1	-
165	03.320 BOLT; SENSOR ASM PART: A = 8-97385-476-0, 97385476	1-83579-438-0	02	1	-
251	03.320 SENSOR; RACK,GOV ASM PART: A = 8-97385-476-0, 97385476	8-97129-636-0	01	1	-
278	03.320 GASKET; SENSOR ASM PART: A = 8-97385-476-0, 97385476	8-97121-637-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
