1 |

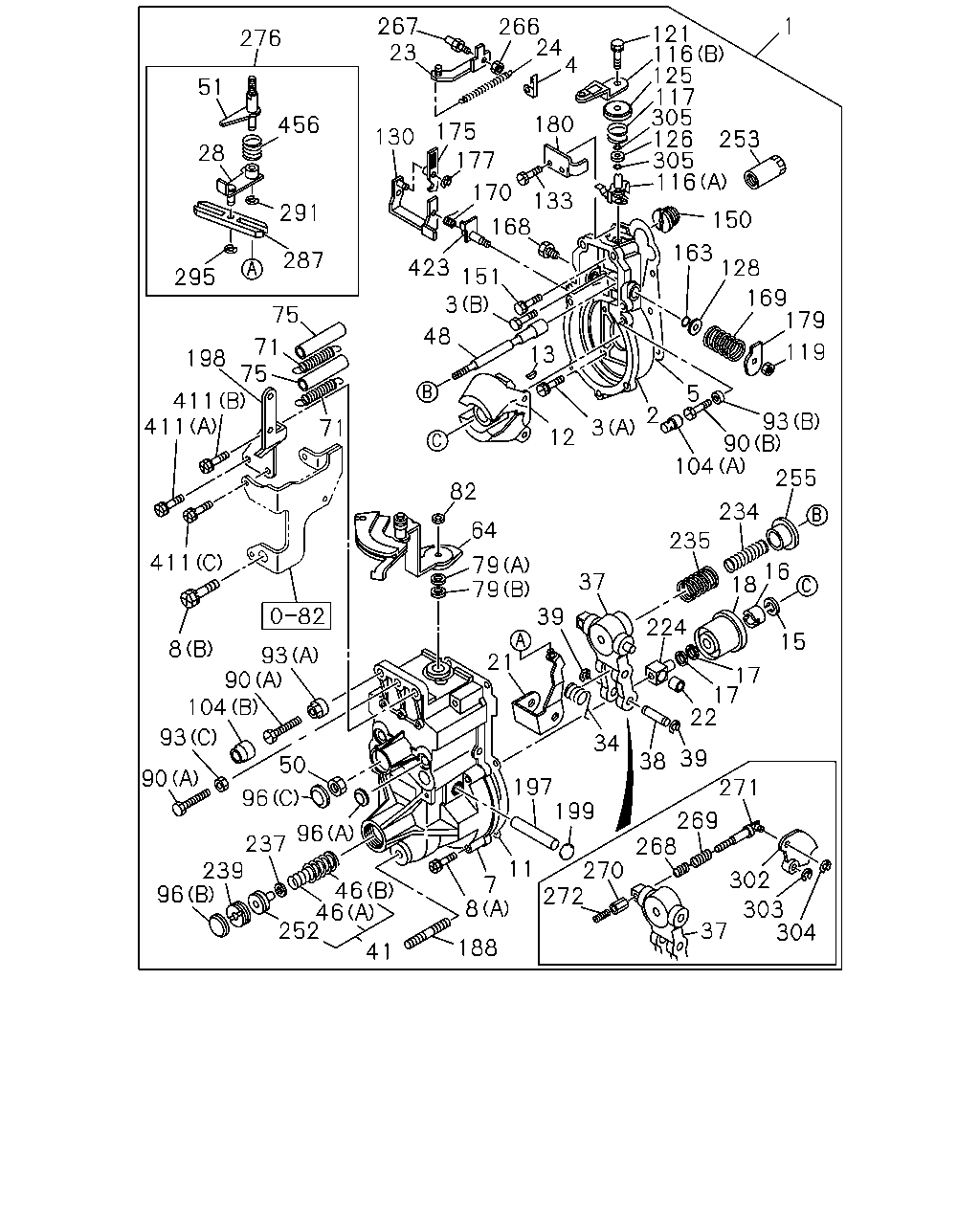

03.308 GOVERNOR ASM; INJ PUMP
ASM PART: C = 8-97385-476-0, 97385476
|
8-97224-393-0 |
01 |
1 |
- |
| |
1 |
03.308 GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101
|
8-97225-682-0 |
01 |
1 |
- |
| |
1 |
03.308 GOVERNOR ASM; INJ PUMP
ASM PART: B = 8-97212-102-0, 97212102
|
8-97225-683-0 |
01 |
1 |
- |
| |
2 |
03.308 HOUSING; GOV,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15721-265-0 |
01 |
1 |
- |
| |
3 |
03.318 BOLT; GOV HSG,INJ PUMP
(A), M6X15
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15729-027-0 |
05 |
1 |
- |
| |
3 |
03.318 BOLT; GOV HSG,INJ PUMP
(B), M6X16
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15729-071-0 |
01 |
1 |
- |
| |
4 |
03.306 PLATE; START SPRING,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15779-591-0 |
01 |
1 |
- |
| |
5 |
03.308 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15779-106-0 |
01 |
1 |
- |
| |
7 |
03.308 COVER; GOV HSG,INJ PUMP
ASM PART: B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476
|
8-97142-961-0 |
01 |
1 |
- |
| |
7 |
03.308 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101
|
8-97142-963-0 |
01 |
1 |
- |
| |
8 |
01.531 BOLT; GOV COVER,INJ PUMP
(B) ASM PART: C = 8-97385-476-0, 97385476
|
1-15729-535-0 |
01 |
1 |
- |
| |
8 |
01.531 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102
|
5-15729-033-0 |
07 |
1 |
- |
| |
8 |
01.531 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: C = 8-97385-476-0, 97385476
|
5-15729-033-0 |
06 |
1 |
- |
| |
11 |
03.308 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15779-107-0 |
01 |
1 |
- |
| |
12 |
03.308 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15722-017-0 |
01 |
1 |
- |
| |
13 |
03.308 KEY; FLYWEIGHT,GOV
16MM ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-19619-049-0 |
01 |
1 |
- |
| |
15 |
03.308 WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15729-034-0 |
01 |
1 |
- |
| |
16 |
03.308 NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-086-0 |
01 |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-891-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-892-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-893-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15729-286-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15729-287-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-088-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-551-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-552-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-553-0 |
AR |
1 |
- |
| |
18 |
03.308 SLEEVE; GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15729-372-0 |
01 |
1 |
- |
| |
21 |
03.308 LEVER ASM; GUIDE,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94339-977-0 |
01 |
1 |
- |
| |
22 |
03.308 COLLAR; LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94368-298-1 |
01 |
1 |
- |
| |
23 |
03.308 LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15725-928-0 |
01 |
1 |
- |
| |
24 |
03.308 SPRING; START,GOV,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15723-035-0 |
01 |
1 |
- |
| |
28 |
03.308 LEVER; SUPPORTING,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-152-0 |
01 |
1 |
- |
| |
34 |
03.308 SPRING; SPD CONT LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-140-1 |
01 |
1 |
- |
| |
37 |
03.308 LEVER ASM; TENSION,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94339-976-0 |
01 |
1 |
- |
| |
38 |
03.308 PIN; TENSION LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-370-0 |
01 |
1 |
- |
| |
39 |
03.308 RING; SNAP,LEVER PIN,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-88410-201-0 |
02 |
1 |
- |
| |
41 |
03.308 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97026-922-0 |
01 |
1 |
- |
| |
46 |
03.308 SPRING; GOV,INJ PUMP
(A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97115-982-0 |
01 |
1 |
- |
| |
46 |
03.308 SPRING; GOV,INJ PUMP
(B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97115-984-0 |
01 |
1 |
- |
| |
48 |
03.308 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-146-1 |
01 |
1 |
- |
| |
50 |
03.308 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-147-0 |
01 |
1 |
- |
| |
51 |
03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94325-501-0 |
01 |
1 |
- |
| |
64 |
03.308 LEVER; LOAD CONT,GOV
STAMP 778
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97121-634-0 |
01 |
1 |
- |
| |
71 |
03.306 SPRING; CONT LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97121-629-0 |
02 |
1 |
- |
| |
75 |
03.308 TUBE; RETURN SPRING,STOPPER LEVE
03.306
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-963-0 |
02 |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.95
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-076-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.20
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-077-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.25
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-078-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.30
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-079-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.35
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-080-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.40
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-081-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.50
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-082-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.70
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-617-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.90
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-618-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.80
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-619-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.60
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-896-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97066-844-0 |
01 |
1 |
- |
| |
82 |
03.308 NUT; CONT LEVER FIX,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-236-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(A), M8X65
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-761-0 |
02 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X33
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-799-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X34
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-800-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X35
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-801-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X36
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-802-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X37
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-803-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X31
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-842-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X32
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-843-0 |
01 |
1 |
- |
| |
93 |
03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.308, (A)
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-643-0 |
01 |
1 |
- |
| |
93 |
03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
01.531, (B)
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-807-0 |
01 |
1 |
- |
| |
93 |
03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97026-924-0 |
01 |
1 |
- |
| |
96 |
03.308 PLUG; LEVER SHAFT,GOV
(A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15729-076-0 |
01 |
1 |
- |
| |
96 |
03.308 PLUG; LEVER SHAFT,GOV
(B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-145-0 |
01 |
1 |
- |
| |
96 |
03.308 PLUG; LEVER SHAFT,GOV
(C) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-148-0 |
01 |
1 |
- |
| |
104 |
03.308 CAP; LOCK NUT,ADJ SCREW
(A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97085-021-0 |
01 |
1 |
- |
| |
104 |
03.308 CAP; LOCK NUT,ADJ SCREW
(B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97085-022-0 |
01 |
1 |
- |
| |
116 |
03.300 LEVER; ENG STOP,GOV
(A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97121-631-0 |
01 |
1 |
- |
| |
116 |
03.300 LEVER; ENG STOP,GOV
(B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97121-632-0 |
01 |
1 |
- |
| |
117 |
03.308 SPRING; STOP LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94336-925-0 |
01 |
1 |
- |
| |
119 |
03.308 NUT; ENG STOP LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-236-0 |
01 |
1 |
- |
| |
121 |
03.308 BOLT; ENG STOP LEVER,GOV
04.665, M6X12 W/LK WASHER
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-01910-612-0 |
01 |
1 |
- |
| |
125 |
03.308 CAP; STOP LEVER SPRING,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-168-0 |
01 |
1 |
- |
| |
126 |
03.308 GASKET; STOP LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-853-0 |
01 |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
T=0.60
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-897-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
T=0.80
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-898-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
T=0.90
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-899-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
T=0.50
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-556-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
T=0.30
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-557-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
T=0.40
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-558-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
T=0.25
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-559-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
T=0.35
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-560-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
T=0.20
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-88410-421-0 |
AR |
1 |
- |
| |
130 |
03.306 LEVER; CONT,GOV
ASM PART: A = 8-97212-101-0, 97212101
|
1-15725-496-0 |
01 |
1 |
- |
| |
130 |
03.306 LEVER; CONT,GOV
ASM PART: B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476
|
1-15725-527-0 |
01 |
1 |
- |
| |
133 |
03.308 BOLT; BRKT FIX,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-834-0 |
02 |
1 |
- |
| |
150 |
03.308 ADAPTER; GOV HSG,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81315-065-0 |
01 |
1 |
- |
| |
151 |
03.671 BOLT; ADAPTER,GOV HSG,INJ PUMP
M8X18 W/LK WASHER
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-01900-818-0 |
01 |
1 |
- |
| |
163 |
03.306 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15629-859-0 |
01 |
1 |
- |
| |
168 |
03.306 PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-796-0 |
01 |
1 |
- |
| |
169 |
03.306 SPRING; LEVER SET,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15723-032-0 |
01 |
1 |
- |
| |
170 |
03.306 SPRING; LEVER TO LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15723-033-0 |
01 |
1 |
- |
| |
175 |
03.306 LEVER; GOV,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97176-488-0 |
01 |
1 |
- |
| |
177 |
03.306 RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-445-0 |
01 |
1 |
- |
| |
179 |
03.308 LEVER; SPD ADJ,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-132-0 |
01 |
1 |
- |
| |
180 |
03.308 PLATE; GOV COVER
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97121-643-0 |
01 |
1 |
- |
| |
188 |
03.308 STUD; COVER
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-790-0 |
01 |
1 |
- |
| |
197 |
03.308 SHAFT; LEVER,GOV COVER
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15725-008-0 |
01 |
1 |
- |
| |
198 |
03.306 BRACKET; COVER
ASM PART: B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476
|
8-97026-928-0 |
01 |
1 |
- |
| |
198 |
03.306 BRACKET; COVER
ASM PART: A = 8-97212-101-0, 97212101
|
8-97085-014-0 |
01 |
1 |
- |
| |
199 |
03.308 PLUG; LEVER SHAFT,GOV COVER
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15729-076-0 |
02 |
1 |
- |
| |
224 |
03.308 SHIFTER; TENSION LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-142-0 |
01 |
1 |
- |
| |
234 |
03.308 SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15723-355-0 |
01 |
1 |
- |
| |
235 |
03.308 SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97121-626-0 |
01 |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-966-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-967-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.80
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-968-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.10
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94472-268-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94472-269-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.25
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94472-270-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94472-271-0 |
AR |
1 |
- |
| |
239 |
03.308 SCREW; GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-144-0 |
01 |
1 |
- |
| |
252 |
03.308 SCREW; GUIDE
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15779-003-1 |
01 |
1 |
- |
| |
253 |
03.308 LIMITTER; GOV CONT
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102
|
8-94167-792-0 |
01 |
1 |
- |
| |
255 |
03.308 SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-173-0 |
01 |
1 |
- |
| |
266 |
03.308 NUT; PIN TO LINK,CONT RACK,GOV
17.185, M5
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-99110-405-0 |
01 |
1 |
- |
| |
267 |
03.308 BOLT; CONN,CONT RACK,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-858-0 |
01 |
1 |
- |
| |
268 |
03.308 SPRING; ROD INNER,TORQUE CAM,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15723-056-0 |
01 |
1 |
- |
| |
269 |
03.308 SPRING; ROD OUTER,TORQUE CAM,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15723-070-1 |
01 |
1 |
- |
| |
270 |
03.308 NUT; TORQUE ROD LK,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15729-051-0 |
01 |
1 |
- |
| |
271 |
03.308 ROD; TORQUE CAM,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15725-009-1 |
01 |
1 |
- |
| |
272 |
03.308 SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94171-138-0 |
01 |
1 |
- |
| |
276 |
03.308 LEVER ASM; LOAD CONT,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94325-500-0 |
01 |
1 |
- |
| |
287 |
03.308 LEVER; GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15725-542-0 |
01 |
1 |
- |
| |
291 |
03.308 RING; SNAP,CONT SHAFT,GOV
03.306
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-445-0 |
01 |
1 |
- |
| |
295 |
03.308 RING; SNAP
03.306
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-445-0 |
01 |
1 |
- |
| |
302 |
03.308 PLATE; CAM,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102
|
8-97185-013-0 |
01 |
1 |
- |
| |
302 |
03.308 PLATE; CAM,GOV
ASM PART: C = 8-97385-476-0, 97385476
|
8-97224-411-0 |
01 |
1 |
- |
| |
303 |
03.308 RING; SNAP,CAM PLATE,GOV
03.320
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
5-15729-023-0 |
01 |
1 |
- |
| |
304 |
03.308 RING; SNAP,LINK TO CAM PLATE,GOV
04.040, ID=4
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-09185-404-0 |
01 |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=0.20
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97089-308-0 |
AR |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=0.30
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97089-309-0 |
AR |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=0.40
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97089-310-0 |
AR |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=0.60
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97089-311-0 |
AR |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=0.80
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-97089-312-0 |
AR |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=1.00
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
9-81325-553-0 |
01 |
1 |
- |
| |
411 |
03.306 BOLT; BRKT
03.330, (C)
ASM PART: C = 8-97385-476-0, 97385476
|
1-15619-187-0 |
01 |
1 |
- |
| |
411 |
03.306 BOLT; BRKT
03.330, (A)
ASM PART: B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476
|
1-15719-005-0 |
02 |
1 |
- |
| |
411 |
03.306 BOLT; BRKT
01.531, (B)
ASM PART: B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476
|
5-15729-304-0 |
01 |
1 |
- |
| |
423 |
03.306 SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
1-15729-820-0 |
01 |
1 |
- |
| |
456 |
03.308 SPRING; LEVER,GOV
ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102,
C = 8-97385-476-0, 97385476
|
8-94413-728-0 |
01 |
1 |
- |
