1-11 — RADIATOR HOSE AND SUB TANK (#3274) — 22 parça

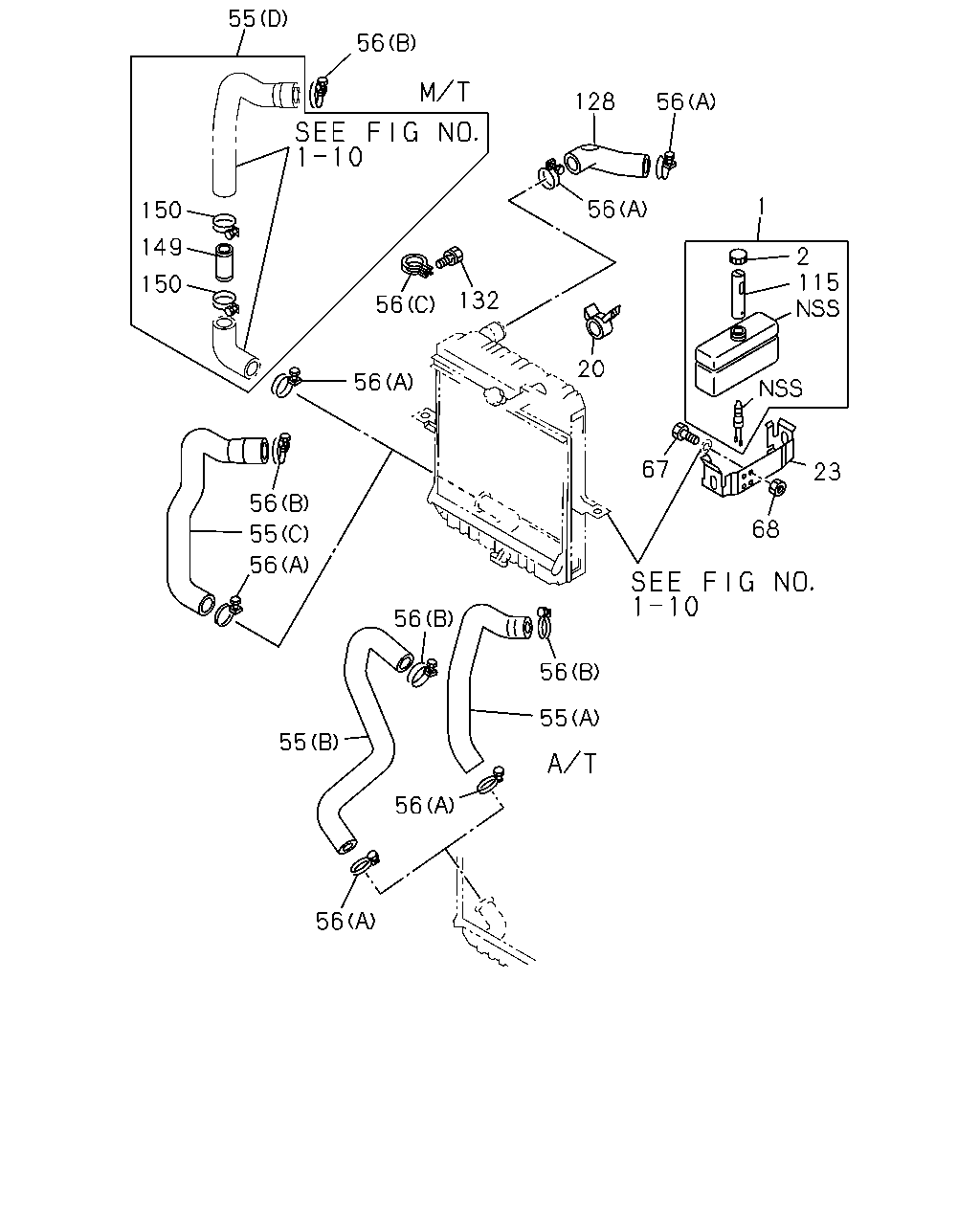

çizim 36924
55 56 128 56 1 56 150 149 2 115 150 132 56 20 56 67 23 56 68 55 56 56 56 55 55 56 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD 1-21480-029-1 01 1 9101- ● ●
2 CAP; SURGE TANK
OD=51 HOLE ID=2 		1-22440-022-1 01 1 9101- ● ●
20 CLIP; HOSE,RAD
W/CAP 		5-21489-003-0 01 1 9101-9108 ● ●
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 01 1 9109- ● ●
23 BRACKET; RESERVE TANK 1-21489-073-1 01 1 9101- ● ●
55 HOSE; WATER,RAD OUTLET
AT545 A/T ALLISON(MD1) (A) 		1-21437-171-3 01 1 9101-9203 ● ●
55 HOSE; WATER,RAD OUTLET
AT545 A/T ALLISON(MD1) (B) 		1-21437-338-0 01 1 9204- ● ●
55 HOSE; WATER,RAD OUTLET
ISUZU M/T<X9A> (C) 		1-21437-324-1 01 1 9101-9203 ● ●
55 HOSE; WATER,RAD OUTLET
ISUZU M/T<X9A> (D) 		1-21437-336-0 01 1 9204- ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=63 		1-09704-067-0 03 1 9101- ● ●
56 CLIP; WATER HOSE,RAD
(B) ID=68 		1-09704-074-0 01 1 9101- ● ●
56 CLIP; WATER HOSE,RAD
(C) ID=60 		9-09917-419-0 01 1 9101- ● ●
67 BOLT; BRKT 0-20800-830-0 04 1 9101- ● ●
68 NUT; BRKT
M8 		9-09110-408-0 04 1 9101- ● ●
115 BAFFLE; RESERVE TANK 1-21489-018-0 01 1 9101- ● ●
128 HOSE; WATER,RAD INL 1-21437-204-0 01 1 9101- ● ●
132 BOLT; CLIP,WATER HOSE,OUTLET
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9101-9204 ● ●
132 BOLT; CLIP,WATER HOSE,OUTLET
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9204-9204 ● ●
132 BOLT; CLIP,WATER HOSE,OUTLET
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9205- ● ●
132 BOLT; CLIP,WATER HOSE,OUTLET
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9205- ● ●
149 PIPE; WATER HOSE
ISUZU M/T<X9A> 		1-21431-134-0 01 1 9204- ● ●
150 CLIP; PIPE
ISUZU M/T<X9A> ID=63 		1-09704-067-0 02 1 9204- ● ●
