0-60 — ENGINE ELECTRICAL CONTROL PARTS (#32735) — 227 parça

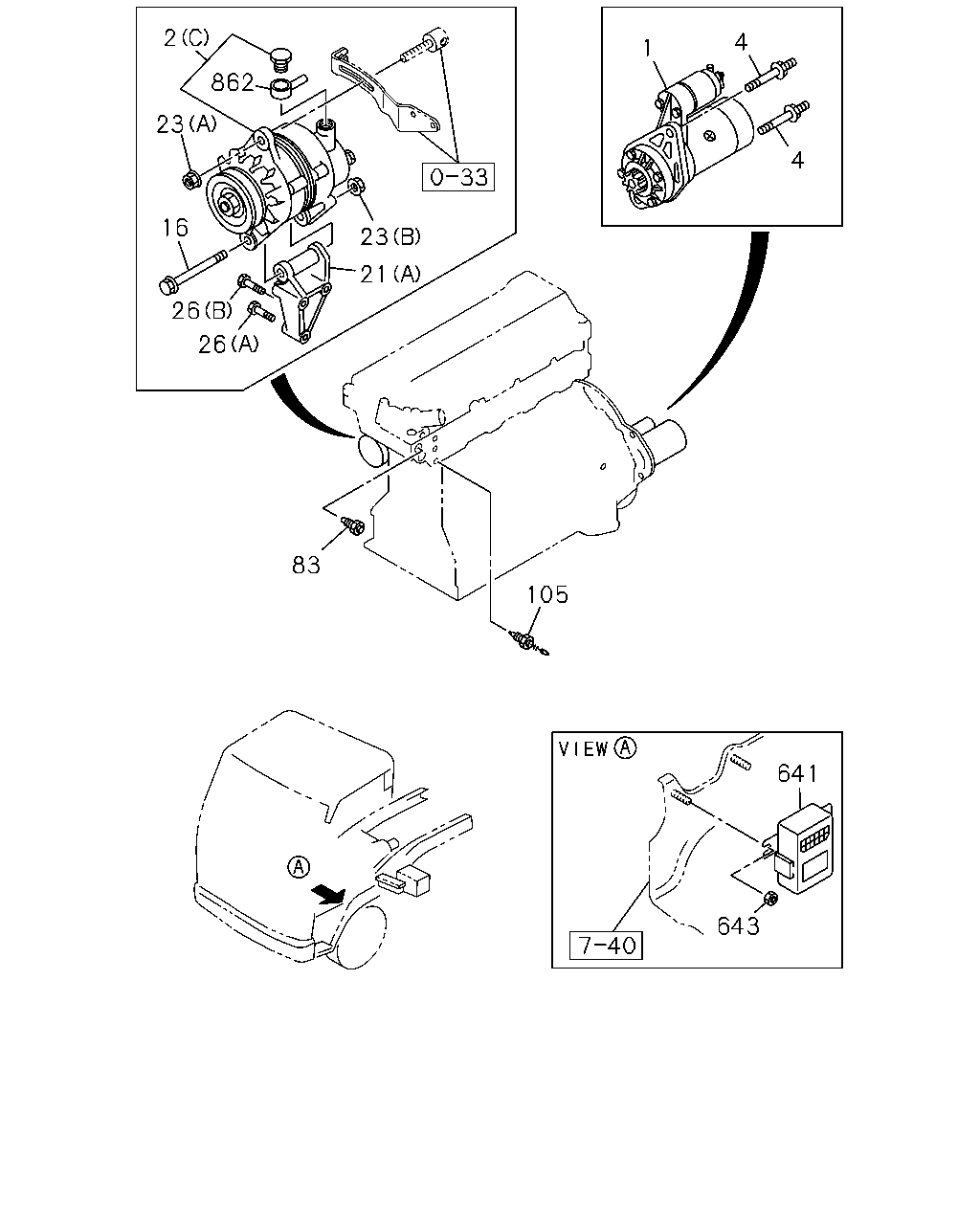

çizim 83591
2 4 1 862 23 4 16 23 21 26 26 83 105 641 643
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A HITACHI 		8-97351-572-1 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A HITACHI 		8-97351-574-1 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (D) 24V 50A 		8-98029-887-2 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (D) 24V 80A 		8-98029-889-2 01 1 1012- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1012- ● ● ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 1012- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1012- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 1012- ●
21 02.277 BRACKET; GEN
(A) 		8-97075-884-2 01 1 1012- ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 1012- ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 1012- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1012- ●
26 02.277 BOLT; GEN BRKT
02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1012- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 1012- ●
26 02.277 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1012- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 1012- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1012- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1012- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 1012- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-3 01 1 1012- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ●
862 02.313 CONNECTOR; GEN
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 		8-97351-626-0 01 1 1012- ●

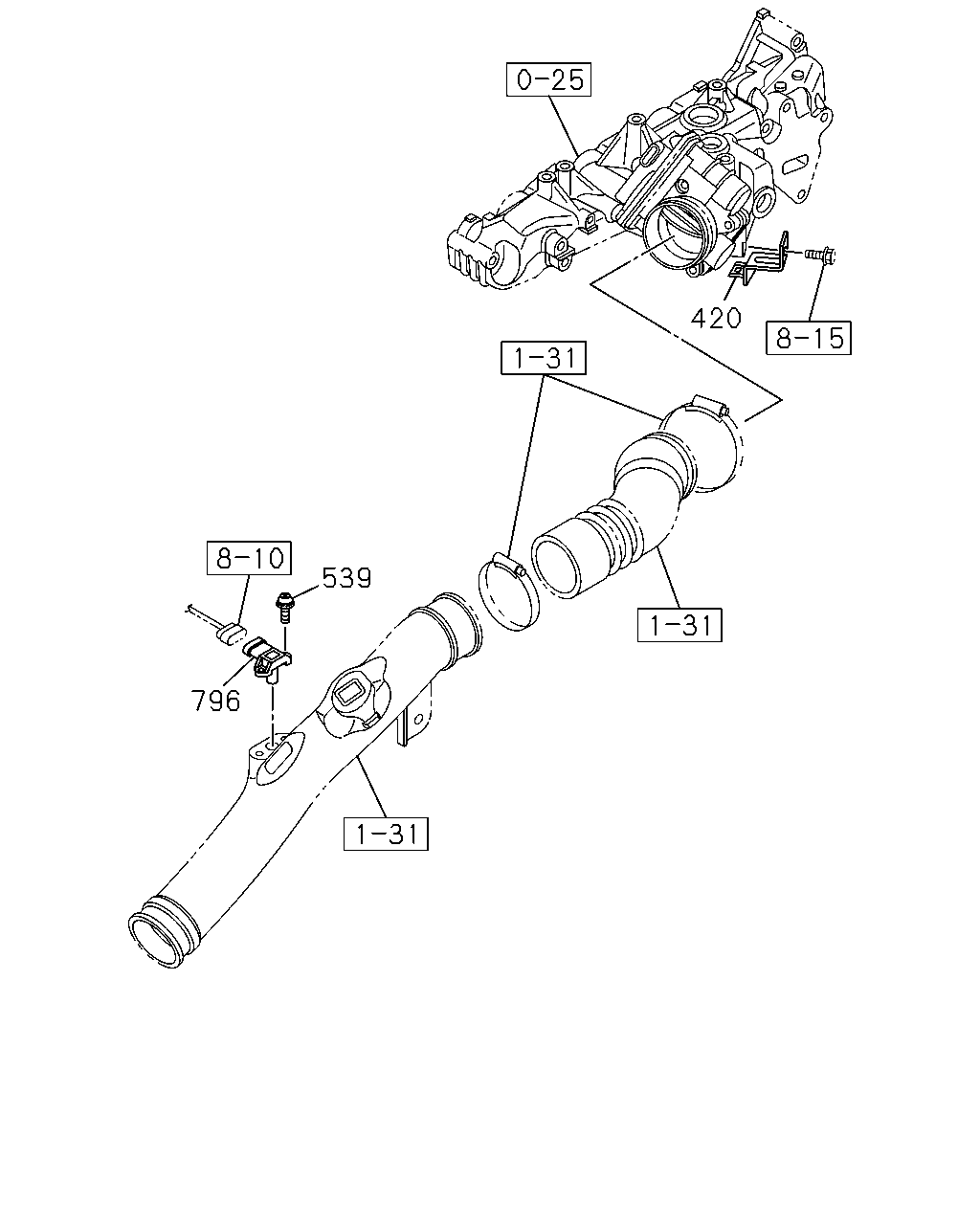

çizim 83592
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 1012- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1012- ● ●

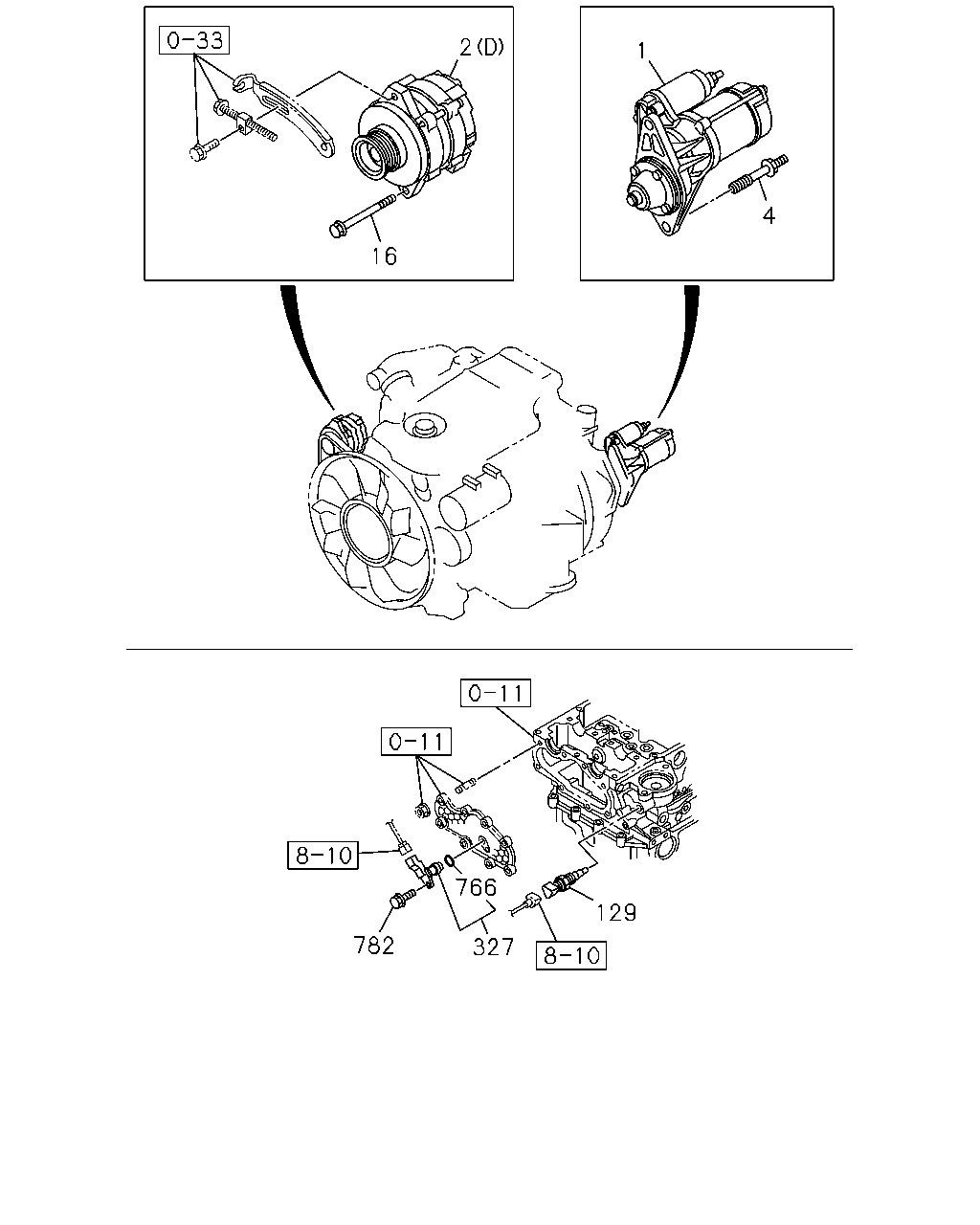

çizim 83594
2 1 4 16 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A HITACHI 		8-97351-572-1 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A HITACHI 		8-97351-574-1 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (D) 24V 50A 		8-98029-887-2 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (D) 24V 80A 		8-98029-889-2 01 1 1012- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1012- ● ● ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 1012- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1012- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1012-1503 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1012- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1012- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1012- ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1012- ●

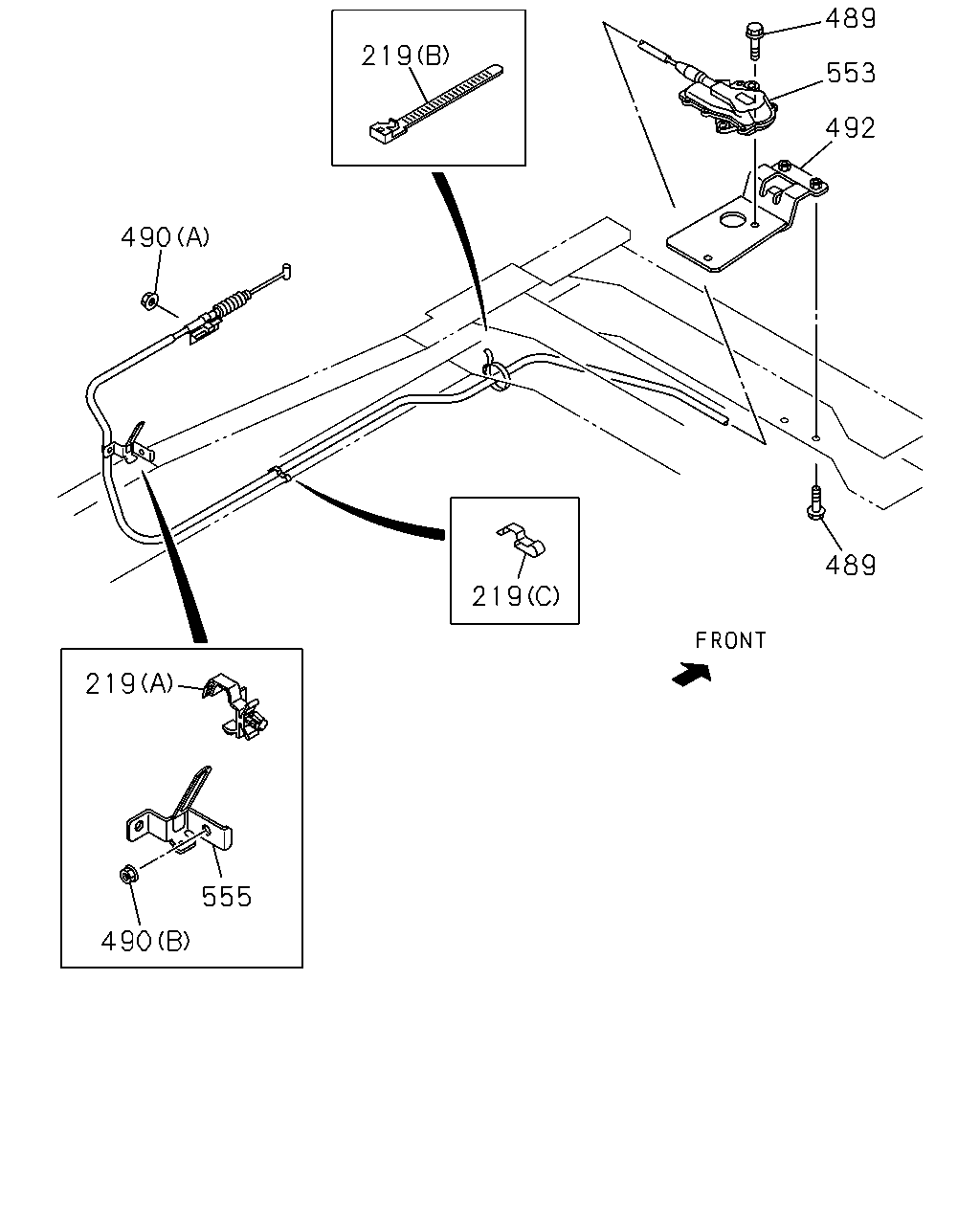

çizim 83626
489 219 553 492 490 489 219 219 555 490
BalonParca AdiParca NoAdetTipApplied Date A B C
219 03.483 CLIP; ENG STOP CABLE
02.559 (B) L=250 		5-09707-030-1 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
02.559 (A) ID=16 		8-97040-812-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
02.559 (C) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
489 03.483 BOLT; ENG STOPPER
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
490 03.485 NUT; ENG STOP
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1012- ●
490 03.485 NUT; ENG STOP
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
492 03.483 BRACKET; ENG STOPPER 8-98100-401-2 01 1 1012- ●
553 03.485 MOTOR ASM; ENG STOP 8-98100-510-4 01 1 1012- ●
555 03.485 BRACKET; ENG STOP 8-98100-404-3 01 1 1012- ●
çizim 83728
46 10
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1012- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1012-1307 ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1308-1501 ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1502- ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1502- ● ●

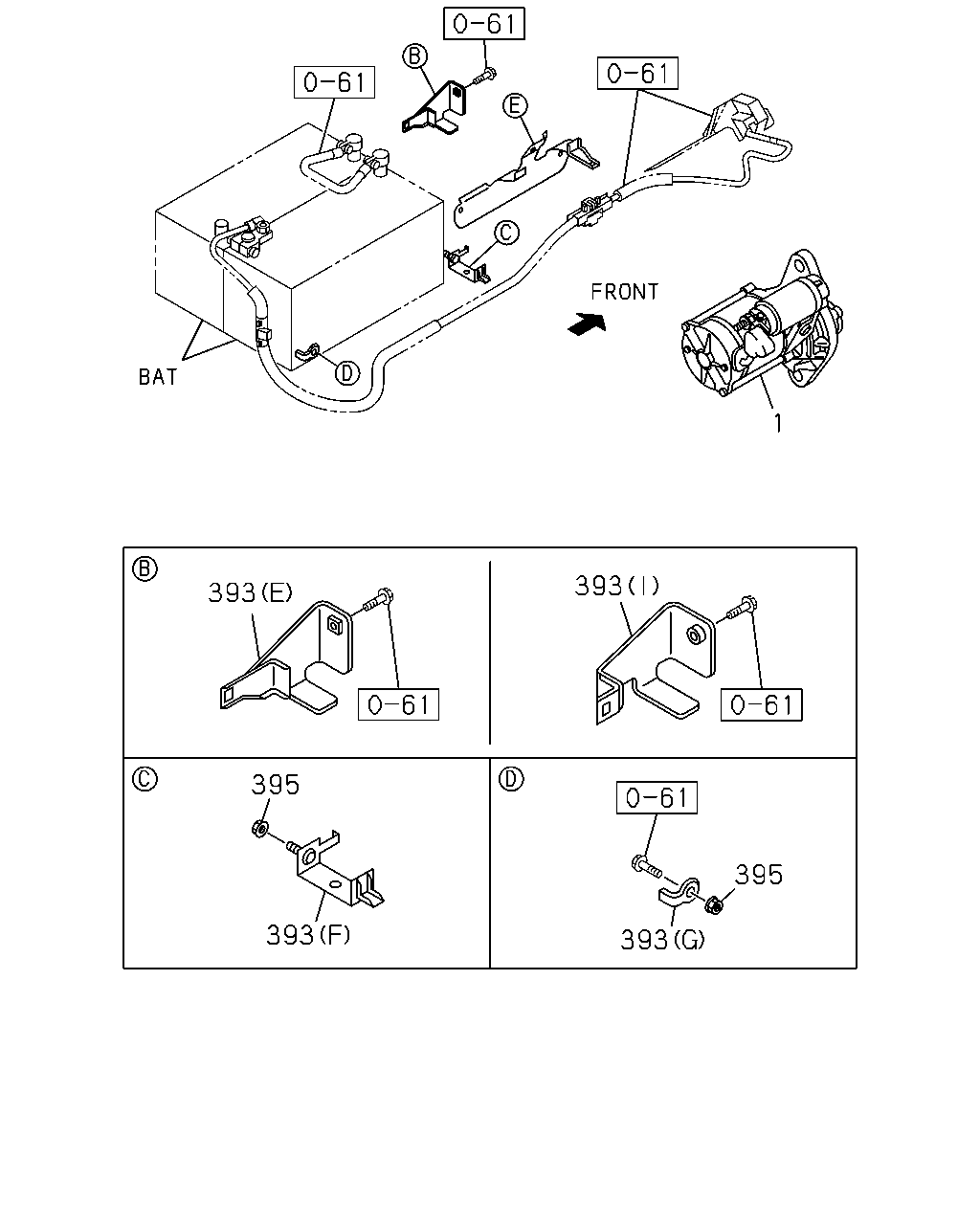

çizim 83731
1 393 393 395 395 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98018-894-1 02 1 1208- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) (E) 		8-98018-903-0 01 1 1012-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 1012-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) (I) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 1012-1207 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 1012-1207 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 1012-1207 ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 02.483 (F) 		8-98018-251-1 02 1 1208- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR(NP***S) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 1208- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 1208- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) 02.483 (F) 		8-98018-251-1 02 1 1208- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (G) 		8-98018-894-1 01 1 1012-1207 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98018-894-1 01 1 1208- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR(NP***S) BATTERY 115E41L<8MA> (G) 		8-98018-894-1 01 1 1208- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1012-1207 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1208-1312 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR(NP***S) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1208-1312 ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1401- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1401- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR(NP***S) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1401- ●
393 02.343 BRACKET; HARNESS TO BODY
POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) 		8-98131-881-0 01 1 1012- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 1012- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98041-946-1 01 1 1012- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (A) 		8-98030-139-2 01 1 1012- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (B) 		8-98030-138-2 01 1 1012- ● ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1207 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1207 ● ●
395 02.343 NUT; BRKT FIX
NPR SGL CAB(NP**SN) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1208- ● ●
395 02.343 NUT; BRKT FIX
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1208- ● ●
395 02.343 NUT; BRKT FIX
NQR(NP***S) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1208- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1207 ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1207 ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1207 ●
395 02.343 NUT; BRKT FIX
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1208- ● ●
395 02.343 NUT; BRKT FIX
NQR(NP***S) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1208- ●
395 02.343 NUT; BRKT FIX
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1208- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1208- ●

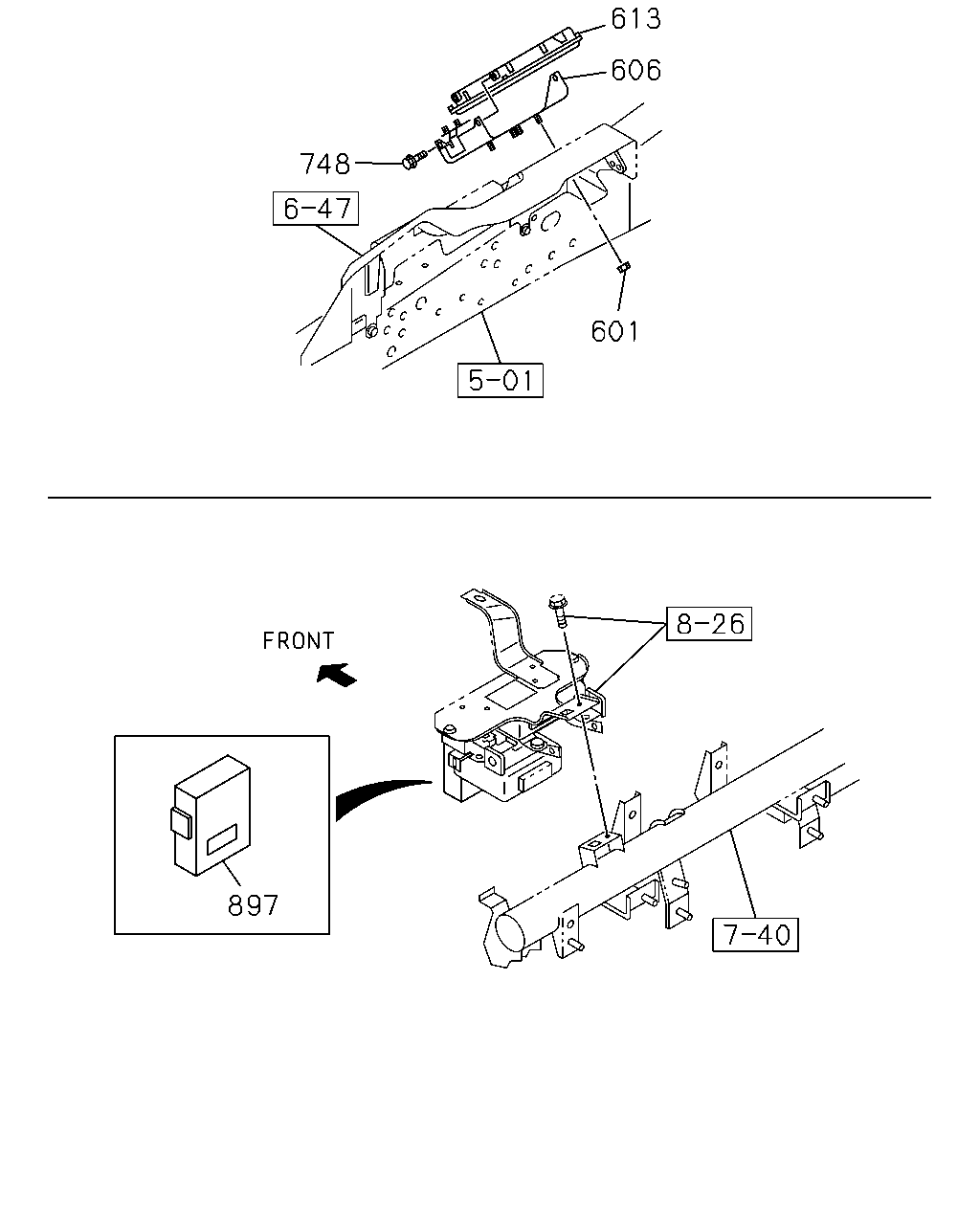

çizim 84064
613 606 748 601 897
BalonParca AdiParca NoAdetTipApplied Date A B C
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 1012- ● ●
606 03.680 BRACKET; CONT UNIT
EURO3 SPECIFICATION(NT3) 		8-98114-583-2 01 1 1012-1402 ●
606 03.680 BRACKET; CONT UNIT 8-98114-583-2 01 1 1403- ● ●
606 03.680 BRACKET; CONT UNIT
EURO2 SPECIFICATION(NT2) 		8-98004-751-1 01 1 1012-1111 ● ●
606 03.680 BRACKET; CONT UNIT
EURO2 SPECIFICATION(NT2) 		8-98004-751-1 01 1 1112-1402 ●
606 03.680 BRACKET; CONT UNIT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-98004-751-1 01 1 1112-1402 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98299-047-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
EURO3 SPECIFICATION(NT3) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98299-049-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) 		8-98132-944-2 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) M/T MYY5T(RSM) EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-046-6 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
MIDDLE EAST EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-076-5 01 1 1012-1106 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 		8-98081-076-5 01 1 1107-1107 ●
613 03.670 CONTROL UNIT; ENG
MIDDLE EAST EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-076-6 01 1 1107-1209 ●
613 03.670 CONTROL UNIT; ENG
MIDDLE EAST EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98229-602-0 01 1 1210-1501 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 		8-98229-602-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
MIDDLE EAST EQUIPMENT(GH3) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98102-107-5 01 1 1012-1501 ●
613 03.670 CONTROL UNIT; ENG
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 		8-98102-107-5 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
MIDDLE EAST EQUIPMENT(GH3) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98093-076-5 01 1 1012-1501 ●
613 03.670 CONTROL UNIT; ENG
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 		8-98093-076-5 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-049-5 01 1 1012-1111 ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98191-756-0 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-050-5 01 1 1012-1111 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98191-757-0 01 1 1112- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 1012- ● ●
897 02.510 DRM 8-98082-814-7 01 1 1012- ● ●

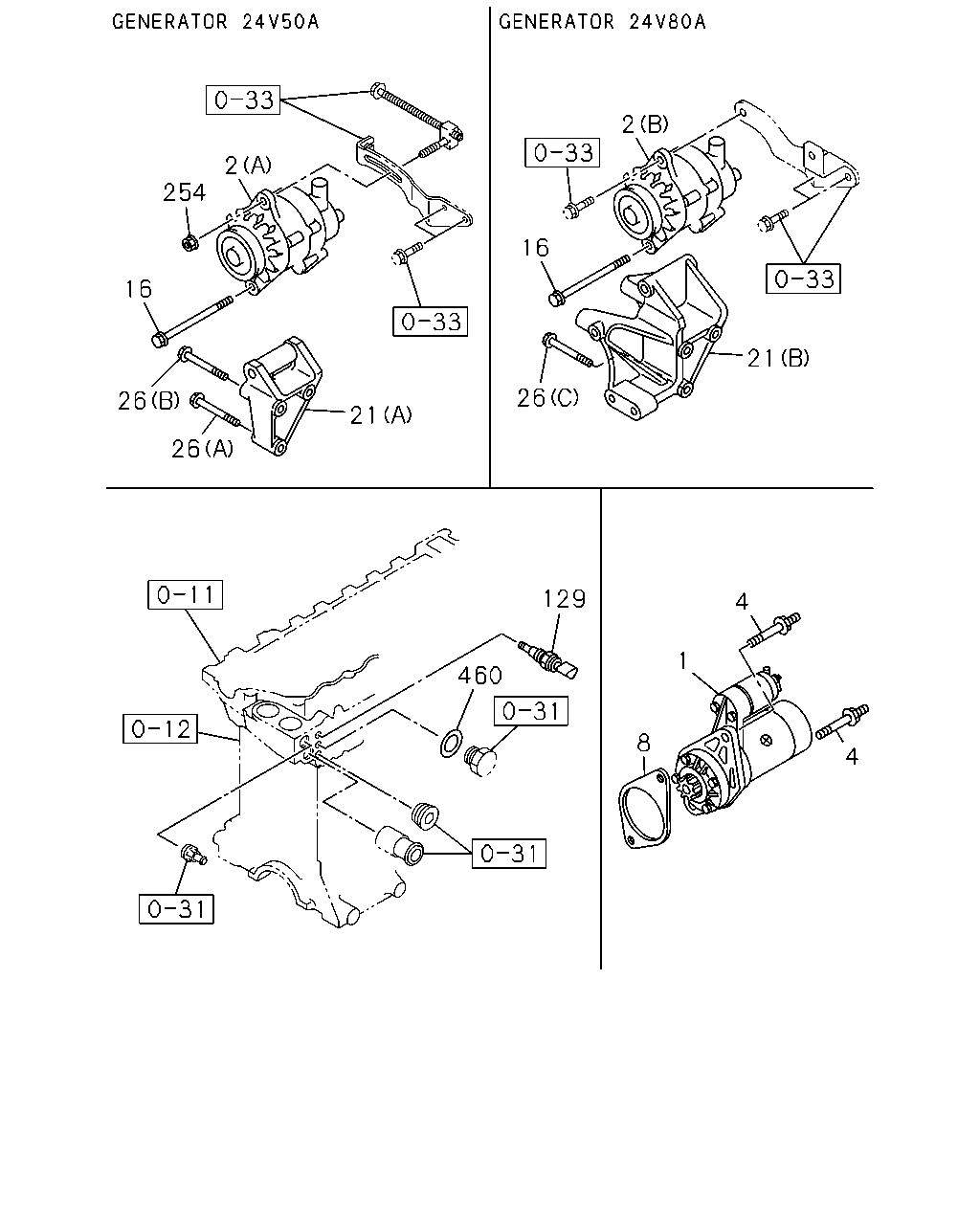

çizim 103025
2 2 254 16 16 21 26 26 21 26 129 4 1 460 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A HITACHI 		8-97351-572-1 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A HITACHI 		8-97351-574-1 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (D) 24V 50A 		8-98029-887-2 01 1 1012- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (D) 24V 80A 		8-98029-889-2 01 1 1012- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1012- ● ● ●
8 02.042 SPACER; STARTER
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97350-947-0 01 1 1012- ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 1012- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1012- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 1012- ●
21 02.277 BRACKET; GEN
(A) 		8-97075-884-2 01 1 1012- ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 1012- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1012- ●
26 02.277 BOLT; GEN BRKT
02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1012- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 1012- ●
26 02.277 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1012- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 1012- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1012-1503 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1012- ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1012- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1012- ●
çizim 103026
393 393 393 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98018-894-1 02 1 1208- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) (E) 		8-98018-903-0 01 1 1012-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 1012-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) DUMP CHASSIS(V4D) (I) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 1012-1207 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 1012-1207 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 1012-1207 ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 02.483 (F) 		8-98018-251-1 02 1 1208- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR(NP***S) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 1208- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 1208- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) 02.483 (F) 		8-98018-251-1 02 1 1208- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (G) 		8-98018-894-1 01 1 1012-1207 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98018-894-1 01 1 1208- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR(NP***S) BATTERY 115E41L<8MA> (G) 		8-98018-894-1 01 1 1208- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1012-1207 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1208-1312 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR(NP***S) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1208-1312 ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1401- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1401- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR(NP***S) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 1401- ●
393 02.343 BRACKET; HARNESS TO BODY
POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) 		8-98131-881-0 01 1 1012- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 1012- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98041-946-1 01 1 1012- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (A) 		8-98030-139-2 01 1 1012- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (B) 		8-98030-138-2 01 1 1012- ● ● ●

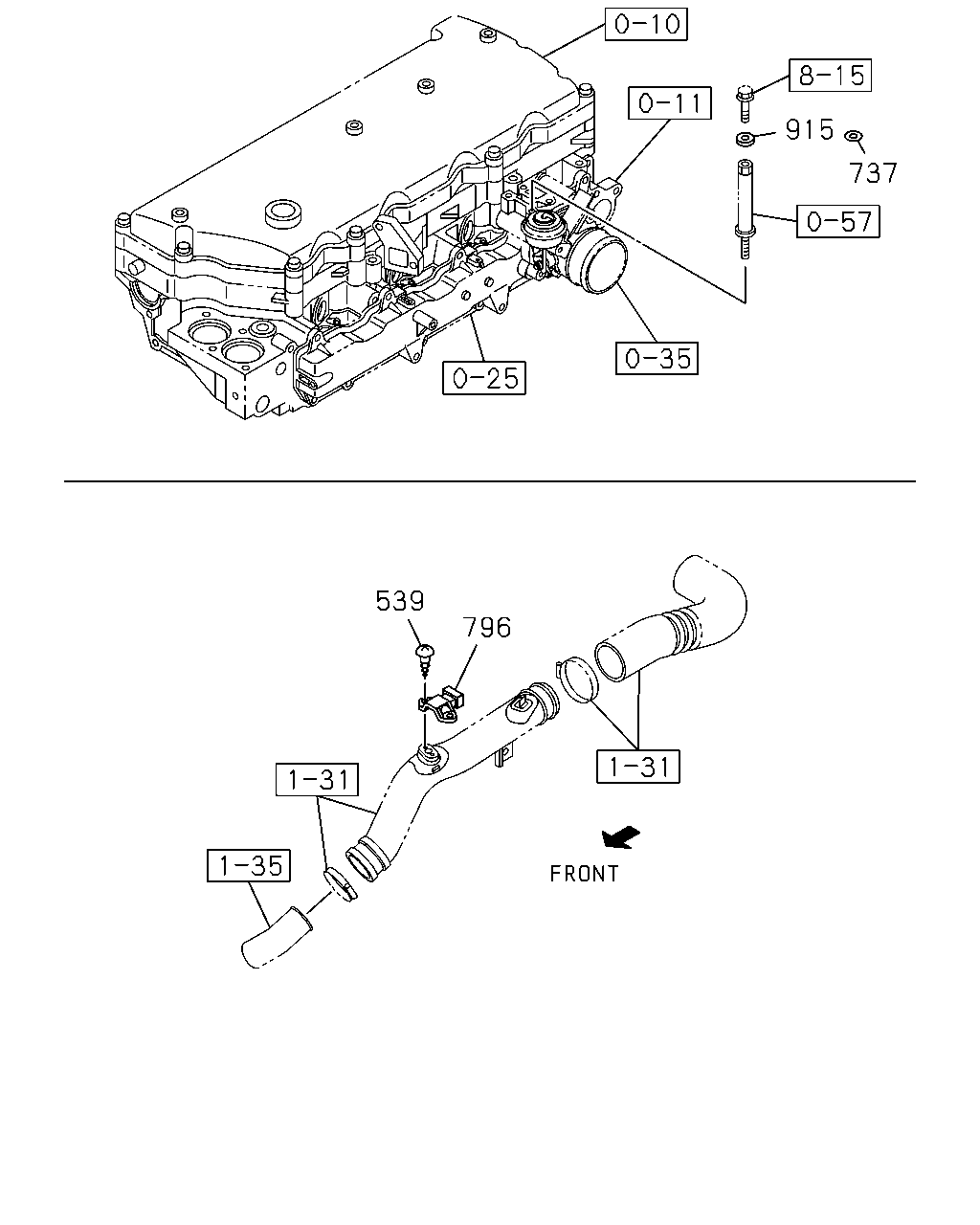

çizim 103073
915 737 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
737 03.901 WASHER; PL
EURO2 SPECIFICATION(NT2) 00.413 ID=6.4 		0-91610-606-0 01 1 1012- ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1012- ● ●
915 02.500 SPACER; HARNESS
EURO2 SPECIFICATION(NT2) 00.662 ID=8.4 OD=19 		5-11779-001-0 01 1 1012-1301 ●
915 02.500 SPACER; HARNESS
EURO2 SPECIFICATION(NT2) 03.275 ID=9 OD=18 T=5 		9-14149-173-0 01 1 1302- ●
çizim 283553
10 46
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1012- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1012-1307 ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1308-1501 ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1502- ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
