0-57 — EMISSION PIPING (#32734) — 128 parça

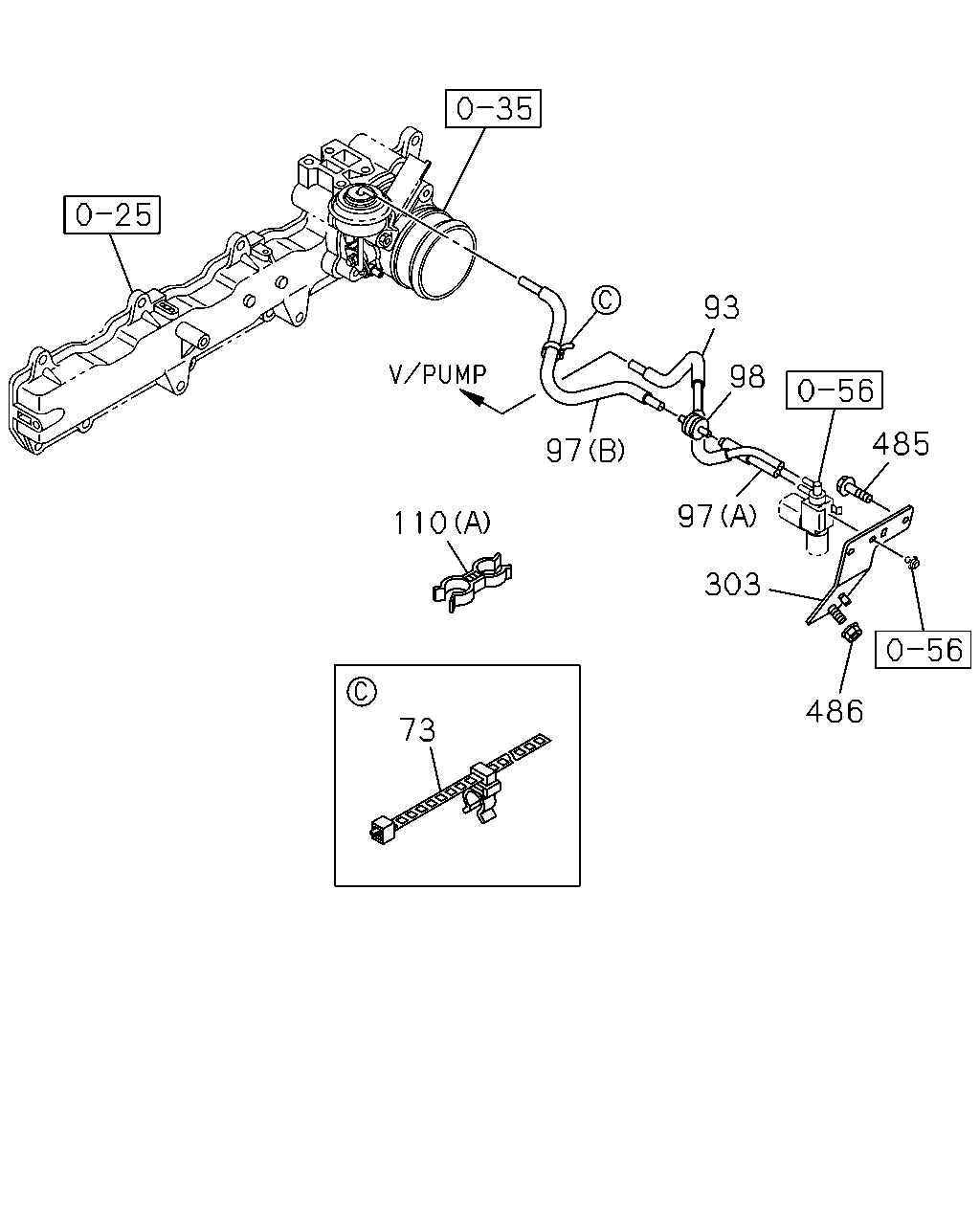

93 98 485 97 97 110 303 486 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> L=350	8-97373-487-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE L=350	8-97373-487-0	02	1	1012-		●
93	03.675 HOSE ASM EXHAUST BRAKE<NF8>	8-98118-171-2	01	1	1012-	●
93	03.675 HOSE ASM	8-98105-295-1	01	1	1012-		●
97	03.675 HOSE; RUBBER (B)	8-98113-964-0	01	1	1012-		●
97	03.675 HOSE; RUBBER (A)	8-98113-965-0	01	1	1012-		●
98	03.670 VALVE; DELAY	8-94110-978-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (E) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (C) L=109.5	8-97807-385-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE 03.162 (A) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-		●
303	03.671 BRACKET; VAC SW	8-98097-124-0	01	1	1012-		●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1012-1202	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-	●
485	03.671 BOLT; VSV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-		●
485	03.671 BOLT; VSV 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1012-1202	●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1202	●	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	01	1	1203-		●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1203-	●

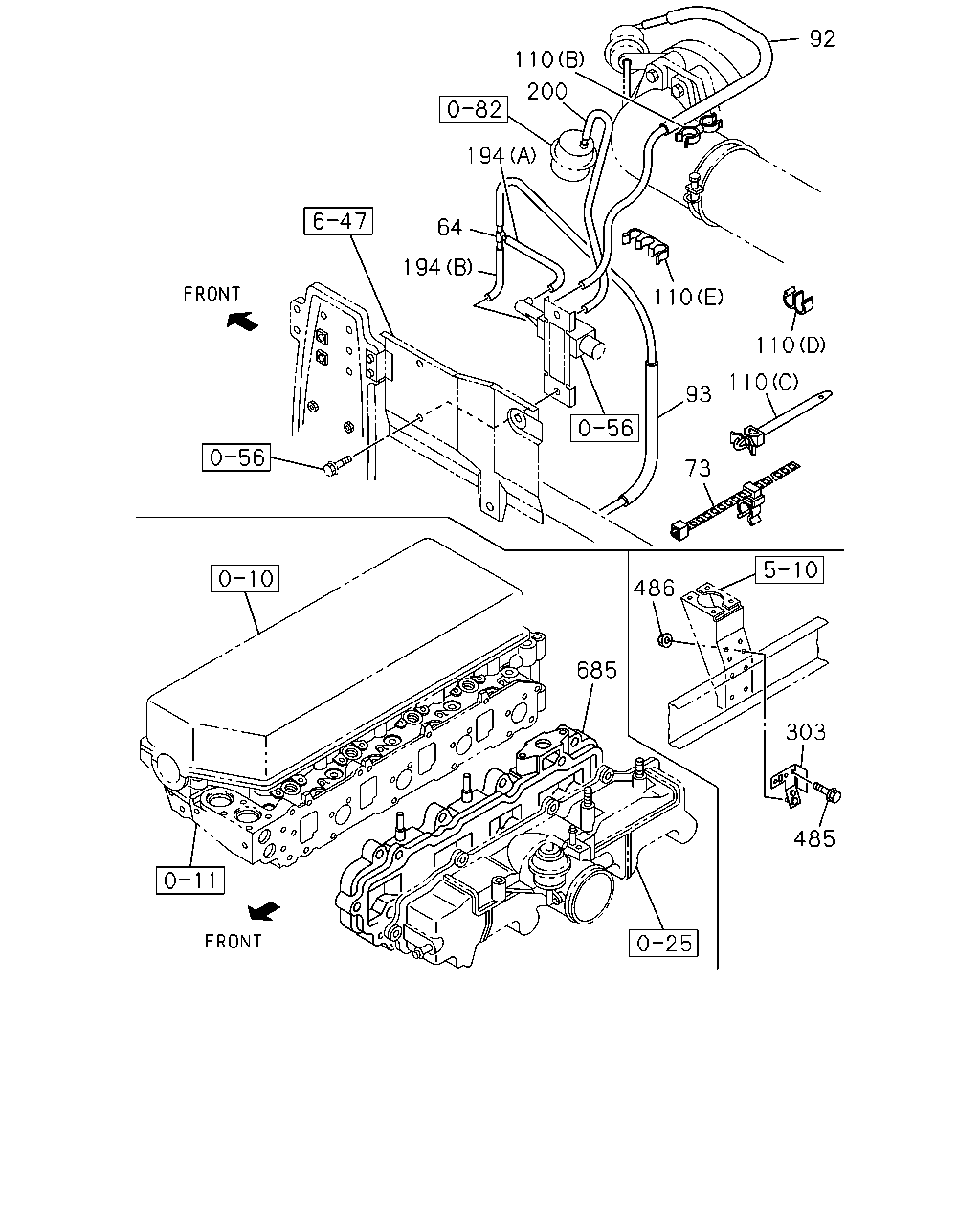

92 110 200 194 64 194 110 110 110 93 73 486 685 303 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> L=350	8-97373-487-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE L=350	8-97373-487-0	02	1	1012-		●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-98118-239-2	01	1	1012-	●
93	03.675 HOSE ASM EXHAUST BRAKE<NF8>	8-98118-171-2	01	1	1012-	●
93	03.675 HOSE ASM	8-98105-295-1	01	1	1012-		●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (E) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (C) L=109.5	8-97807-385-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE 03.162 (A) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-		●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-98118-238-2	01	1	1012-	●
303	03.671 BRACKET; VAC SW	8-98097-124-0	01	1	1012-		●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1012-1202	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-	●
485	03.671 BOLT; VSV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-		●
485	03.671 BOLT; VSV 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1012-1202	●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1202	●	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	01	1	1203-		●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1203-	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1012-	●

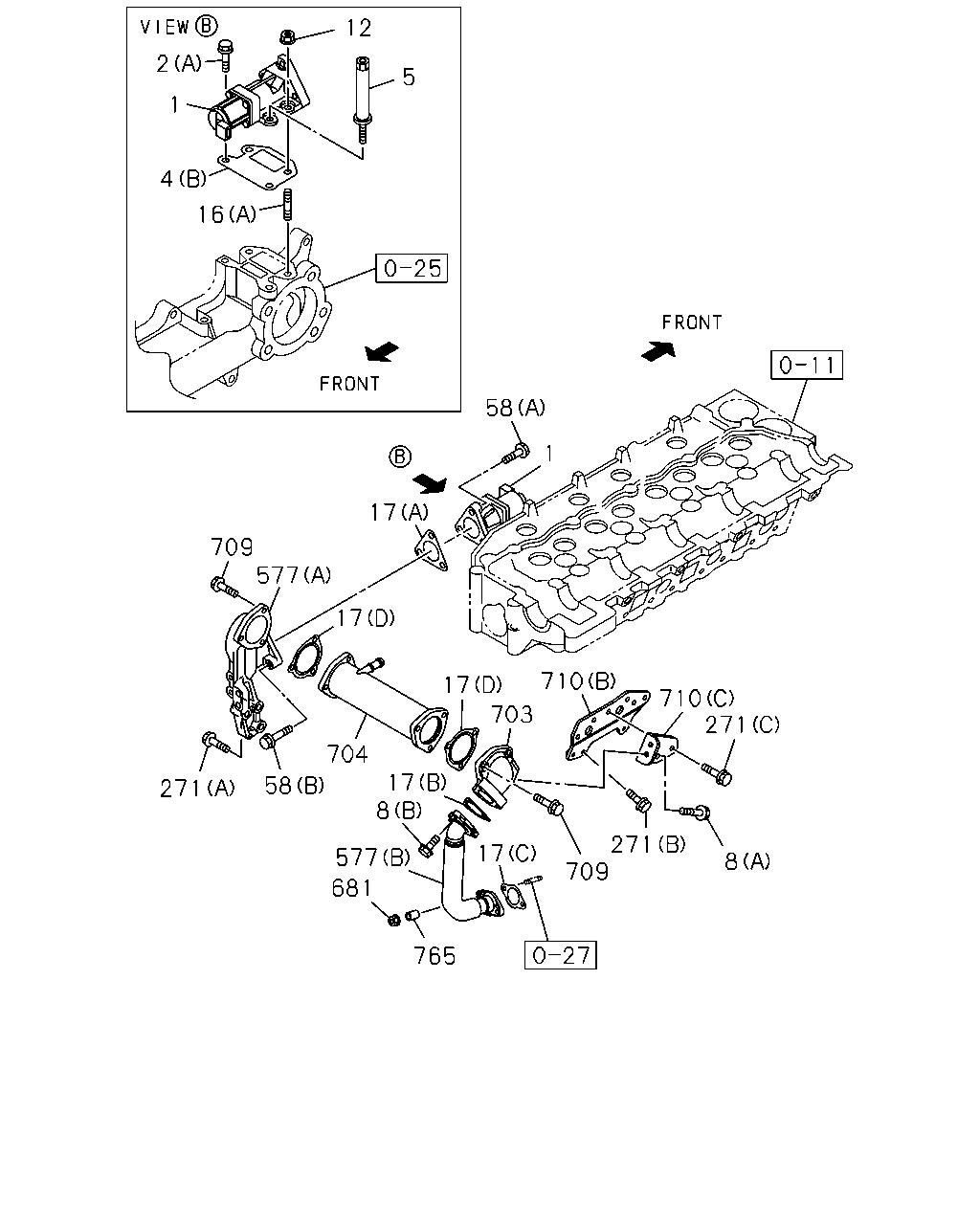

765 709 17 271 8 271 710 710 17 703 17 8 577 681 704 58 271 17 577 709 17 58 1 5 12 16 4 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97381-560-7	01	1	1112-1403		●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-98238-259-1	01	1	1404-		●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97377-509-8	01	1	1012-	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1112-		●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 03.417 (C) M8X23 FLANGE	8-97378-077-0	03	1	1112-		●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98094-528-0	02	1	1112-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1012-	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	1012-	●
8	03.670 BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
8	03.670 BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) 03.417 (B) M8X28 FLANGE	8-98043-528-0	03	1	1012-	●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	04	1	1112-		●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (B) M8X25 L=41	0-40210-825-0	02	1	1112-		●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (C) M8X50 L=62	0-40210-850-0	02	1	1112-		●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (E)	8-97357-684-3	01	1	1112-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (F)	8-98017-551-0	01	1	1112-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-97367-918-0	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97375-980-1	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-98036-507-0	01	1	1012-	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3) 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	1012-	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
271	03.675 BOLT; BRKT 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	1012-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1012-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (A)	8-98055-858-2	01	1	1012-	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (B)	8-98063-655-2	01	1	1012-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1111	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1112-1302	●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE	0-91180-208-0	02	1	1112-1302		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-	●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-		●
703	03.675 DUCT; EGR EURO3 SPECIFICATION(NT3)	8-98061-100-2	01	1	1012-	●
704	03.337 COOLER ASM; EGR EURO3 SPECIFICATION(NT3)	8-98061-104-0	01	1	1012-	●
709	03.670 BOLT; EGR COOLER EURO3 SPECIFICATION(NT3) 00.029 M10X35 FLANGE	0-28751-035-0	06	1	1012-	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	1012-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	1012-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	1012-	●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	1012-	●

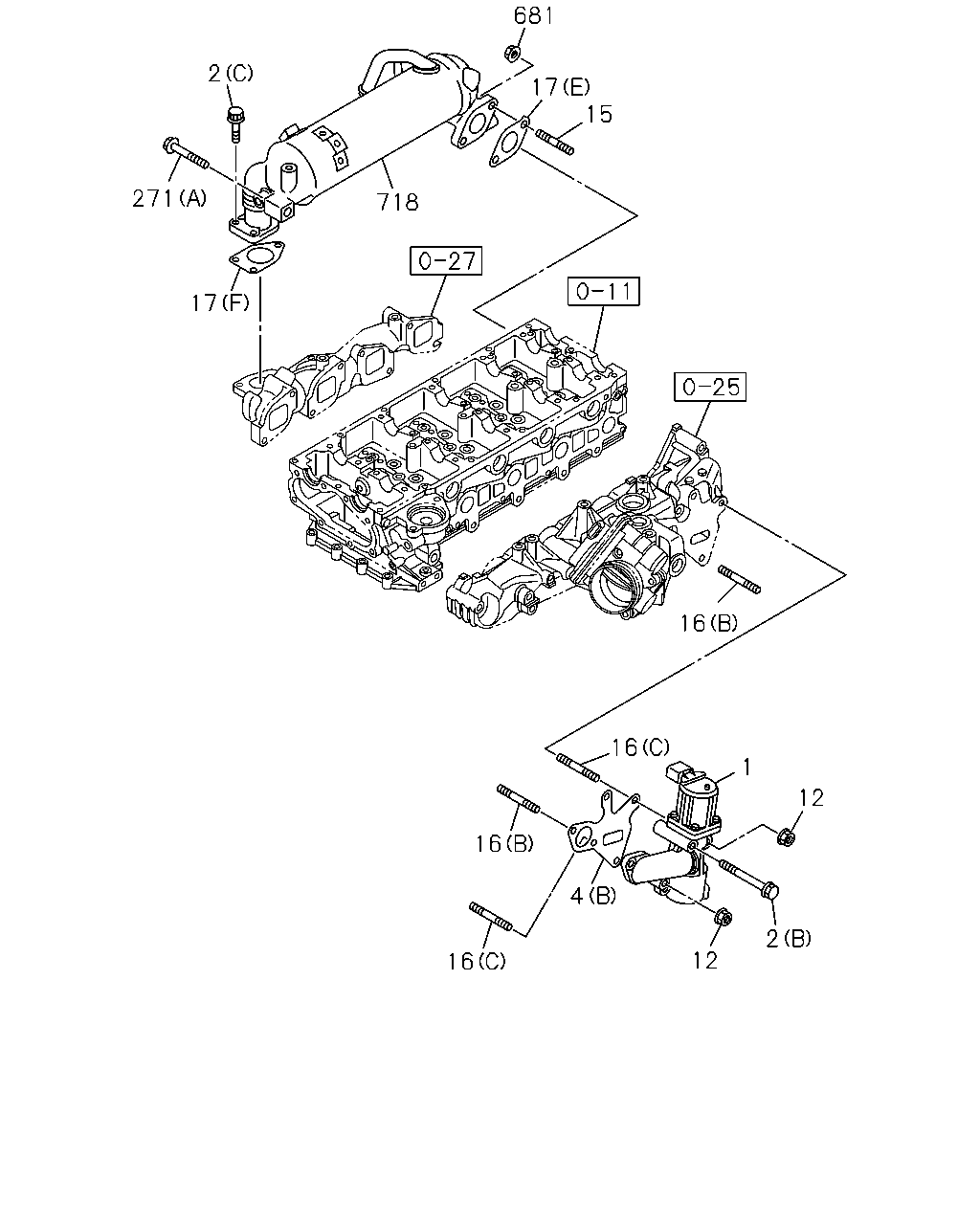

681 2 17 15 271 718 17 16 16 1 12 16 4 2 12 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97381-560-7	01	1	1112-1403		●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-98238-259-1	01	1	1404-		●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97377-509-8	01	1	1012-	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1112-		●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 03.417 (C) M8X23 FLANGE	8-97378-077-0	03	1	1112-		●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98094-528-0	02	1	1112-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1012-	●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	04	1	1112-		●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) 03.275 M8X25 L=37	0-41010-825-0	02	1	1112-		●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (B) M8X25 L=41	0-40210-825-0	02	1	1112-		●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (C) M8X50 L=62	0-40210-850-0	02	1	1112-		●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (E)	8-97357-684-3	01	1	1112-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (F)	8-98017-551-0	01	1	1112-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-97367-918-0	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97375-980-1	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-98036-507-0	01	1	1012-	●
271	03.675 BOLT; BRKT 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	1012-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1012-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1111	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1112-1302	●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE	0-91180-208-0	02	1	1112-1302		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-	●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-		●
718	03.337 COOLER; EGR EURO3 SPECIFICATION(NT3)	8-98164-570-1	01	1	1112-		●

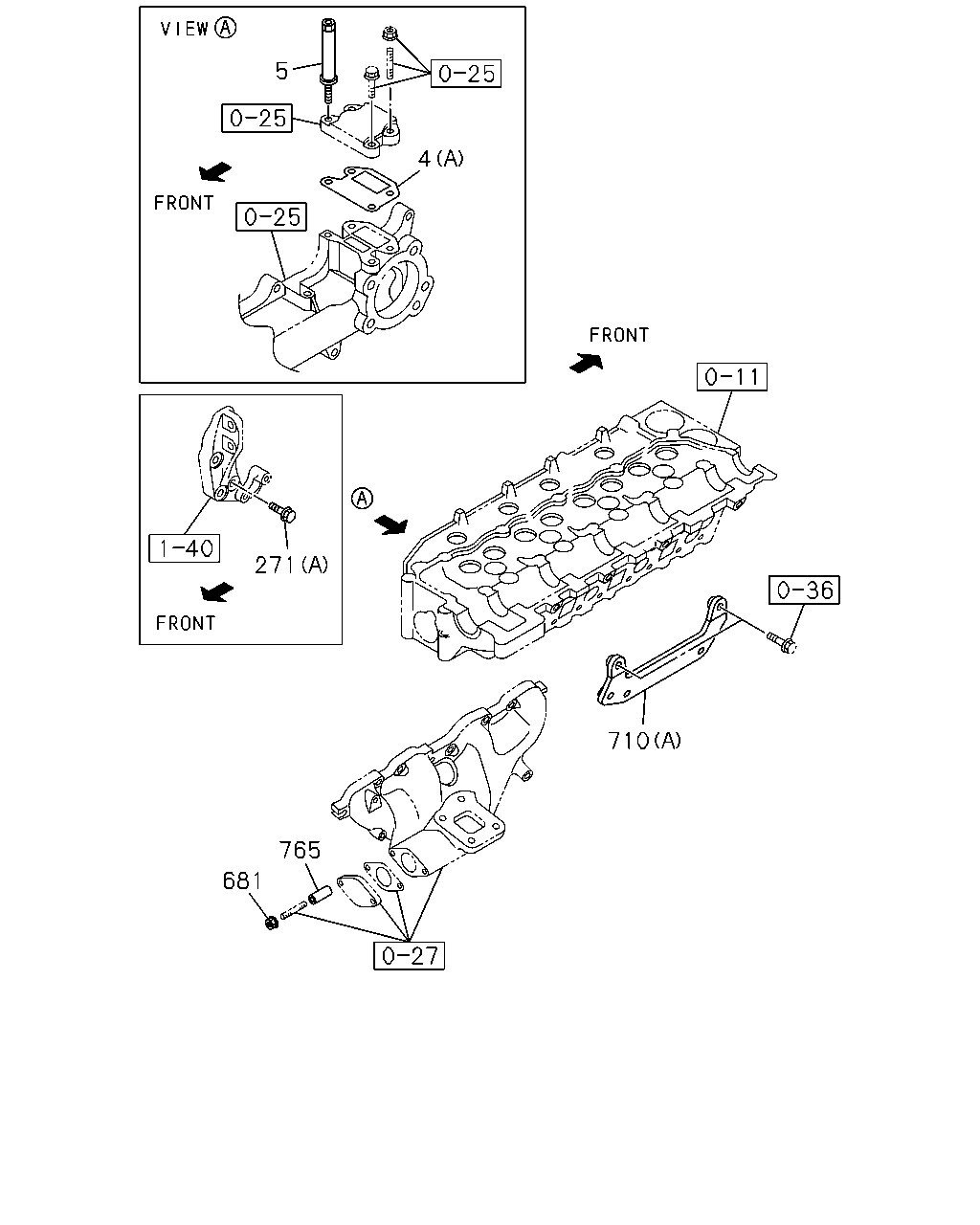

5 4 271 710 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98094-528-0	02	1	1112-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1012-	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	1012-	●
271	03.675 BOLT; BRKT 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	1012-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1012-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1111	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1112-1302	●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE	0-91180-208-0	02	1	1112-1302		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-	●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	02	1	1303-		●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	1012-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	1012-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	1012-	●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	1012-	●
