0-52 — OIL AND VACUUM PIPING; ENGINE (#32732) — 98 parça

3 3 3 2 1 3 2 202 89 202 86 202 89 46 83 202 46 27 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	1012-	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M10X21 FLANGE	8-97372-238-0	02	1	1012-	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1012-		●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1012-		●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	1012-		●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1012-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1012-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	02	1	1012-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	04	1	1012-		●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-			●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1012-	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU (A) M10X21 FLANGE	8-97372-239-0	01	1	1012-	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	1012-	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	1012-	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1012-	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1012-	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1012-	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312	●
202	01.531 GASKET; OIL PIPE (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	1012-	●

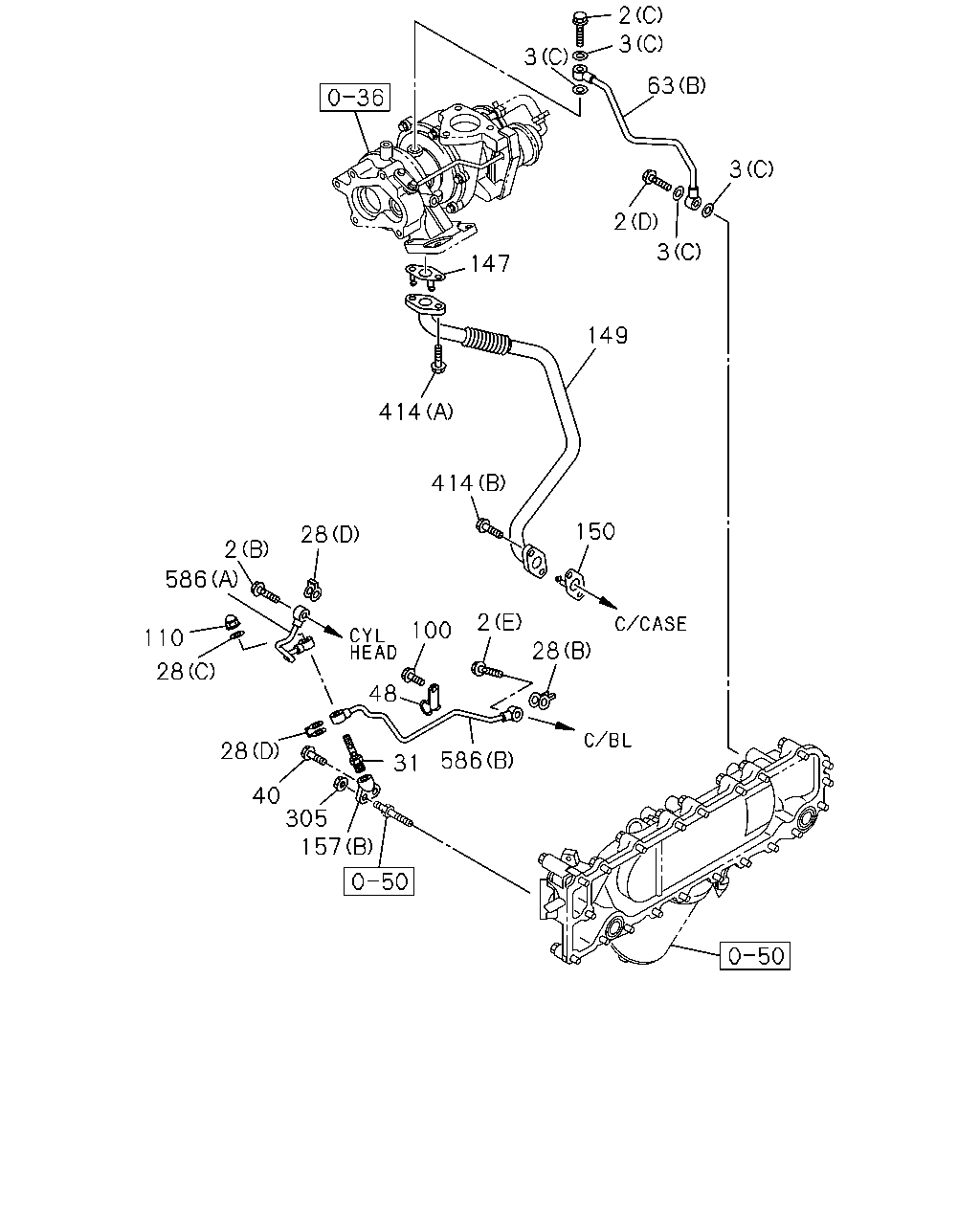

2 3 3 63 3 2 3 147 149 414 414 150 28 2 586 2 28 100 110 28 48 28 586 31 40 305 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M10X21 FLANGE	8-97372-238-0	02	1	1012-	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1012-		●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1012-		●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	1012-		●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1012-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1012-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	02	1	1012-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	04	1	1012-		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1012-		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (D) ID=8.2	8-97251-046-0	02	1	1012-		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1012-		●
31	01.540 NIPPLE; OIL PIPE	8-98044-067-1	01	1	1012-		●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	01	1	1012-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98092-070-0	01	1	1012-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97381-488-0	01	1	1012-		●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-		●
110	01.531 NUT; CAP OIL PIPE 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	1012-1309		●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1310-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=16	8-98029-475-0	01	1	1012-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	1012-		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1012-		●
157	01.519 BRACKET; OIL PIPE (A)	8-98077-403-0	01	1	1012-			●
157	01.519 BRACKET; OIL PIPE (B)	8-98043-093-0	01	1	1012-		●
305	01.540 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-		●
414	01.531 BOLT; OIL PIPE 03.342 (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	1012-1107		●
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1108-		●
414	01.531 BOLT; OIL PIPE 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1012-		●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	1012-		●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	1012-		●

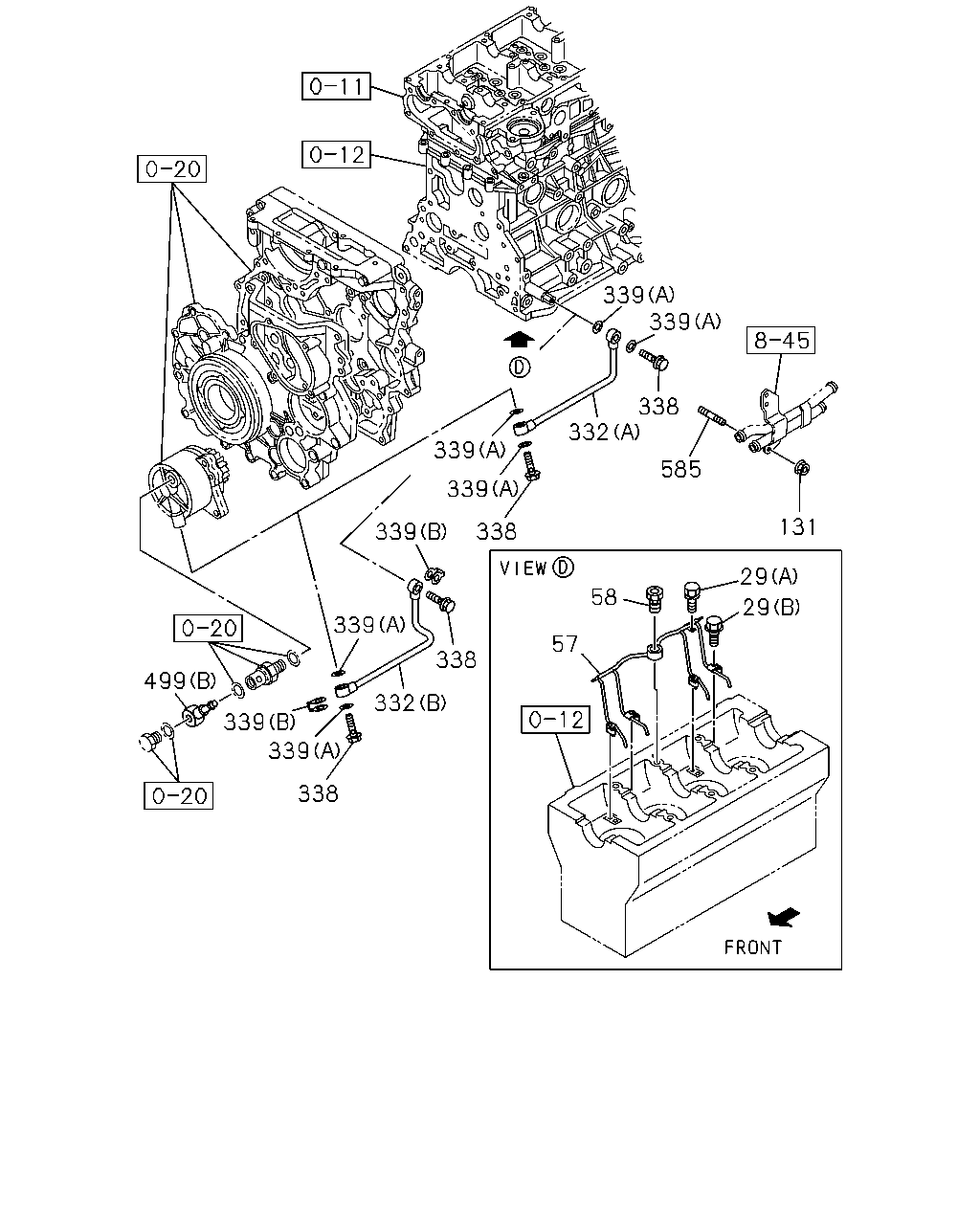

131 29 29 585 338 332 339 339 338 338 339 339 332 339 339 338 499 57 58 339 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1012-	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1012-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1012-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1012-1407	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-	●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	1012-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	1012-1212	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-98201-785-0	01	1	1301-	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1012-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1012-1212	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302	●
499	04.681 PIPE; VACUUM (A)	8-98075-832-0	01	1	1012-		●
499	04.681 PIPE; VACUUM (B)	8-98027-553-0	01	1	1012-	●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	1012-	●

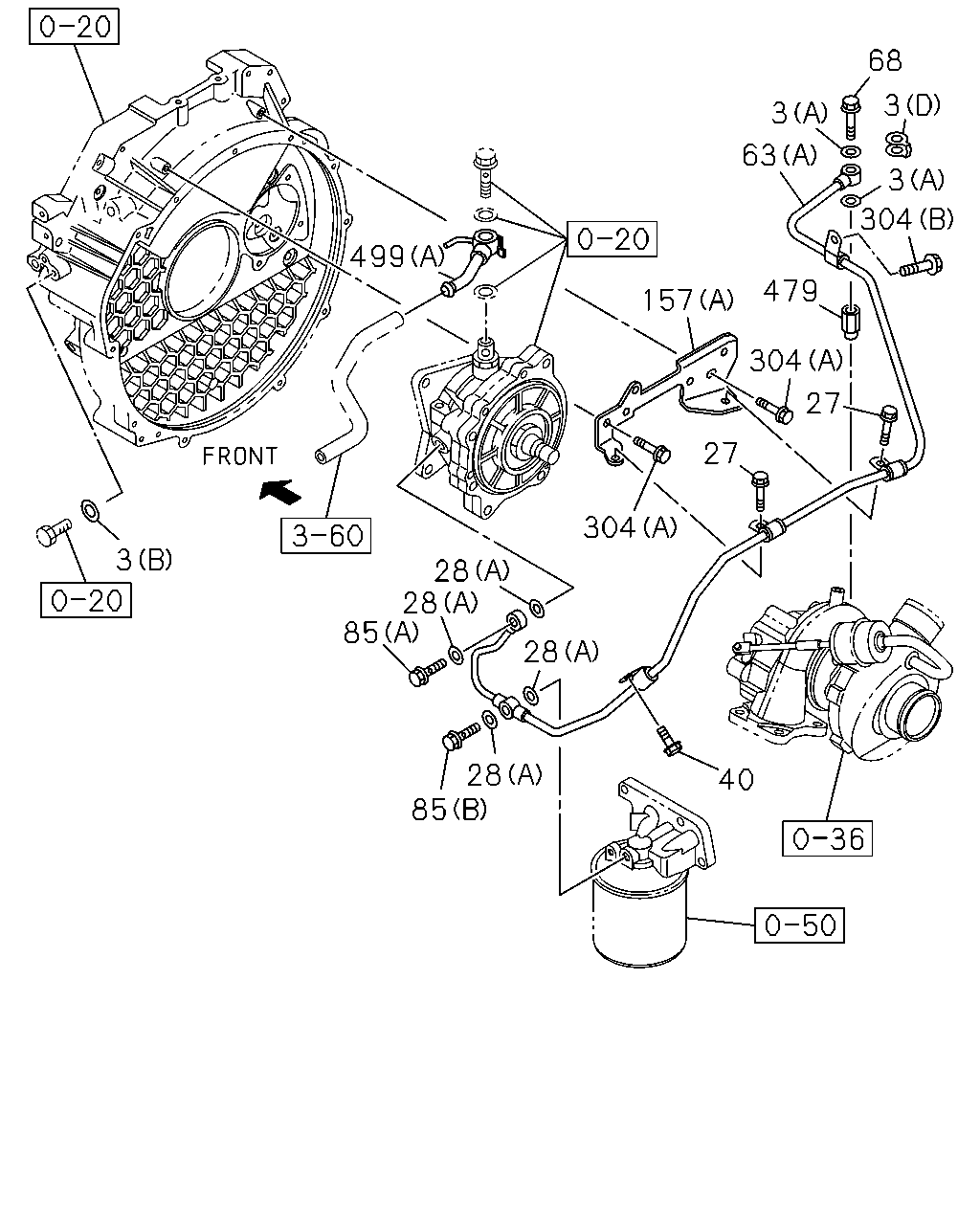

499 3 3 63 68 3 304 157 479 304 27 304 28 28 85 28 28 85 40 27 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1012-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	02	1	1012-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	04	1	1012-		●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1012-		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (D) ID=8.2	8-97251-046-0	02	1	1012-		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1012-		●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98092-070-0	01	1	1012-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97381-488-0	01	1	1012-		●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	1012-			●
85	01.531 BOLT; EYE,OIL PIPE FIX (A) M10X22	1-09675-028-0	01	1	1012-			●
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	1012-			●
157	01.519 BRACKET; OIL PIPE (A)	8-98077-403-0	01	1	1012-			●
157	01.519 BRACKET; OIL PIPE (B)	8-98043-093-0	01	1	1012-		●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (A) M10X16 FLANGE	0-28151-016-0	02	1	1012-			●
304	01.540 BOLT; BRKT,OIL PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1012-			●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	1012-			●
499	04.681 PIPE; VACUUM (A)	8-98075-832-0	01	1	1012-			●
499	04.681 PIPE; VACUUM (B)	8-98027-553-0	01	1	1012-		●
