◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51297 - NPR/NQR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#32731) — 64 parça

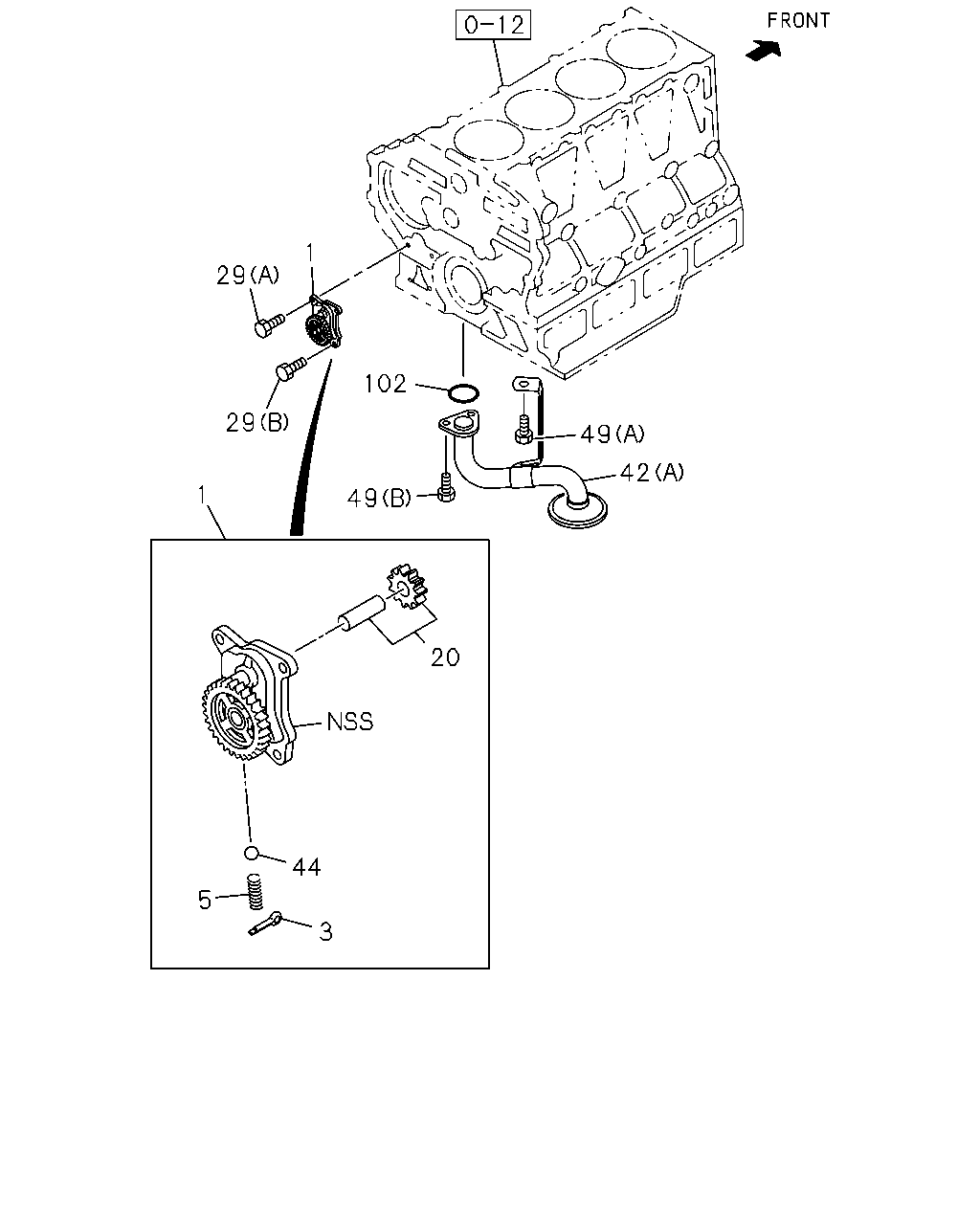

çizim 83622
1 29 102 29 49 42 1 49 20 44 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.652 PUMP ASM; OIL 8-97147-338-4 01 1 1012-1203 ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1012-1203 ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1204- ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1012-1303 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 1012- ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 1012- ● ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 1012-1203 ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1012-1203 ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1204- ● ●
29 01.652 BOLT; OIL PUMP
06.174 (A) M8X25 FLANGE 		0-28060-825-0 02 1 1012- ● ●
29 01.652 BOLT; OIL PUMP
(B) M8X30 FLANGE 		0-28060-830-0 02 1 1012- ● ●
29 01.652 BOLT; OIL PUMP
00.206 (C) M8X30 FLANGE 		0-28050-830-0 04 1 1012- ●
29 01.652 BOLT; OIL PUMP
09.173 (D) M8X45 FLANGE 		0-28050-845-0 02 1 1012- ●
42 01.656 STRAINER; OIL,OIL PUMP
(B) 		8-97230-894-0 01 1 1012-1012 ●
42 01.656 STRAINER; OIL,OIL PUMP
(B) 		8-97230-894-0 01 1 1101-1203 ● ●
42 01.656 STRAINER; OIL,OIL PUMP
(B) 		8-98213-867-0 01 1 1204- ● ●
42 01.656 STRAINER; OIL,OIL PUMP
(A) 		8-97373-119-0 01 1 1012-1012 ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 1012- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28060-816-0 02 1 1012- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 1012- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1012-1403 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1404- ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5 		8-94399-398-0 01 1 1012- ● ●

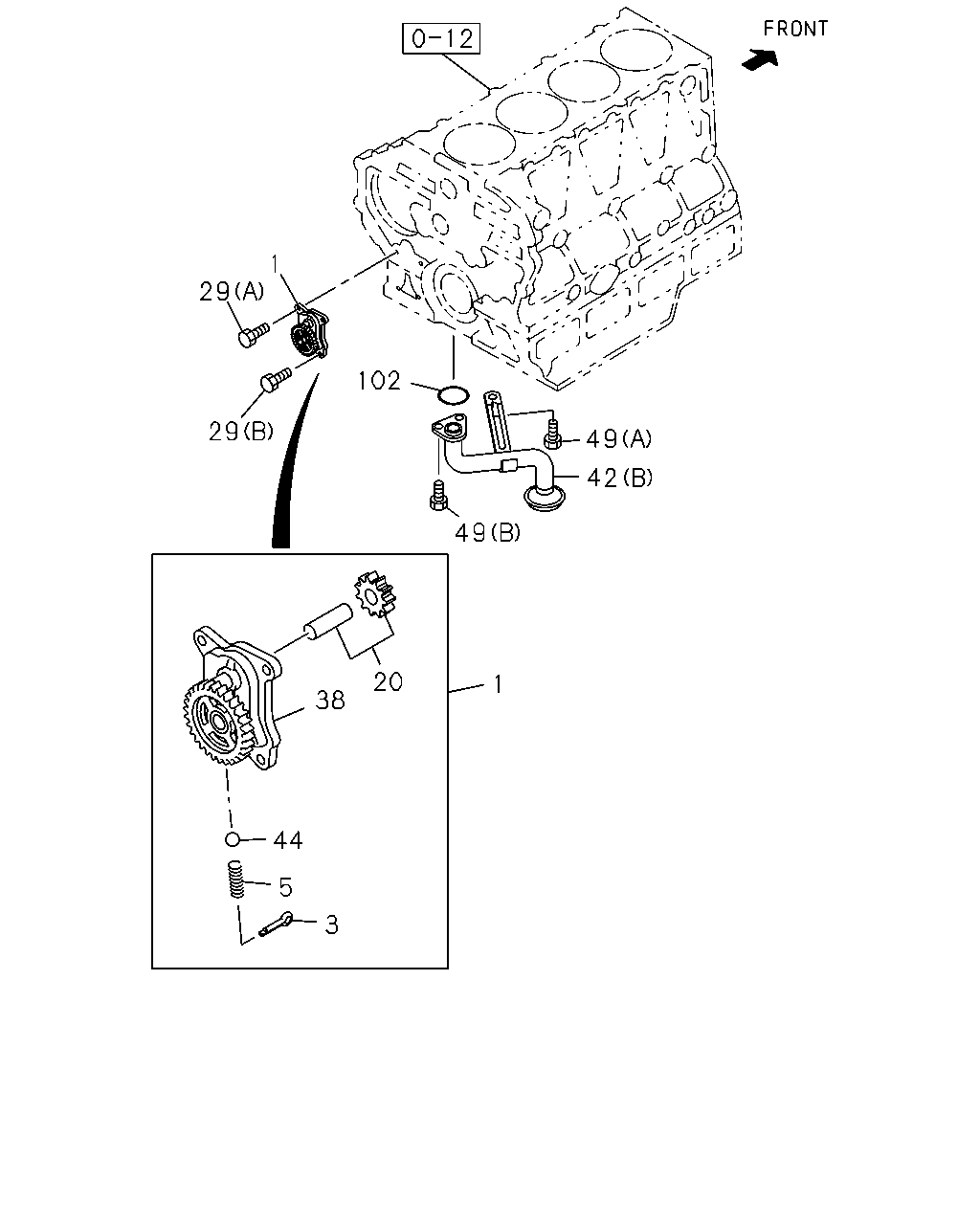

çizim 83655
1 29 102 29 49 42 49 20 1 38 44 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.652 PUMP ASM; OIL 8-97147-338-4 01 1 1012-1203 ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1012-1203 ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1204- ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1012-1303 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 1012- ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 1012- ● ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 1012-1203 ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1012-1203 ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1204- ● ●
29 01.652 BOLT; OIL PUMP
06.174 (A) M8X25 FLANGE 		0-28060-825-0 02 1 1012- ● ●
29 01.652 BOLT; OIL PUMP
(B) M8X30 FLANGE 		0-28060-830-0 02 1 1012- ● ●
29 01.652 BOLT; OIL PUMP
00.206 (C) M8X30 FLANGE 		0-28050-830-0 04 1 1012- ●
29 01.652 BOLT; OIL PUMP
09.173 (D) M8X45 FLANGE 		0-28050-845-0 02 1 1012- ●
38 01.657 CASE; OIL STRAINER 8-97147-505-3 01 1 1012-1203 ●
42 01.656 STRAINER; OIL,OIL PUMP
(B) 		8-97230-894-0 01 1 1012-1012 ●
42 01.656 STRAINER; OIL,OIL PUMP
(B) 		8-97230-894-0 01 1 1101-1203 ● ●
42 01.656 STRAINER; OIL,OIL PUMP
(B) 		8-98213-867-0 01 1 1204- ● ●
42 01.656 STRAINER; OIL,OIL PUMP
(A) 		8-97373-119-0 01 1 1012-1012 ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 1012- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28060-816-0 02 1 1012- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 1012- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1012-1403 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1404- ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5 		8-94399-398-0 01 1 1012- ● ●

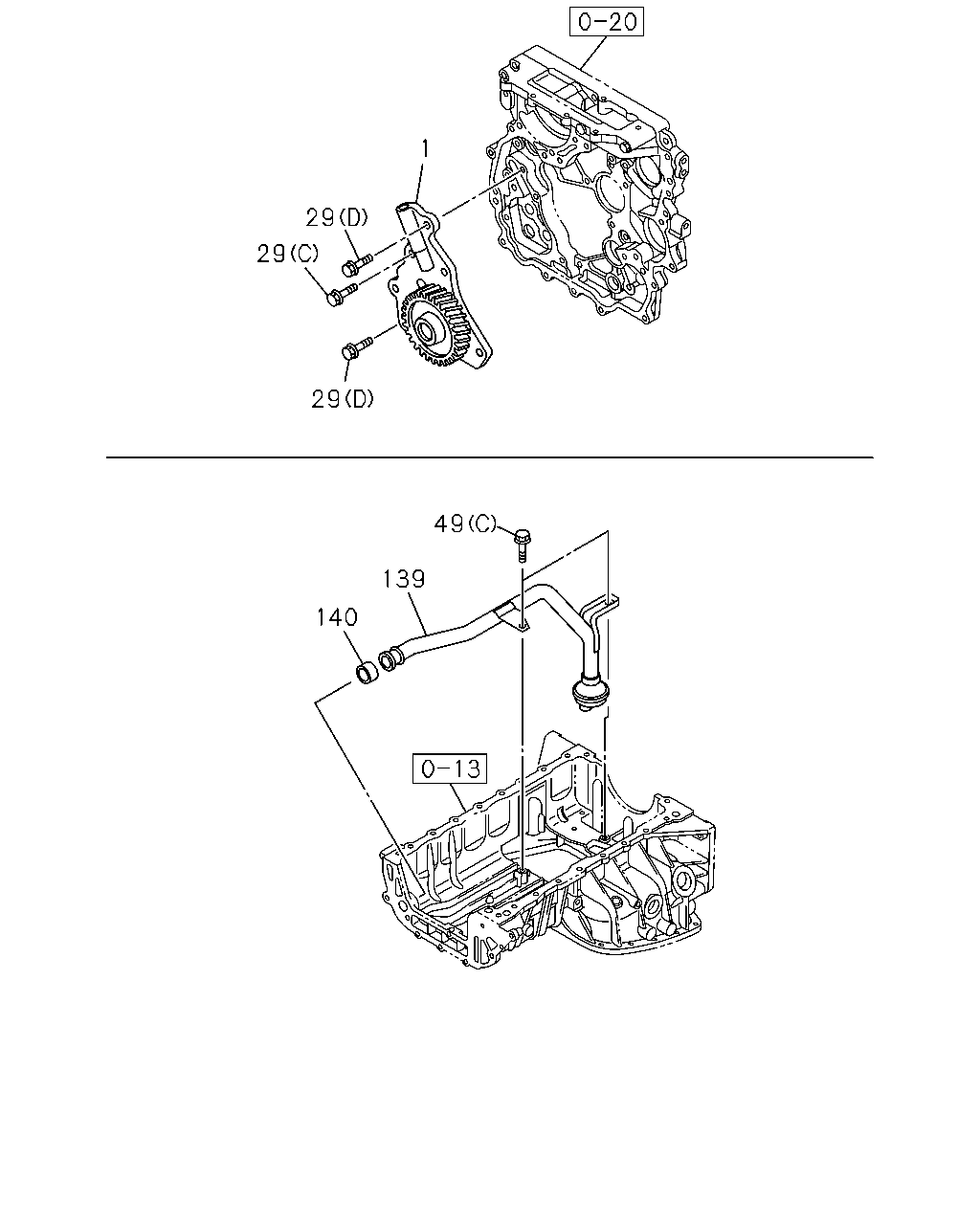

çizim 83690
1 29 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.652 PUMP ASM; OIL 8-97147-338-4 01 1 1012-1203 ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1012-1203 ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1204- ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1012-1303 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ●
29 01.652 BOLT; OIL PUMP
06.174 (A) M8X25 FLANGE 		0-28060-825-0 02 1 1012- ● ●
29 01.652 BOLT; OIL PUMP
(B) M8X30 FLANGE 		0-28060-830-0 02 1 1012- ● ●
29 01.652 BOLT; OIL PUMP
00.206 (C) M8X30 FLANGE 		0-28050-830-0 04 1 1012- ●
29 01.652 BOLT; OIL PUMP
09.173 (D) M8X45 FLANGE 		0-28050-845-0 02 1 1012- ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28060-816-0 02 1 1012- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 1012- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1012-1403 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1404- ●
139 01.639 PIPE; OIL STRAINER 8-98149-035-0 01 1 1012- ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 1012- ●
