1-10 — RADIATOR (#3273) — 60 parça

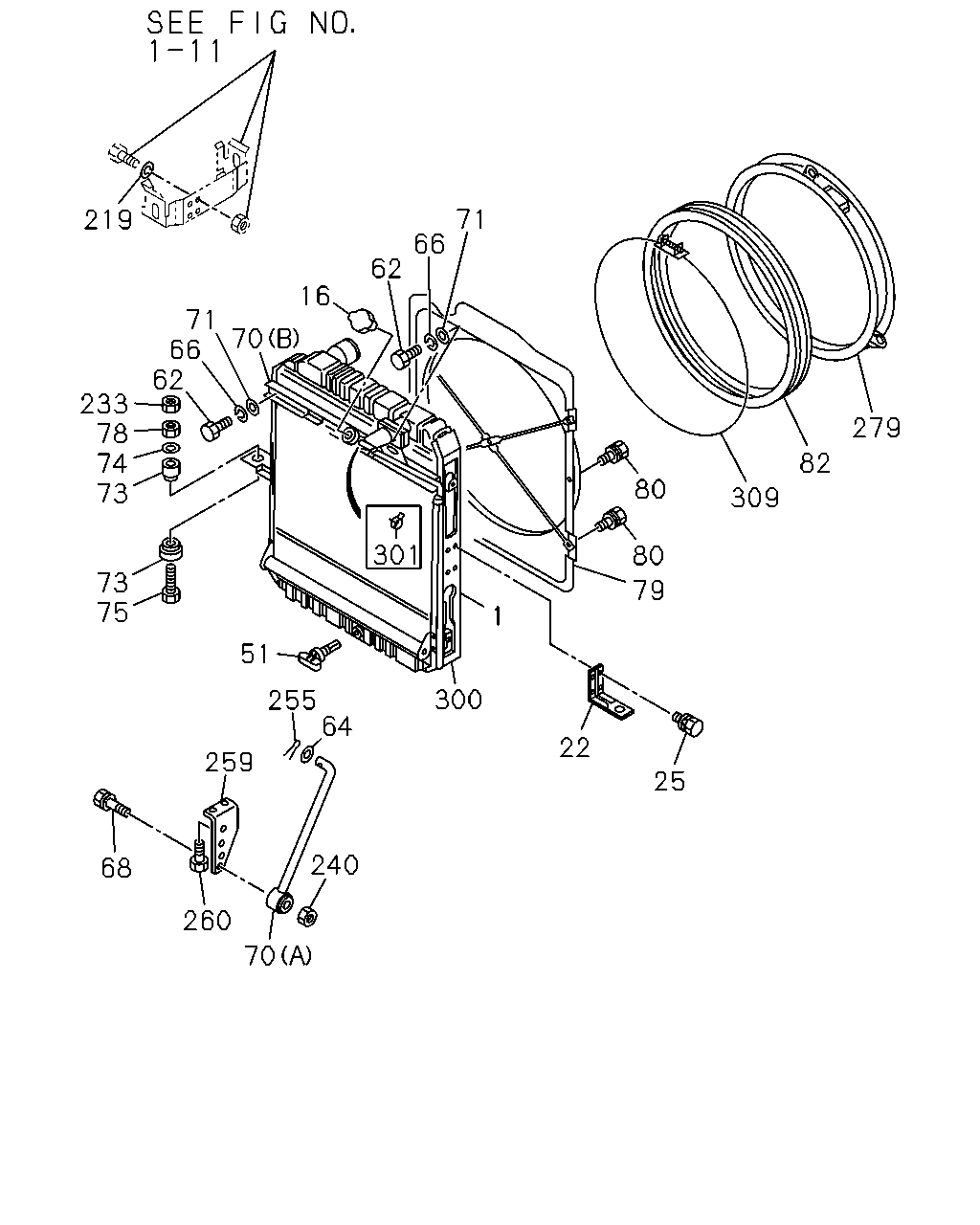

çizim 5463
219 71 66 62 16 71 66 62 70 233 78 74 73 279 82 80 309 301 80 73 75 79 1 51 300 255 64 22 259 25 240 68 260 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
AT545 A/T ALLISON(MD1) 		1-21410-524-3 01 1 9101- ● ●
1 RADIATOR ASM
ISUZU M/T<X9A> 		1-21410-523-3 01 1 9101- ● ●
16 CAP; RAD 1-21450-053-1 01 1 9101- ● ●
22 BRACKET; RAD MTG 1-21464-075-0 02 1 9101- ● ●
25 BOLT; BRKT 9-01960-816-0 08 1 9101- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9101- ● ●
62 BOLT; STAY 9-02041-016-0 02 1 9101-9305 ● ●
62 BOLT; STAY
AT545 A/T ALLISON(MD1) 		0-20801-016-0 02 1 9306- ● ●
62 BOLT; STAY
ISUZU M/T<X9A> 		0-28081-016-0 02 1 9306- ● ●
64 WASHER; STAY TO RAD 9-09160-512-0 01 1 9101- ● ●
66 WASHER; LK,STAY 9-09150-510-0 02 1 9101- ● ●
68 BOLT; STAY TO BRKT 0-50040-845-0 01 1 9101- ● ●
70 STAY; RAD
(B) 		1-21464-216-0 01 1 9101- ● ●
70 STAY; RAD
(A) 		1-21522-024-1 01 1 9101- ● ●
71 WASHER; PL,STAY 9-09160-610-0 02 1 9101- ● ●
73 RUBBER; CUSHION,RAD MTG 9-21467-053-0 04 1 9101- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=10.5 OD=40 T=3.2 		9-09651-094-0 02 1 9101- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 0-10806-070-0 02 1 9101- ● ●
78 NUT; CUSHION RUBBER 9-09110-410-0 02 1 9101-9307 ● ●
78 NUT; CUSHION RUBBER 9-09110-510-0 02 1 9308- ● ●
79 GUIDE; FAN,RAD 1-21551-309-0 01 1 9101- ● ●
80 BOLT; FAN GUIDE
M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9101-9305 ● ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9306- ● ●
82 COVER; FAN,RAD 1-21559-157-1 01 1 9101- ● ●
219 WASHER; LK BRKT & TANK
RIGHT HAND DRIVE(MRR5FB) 		9-09150-508-0 04 1 9101- ● ●
233 NUT; LK CUSHION RUBBER 9-09111-410-0 02 1 9101- ● ●
240 NUT; STAY 9-09110-408-0 01 1 9101- ● ●
255 PIN; SPLIT,STAY
OD=3.7 L=20 		9-08114-020-0 01 1 9101- ● ●
259 BRACKET; RAD STAY 1-21523-018-3 01 1 9101-9111 ● ●
259 BRACKET; RAD STAY
EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-21523-018-3 01 1 9112- ● ●
259 BRACKET; RAD STAY
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		1-21523-023-0 01 1 9112- ● ●
260 BOLT; BRKT 0-50040-820-0 02 1 9101- ● ●
279 BELL MOUTH 1-21551-333-0 01 1 9101- ● ●
300 HOSE; WATER,OVERFLOW,RAD 1-21437-362-0 01 1 9101- ● ●
301 CLIP; HOSE,RAD,OVERFLOW 1-09707-159-0 01 1 9101-9305 ● ●
301 CLIP; HOSE,RAD,OVERFLOW
W/CAP 		5-21489-003-0 01 1 9306- ● ●
309 WIRE; FAN COVER 1-09704-088-0 01 1 9101- ● ●

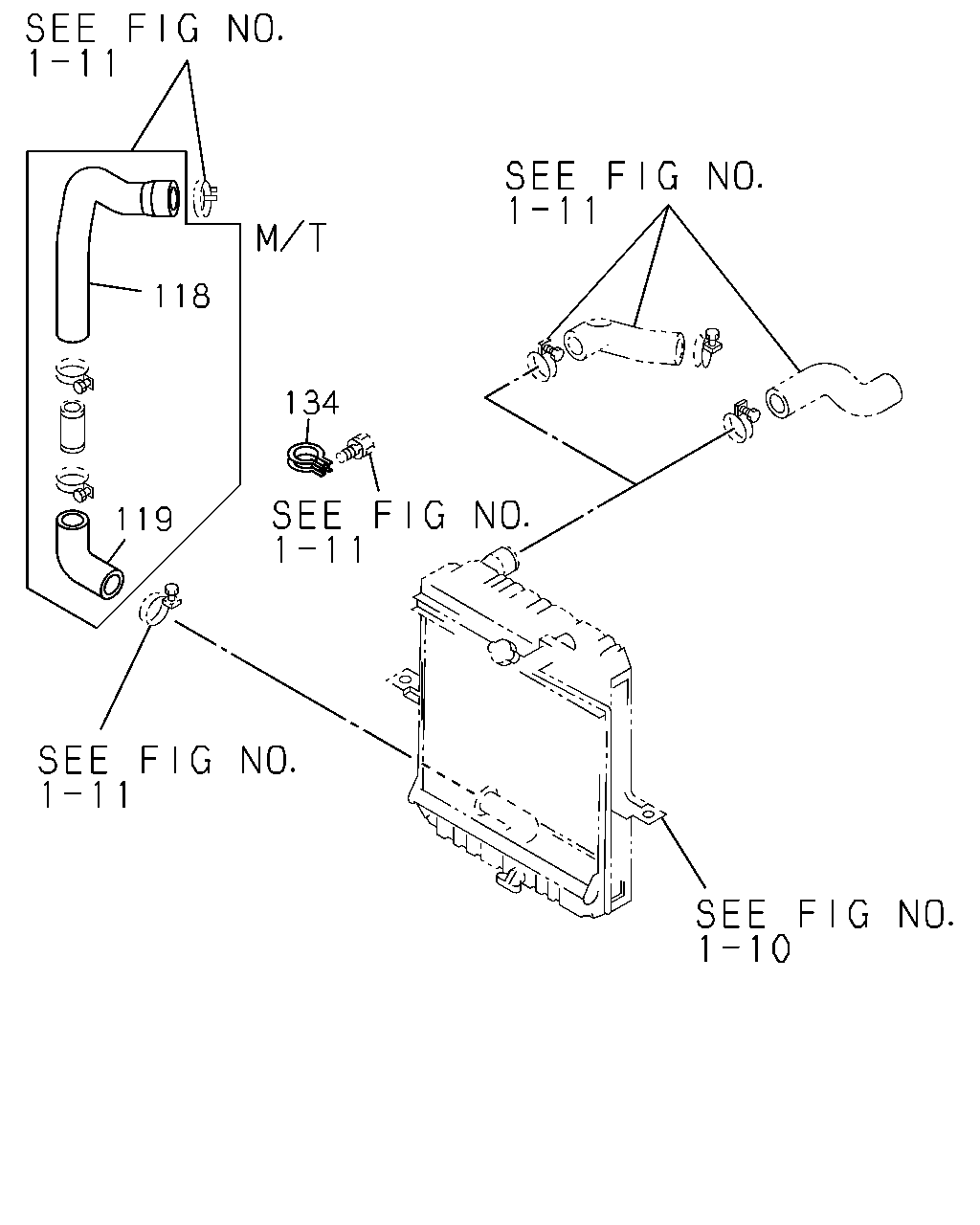

çizim 5525
118 134 119
BalonParca AdiParca NoAdetTipApplied Date A B
118 HOSE; WATER,ENG SIDE
ISUZU M/T<X9A> 		1-21437-337-0 01 1 9204- ● ●
119 HOSE; WATER,RAD SIDE
ISUZU M/T<X9A> 		1-09360-554-0 01 1 9204- ● ●
134 CLIP; OUTLET PIPE,RAD
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		9-09917-419-0 01 1 9204- ● ●

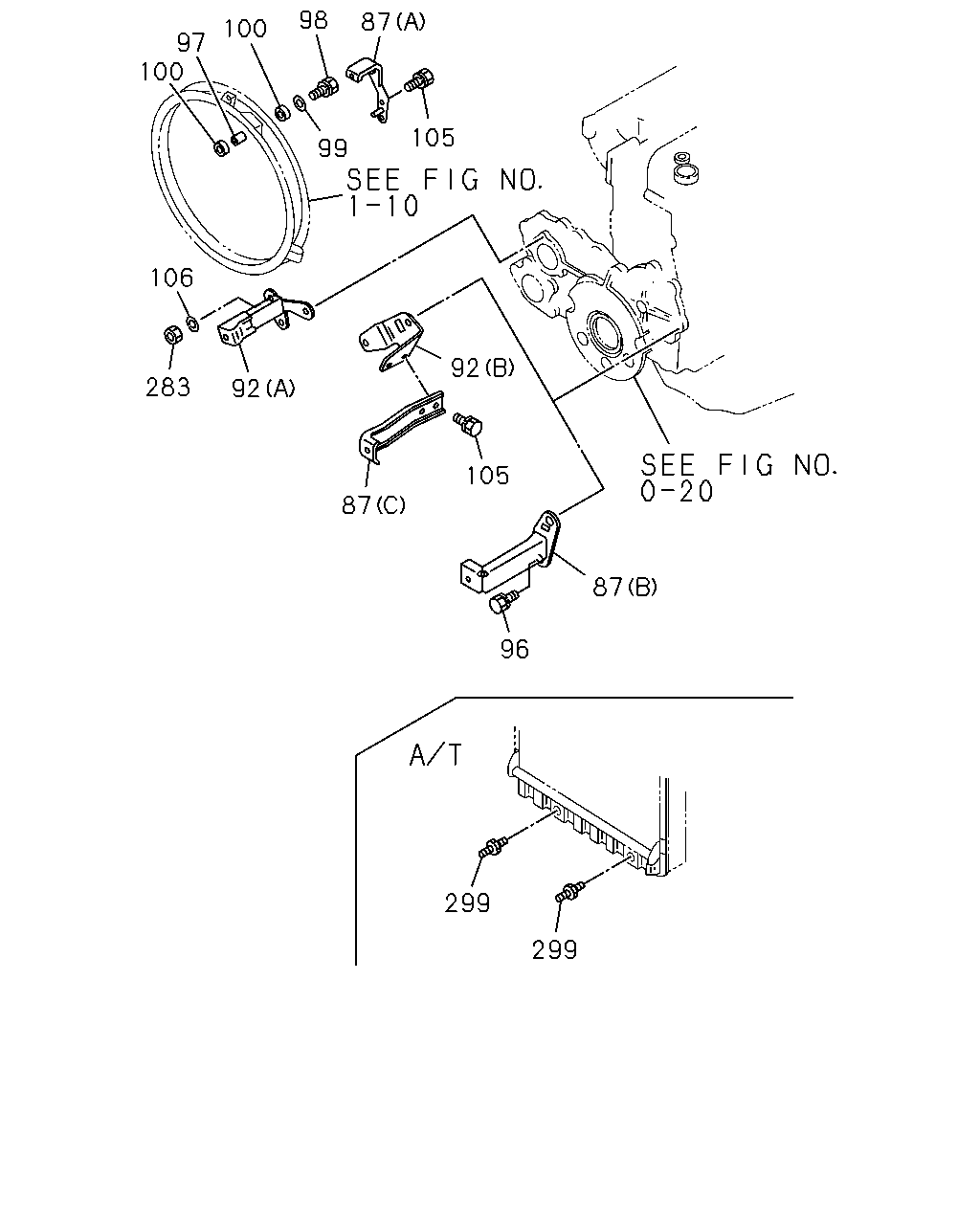

çizim 37211
98 87 100 97 100 105 99 106 92 283 92 105 87 87 96 299 299
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(C) 		1-21559-175-1 01 1 9101-9606 ● ●
87 STAY; FAN GUIDE
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) 		1-21559-175-1 01 1 9607- ● ●
87 STAY; FAN GUIDE
(A) 		1-21559-194-1 01 1 9101- ● ●
87 STAY; FAN GUIDE
RIGHT HAND DRIVE(MRR5FB) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) 		1-21559-238-0 01 1 9112- ● ●
92 BRACKET; FAN GUIDE
(B) 		1-21559-162-3 01 1 9101-9606 ● ●
92 BRACKET; FAN GUIDE
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) 		1-21559-162-3 01 1 9607- ● ●
92 BRACKET; FAN GUIDE
(A) 		1-21559-176-1 01 1 9101- ● ●
96 BOLT; STAY FIX
RIGHT HAND DRIVE(MRR5FB) GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		0-50041-020-0 01 1 9112- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9607- ● ●
98 BOLT; RAD FAN GUIDE 0-50040-835-0 03 1 9101- ● ●
99 WASHER; PL 9-09164-608-0 03 1 9101- ● ●
100 RUBBER; MTG 1-09337-006-0 06 1 9101-9307 ● ●
100 RUBBER; MTG 1-09337-027-0 06 1 9308-9606 ● ●
100 RUBBER; MTG 8-94395-766-0 06 1 9607- ● ●
105 BOLT; BRKT 0-50041-020-0 03 1 9101-9111 ● ●
105 BOLT; BRKT
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		0-50041-020-0 03 1 9112- ● ●
105 BOLT; BRKT
RIGHT HAND DRIVE(MRR5FB) GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		0-50041-020-0 01 1 9112- ● ●
106 WASHER; LK,BRKT 9-09150-508-0 01 1 9101- ● ●
283 NUT; BRKT 9-09110-408-0 01 1 9101- ● ●
299 NIPPLE; RAD
AT545 A/T ALLISON(MD1) 		1-21439-045-0 02 1 9101- ● ●
