0-37 — TURBOCHARGER (#32726) — 10 parça

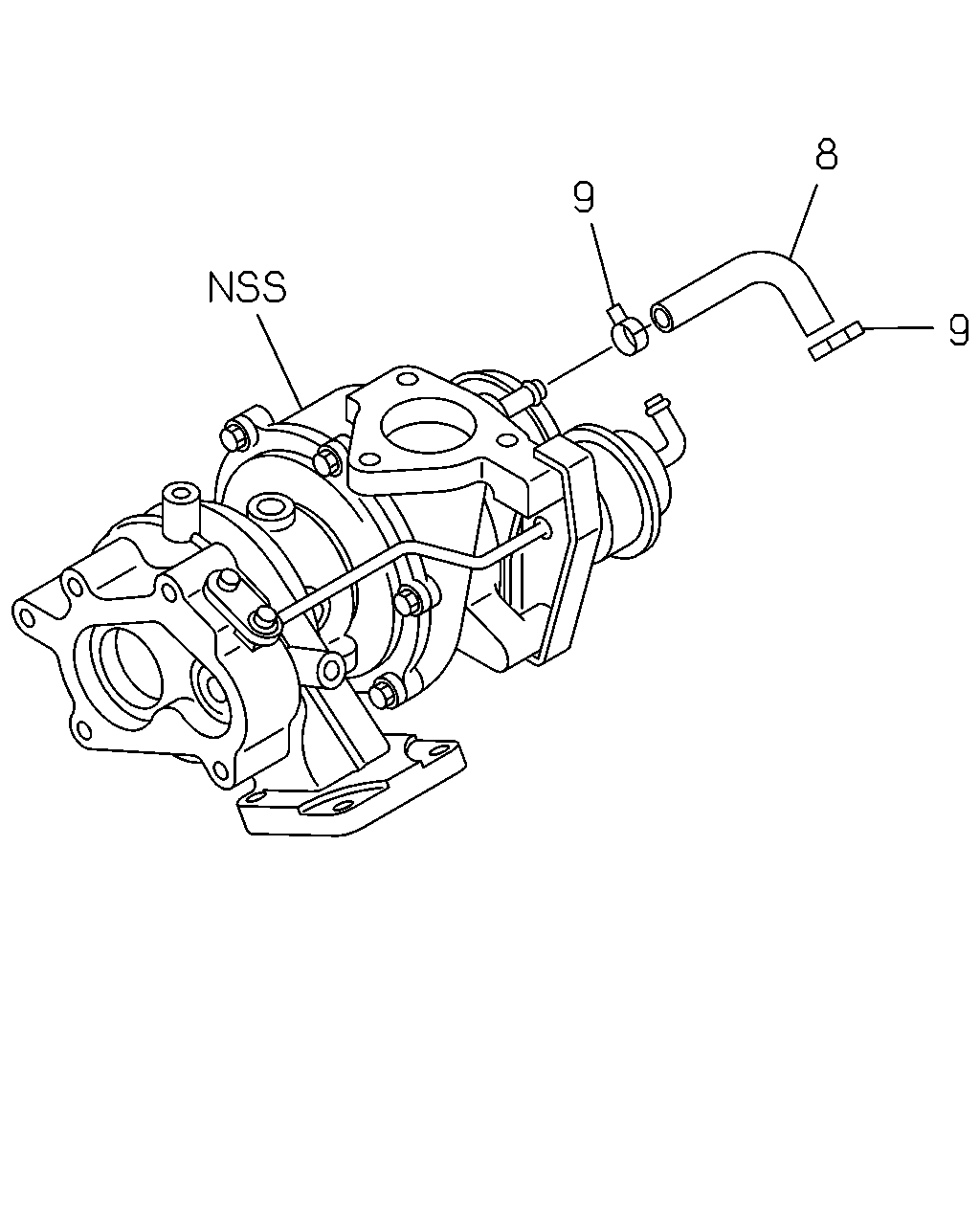

çizim 83956

8 9 9

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-98015-115-2, 98015115, D = 8-98097-686-1, 98097686	8-94311-934-0	01	1	-
	8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: C = 8-98079-569-2, 98079569	8-97215-553-0	01	1	-
	8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-98000-031-2, 98000031	8-97375-933-0	01	1	-
	9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: B = 8-98015-115-2, 98015115, D = 8-98097-686-1, 98097686	8-94167-469-0	02	1	-
	9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-98000-031-2, 98000031, C = 8-98079-569-2, 98079569	8-97213-592-0	02	1	-

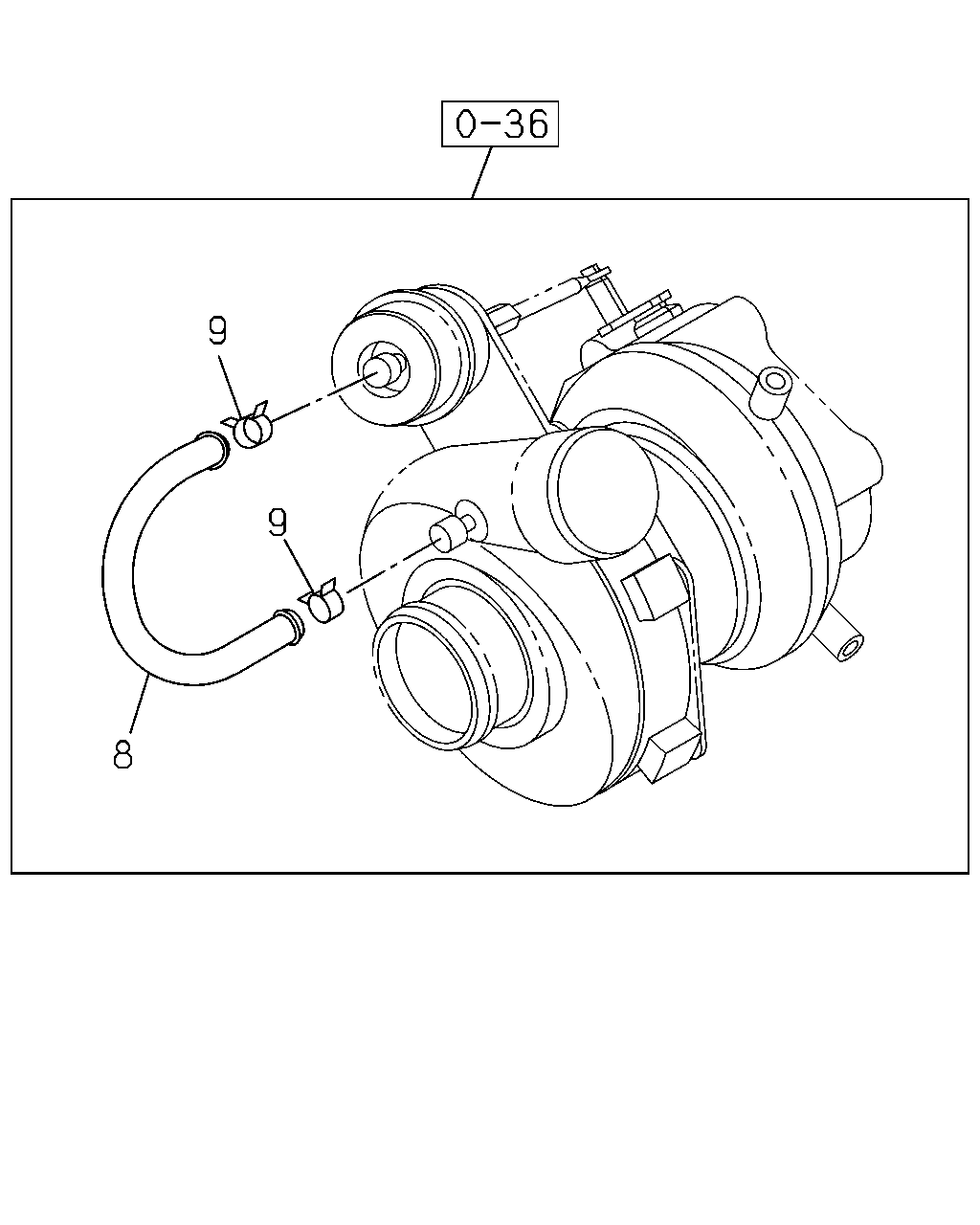

çizim 102986

9 9 8

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-98015-115-2, 98015115, D = 8-98097-686-1, 98097686	8-94311-934-0	01	1	-
	8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: C = 8-98079-569-2, 98079569	8-97215-553-0	01	1	-
	8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-98000-031-2, 98000031	8-97375-933-0	01	1	-
	9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: B = 8-98015-115-2, 98015115, D = 8-98097-686-1, 98097686	8-94167-469-0	02	1	-
	9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-98000-031-2, 98000031, C = 8-98079-569-2, 98079569	8-97213-592-0	02	1	-
