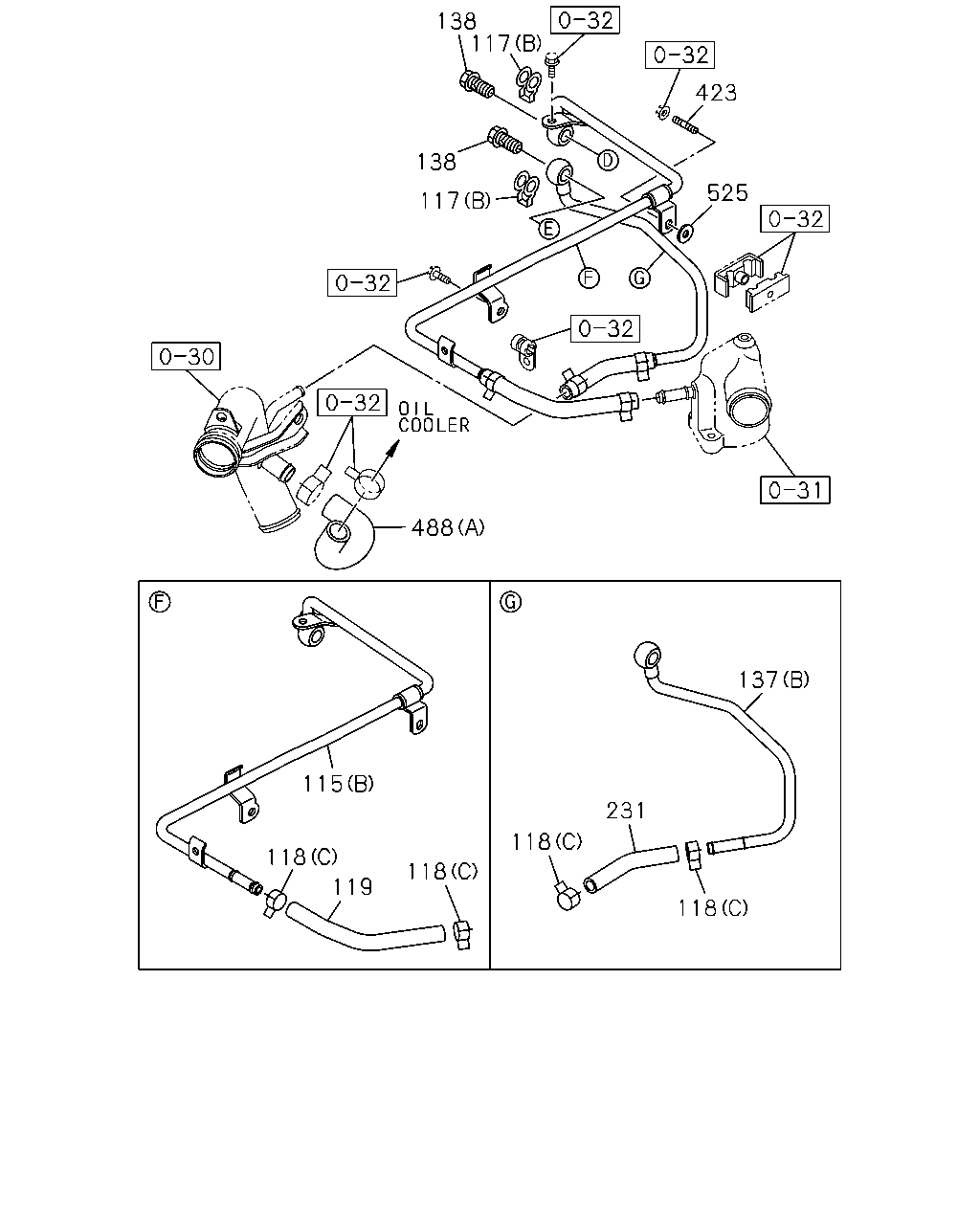

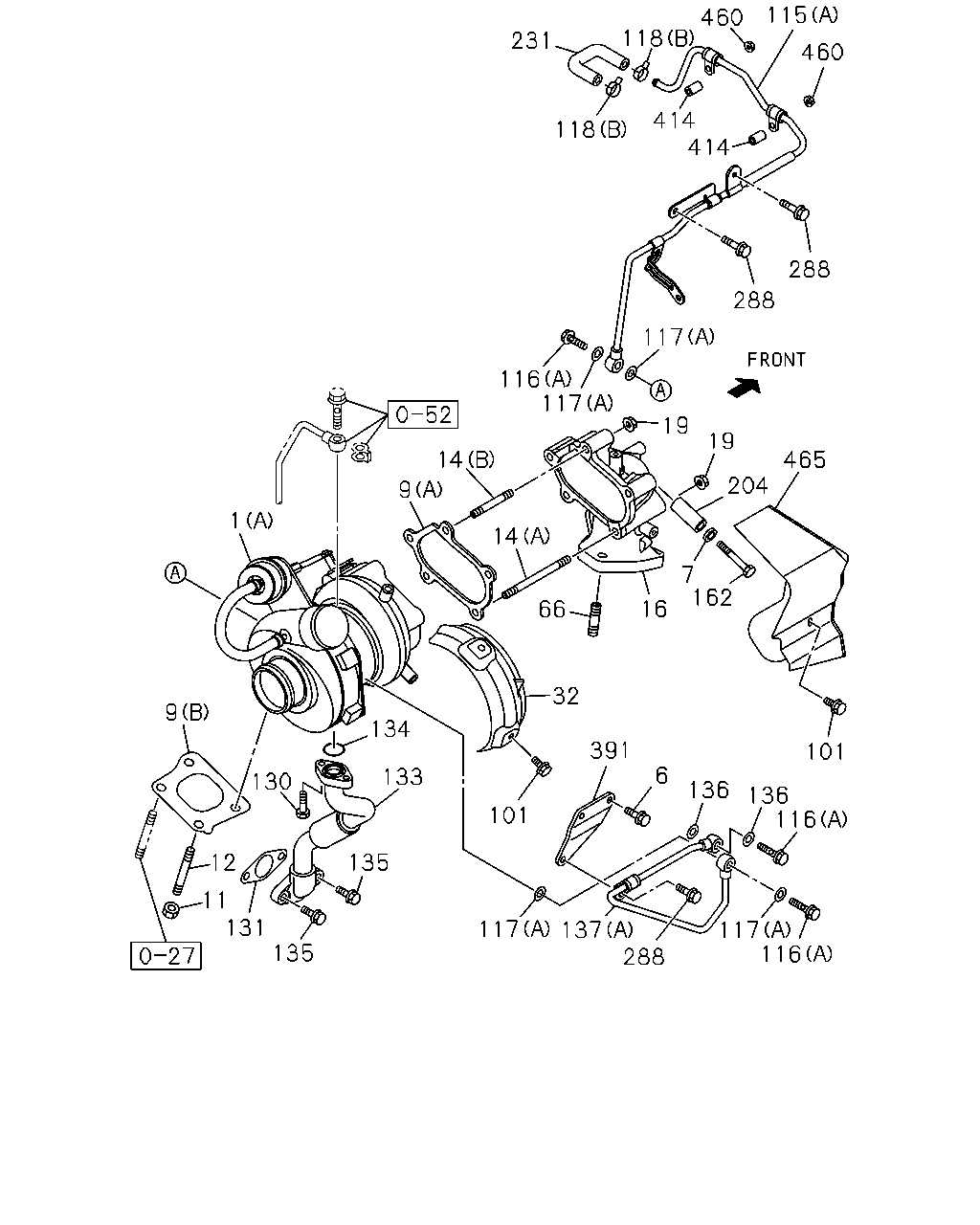

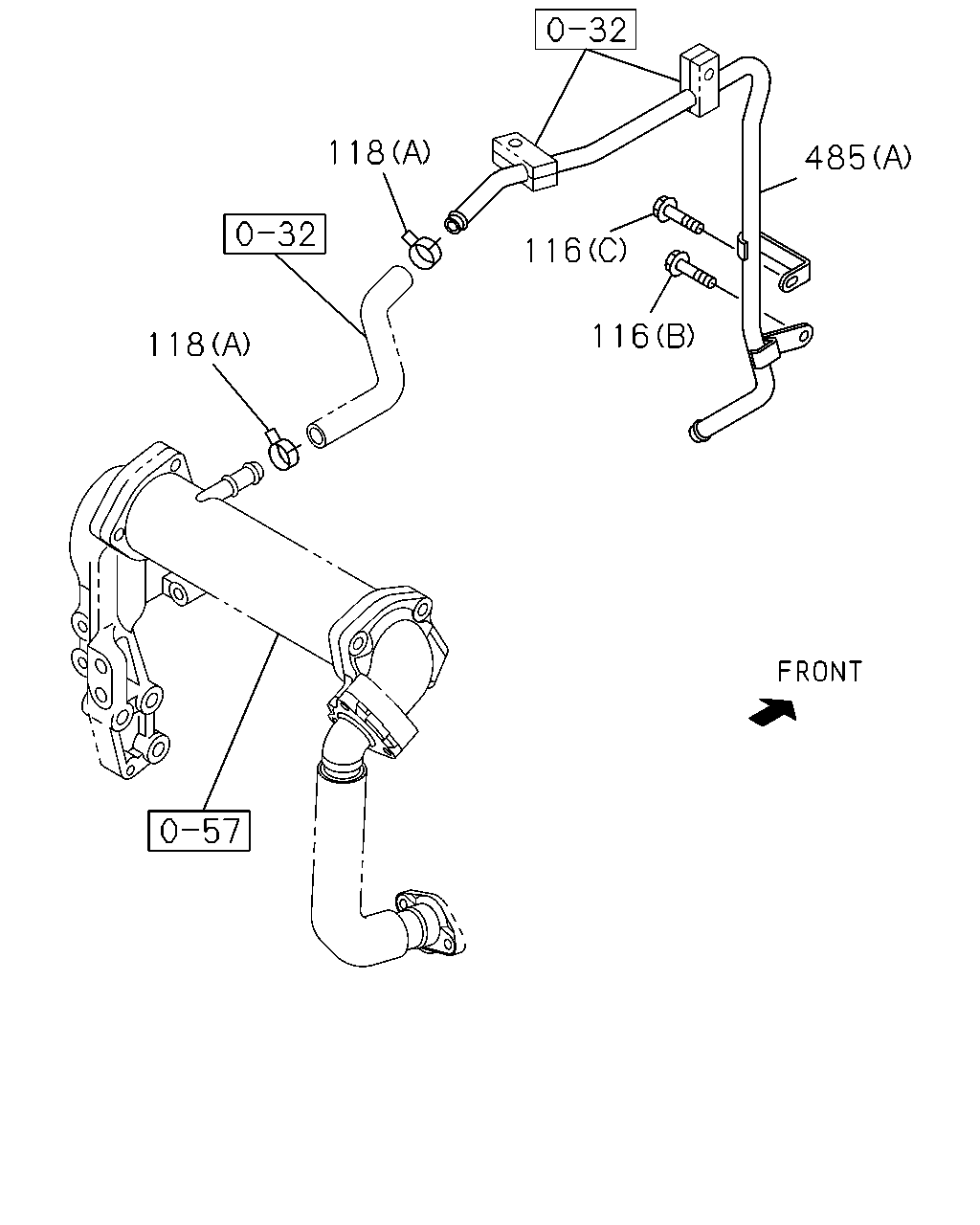

0-36 — TURBOCHARGER SYSTEM (#32725) — 254 parça

138 117 423 138 525 117 488 137 115 231 118 118 118 119 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	1012-1207	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1208-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (C)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (D) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	1012-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1012-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1012-	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1012-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	1012-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●
423	03.373 STUD; WATER PIPE 00.206 M6X16 L=25	0-41010-616-0	01	1	1012-1207	●
423	03.373 STUD; WATER PIPE EURO2 SPECIFICATION(NT2) 00.206 M6X16 L=25	0-41010-616-0	01	1	1208-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) 01.540 (B) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1112-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (D) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1112-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98015-118-0	01	1	1112-	●
488	03.163 HOSE; RUBBER (A)	8-98066-091-0	01	1	1012-1207	●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (A)	8-98066-091-0	01	1	1208-	●
525	03.373 PLATE; WATER,TURBO 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	1012-1207	●
525	03.373 PLATE; WATER,TURBO EURO2 SPECIFICATION(NT2) 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	1208-	●

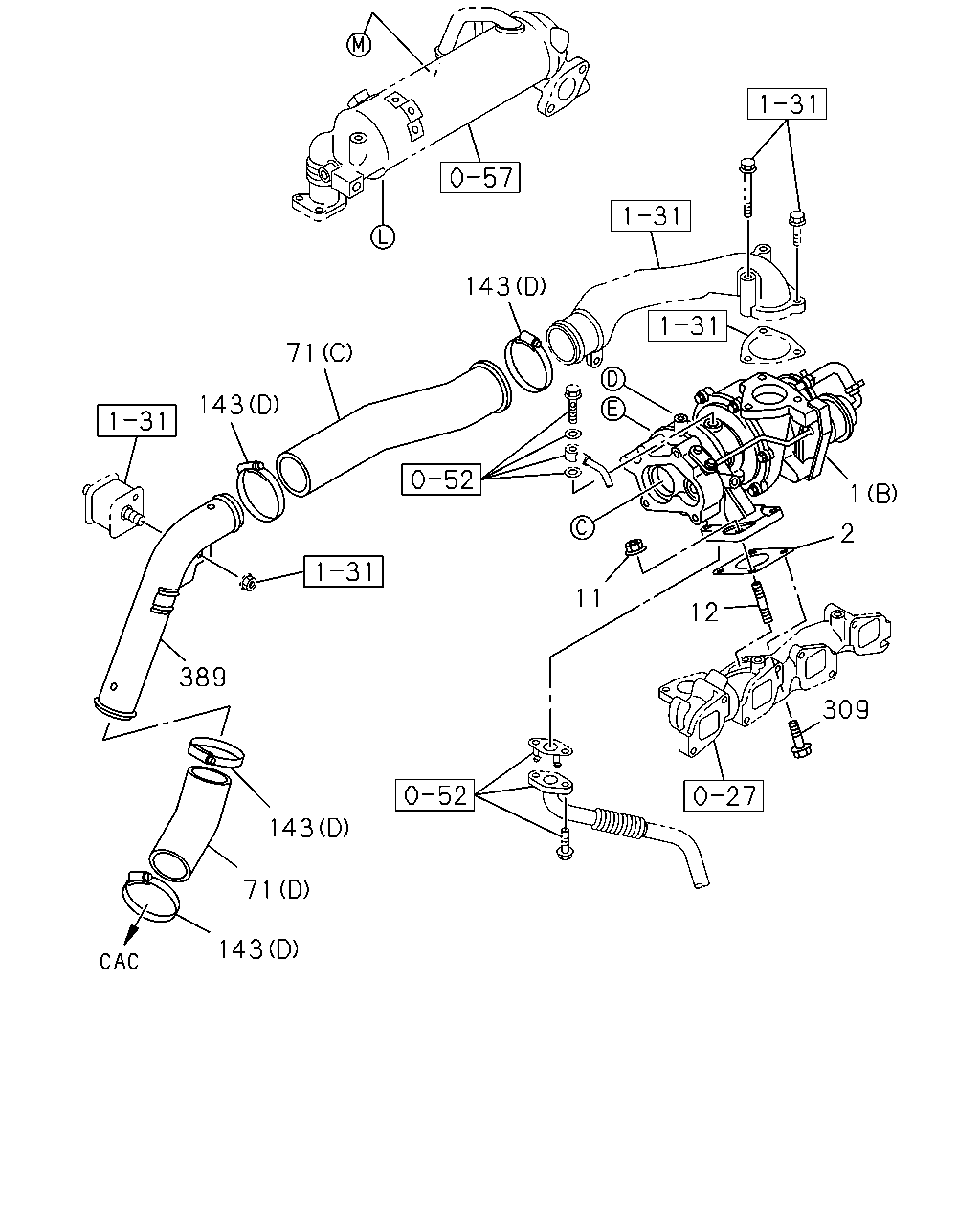

143 71 143 1 2 11 12 389 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (B)	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98097-686-1	01	1	1012-1207	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (B)	8-98097-686-1	01	1	1208-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1012-	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1012-		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1012-		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98059-964-1	01	1	1012-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98107-509-1	01	1	1012-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98036-513-2	01	1	1012-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98159-280-1	01	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1208-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1208-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	1208-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=60-65	8-98096-418-0	02	1	1012-1207		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1208-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=70-90	8-98122-372-0	01	1	1012-1207		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1208-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=60-65	8-98096-418-0	04	1	1012-1207	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	1208-	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1012-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1012-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1012-	●

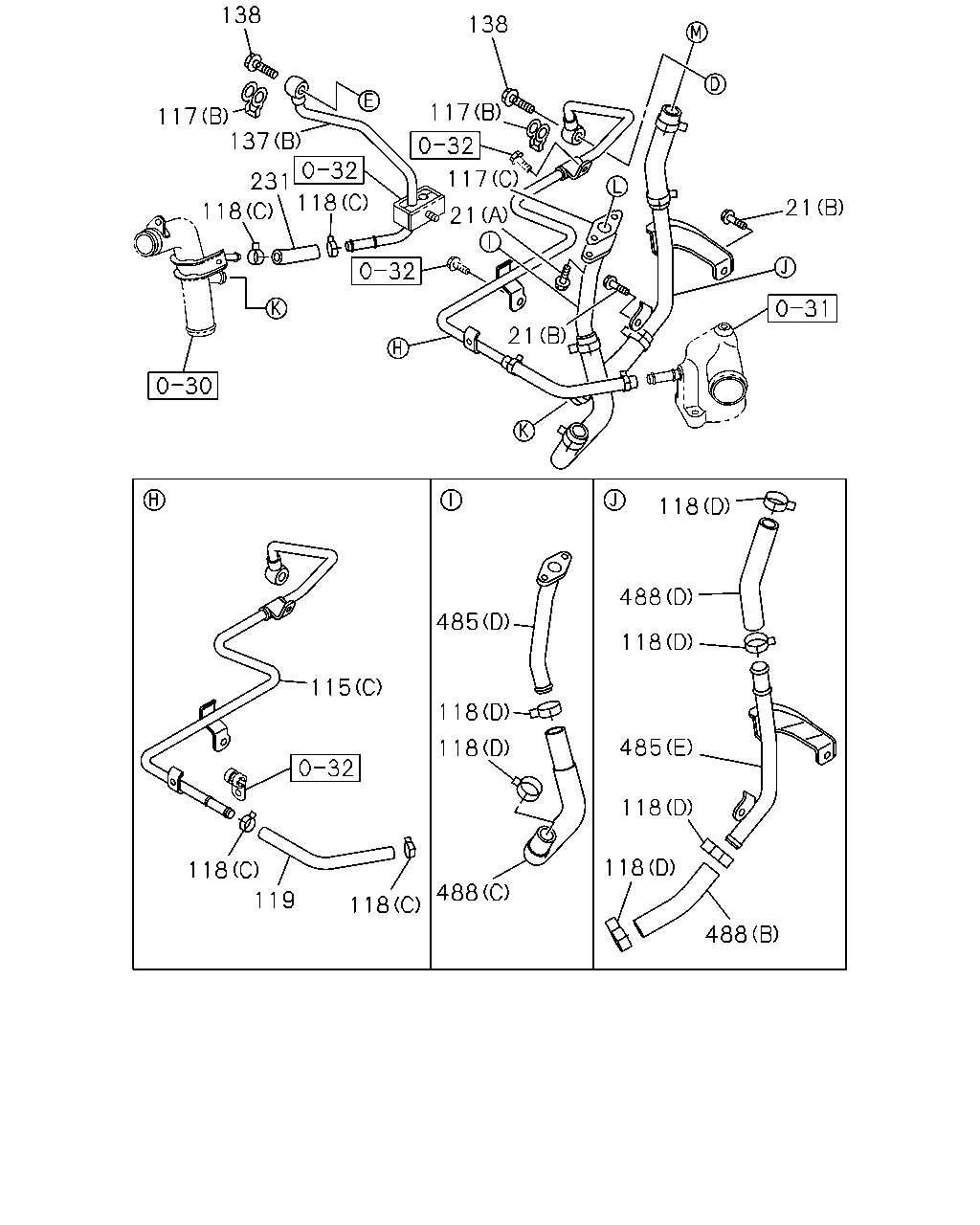

138 138 117 117 137 117 231 118 21 118 21 21 118 488 485 118 115 118 485 118 118 118 118 488 119 118 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.358 BOLT; PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●
21	03.358 BOLT; PIPE EURO3 SPECIFICATION(NT3) 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	1012-1207	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1208-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (C)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (D) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	1012-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1012-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1012-	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1012-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	1012-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97381-651-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (E)	8-97381-652-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1012-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-98041-637-1	01	1	1012-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1012-		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) 01.540 (B) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1112-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (D) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1112-	●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98015-118-0	01	1	1112-	●
488	03.163 HOSE; RUBBER (A)	8-98066-091-0	01	1	1012-1207	●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (A)	8-98066-091-0	01	1	1208-	●

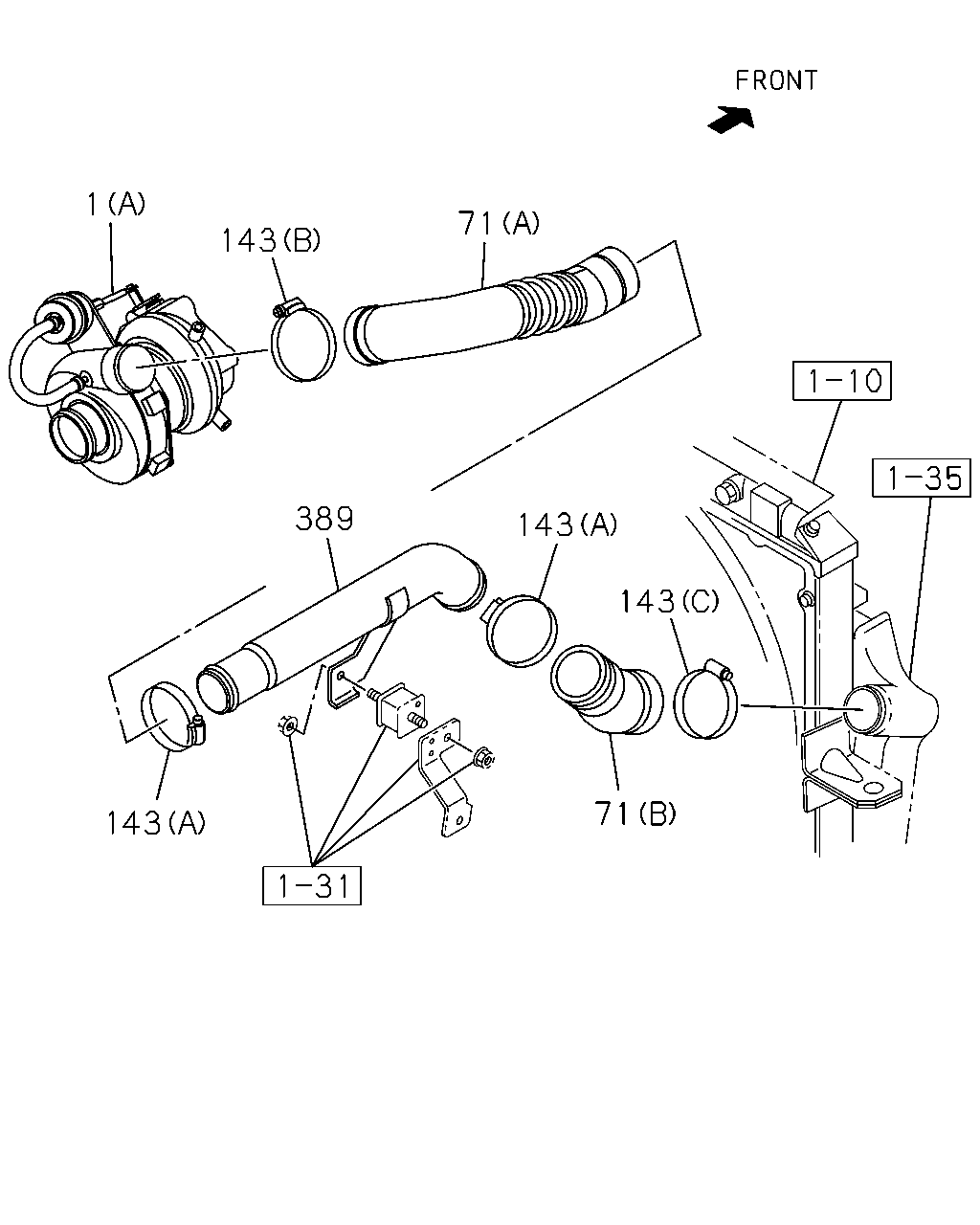

1 71 143 389 143 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (B)	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98097-686-1	01	1	1012-1207	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (B)	8-98097-686-1	01	1	1208-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98059-964-1	01	1	1012-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98107-509-1	01	1	1012-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98036-513-2	01	1	1012-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98159-280-1	01	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1208-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1208-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	1208-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=60-65	8-98096-418-0	02	1	1012-1207		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1208-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=70-90	8-98122-372-0	01	1	1012-1207		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1208-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=60-65	8-98096-418-0	04	1	1012-1207	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	1208-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1012-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1012-	●

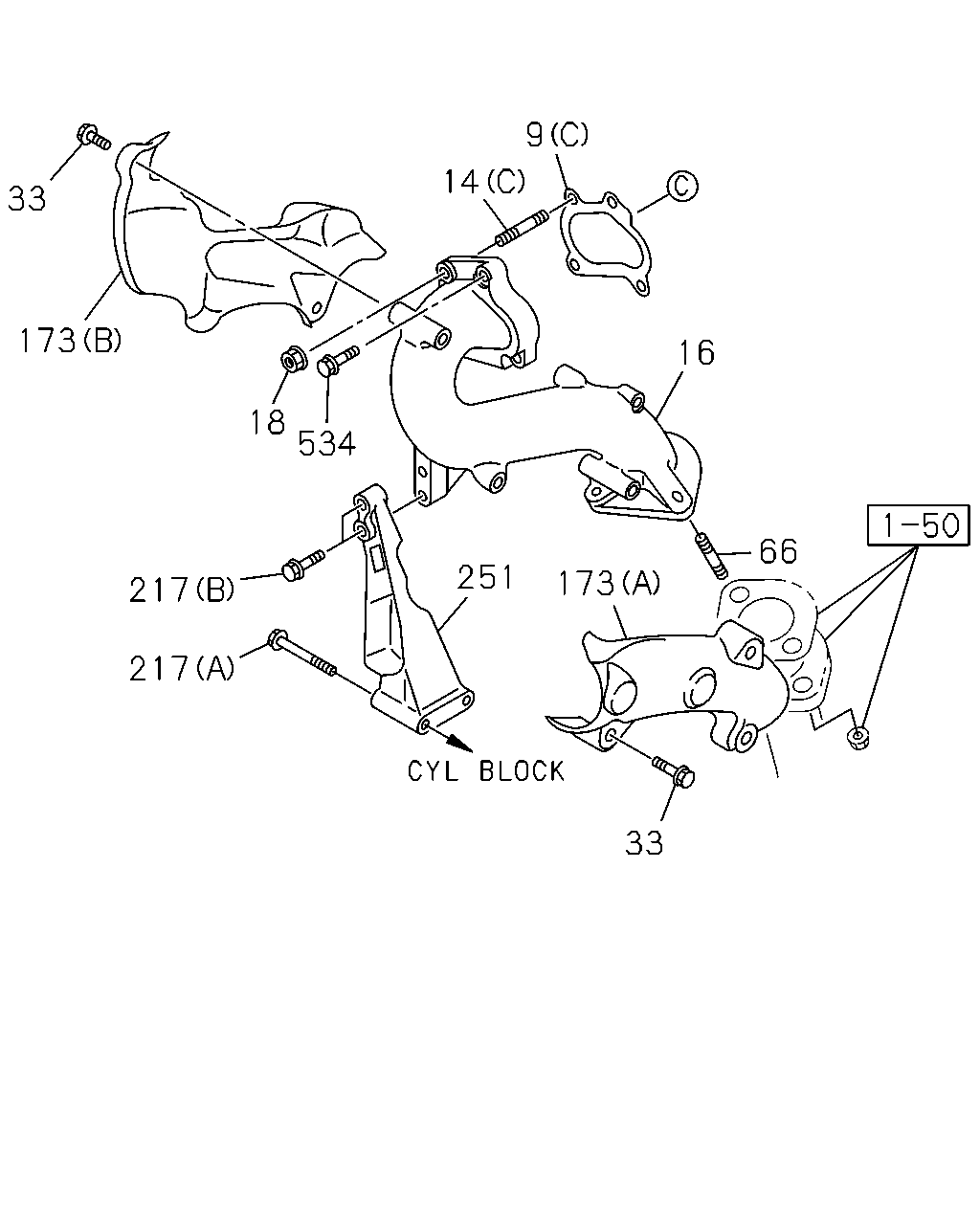

9 14 33 173 16 18 534 66 251 173 217 217 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	01	1	1012-1207	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	02	1	1208-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	1012-	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1012-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1012-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	06	1	1012-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-023-1	01	1	1012-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1012-	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1012-	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	1012-	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE M8X35 FLANGE	8-98053-224-0	02	1	1012-	●

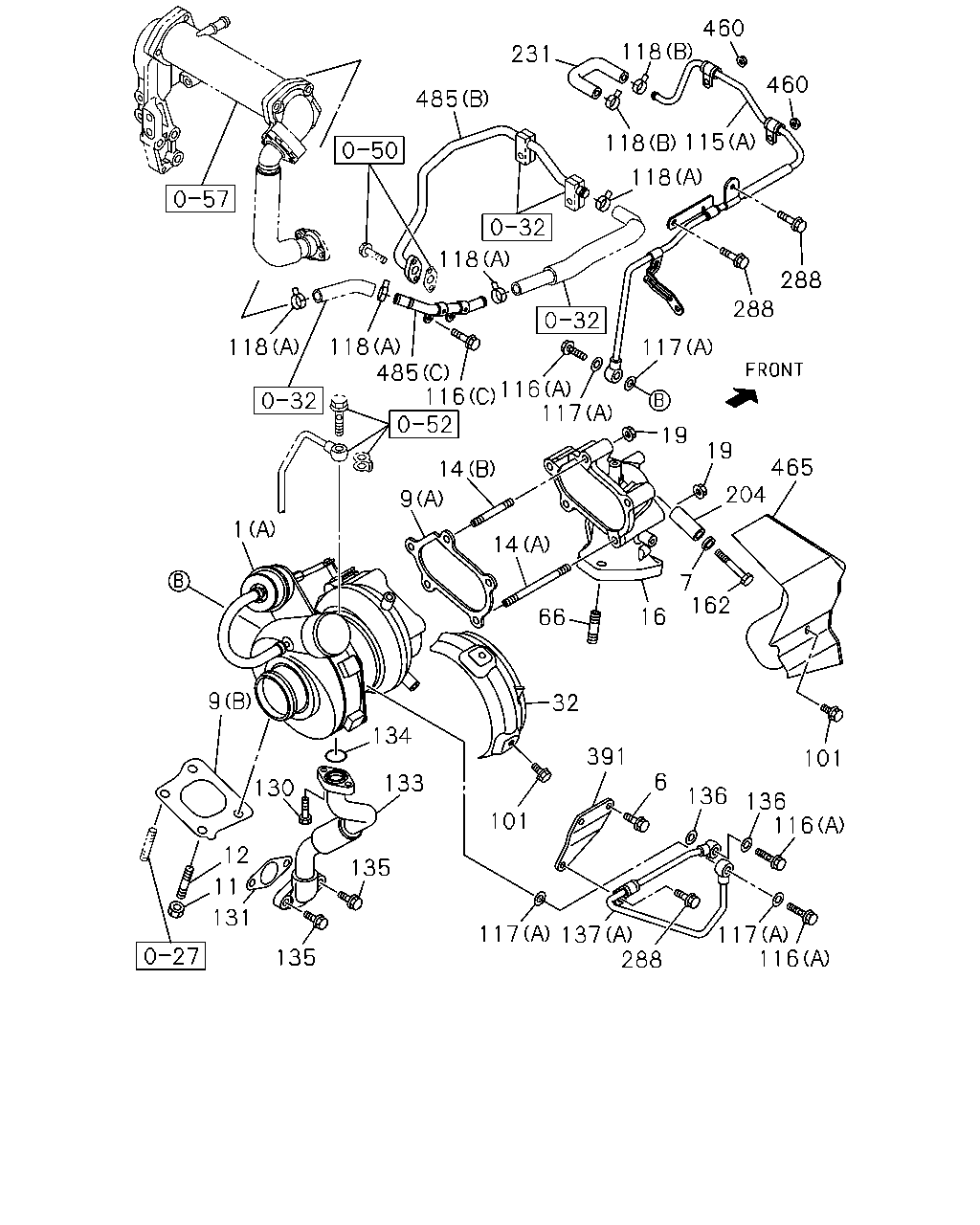

116 117 116 136 136 6 391 32 101 288 137 117 101 133 134 135 135 131 11 12 130 162 16 7 204 465 19 19 117 288 288 66 14 14 9 1 9 117 116 414 414 460 115 460 118 118 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (B)	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98097-686-1	01	1	1012-1207	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (B)	8-98097-686-1	01	1	1208-	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	01	1	1012-1207	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	02	1	1208-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1012-		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1012-		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1012-		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	1012-	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1012-	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1012-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	1012-1207	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1208-	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	05	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (C)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (D) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	1012-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1012-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1012-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1012-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1012-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1012-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1012-		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-		●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312		●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	1012-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1012-		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1012-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1012-		●
391	03.342 BRACKET; WATER PIPE	8-97371-730-0	01	1	1012-		●
414	03.602 SPACER EURO2 SPECIFICATION(NT2) 01.429 M8X10	1-11369-081-0	02	1	1012-		●
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-97351-167-0	01	1	1012-1204		●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1205-		●

131 135 135 11 12 130 133 134 9 1 9 14 116 116 118 118 118 118 118 118 115 117 117 19 19 14 16 101 117 137 117 116 116 136 136 101 162 391 32 7 66 6 288 204 465 288 288 460 460 231 485 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (B)	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98097-686-1	01	1	1012-1207	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (B)	8-98097-686-1	01	1	1208-	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	01	1	1012-1207	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	02	1	1208-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1012-		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1012-		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1012-		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	1012-	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1012-	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1012-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	1012-1207	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1208-	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	05	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (C)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (D) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	1012-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1012-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1012-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1012-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1012-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1012-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1012-		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-		●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312		●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	1012-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1012-		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1012-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1012-		●
391	03.342 BRACKET; WATER PIPE	8-97371-730-0	01	1	1012-		●
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-97351-167-0	01	1	1012-1204		●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1205-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97381-651-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (E)	8-97381-652-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1012-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-98041-637-1	01	1	1012-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1012-		●

118 485 116 116 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	05	1	1012-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (D) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	1012-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1012-		●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	1012-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97381-651-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (E)	8-97381-652-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1012-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-98041-637-1	01	1	1012-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
