◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51297 - NPR/NQR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#32720) — 35 parça

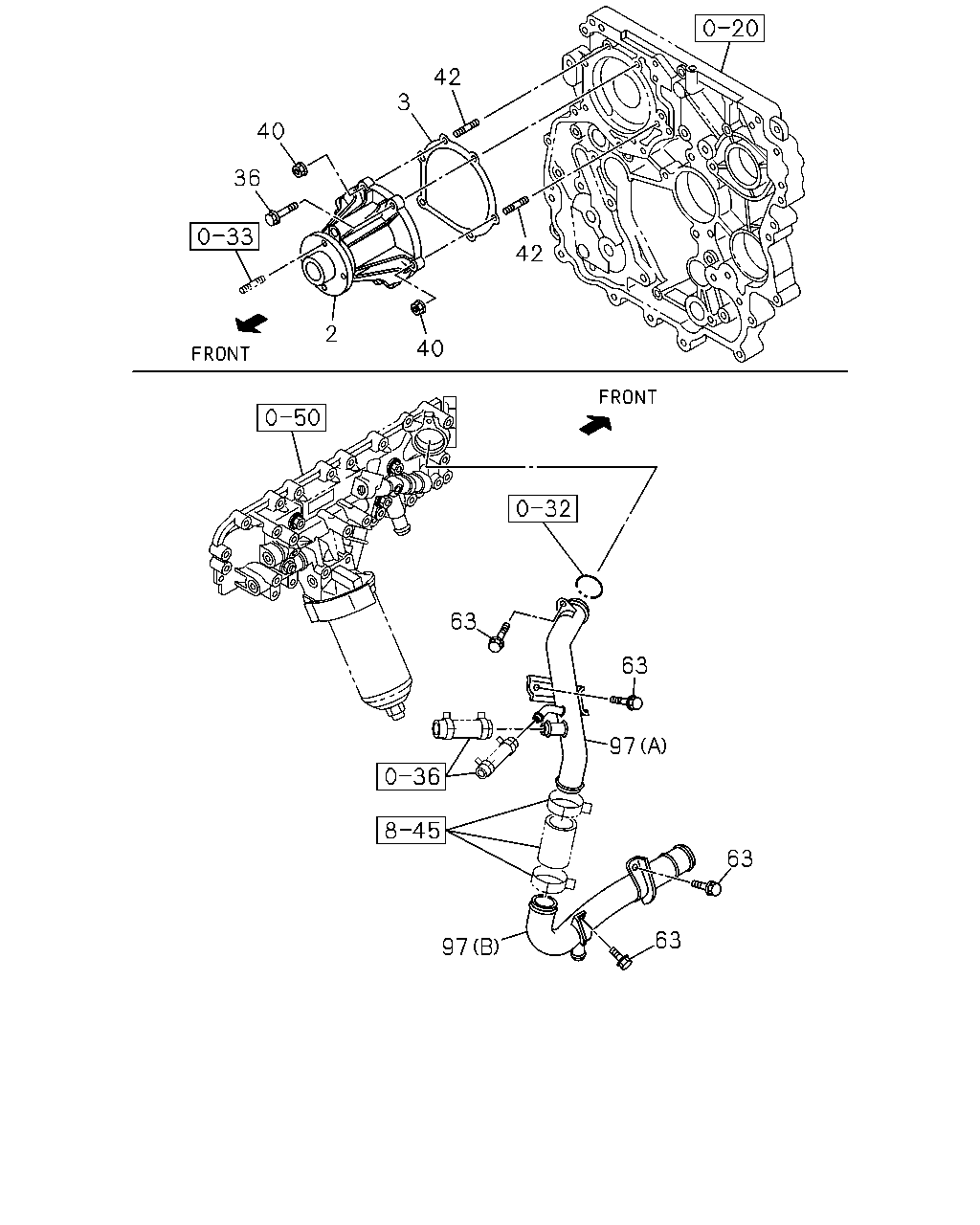

çizim 83513
42 3 40 36 42 2 40 63 63 97 63 63 97
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.069 PUMP ASM; WATER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ANTI EROSION SPEC<7XK> 		8-97363-478-0 01 1 1112-1207 ●
2 01.069 PUMP ASM; WATER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF>,ANTI EROSION SPEC<7XK> 		8-97363-478-0 01 1 1208-1501 ●
2 01.069 PUMP ASM; WATER 8-97212-675-2 01 1 1012- ●
2 01.069 PUMP ASM; WATER 8-98078-831-0 01 1 1012-1111 ●
2 01.069 PUMP ASM; WATER
ANTI EROSION SPEC<7XK> 		8-98078-831-2 01 1 1112-1501 ●
2 01.069 PUMP ASM; WATER
MIDDLE EAST EQUIPMENT(GH3) 		8-98078-831-2 01 1 1112-1501 ●
2 01.069 PUMP ASM; WATER 8-98078-831-2 01 1 1502- ●
2 01.069 PUMP ASM; WATER 8-98004-292-3 01 1 1012- ●
2 01.069 PUMP ASM; WATER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ANTI EROSION SPEC<7XK> BEST VALUE PARTS 		5-87610-089-0 01 1 1112-1207 ●
2 01.069 PUMP ASM; WATER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF>,ANTI EROSION SPEC<7XK> BEST VALUE PARTS 		5-87610-089-0 01 1 1208-1501 ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-156-0 01 1 1012- ●
36 00.386 BOLT; WATER PUMP TO C/BL
00.685 M8X40 FLANGE 		0-28650-840-0 06 1 1012- ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
04.686 M8X60 FLANGE 		0-28050-860-0 04 1 1012- ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1012- ●
42 01.073 STUD; WATER PUMP
M8X28 L=40 		0-41010-828-0 02 1 1012- ●
63 01.073 BOLT; INL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1012- ●
97 01.097 PIPE; WATER
EURO3 SPECIFICATION(NT3) (A) 		8-97381-499-2 01 1 1112- ●
97 01.097 PIPE; WATER
(B) 		8-98009-676-3 01 1 1012- ●
97 01.097 PIPE; WATER
(A) 		8-98066-089-1 01 1 1012-1207 ●
97 01.097 PIPE; WATER
EURO2 SPECIFICATION(NT2) (A) 		8-98066-089-1 01 1 1208- ●
çizim 102982
40 36 2 40
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.069 PUMP ASM; WATER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ANTI EROSION SPEC<7XK> 		8-97363-478-0 01 1 1112-1207 ●
2 01.069 PUMP ASM; WATER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF>,ANTI EROSION SPEC<7XK> 		8-97363-478-0 01 1 1208-1501 ●
2 01.069 PUMP ASM; WATER 8-97212-675-2 01 1 1012- ●
2 01.069 PUMP ASM; WATER 8-98078-831-0 01 1 1012-1111 ●
2 01.069 PUMP ASM; WATER
ANTI EROSION SPEC<7XK> 		8-98078-831-2 01 1 1112-1501 ●
2 01.069 PUMP ASM; WATER
MIDDLE EAST EQUIPMENT(GH3) 		8-98078-831-2 01 1 1112-1501 ●
2 01.069 PUMP ASM; WATER 8-98078-831-2 01 1 1502- ●
2 01.069 PUMP ASM; WATER 8-98004-292-3 01 1 1012- ●
2 01.069 PUMP ASM; WATER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ANTI EROSION SPEC<7XK> BEST VALUE PARTS 		5-87610-089-0 01 1 1112-1207 ●
2 01.069 PUMP ASM; WATER
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF>,ANTI EROSION SPEC<7XK> BEST VALUE PARTS 		5-87610-089-0 01 1 1208-1501 ●
36 00.386 BOLT; WATER PUMP TO C/BL
00.685 M8X40 FLANGE 		0-28650-840-0 06 1 1012- ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
04.686 M8X60 FLANGE 		0-28050-860-0 04 1 1012- ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
40 07.874 NUT; WATER PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
