◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#3272) — 105 parça

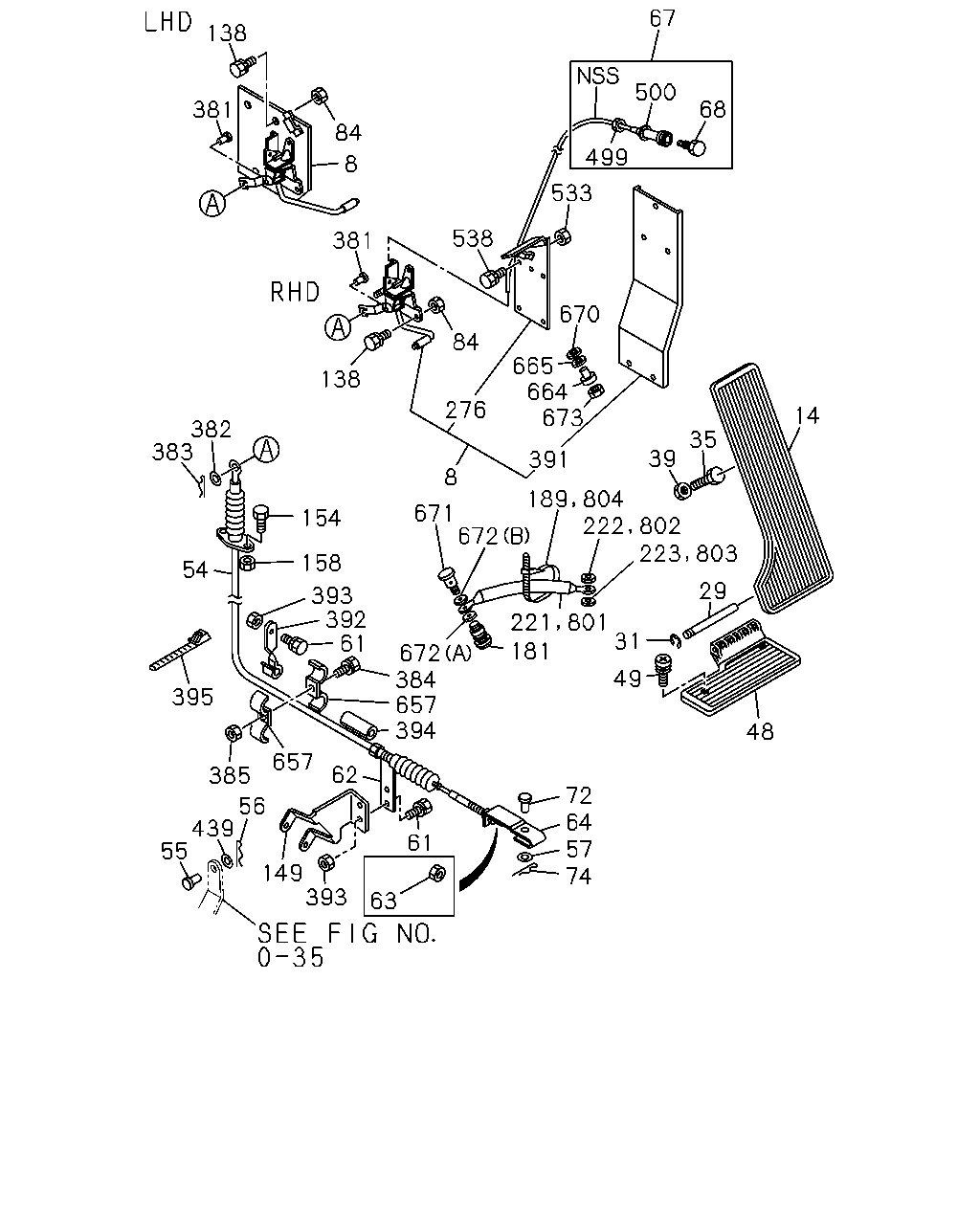

çizim 5462
67 138 500 68 381 84 499 8 533 538 381 670 84 665 664 673 138 276 14 382 383 35 39 391 8 189 804 222 671 672 154 802 223 803 158 54 801 31 29 393 392 61 221 181 672 384 657 394 49 395 48 657 62 385 72 64 57 74 56 439 55 61 149 393 63
BalonParca AdiParca NoAdetTipApplied Date A B
8 LINK ASM; ENG CONT
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		1-23330-215-2 01 1 9101-9111 ● ●
8 LINK ASM; ENG CONT
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		1-23330-215-2 01 1 9112- ● ●
8 LINK ASM; ENG CONT
RIGHT HAND DRIVE(MRR5FB) EXC. CRANK PULLEY 3 GROOVES<E1T> 		1-23330-205-3 01 1 9101-9111 ● ●
8 LINK ASM; ENG CONT
RIGHT HAND DRIVE(MRR5FB) EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-23330-205-3 01 1 9112- ● ●
8 LINK ASM; ENG CONT
LEFT HAND DRIVE(MRR6FB) 		1-23330-202-1 01 1 9101- ● ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9101-9712 ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9801- ● ●
29 SHAFT; ACCEL PEDAL
OD=8 L=74 		1-09987-206-0 01 1 9101- ● ●
31 RING; SNAP,ACCEL PEDAL 9-09185-406-0 01 1 9101- ● ●
35 STOPPER; ACCEL PEDAL 1-23249-003-0 01 1 9101- ● ●
39 NUT; ACCEL PEDAL STOPPER 9-09111-406-0 01 1 9101- ● ●
48 HINGE; ACCEL PEDAL 1-73997-675-3 01 1 9101-9306 ● ●
48 HINGE; ACCEL PEDAL 1-73907-266-2 01 1 9307- ● ●
49 BOLT; HINGE FIX 5-09981-023-0 02 1 9101- ● ●
54 CABLE; ENG CONT
RIGHT HAND DRIVE(MRR5FB) L=1725 		1-23210-899-0 01 1 9101- ● ●
54 CABLE; ENG CONT
LEFT HAND DRIVE(MRR6FB) L=2160 		1-23210-801-2 01 1 9101- ● ●
55 PIN; JAW JOINT 1-09744-096-1 01 1 9101-9312 ● ●
55 PIN; JAW JOINT 1-09744-118-0 01 1 9401- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9101- ● ●
57 WASHER; ENG CONT CABLE 9-09160-508-0 01 1 9101- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ●
62 CLIP; ENG CONT CABLE 1-09700-326-0 01 1 9101- ● ●
63 NUT; LOCK,BRKT 9-09111-408-0 02 1 9101- ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-1 01 1 9101- ● ●
67 CABLE ASM; IDLE CONT
RIGHT HAND DRIVE(MRR5FB) L=385 		1-23210-148-1 01 1 9101- ● ●
67 CABLE ASM; IDLE CONT
LEFT HAND DRIVE(MRR6FB) L=430 		1-23210-852-0 01 1 9101- ● ●
68 KNOB; IDLE CONT 1-23211-005-0 01 1 9101- ● ●
72 PIN; JAW JOINT,CABLE END 1-09744-083-0 01 1 9101- ● ●
74 PIN; SNAP,CABLE END 1-09747-005-0 01 1 9101- ● ●
84 NUT; ENG CONT LEVER
RIGHT HAND DRIVE(MRR5FB) M10 		9-09110-410-0 02 1 9101-9307 ● ●
84 NUT; ENG CONT LEVER
RIGHT HAND DRIVE(MRR5FB) M10 		9-09110-510-0 02 1 9308- ● ●
84 NUT; ENG CONT LEVER
LEFT HAND DRIVE(MRR6FB) M10 		9-09110-410-0 03 1 9101-9307 ● ●
84 NUT; ENG CONT LEVER
LEFT HAND DRIVE(MRR6FB) M10 		9-09110-510-0 03 1 9308- ● ●
138 BOLT; LINK ROD
RIGHT HAND DRIVE(MRR5FB) M10X20 W/LK WASHER 		9-01901-020-0 02 1 9101-9204 ● ●
138 BOLT; LINK ROD
RIGHT HAND DRIVE(MRR5FB) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9205- ● ●
138 BOLT; LINK ROD
LEFT HAND DRIVE(MRR6FB) M10X20 W/LK WASHER 		0-50041-020-0 03 1 9101- ● ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9101- ● ●
154 BOLT; CABLE BRKT
RIGHT HAND DRIVE(MRR5FB) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9204 ● ●
154 BOLT; CABLE BRKT
RIGHT HAND DRIVE(MRR5FB) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205- ● ●
158 NUT; BRKT
RIGHT HAND DRIVE(MRR5FB) 		9-09110-406-0 02 1 9101- ● ●
181 CYLINDER ASM; CONT
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		1-14370-009-0 01 1 9101-9111 ● ●
181 CYLINDER ASM; CONT
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		1-14370-009-0 01 1 9112- ● ●
189 CLIP; RUBBER HOSE
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		5-09707-030-1 01 1 9112- ● ●
221 HOSE; FLEX,CONT CYL
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		0-05557-850-0 01 1 9112- ● ●
222 NUT; FLEX HOSE
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		9-09840-280-0 01 1 9112- ● ●
223 WASHER; LK,FLEX HOSE
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		9-09150-512-0 01 1 9112- ● ●
276 BRACKET; LINK,ENG CONT
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		1-23335-378-1 01 1 9112- ● ●
276 BRACKET; LINK,ENG CONT
RIGHT HAND DRIVE(MRR5FB) EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-23335-294-1 01 1 9101- ● ●
381 PIN; CABLE TO LEVER 1-09744-083-0 01 1 9101- ● ●
382 WASHER; PL,CABLE TO LEVER 9-09160-608-0 01 1 9101- ● ●
383 PIN; SPLIT,CABLE TO LEVER 1-09747-005-0 01 1 9101- ● ●
384 BOLT; CLIP,CONT CABLE
LEFT HAND DRIVE(MRR6FB) 		9-01900-820-0 04 1 9101-9204 ● ●
384 BOLT; CLIP,CONT CABLE
LEFT HAND DRIVE(MRR6FB) 		0-50040-820-0 04 1 9205- ● ●
385 NUT; CLIP
LEFT HAND DRIVE(MRR6FB) 		9-09110-408-0 04 1 9101- ● ●
391 BRACKET; ENG CONT
RIGHT HAND DRIVE(MRR5FB) 		1-23335-295-1 01 1 9101- ● ●
392 CLIP; ACCEL CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		1-09700-479-0 01 1 9101- ● ●
393 NUT; CLIP TO FRAME
RIGHT HAND DRIVE(MRR5FB) M6 		9-09110-406-0 01 1 9101- ● ●
393 NUT; CLIP TO FRAME
LEFT HAND DRIVE(MRR6FB) M8 		9-09110-408-0 02 1 9101- ● ●
394 RUBBER; CONT WIRE
RIGHT HAND DRIVE(MRR5FB) 		1-09369-010-0 01 1 9101- ● ●
395 CLIP; BAND,ACCEL CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		5-09707-036-1 01 1 9101- ● ●
439 WASHER; PL,PIN,JAW JOINT 9-09160-505-0 01 1 9101- ● ●
499 NUT; IDLE CONT CABLE 9-09840-072-0 01 1 9101- ● ●
500 WASHER; IDLE CONT CABLE 9-09855-057-0 01 1 9101- ● ●
533 NUT; CLIP,IDLE CONT CABLE 9-09110-406-0 01 1 9101-9303 ● ●
538 BOLT; CLIP,IDLING CONT 9-01900-614-0 01 1 9101-9204 ● ●
538 BOLT; CLIP,IDLING CONT 0-50040-614-0 01 1 9205- ● ●
657 CLIP; ENG CONT CABLE
LEFT HAND DRIVE(MRR6FB) AUTO ENG SHUTOFF(KB6) TACHOMETER<UD7> ID=9 & 9 L=17 & 17 		1-09700-651-0 04 1 9101- ● ●
657 CLIP; ENG CONT CABLE
LEFT HAND DRIVE(MRR6FB) EXC. TACHOMETER<UD7> ID=9 & 9 L=17 & 17 		1-09700-651-0 04 1 9101- ● ●
657 CLIP; ENG CONT CABLE
LEFT HAND DRIVE(MRR6FB) TACHOMETER<UD7> EXC. AUTO ENG SHUTOFF(KB6) ID=16 & 9 L=18 & 17 		1-09700-669-0 04 1 9101- ● ●
664 BOLT; STOPPER
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		9-02040-630-0 01 1 9101-9111 ● ●
664 BOLT; STOPPER
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		9-02040-630-0 01 1 9112-9204 ● ●
664 BOLT; STOPPER
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		0-20800-630-0 01 1 9205- ● ●
665 COVER; STOPPER
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		5-23249-003-0 01 1 9101-9111 ● ●
665 COVER; STOPPER
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		5-23249-003-0 01 1 9112- ● ●
670 NUT; CONT CYL
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> M20 		9-99111-420-0 01 1 9101-9111 ● ●
670 NUT; CONT CYL
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> M20 		9-99111-420-0 01 1 9112- ● ●
671 BOLT; EYE,FLEX HOSE
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> M8X30 		1-09675-173-0 01 1 9101-9111 ● ●
671 BOLT; EYE,FLEX HOSE
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> M8X30 		1-09675-173-0 01 1 9112- ● ●
672 GASKET; EYE BOLT
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> (A) T=3.0 OD=20 		1-09630-110-0 01 1 9101-9111 ● ●
672 GASKET; EYE BOLT
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> (A) T=3.0 OD=20 		1-09630-110-0 01 1 9112- ● ●
672 GASKET; EYE BOLT
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> (B) ID=14.2 		9-09851-004-0 01 1 9101-9111 ● ●
672 GASKET; EYE BOLT
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> (B) ID=14.2 		9-09851-004-0 01 1 9112- ● ●
673 NUT; STOPPER
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		9-09111-406-0 01 1 9101-9111 ● ●
673 NUT; STOPPER
RIGHT HAND DRIVE(MRR5FB) OVERHEAD COOLING SYSTEM<YS9> 		9-09111-406-0 01 1 9112- ● ●
801 HOSE; FLEX,CONT CYL
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		0-05557-850-0 01 1 9101-9111 ● ●
802 NUT; FLEX HOSE
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		9-09840-280-0 01 1 9101-9111 ● ●
803 WASHER; LK,FLEX HOSE
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		9-09150-512-0 01 1 9101-9111 ● ●
804 CLIP; FLEX HOSE
RIGHT HAND DRIVE(MRR5FB) CRANK PULLEY 3 GROOVES<E1T> 		5-09707-030-0 01 1 9101-9111 ● ●
çizim 36903
443 443 323 443 392 443 443 324 324 323 443 404
BalonParca AdiParca NoAdetTipApplied Date A B
323 BOLT; CLIP
(A) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ●
323 BOLT; CLIP
(A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ●
323 BOLT; CLIP
RIGHT HAND DRIVE(MRR5FB) EXC. AUTO ENG SHUTOFF(KB6) (B) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
323 BOLT; CLIP
RIGHT HAND DRIVE(MRR5FB) EXC. AUTO ENG SHUTOFF(KB6) (B) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ● ●
324 NUT; CLIP FIX
(A) 		9-09110-408-0 02 1 9101- ● ●
324 NUT; CLIP FIX
RIGHT HAND DRIVE(MRR5FB) EXC. AUTO ENG SHUTOFF(KB6) (B) 		9-09110-408-0 01 1 9101- ● ●
392 CLIP; ACCEL CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		1-09700-479-0 01 1 9101- ● ●
404 CLIP; CABLE
RIGHT HAND DRIVE(MRR5FB) EXC. AUTO ENG SHUTOFF(KB6) 		1-09700-839-1 01 1 9101- ● ●
443 CLIP; CABLE
(B) L=250 		5-09707-030-1 01 1 9101- ● ●
443 CLIP; CABLE
(F) ID=9 L=20 		9-09524-835-0 01 1 9101- ● ●
443 CLIP; CABLE
RIGHT HAND DRIVE(MRR5FB) AUTO ENG SHUTOFF(KB6) (A) ID=15 L=42 		1-09700-479-0 01 1 9101- ● ●
443 CLIP; CABLE
RIGHT HAND DRIVE(MRR5FB) AUTO ENG SHUTOFF(KB6) (C) ID=6 & 10 		8-94154-844-0 01 1 9101- ● ●
443 CLIP; CABLE
RIGHT HAND DRIVE(MRR5FB) EXC. AUTO ENG SHUTOFF(KB6) (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 9101- ● ●
443 CLIP; CABLE
RIGHT HAND DRIVE(MRR5FB) TACHOMETER<UD7> EXC. AUTO ENG SHUTOFF(KB6) (E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9101- ● ●
