0-25 — INLET MANIFOLD (#32717) — 139 parça

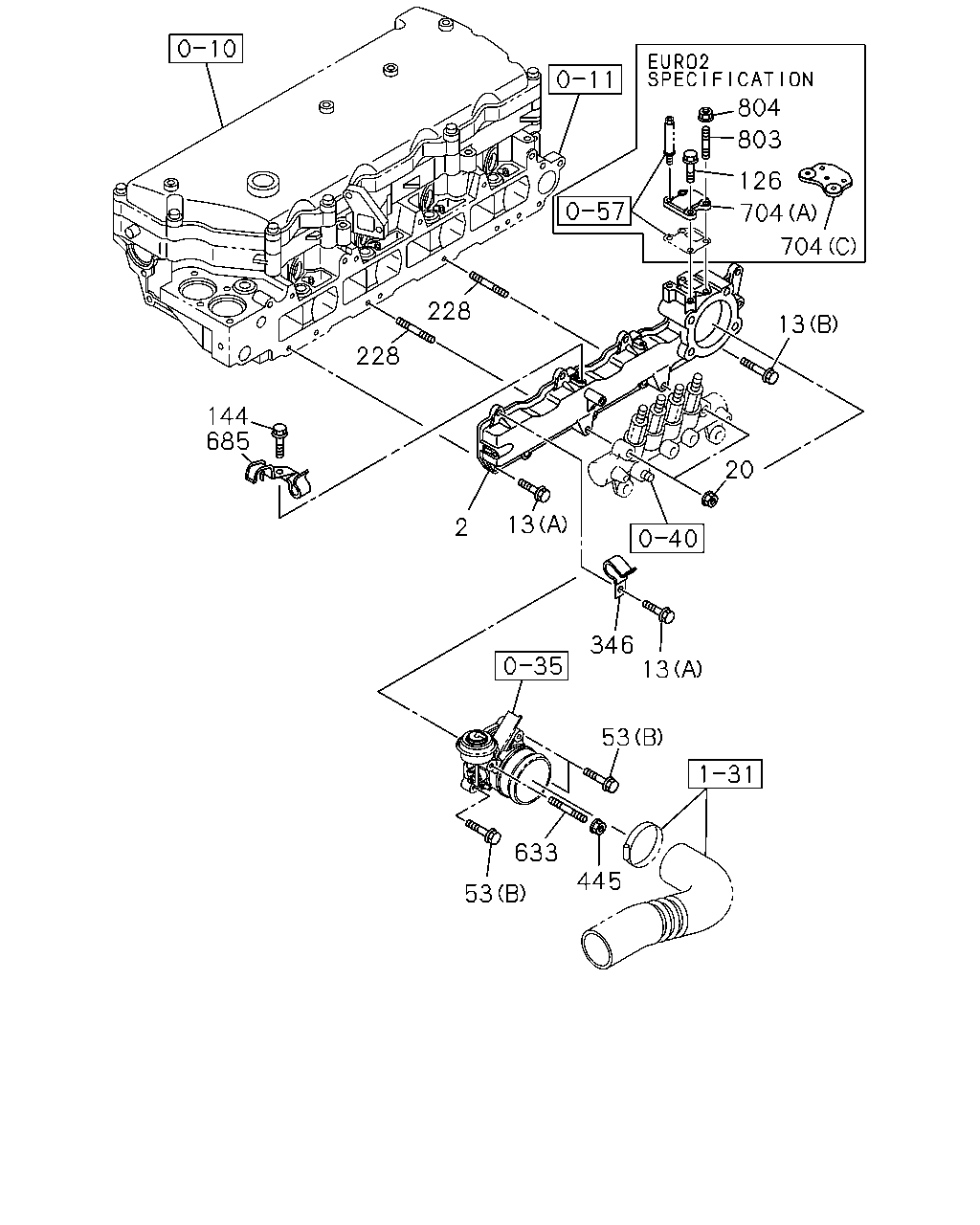

228 228 144 685 18 221 2 13 346 13 53 445 633 53 20 13 704 704 126 803 804

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-866-2	01	1	1012-1310	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-98245-383-0	01	1	1311-	●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-97222-239-0	01	1	1012-1310	●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-98245-386-0	01	1	1311-	●
2	03.407 COVER; INL	8-97387-038-0	01	1	1012-1409		●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3)	8-97387-038-0	01	1	1410-		●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2)	8-97387-039-0	01	1	1410-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	1012-		●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1012-		●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-			●
18	03.403 SCREW; PLATE,INL CVR 02.525 M6X10	9-03490-610-0	09	1	1012-1409		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-		●
126	03.275 BOLT; COVER EURO2 SPECIFICATION(NT2) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-		●
221	03.403 PLATE; INL COVER	8-97379-202-0	01	1	1012-1409		●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	1012-		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-		●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-		●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	1012-		●
704	03.270 COVER EURO2 SPECIFICATION(NT2) 03.407 (A)	8-98062-651-1	01	1	1012-1408		●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (C)	8-98260-138-0	01	1	1409-		●
704	03.270 COVER (B)	8-98056-986-0	01	1	1012-1207			●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (B)	8-98056-986-0	01	1	1208-			●
803	03.275 STUD; COVER EURO2 SPECIFICATION(NT2) 02.510 M8X20 L=32	0-41010-820-0	02	1	1012-		●
804	03.275 NUT; COVER EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●

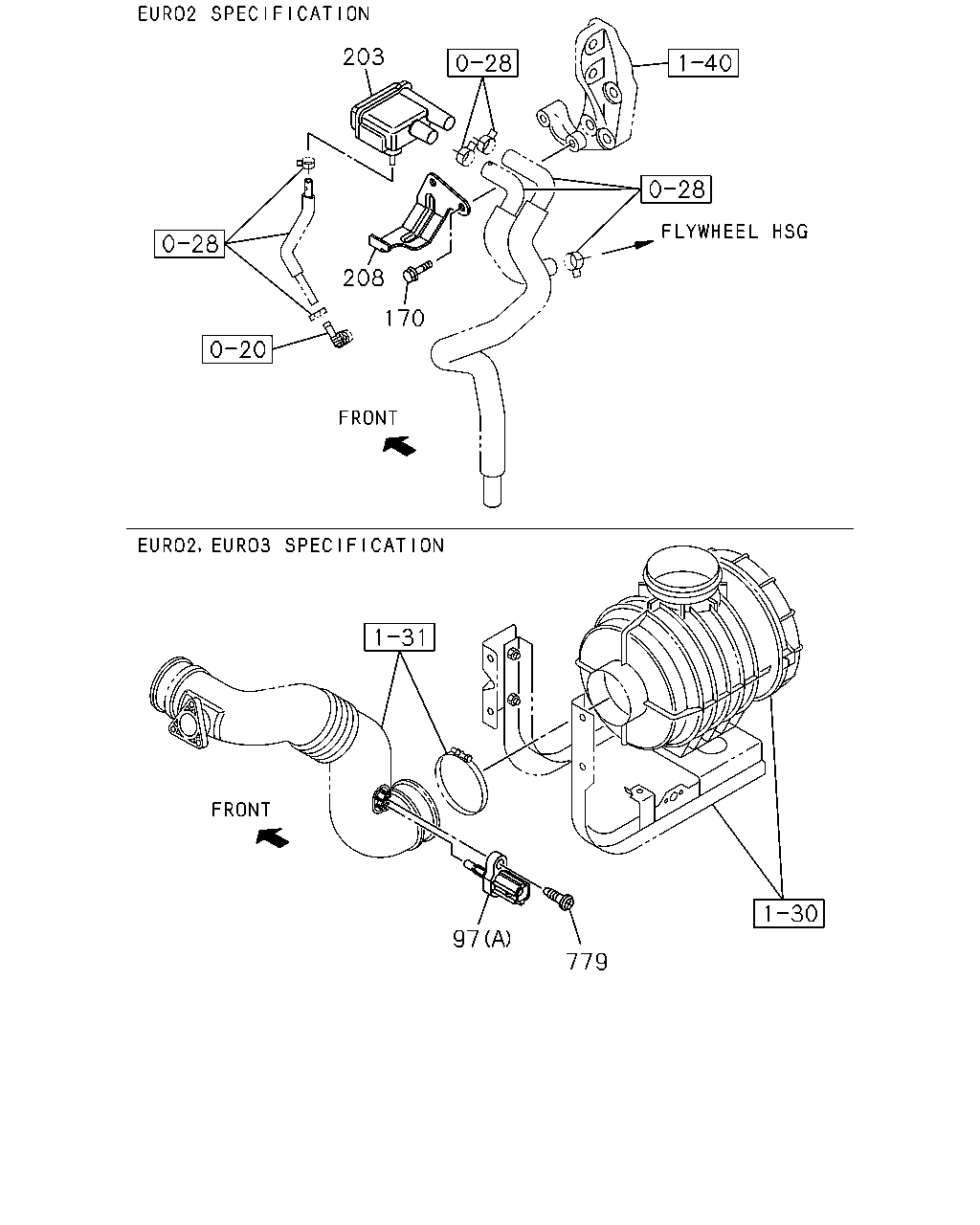

203 208 170 97 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE (A)	8-98065-377-0	01	1	1012-	●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE 01.150 (B)	8-12146-830-0	01	1	1012-		●
170	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV EURO2 SPECIFICATION(NT2)	8-97088-685-1	01	1	1012-	●
208	01.750 BRACKET; CATCH TANK,OIL EURO2 SPECIFICATION(NT2)	8-98074-130-0	01	1	1012-	●
779	03.682 BOLT; SENSOR 03.164 M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-	●

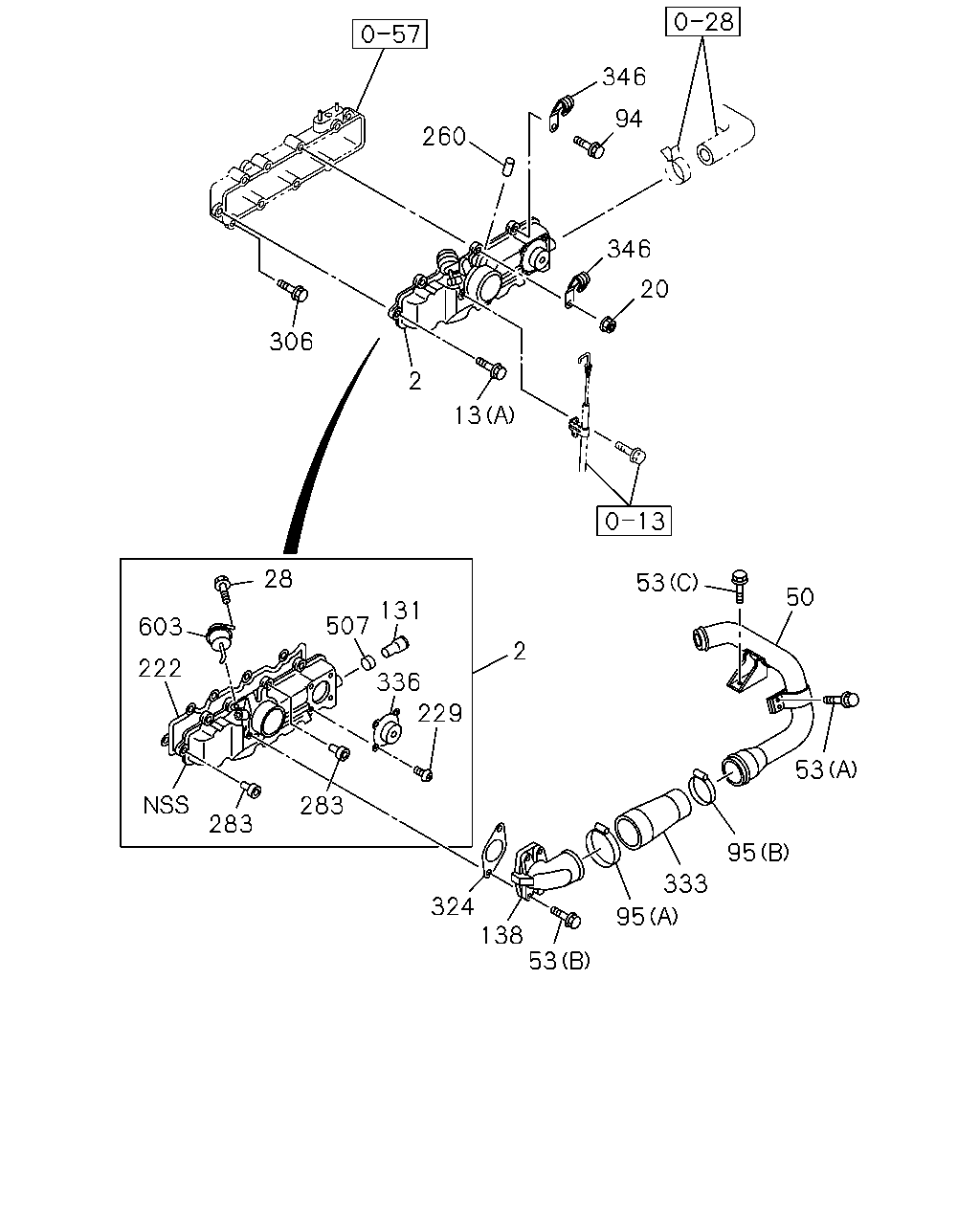

260 346 94 346 20 13 2 306 28 507 336 131 229 283 283 222 603 2 50 53 95 333 95 53 138 324 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-866-2	01	1	1012-1310	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-98245-383-0	01	1	1311-	●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-97222-239-0	01	1	1012-1310	●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-98245-386-0	01	1	1311-	●
2	03.407 COVER; INL	8-97387-038-0	01	1	1012-1409		●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3)	8-97387-038-0	01	1	1410-		●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2)	8-97387-039-0	01	1	1410-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	1012-		●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1012-		●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-			●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●
28	03.278 BOLT; CHAMBER EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-	●
50	03.265 PIPE; INL	8-97178-735-5	01	1	1012-	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1012-	●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1012-	●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=68-85	8-94320-428-0	01	1	1012-	●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1012-	●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1012-	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	1012-	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.665	8-97357-684-3	01	1	1012-1207			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) 03.665	8-97357-684-3	01	1	1208-			●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1012-	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1012-	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1012-	●
306	03.265 BOLT; VLV 09.173 M8X45 FLANGE	0-28050-845-0	05	1	1012-	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	1012-	●
333	03.278 HOSE; RUBBER,INL PIPE	8-98157-877-0	01	1	1012-	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	1012-1310	●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-		●
507	03.415 ORIFICE	8-97088-649-0	01	1	1012-	●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97204-780-0	01	1	1012-	●

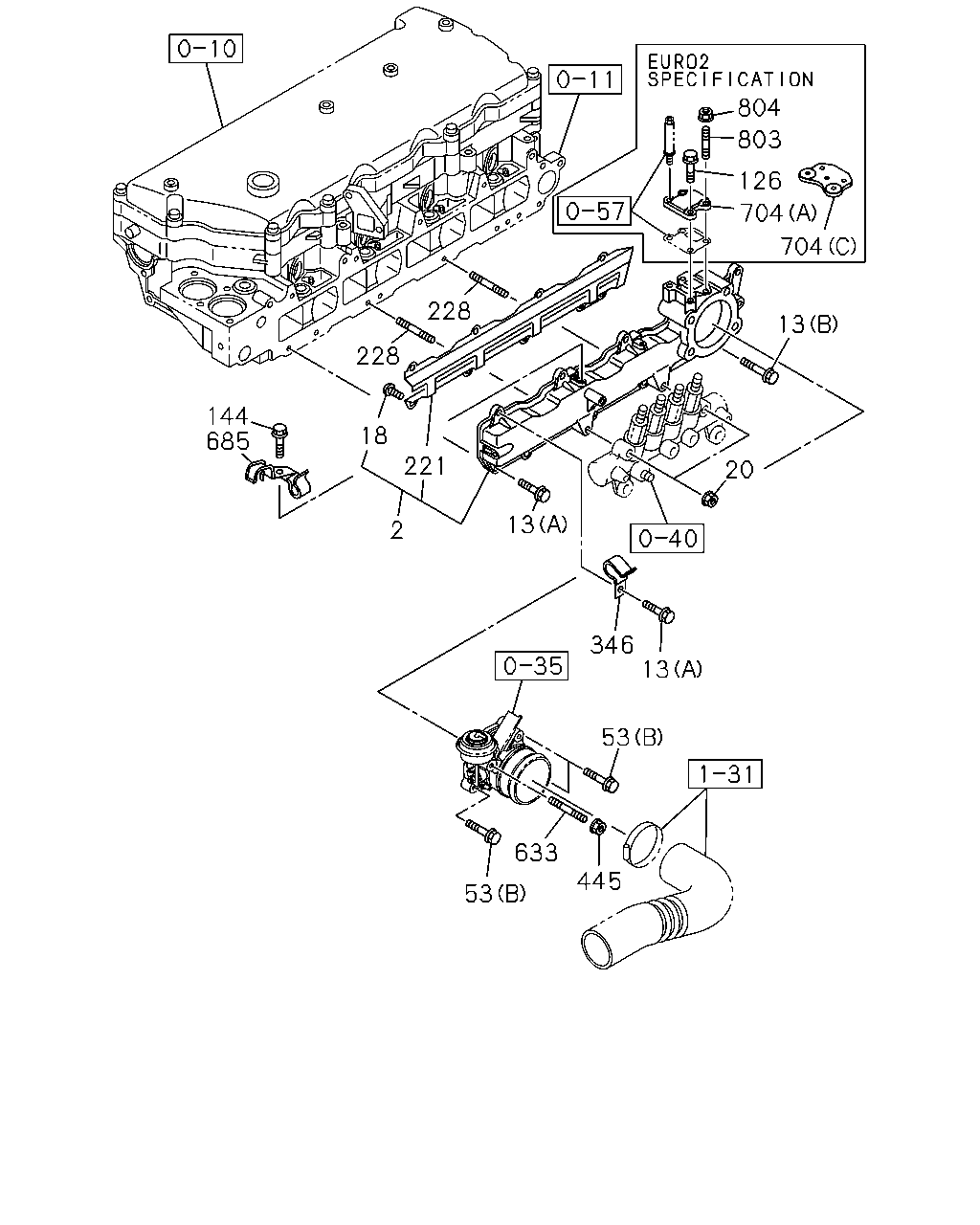

804 126 803 704 228 228 704 13 20 13 2 144 685 346 13 53 445 633 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97146-866-2	01	1	1012-1310	●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-98245-383-0	01	1	1311-	●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-97222-239-0	01	1	1012-1310	●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8>	8-98245-386-0	01	1	1311-	●
2	03.407 COVER; INL	8-97387-038-0	01	1	1012-1409		●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3)	8-97387-038-0	01	1	1410-		●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2)	8-97387-039-0	01	1	1410-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	1012-		●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1012-		●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-			●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-		●
126	03.275 BOLT; COVER EURO2 SPECIFICATION(NT2) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-		●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	1012-		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-		●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-		●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	1012-		●
704	03.270 COVER EURO2 SPECIFICATION(NT2) 03.407 (A)	8-98062-651-1	01	1	1012-1408		●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (C)	8-98260-138-0	01	1	1409-		●
704	03.270 COVER (B)	8-98056-986-0	01	1	1012-1207			●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (B)	8-98056-986-0	01	1	1208-			●
803	03.275 STUD; COVER EURO2 SPECIFICATION(NT2) 02.510 M8X20 L=32	0-41010-820-0	02	1	1012-		●
804	03.275 NUT; COVER EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●

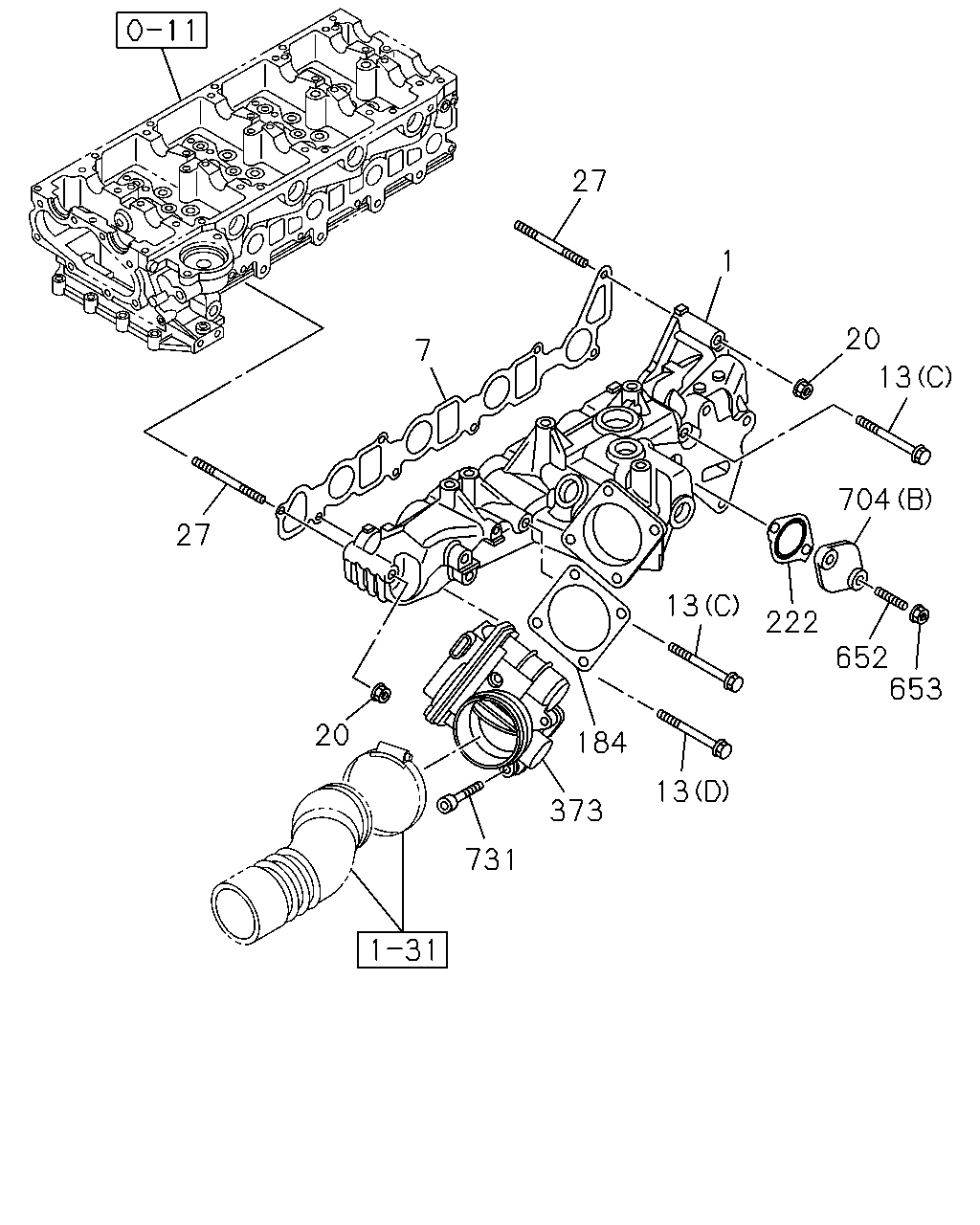

27 1 20 13 704 222 652 653 13 13 184 373 731 20 7 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	1012-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98063-396-0	01	1	1012-1211			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98212-999-0	01	1	1212-			●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	1012-		●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1012-		●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	1012-			●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-			●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1012-			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	1012-			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	1012-	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.665	8-97357-684-3	01	1	1012-1207			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) 03.665	8-97357-684-3	01	1	1208-			●
373	03.265 THROTTLE ASM; INT	8-98040-003-4	01	1	1012-			●
652	03.275 STUD; DUCT,AIR INLET M8X25 L=41	0-40210-825-0	02	1	1012-1207			●
652	03.275 STUD; DUCT,AIR INLET EURO2 SPECIFICATION(NT2) M8X25 L=41	0-40210-825-0	02	1	1208-			●
653	03.265 NUT; DUCT,AIR INLET 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-1207			●
653	03.265 NUT; DUCT,AIR INLET EURO2 SPECIFICATION(NT2) 01.540 M8 FLANGE	0-91180-208-0	02	1	1208-			●
704	03.270 COVER EURO2 SPECIFICATION(NT2) 03.407 (A)	8-98062-651-1	01	1	1012-1408		●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (C)	8-98260-138-0	01	1	1409-		●
704	03.270 COVER (B)	8-98056-986-0	01	1	1012-1207			●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (B)	8-98056-986-0	01	1	1208-			●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1012-			●

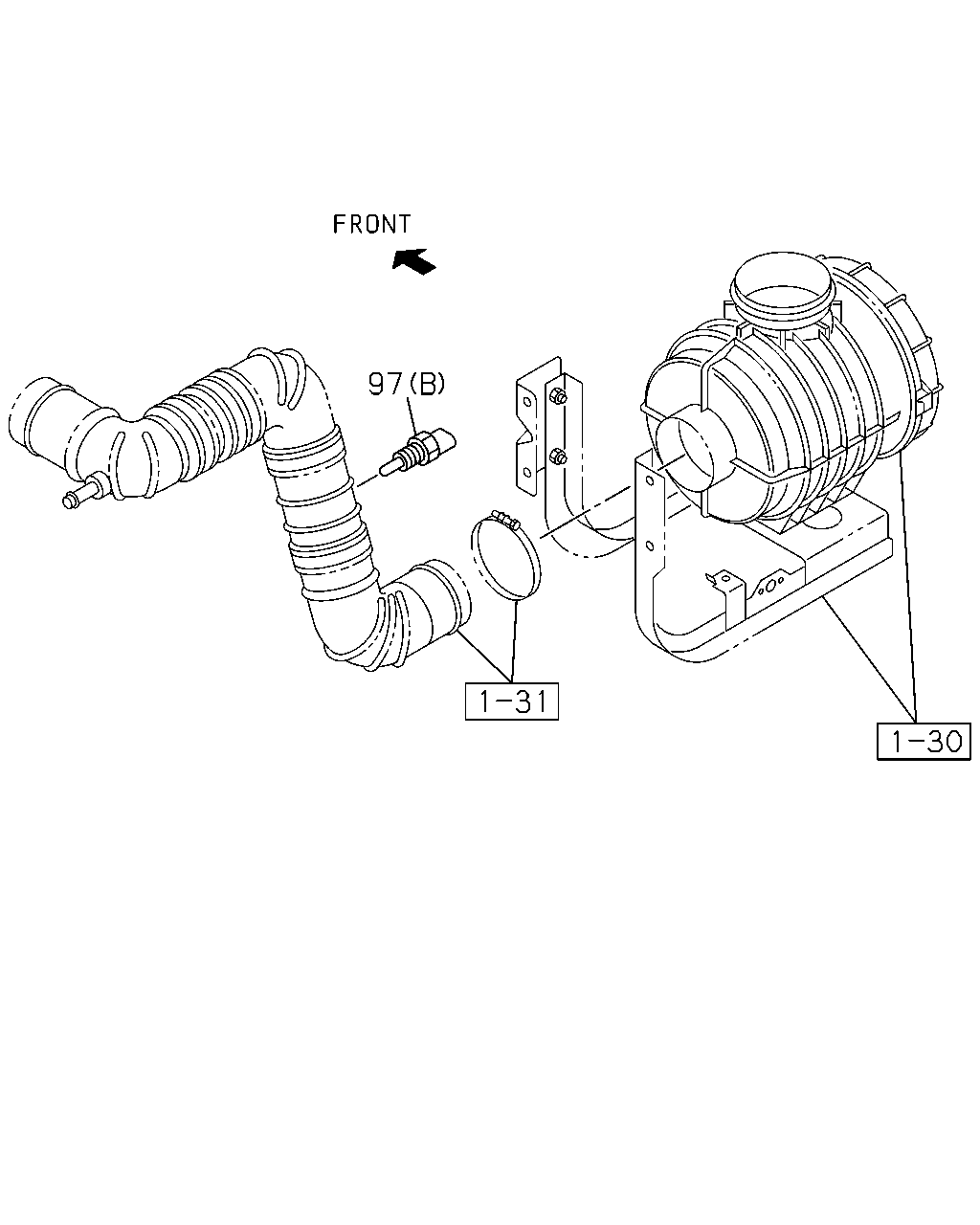

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	97	03.682 SENSOR; INTAKE,AIR TEMPERATURE (A)	8-98065-377-0	01	1	1012-		●
	97	03.682 SENSOR; INTAKE,AIR TEMPERATURE 01.150 (B)	8-12146-830-0	01	1	1012-			●
