0-87 — COUPLING; INJECTION PUMP (#3271) — 28 parça

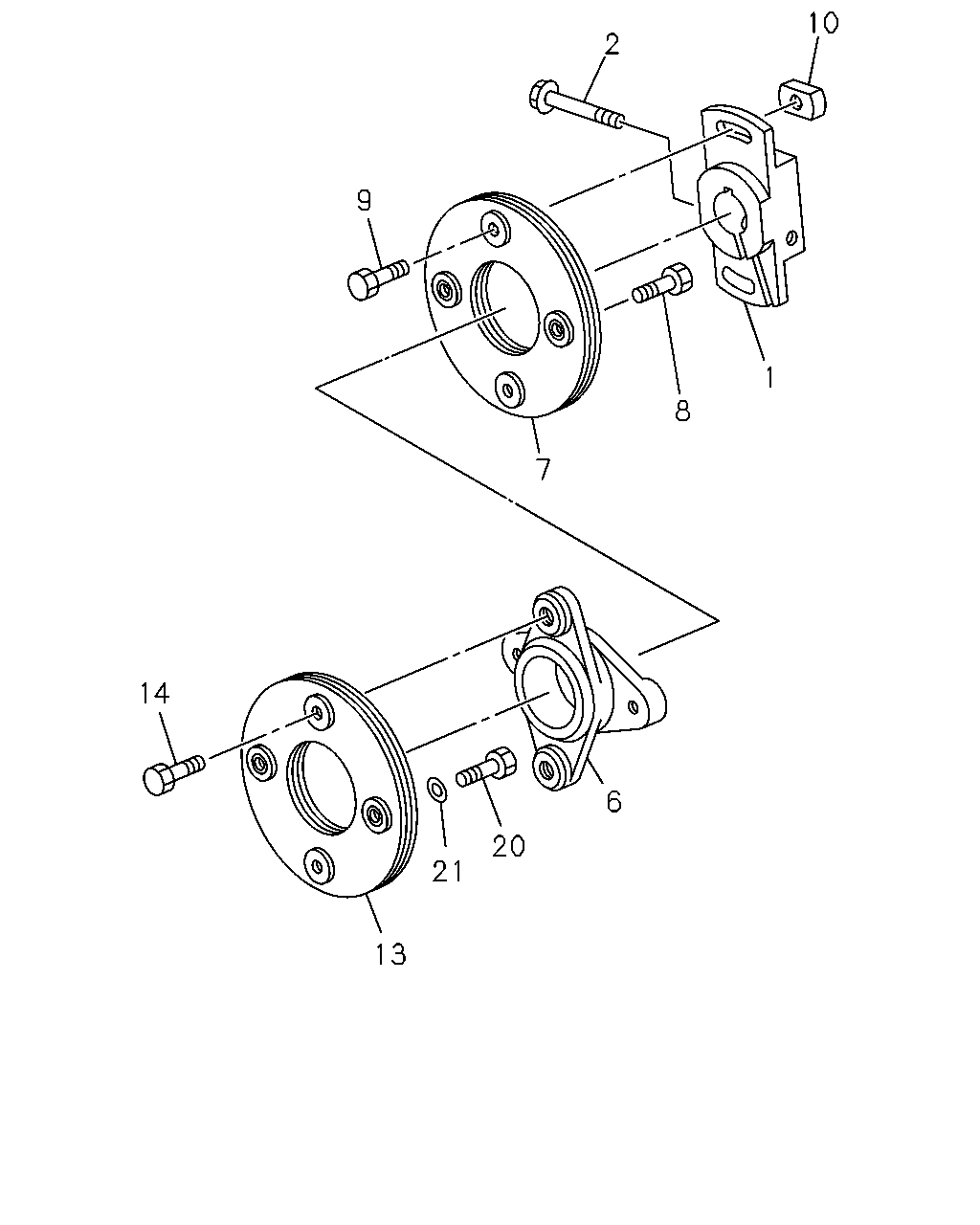

çizim 36901
10 2 9 1 8 7 14 6 20 21 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 1-15781-010-0 01 1 9101- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-132-0 01 1 9101- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
TAIWAN EMISSION REGULATION<TAL> 		1-15789-104-0 01 1 9311- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-068-0 01 1 9101-9310 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-068-0 01 1 9311- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-068-0 01 1 9311- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9101- ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-126-0 02 1 9101-9310 ● ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-126-0 02 1 9311- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-126-0 02 1 9311- ●
8 BOLT; PLATE TO CROSS COUPLING
TAIWAN EMISSION REGULATION<TAL> 		1-15789-120-0 02 1 9311- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9101- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9101- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81385-024-0 01 1 9101-9310 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. TAIWAN EMISSION REGULATION<TAL> 		9-81385-024-0 01 1 9311- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81385-024-0 01 1 9311- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
TAIWAN EMISSION REGULATION<TAL> 		1-15789-065-0 01 1 9311- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
TAIWAN EMISSION REGULATION<TAL> 		1-15789-120-0 02 1 9311- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-126-0 02 1 9101-9310 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-126-0 02 1 9311- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-126-0 02 1 9311- ●
20 BOLT; COUPLING TO INJ PUMP
TAIWAN EMISSION REGULATION<TAL> 		1-15789-119-0 02 1 9311- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-127-0 02 1 9101-9310 ● ●
20 BOLT; COUPLING TO INJ PUMP
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-127-0 02 1 9311- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-127-0 02 1 9311- ●
21 WASHER; LK,COUPLING TO INJ PUMP 1-15789-007-0 02 1 9101-9310 ● ●
21 WASHER; LK,COUPLING TO INJ PUMP
EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-007-0 02 1 9311- ●
21 WASHER; LK,COUPLING TO INJ PUMP 1-15789-007-0 02 1 9311- ●
