0-10 — CYLINDER HEAD COVER (#32709) — 94 parça

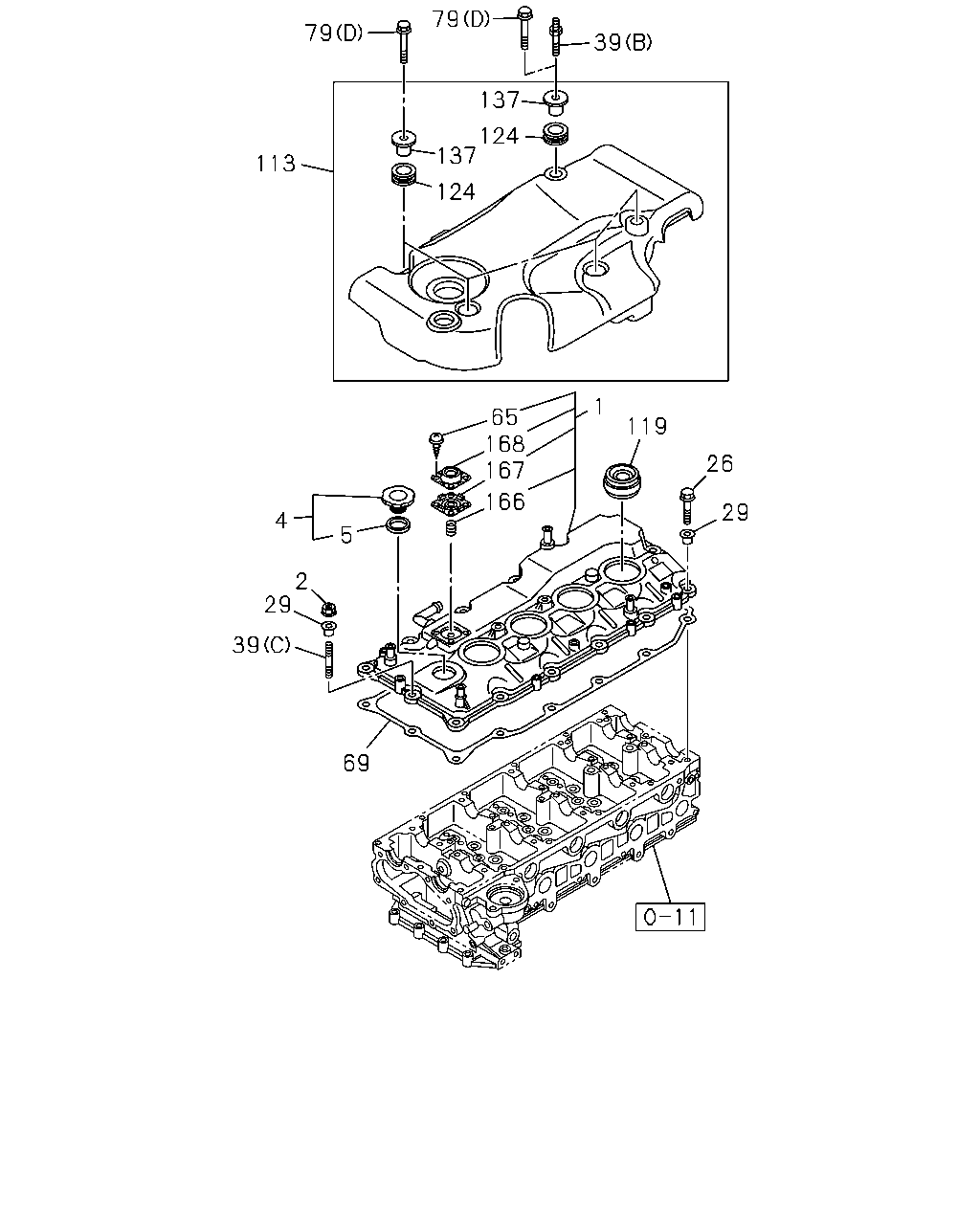

79 79 39 137 124 137 113 124 1 65 168 167 119 26 166 29 4 5 2 29 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1012-		●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1204			●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1305			●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-			●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1012-			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	1012-			●
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	1012-1408			●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1409-			●
39	00.413 STUD; COVER,HD EURO3 SPECIFICATION(NT3) 03.275 (A) M6X25 L=34	0-41010-625-0	02	1	1012-		●
39	00.413 STUD; COVER,HD 03.403 (B) M8X11,M8X25 L=45	8-97220-552-2	01	1	1012-1207			●
39	00.413 STUD; COVER,HD EURO2 SPECIFICATION(NT2) 03.403 (B) M8X11,M8X25 L=45	8-97220-552-2	01	1	1208-			●
39	00.413 STUD; COVER,HD (C) M6X30 L=38	8-97372-795-0	01	1	1012-			●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	1012-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	1012-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	1012-			●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3) 04.338 (D) M8X20 FLANGE	0-28050-820-0	05	1	1112-			●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1012-		●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	1012-		●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3) 00.413 (A) M6X20	8-97127-607-0	04	1	1012-		●
79	00.293 BOLT; COVER 04.338 (D) M8X20 FLANGE	0-28050-820-0	04	1	1012-1207			●
79	00.293 BOLT; COVER EURO2 SPECIFICATION(NT2) 04.338 (D) M8X20 FLANGE	0-28050-820-0	04	1	1208-			●
113	00.386 COVER; CYL HEAD COVER EURO3 SPECIFICATION(NT3)	8-97354-803-3	01	1	1012-		●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	1012-1104			●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-			●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1012-			●
124	00.413 RUBBER; MTG,COVER EURO3 SPECIFICATION(NT3)	8-97226-908-0	06	1	1012-		●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	1012-			●
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	1012-			●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1012-1204			●
166	00.283 SPRING; VENTILATOR	8-98209-384-0	01	1	1205-1205			●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1205-			●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1012-1305			●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1306-1505			●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1506-			●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1012-			●

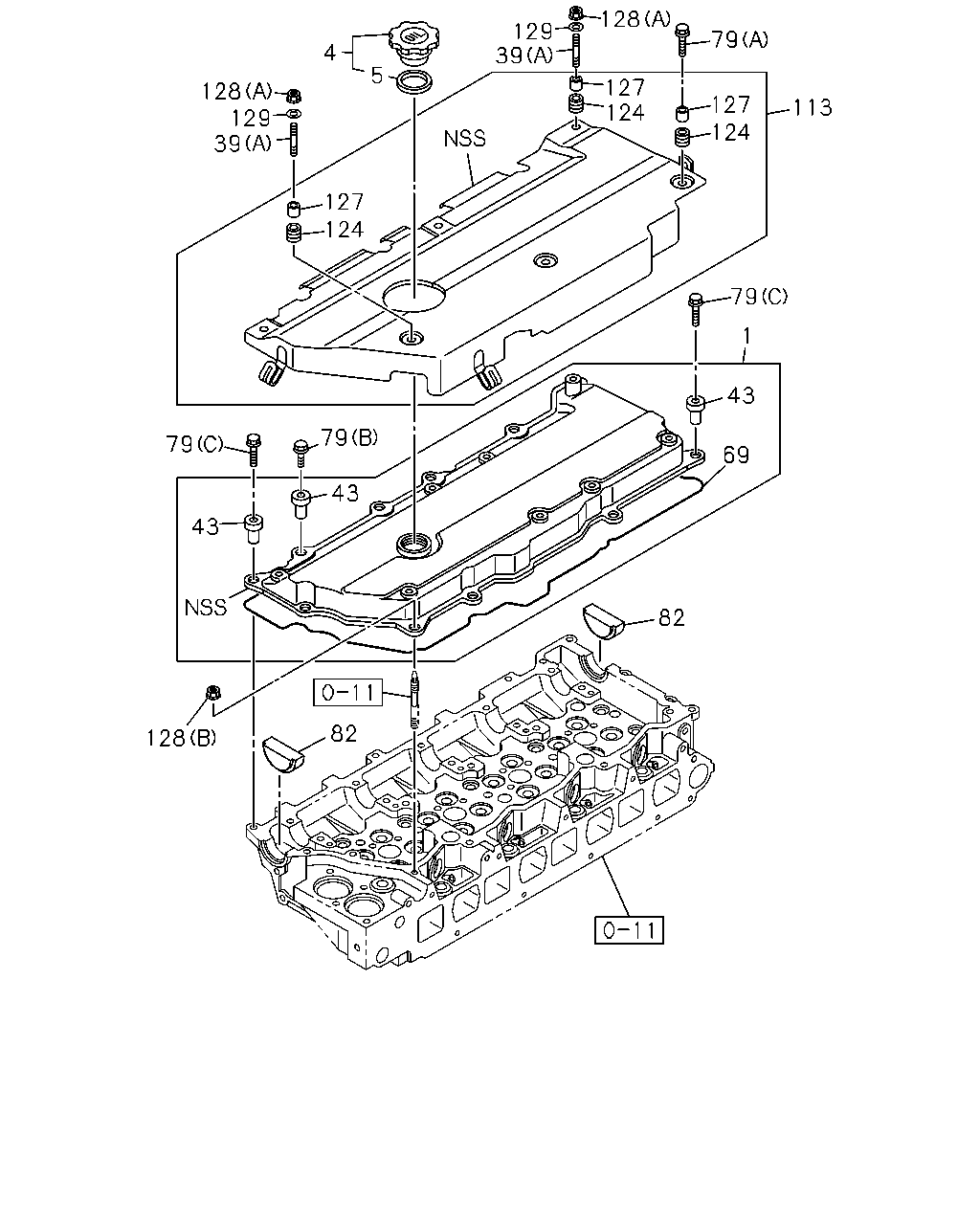

128 129 39 127 124 129 39 128 79 127 124 113 124 127 79 43 69 82 82 128 43 79 79 43 5 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1012-		●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1204			●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1305			●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●	●
39	00.413 STUD; COVER,HD EURO3 SPECIFICATION(NT3) 03.275 (A) M6X25 L=34	0-41010-625-0	02	1	1012-		●
39	00.413 STUD; COVER,HD 03.403 (B) M8X11,M8X25 L=45	8-97220-552-2	01	1	1012-1207			●
39	00.413 STUD; COVER,HD EURO2 SPECIFICATION(NT2) 03.403 (B) M8X11,M8X25 L=45	8-97220-552-2	01	1	1208-			●
39	00.413 STUD; COVER,HD (C) M6X30 L=38	8-97372-795-0	01	1	1012-			●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1012-	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1012-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	1012-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	1012-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	1012-			●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3) 04.338 (D) M8X20 FLANGE	0-28050-820-0	05	1	1112-			●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1012-		●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	1012-		●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3) 00.413 (A) M6X20	8-97127-607-0	04	1	1012-		●
79	00.293 BOLT; COVER 04.338 (D) M8X20 FLANGE	0-28050-820-0	04	1	1012-1207			●
79	00.293 BOLT; COVER EURO2 SPECIFICATION(NT2) 04.338 (D) M8X20 FLANGE	0-28050-820-0	04	1	1208-			●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1012-	●	●
113	00.386 COVER; CYL HEAD COVER EURO3 SPECIFICATION(NT3)	8-97354-803-3	01	1	1012-		●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	1012-1104			●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-			●
124	00.413 RUBBER; MTG,COVER EURO3 SPECIFICATION(NT3)	8-97226-908-0	06	1	1012-		●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	1012-			●
127	00.386 RETAINER; COVER EURO3 SPECIFICATION(NT3)	8-97092-314-0	06	1	1012-		●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-		●
128	00.413 NUT; COVER,CYL HEAD COVER EURO3 SPECIFICATION(NT3) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-		●
129	00.413 WASHER; COVER,CYL HEAD COVER EURO3 SPECIFICATION(NT3) ID=6.4 OD=18	0-91610-706-0	02	1	1012-		●

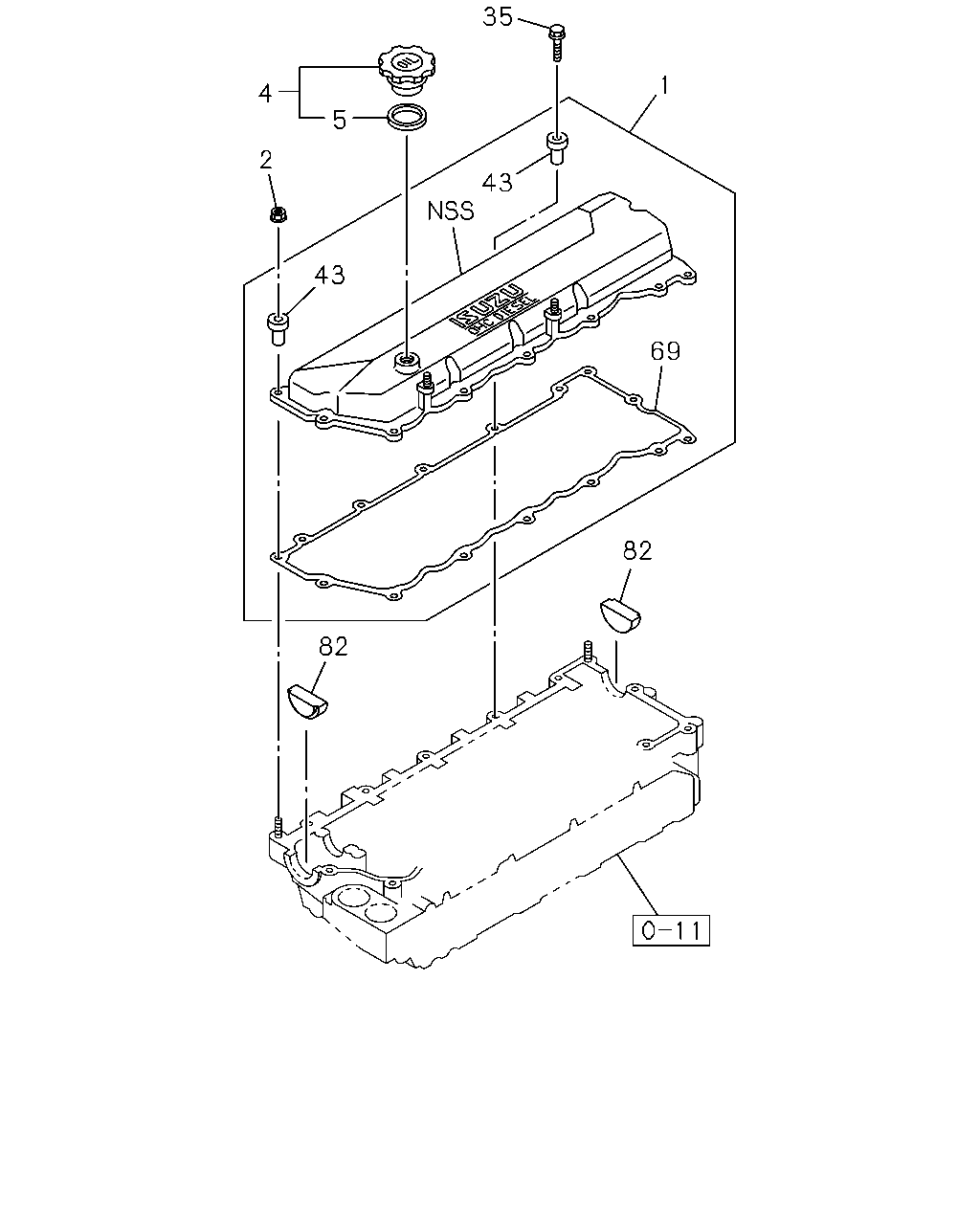

35 1 4 5 2 43 43 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1012-		●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1204			●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1305			●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-			●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1012-			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1012-	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1012-	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1012-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	1012-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	1012-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	1012-			●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1012-	●	●
