2-85 — POWER TAKE OFF CONTROL (#32703) — 49 parça

70 15 71 18 79 19 245 256 79 121 16 83 24 21 222 256 31 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	0609-
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	0609-
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0609-
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0609-
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0609-
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0609-
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2907	8-98019-194-1	01	1	0609-
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 02.559 L=300	1-09707-001-1	01	1	0609-
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	0609-
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	0609-
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0609-
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	0609-
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 04.008 ID=10	0-91805-510-0	01	1	0609-
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0609-
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0609-
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0609-
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	0609-
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	0609-

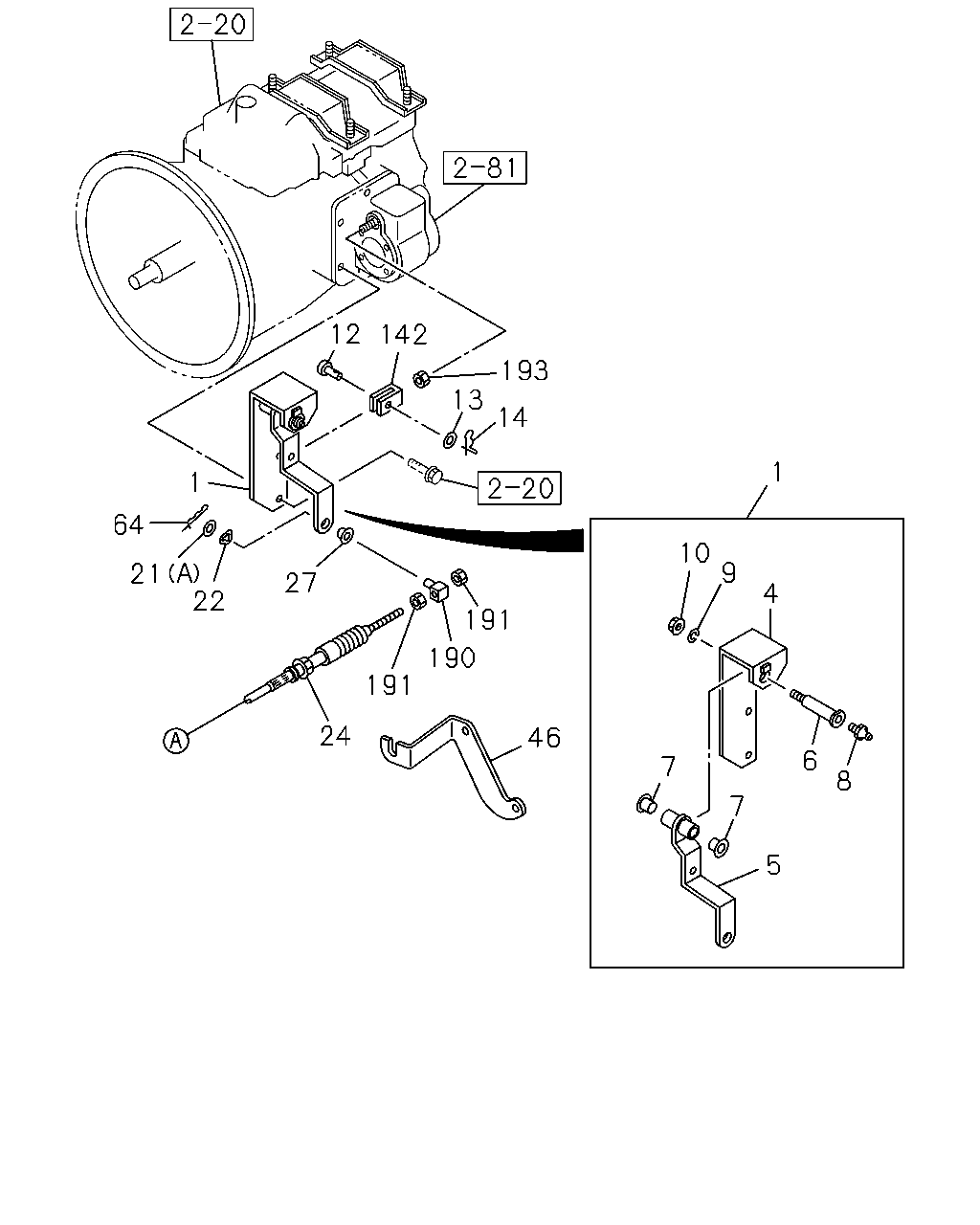

12 142 193 13 14 1 1 64 10 9 21 22 27 4 191 190 191 24 46 6 7 8 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-97357-219-0	01	1	0609-
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0609-
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-97357-218-0	01	1	0609-
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0609-
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0609-
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0609-
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0609-
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0609-
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0609-0610
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0609-
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0609-0805
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0806-
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0609-
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0609-
22	04.439 WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0609-
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2907	8-98019-194-1	01	1	0609-
27	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0609-
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97264-954-1	01	1	0609-0609
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97357-083-0	01	1	0609-
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0609-
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0609-
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-2	01	1	0609-
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 03.330 M6	0-91110-506-0	02	1	0609-
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0609-

195 172 24 173 172 172 173 195 173 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2907	8-98019-194-1	01	1	0609-
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0609-
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8 FLANGE	0-91180-108-0	03	1	0609-
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-98019-196-1	01	1	0609-
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-98054-639-1	01	1	0609-
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-98057-737-1	01	1	0609-
