Isuzu WW
▶
TRUCKS
▶
NKR
▶
51127 - NKR85(LHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#32700) — 38 parça
◀

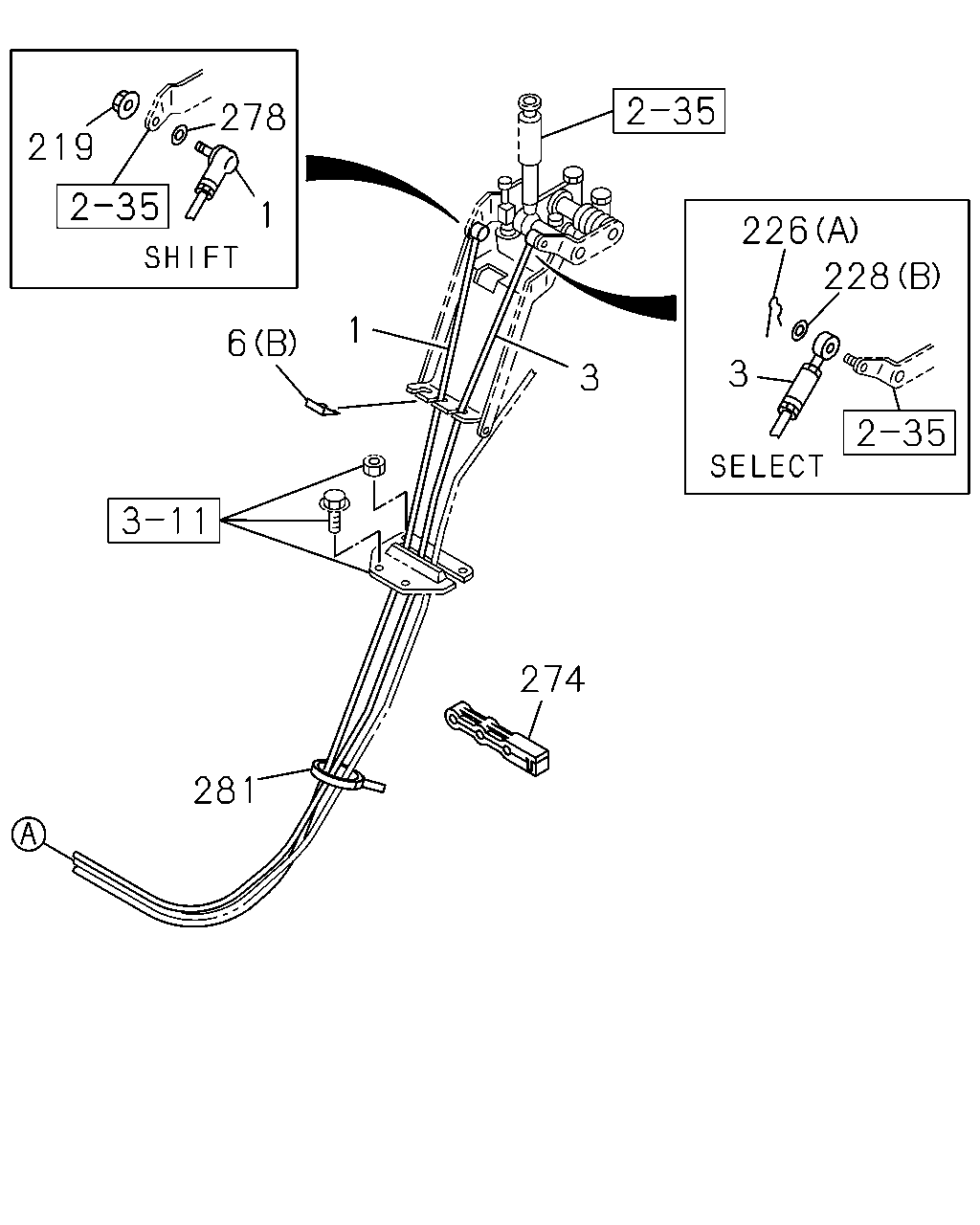

[236A] CAB SIDE (14 parça)

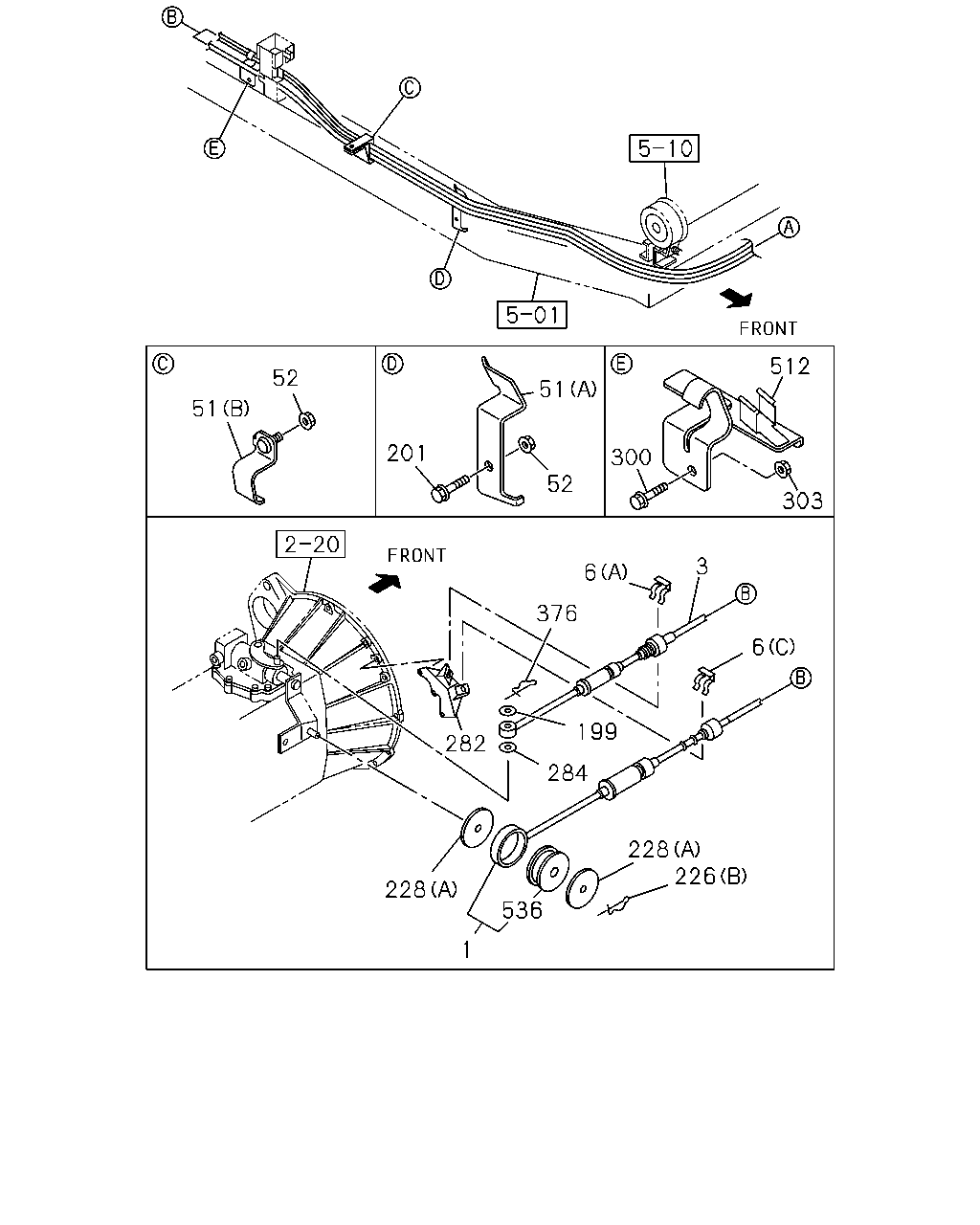

[236A] FRAME AND MISSION SIDE (24 parça)
▶
278
219
1
226
228
1
6
3
3
274
281
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.854 CABLE; SHIFT,TRANS CONT
L=2695
8-97388-717-2
01
1
0609-0911
1
00.854 CABLE; SHIFT,TRANS CONT
L=2695
8-98146-824-0
01
1
0912-
3
00.852 CABLE; SELECT,TRANS CONT
L=2785
8-97388-726-2
01
1
0609-
6
04.047 CLIP; CABLE
00.854 (C) ID=22.2
1-09701-209-1
01
1
0609-
6
04.047 CLIP; CABLE
(B)
8-97011-448-0
02
1
0609-
6
04.047 CLIP; CABLE
(A) ID=19.2
8-97211-011-0
01
1
0609-
219
04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0
8-94363-045-0
01
1
0609-
226
04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7
8-94111-137-0
01
1
0609-
226
04.047 PIN; SHIFT CABLE
(B) L=23
8-94170-378-0
01
1
0609-
228
04.047 WASHER; PL,SHIFT CABLE
06.056 (B) ID=8.4 OD=16
0-91614-508-0
01
1
0609-
228
04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40
8-97182-975-0
02
1
0609-
274
04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ>
8-97093-491-1
01
1
0609-
278
00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT
0-91541-208-0
01
1
0609-
281
04.042 CLIP; BAND
03.162 L=140
5-09707-031-1
01
1
0609-
512
52
51
51
201
300
52
303
3
6
376
6
199
282
284
228
226
228
536
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.854 CABLE; SHIFT,TRANS CONT
L=2695
8-97388-717-2
01
1
0609-0911
1
00.854 CABLE; SHIFT,TRANS CONT
L=2695
8-98146-824-0
01
1
0912-
3
00.852 CABLE; SELECT,TRANS CONT
L=2785
8-97388-726-2
01
1
0609-
6
04.047 CLIP; CABLE
00.854 (C) ID=22.2
1-09701-209-1
01
1
0609-
6
04.047 CLIP; CABLE
(B)
8-97011-448-0
02
1
0609-
6
04.047 CLIP; CABLE
(A) ID=19.2
8-97211-011-0
01
1
0609-
51
04.010 BRACKET; GEAR CONT
(A)
8-98030-604-0
01
1
0609-
51
04.010 BRACKET; GEAR CONT
(B)
8-98032-072-0
01
1
0609-
52
04.047 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0609-
52
04.047 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0609-
199
04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16
0-91610-508-0
01
1
0609-
201
04.032 BOLT; BRKT
01.531 M8X20 FLANGE
0-28650-820-0
01
1
0609-0707
201
04.032 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0708-
226
04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7
8-94111-137-0
01
1
0609-
226
04.047 PIN; SHIFT CABLE
(B) L=23
8-94170-378-0
01
1
0609-
228
04.047 WASHER; PL,SHIFT CABLE
06.056 (B) ID=8.4 OD=16
0-91614-508-0
01
1
0609-
228
04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40
8-97182-975-0
02
1
0609-
282
04.010 BRACKET; TRANS SIDE
8-97350-449-0
01
1
0609-
284
00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14
5-09550-002-0
01
1
0609-
300
00.854 BOLT; CLIP
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0609-
303
00.855 NUT; CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0609-
376
04.047 PIN; SNAP,SELECT CABLE
L=23
8-94170-378-0
01
1
0609-
512
04.012 GUIDE; CABLE,GEAR CONT
8-98023-054-2
01
1
0609-
536
00.854 DAMPER; CABLE
8-98097-681-0
01
1
0609-
