9-01 — TOOLS (#32697) — 84 parça

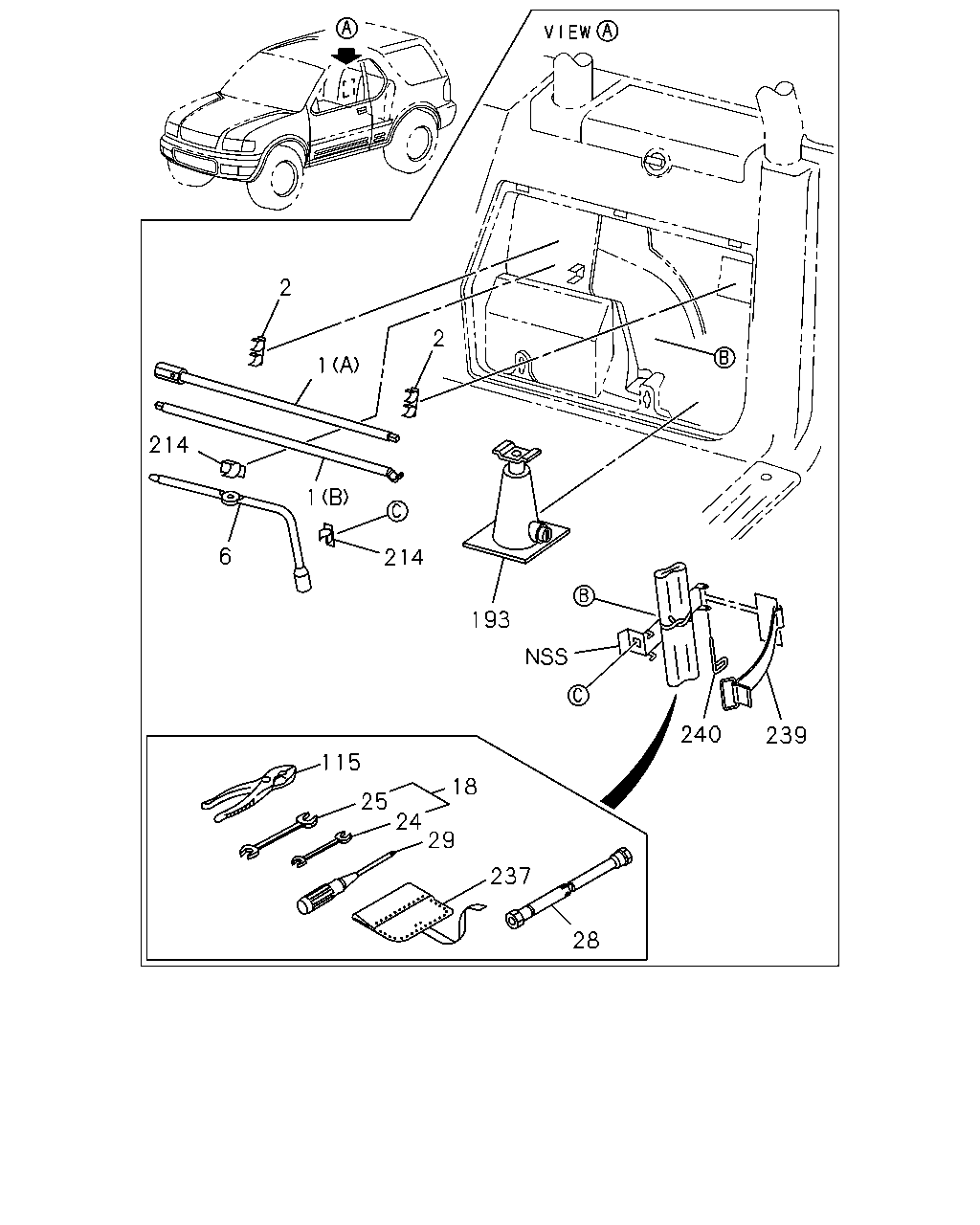

2 2 1 214 1 6 214 193 240 239 115 18 25 24 29 237 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-94367-915-0	01	1	9811-0003	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97253-186-0	01	1	0004-0012	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97253-186-2	01	1	0101-		●
1	07.629 HANDLE; SPARE TIRE CARRIER (B)	8-94367-921-0	01	1	9811-0012	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B)	8-94367-921-1	01	1	0101-		●
2	08.821 CLIP; HANDLE,SPARE TIRE USA	8-97164-948-0	02	1	9811-0012	●
6	08.821 WRENCH; WHEEL USA	8-97092-297-2	01	1	9811-0012	●	●
6	08.821 WRENCH; WHEEL USA	8-97092-297-3	01	1	0101-0204		●
6	08.821 WRENCH; WHEEL	8-94367-941-0	01	1	0205-		●
18	08.821 WRENCH KIT	8-97115-905-1	01	1	9811-0012	●	●
18	08.821 WRENCH KIT	8-97115-905-1	01	1	0101-0110		●
18	08.821 WRENCH KIT	8-97115-905-1	01	1	0112-		●
24	08.821 WRENCH; 8X10 8X10	9-99592-108-0	01	1	9811-0012	●	●
24	08.821 WRENCH; 8X10 8X10	9-99592-108-0	01	1	0101-0110		●
24	08.821 WRENCH; 8X10 8X10	9-99592-108-0	01	1	0112-		●
25	08.821 WRENCH; 12X14 12X14	9-09592-112-0	01	1	9811-0012	●	●
25	08.821 WRENCH; 12X14 12X14	9-09592-112-0	01	1	0101-0110		●
25	08.821 WRENCH; 12X14 12X14	9-09592-112-0	01	1	0112-		●
28	08.821 WRENCH; SPARK PLUG	8-97089-572-0	01	1	9811-0012	●	●
28	08.821 WRENCH; SPARK PLUG	8-97089-572-0	01	1	0101-0110		●
28	08.821 WRENCH; SPARK PLUG	8-97089-572-0	01	1	0112-		●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	9811-0012	●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0101-0110		●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0112-		●
115	08.821 PLIER	5-85171-002-0	01	1	9811-0012	●	●
115	08.821 PLIER	5-85171-002-0	01	1	0101-0110		●
115	08.821 PLIER	5-85171-002-0	01	1	0112-		●
193	08.820 JACK ASM USA	8-97207-962-0	01	1	9811-9812	●	●
193	08.820 JACK ASM USA	8-97221-394-0	01	1	9901-0012	●	●
193	08.820 JACK ASM USA	8-97221-394-0	01	1	0101-		●
214	08.820 CLIP; TIRE WRENCH USA	8-97140-359-0	02	1	9811-0012	●
237	08.821 BAG; TOOL	8-97103-736-0	01	1	9811-0012	●	●
237	08.821 BAG; TOOL	8-97103-736-0	01	1	0101-0110		●
237	08.821 BAG; TOOL	8-97312-893-0	01	1	0112-		●
239	08.820 BAND; TOOL BAG L=82	9-68399-060-0	01	1	9811-0012	●	●
239	08.820 BAND; TOOL BAG L=82	9-68399-060-0	01	1	0101-		●
240	08.820 PIN; SPLIT,TOOL BAG BAND D=2.5 L=43	8-94335-692-2	01	1	9811-0012	●	●
240	08.820 PIN; SPLIT,TOOL BAG BAND D=2.5 L=43	8-94335-692-2	01	1	0101-		●

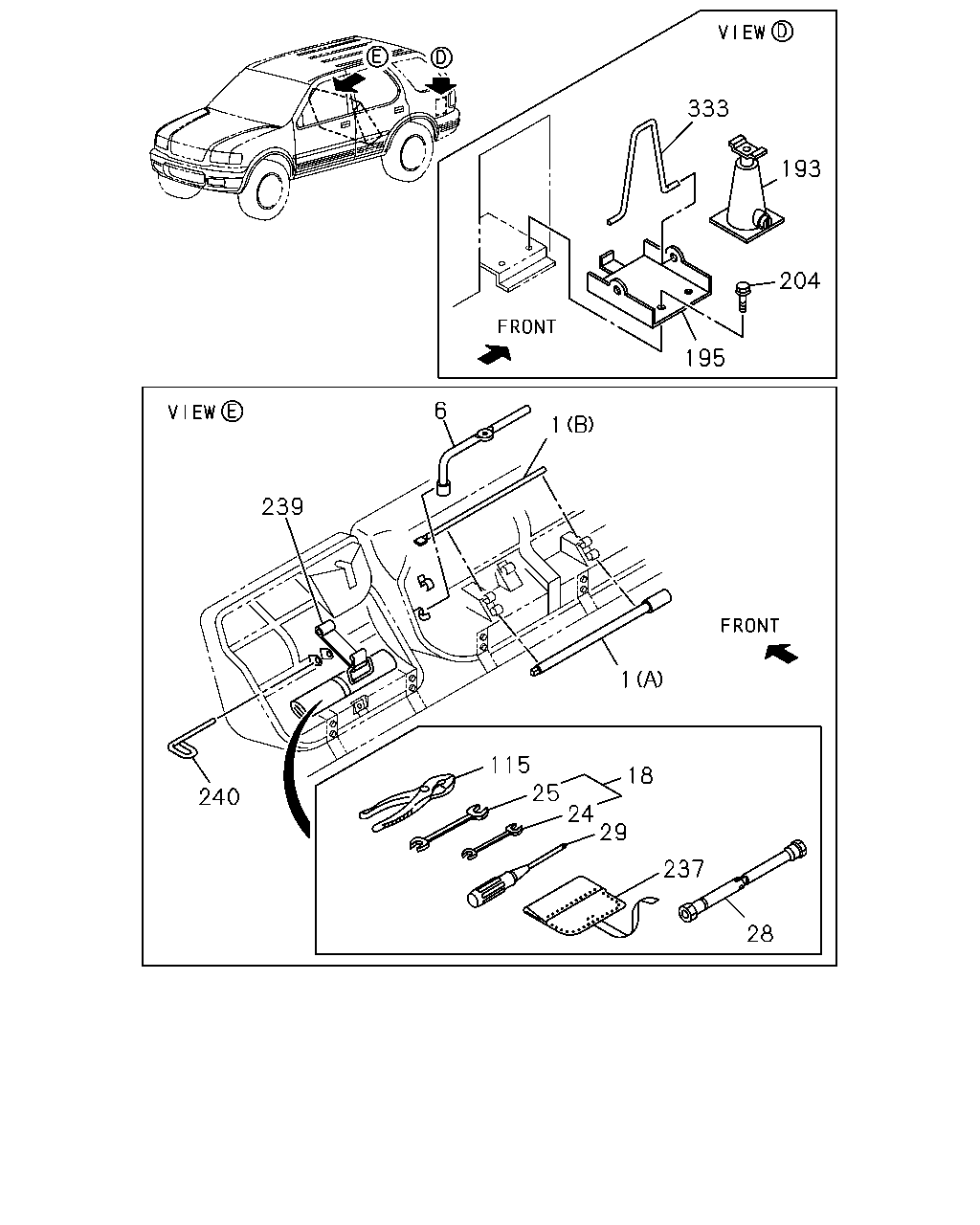

333 193 204 195 6 18 239 1 115 25 24 29 18 240 237 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-94367-915-0	01	1	9811-0003	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97253-186-0	01	1	0004-0012	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97253-186-2	01	1	0101-		●
1	07.629 HANDLE; SPARE TIRE CARRIER (B)	8-94367-921-0	01	1	9811-0012	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B)	8-94367-921-1	01	1	0101-		●
6	08.821 WRENCH; WHEEL USA	8-97092-297-2	01	1	9811-0012	●	●
6	08.821 WRENCH; WHEEL USA	8-97092-297-3	01	1	0101-0204		●
6	08.821 WRENCH; WHEEL	8-94367-941-0	01	1	0205-		●
18	08.821 WRENCH KIT	8-97115-905-1	01	1	9811-0012	●	●
18	08.821 WRENCH KIT	8-97115-905-1	01	1	0101-0110		●
18	08.821 WRENCH KIT	8-97115-905-1	01	1	0112-		●
24	08.821 WRENCH; 8X10 8X10	9-99592-108-0	01	1	9811-0012	●	●
24	08.821 WRENCH; 8X10 8X10	9-99592-108-0	01	1	0101-0110		●
24	08.821 WRENCH; 8X10 8X10	9-99592-108-0	01	1	0112-		●
25	08.821 WRENCH; 12X14 12X14	9-09592-112-0	01	1	9811-0012	●	●
25	08.821 WRENCH; 12X14 12X14	9-09592-112-0	01	1	0101-0110		●
25	08.821 WRENCH; 12X14 12X14	9-09592-112-0	01	1	0112-		●
28	08.821 WRENCH; SPARK PLUG	8-97089-572-0	01	1	9811-0012	●	●
28	08.821 WRENCH; SPARK PLUG	8-97089-572-0	01	1	0101-0110		●
28	08.821 WRENCH; SPARK PLUG	8-97089-572-0	01	1	0112-		●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	9811-0012	●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0101-0110		●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0112-		●
115	08.821 PLIER	5-85171-002-0	01	1	9811-0012	●	●
115	08.821 PLIER	5-85171-002-0	01	1	0101-0110		●
115	08.821 PLIER	5-85171-002-0	01	1	0112-		●
193	08.820 JACK ASM USA	8-97207-962-0	01	1	9811-9812	●	●
193	08.820 JACK ASM USA	8-97221-394-0	01	1	9901-0012	●	●
193	08.820 JACK ASM USA	8-97221-394-0	01	1	0101-		●
195	08.820 BRACKET; JACK USA	8-97173-702-0	01	1	9811-0010		●
195	08.820 BRACKET; JACK USA	8-97305-399-0	01	1	0011-0108		●
195	08.820 BRACKET; JACK USA	8-97305-399-0	01	1	0109-0204		●
195	08.820 BRACKET; JACK USA	8-97173-702-0	01	1	0205-		●
204	08.820 BOLT; BRKT,JACK 01.428 M6X12 FLANGE USA	0-28080-612-0	02	1	9811-0108		●
204	08.820 BOLT; BRKT,JACK 01.428 M6X12 FLANGE USA	0-28080-612-0	02	1	0109-		●
237	08.821 BAG; TOOL	8-97103-736-0	01	1	9811-0012	●	●
237	08.821 BAG; TOOL	8-97103-736-0	01	1	0101-0110		●
237	08.821 BAG; TOOL	8-97312-893-0	01	1	0112-		●
239	08.820 BAND; TOOL BAG L=82	9-68399-060-0	01	1	9811-0012	●	●
239	08.820 BAND; TOOL BAG L=82	9-68399-060-0	01	1	0101-		●
240	08.820 PIN; SPLIT,TOOL BAG BAND D=2.5 L=43	8-94335-692-2	01	1	9811-0012	●	●
240	08.820 PIN; SPLIT,TOOL BAG BAND D=2.5 L=43	8-94335-692-2	01	1	0101-		●
333	08.820 ROD; JACK USA	8-97173-703-2	01	1	9811-0108		●
333	08.820 ROD; JACK USA	8-97173-703-2	01	1	0109-0201		●
333	08.820 ROD; JACK USA	8-97329-491-0	01	1	0202-0210		●
333	08.820 ROD; JACK USA	8-97361-620-0	01	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
