Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#32696) — 69 parça

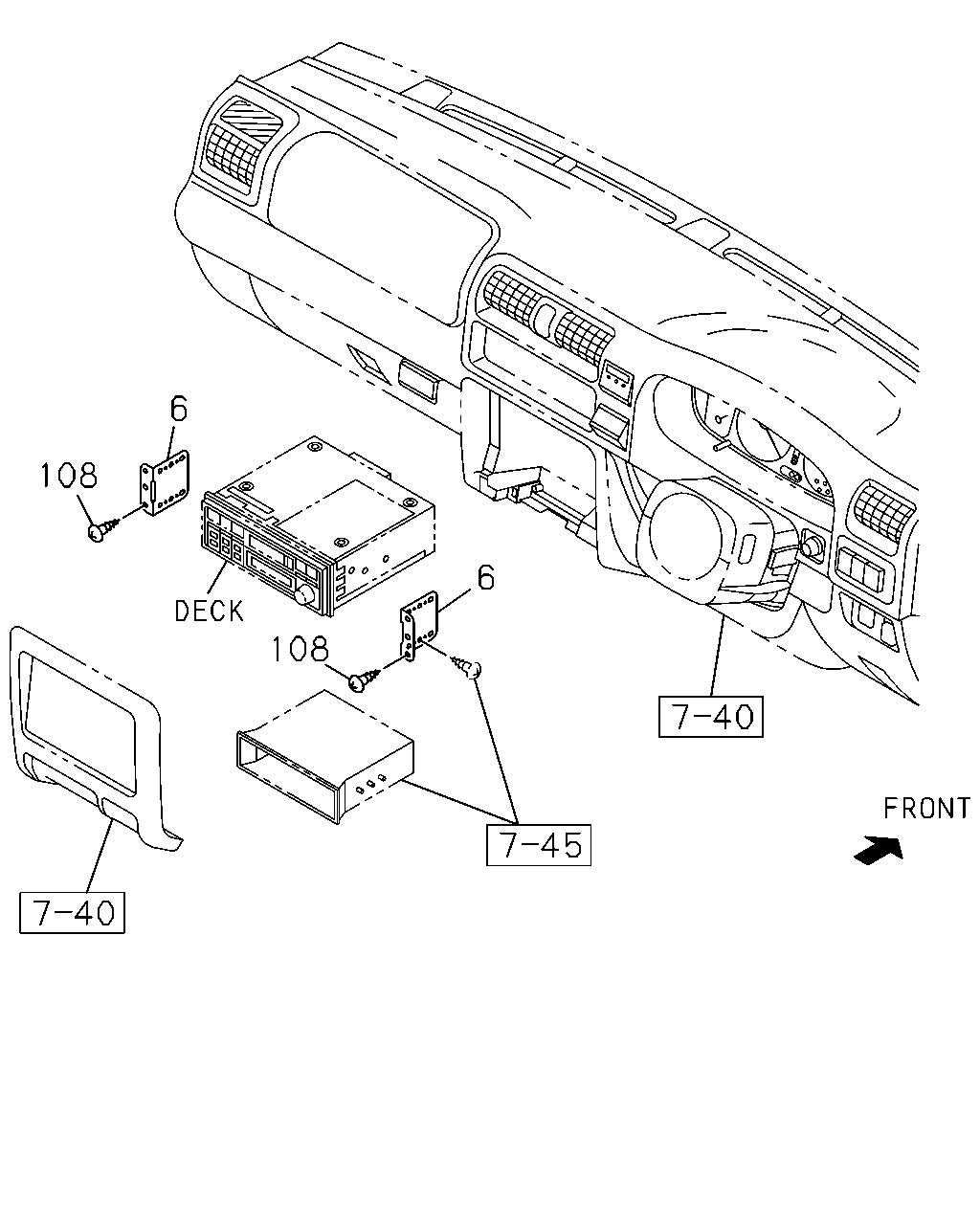

6 108 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	09.645 BRACKET; RADIO TO PANEL USA	8-97124-657-2	02	1	9811-0012	●	●
6	09.645 BRACKET; RADIO TO PANEL USA	8-97124-657-2	02	1	0101-		●
108	09.645 SCREW; BRKT 09.743 M5X16 USA	8-94295-854-0	04	1	9811-0012	●	●
108	09.645 SCREW; BRKT 09.743 M5X16 USA	8-94295-854-0	04	1	0101-		●

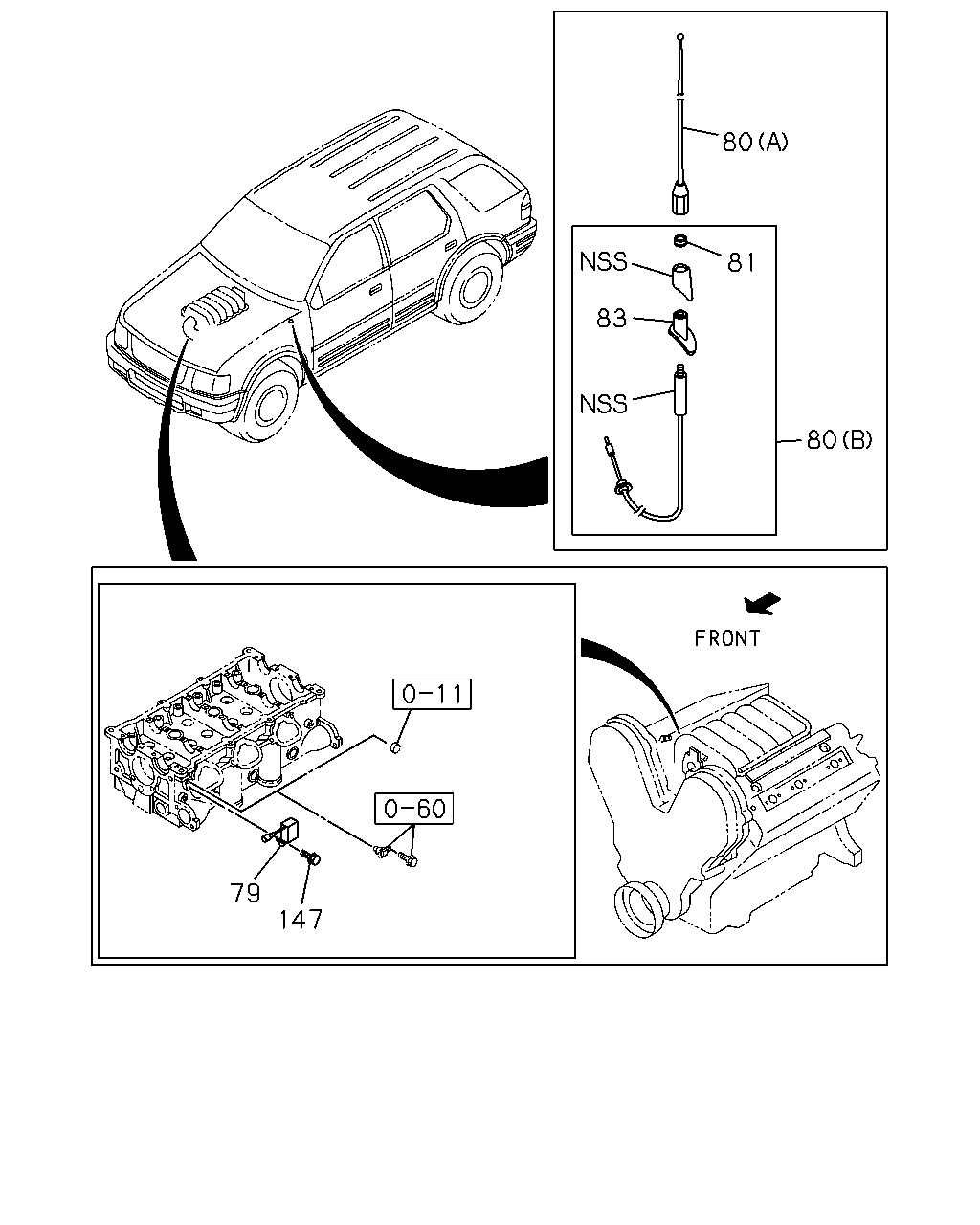

80 81 83 80 79 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
79	02.319 CONDENSER; RADIO	8-97174-553-1	01	1	9811-		●
80	09.645 ANTENNA (A) USA	8-15739-183-0	01	1	9811-0012	●	●
80	09.645 ANTENNA (A) USA	8-15739-183-0	01	1	0101-		●
80	09.645 ANTENNA (B) USA	8-97184-739-1	01	1	9811-0012	●	●
80	09.645 ANTENNA (B) USA	8-97184-739-1	01	1	0101-		●
81	09.647 NUT; ANTENNA POLE USA	8-97179-896-0	01	1	9811-0012	●	●
81	09.647 NUT; ANTENNA POLE USA	8-97179-896-0	01	1	0101-		●
83	09.647 GROMMET; BASE,ANTENNA POLE INNER USA	8-97215-691-0	01	1	9811-0012	●	●
83	09.647 GROMMET; BASE,ANTENNA POLE INNER USA	8-97215-691-0	01	1	0101-		●
147	09.663 BOLT; CONDENSER 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9811-		●

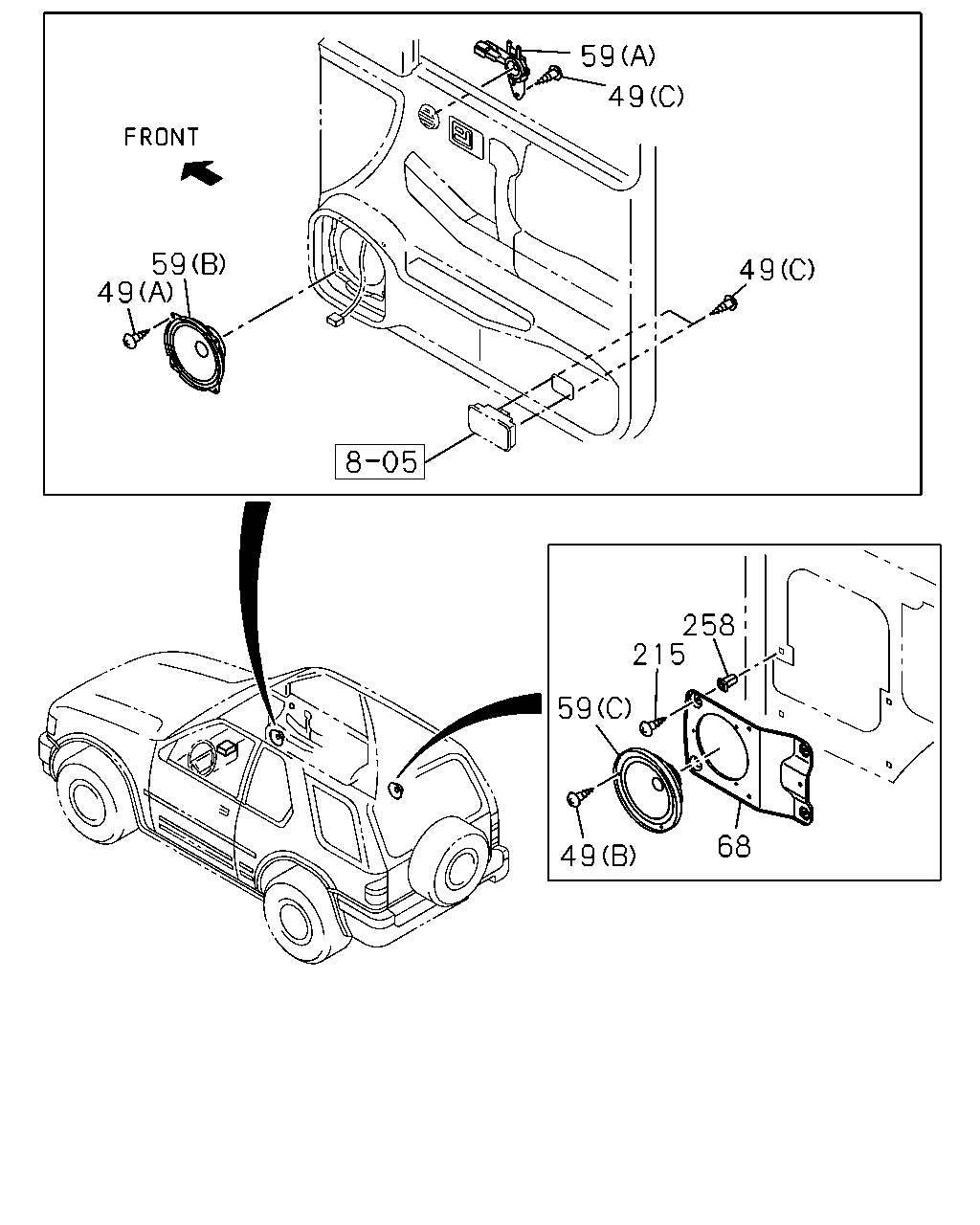

59 49 59 49 49 258 215 59 68 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	09.655 SCREW; SPEAKER 10.240 (B) M5X20 USA	9-09829-324-1	06	1	9811-0012	●
49	09.655 SCREW; SPEAKER 10.240 (D) M5X20 USA	9-09829-324-1	06	1	0101-		●
49	09.655 SCREW; SPEAKER 16.166 (C) M12X16 USA	8-97026-494-0	06	1	9811-0012	●	●
49	09.655 SCREW; SPEAKER 16.166 (C) M12X16 USA	8-97026-494-0	06	1	0101-		●
49	09.655 SCREW; SPEAKER 16.190 (A) M5X12 TAPPING USA	9-09829-321-1	08	1	9811-0012	●	●
49	09.655 SCREW; SPEAKER 16.190 (A) M5X12 TAPPING USA	9-09829-321-1	08	1	0101-		●
49	09.655 SCREW; SPEAKER 16.085 (B) M5X16 TAPPING USA	9-09829-323-1	08	1	9811-		●
59	09.665 SPEAKER; AUDIO (C) USA	8-97124-662-0	02	1	9811-0003	●
59	09.665 SPEAKER; AUDIO (C) USA	8-97224-277-1	02	1	0004-0012	●
59	09.665 SPEAKER; AUDIO (D) USA	8-97224-485-1	02	1	0101-		●
59	09.665 SPEAKER; AUDIO (B) USA	8-97124-659-0	02	1	9811-0003	●	●
59	09.665 SPEAKER; AUDIO 09.650 (B) USA	8-97221-501-0	02	1	0004-0012	●	●
59	09.665 SPEAKER; AUDIO (B) USA	8-97251-333-0	02	1	0101-		●
59	09.665 SPEAKER; AUDIO (A) USA	8-97124-686-1	01	1	9811-0003	●	●
59	09.665 SPEAKER; AUDIO (A) USA	8-97221-508-0	01	1	0004-0012	●	●
59	09.665 SPEAKER; AUDIO (A) USA	8-97251-328-0	01	1	0101-		●
59	09.665 SPEAKER; AUDIO (A) USA	8-97124-661-1	01	1	9811-0003	●	●
59	09.665 SPEAKER; AUDIO (A) USA	8-97221-507-0	01	1	0004-0012	●	●
59	09.665 SPEAKER; AUDIO (A) USA	8-97251-327-0	01	1	0101-		●
59	09.665 SPEAKER; AUDIO (E) USA	8-97124-660-0	02	1	9811-0003		●
59	09.665 SPEAKER; AUDIO (E) USA	8-97221-500-0	02	1	0004-0012		●
59	09.665 SPEAKER; AUDIO (E) USA	8-97224-486-1	02	1	0101-		●
68	09.667 BRACKET; RR SPEAKER USA	8-97133-867-1	02	1	9811-0012	●
68	09.667 BRACKET; RR SPEAKER USA	8-97225-028-4	01	1	0101-		●
68	09.667 BRACKET; RR SPEAKER USA	8-97225-029-4	01	1	0101-		●
215	09.645 SCREW; BRKT,SPEAKER 16.085 M5X16 TAPPING USA	9-09829-323-1	08	1	9811-0012	●
258	09.650 GROMMET; SPEAKER BRKT 16.588 THA	8-94279-039-0	08	1	9811-0012	●

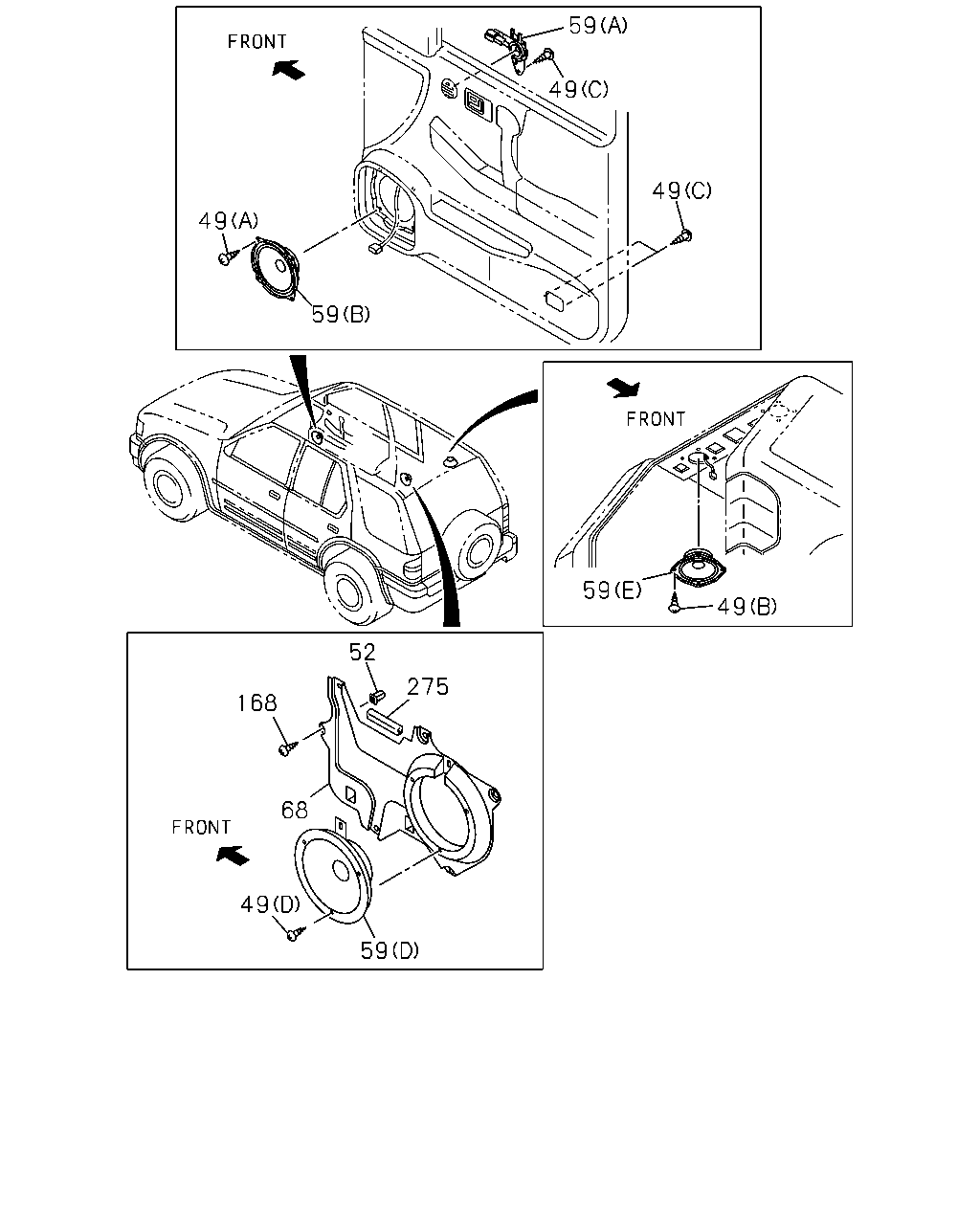

59 49 49 49 59 59 49 52 275 168 68 49 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	09.655 SCREW; SPEAKER 10.240 (B) M5X20 USA	9-09829-324-1	06	1	9811-0012	●
49	09.655 SCREW; SPEAKER 10.240 (D) M5X20 USA	9-09829-324-1	06	1	0101-		●
49	09.655 SCREW; SPEAKER 16.166 (C) M12X16 USA	8-97026-494-0	06	1	9811-0012	●	●
49	09.655 SCREW; SPEAKER 16.166 (C) M12X16 USA	8-97026-494-0	06	1	0101-		●
49	09.655 SCREW; SPEAKER 16.190 (A) M5X12 TAPPING USA	9-09829-321-1	08	1	9811-0012	●	●
49	09.655 SCREW; SPEAKER 16.190 (A) M5X12 TAPPING USA	9-09829-321-1	08	1	0101-		●
49	09.655 SCREW; SPEAKER 16.085 (B) M5X16 TAPPING USA	9-09829-323-1	08	1	9811-		●
52	09.655 GROMMET; SCREW,SPEAKER 16.450	5-09470-001-0	12	1	0101-		●
59	09.665 SPEAKER; AUDIO (C) USA	8-97124-662-0	02	1	9811-0003	●
59	09.665 SPEAKER; AUDIO (C) USA	8-97224-277-1	02	1	0004-0012	●
59	09.665 SPEAKER; AUDIO (D) USA	8-97224-485-1	02	1	0101-		●
59	09.665 SPEAKER; AUDIO (B) USA	8-97124-659-0	02	1	9811-0003	●	●
59	09.665 SPEAKER; AUDIO 09.650 (B) USA	8-97221-501-0	02	1	0004-0012	●	●
59	09.665 SPEAKER; AUDIO (B) USA	8-97251-333-0	02	1	0101-		●
59	09.665 SPEAKER; AUDIO (A) USA	8-97124-686-1	01	1	9811-0003	●	●
59	09.665 SPEAKER; AUDIO (A) USA	8-97221-508-0	01	1	0004-0012	●	●
59	09.665 SPEAKER; AUDIO (A) USA	8-97251-328-0	01	1	0101-		●
59	09.665 SPEAKER; AUDIO (A) USA	8-97124-661-1	01	1	9811-0003	●	●
59	09.665 SPEAKER; AUDIO (A) USA	8-97221-507-0	01	1	0004-0012	●	●
59	09.665 SPEAKER; AUDIO (A) USA	8-97251-327-0	01	1	0101-		●
59	09.665 SPEAKER; AUDIO (E) USA	8-97124-660-0	02	1	9811-0003		●
59	09.665 SPEAKER; AUDIO (E) USA	8-97221-500-0	02	1	0004-0012		●
59	09.665 SPEAKER; AUDIO (E) USA	8-97224-486-1	02	1	0101-		●
68	09.667 BRACKET; RR SPEAKER USA	8-97133-867-1	02	1	9811-0012	●
68	09.667 BRACKET; RR SPEAKER USA	8-97225-028-4	01	1	0101-		●
68	09.667 BRACKET; RR SPEAKER USA	8-97225-029-4	01	1	0101-		●
168	09.645 SCREW; BRKT 16.165 M6X14 SELF TAPPING USA	9-09629-040-0	12	1	0101-		●
275	09.667 FINISHER; EDGE,BRKT 02.559 L=80	5-71997-133-0	02	1	0101-		●
