8-85 — REAR WIPER AND WASHER (#32695) — 63 parça

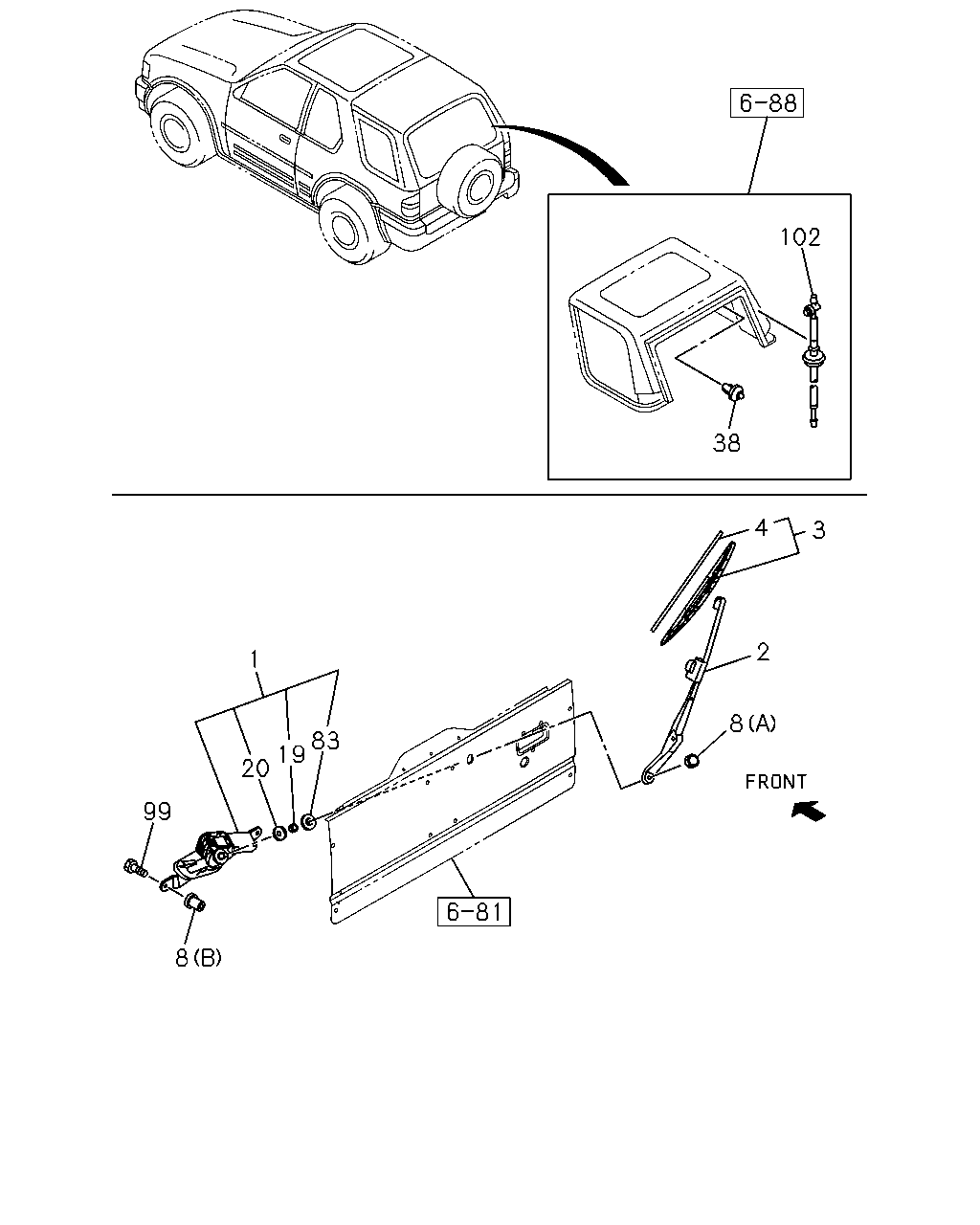

102 38 4 3 2 1 8 83 19 20 99 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.064 MOTOR ASM; RR WIPER USA	8-97144-146-0	01	1	9811-0012	●
1	16.064 MOTOR ASM; RR WIPER USA	8-97138-357-2	01	1	9811-0012		●
1	16.064 MOTOR ASM; RR WIPER USA	8-97138-357-3	01	1	0101-		●
2	16.064 ARM ASM; REAR WIPER USA	8-97189-124-0	01	1	9811-0012	●
2	16.064 ARM ASM; REAR WIPER USA	8-97178-850-0	01	1	9811-0012		●
2	16.064 ARM ASM; REAR WIPER USA	8-97178-850-0	01	1	0101-		●
3	16.062 BLADE ASM; REAR WIPER USA	8-97178-853-0	01	1	9811-0012	●	●
3	16.062 BLADE ASM; REAR WIPER USA	8-97178-853-0	01	1	0101-		●
4	16.062 RUBBER; BLADE,RR WIPER USA	8-97178-848-0	01	1	9811-0012	●	●
4	16.062 RUBBER; BLADE,RR WIPER USA	8-97178-848-0	01	1	0101-		●
8	16.064 NUT; RR WIPER ARM TO WIPER MOTOR 16.800 (A) M6 FLANGE	1-09984-127-0	01	1	9811-0012	●
8	16.064 NUT; RR WIPER ARM TO WIPER MOTOR (B)	8-97138-431-0	02	1	9811-0012	●	●
8	16.064 NUT; RR WIPER ARM TO WIPER MOTOR (B)	8-97138-431-0	02	1	0101-		●
8	16.064 NUT; RR WIPER ARM TO WIPER MOTOR 16.069 (C) M8 FLANGE	1-09984-126-0	01	1	9811-0012		●
8	16.064 NUT; RR WIPER ARM TO WIPER MOTOR 16.069 (C) M8 FLANGE	1-09984-126-0	01	1	0101-		●
19	16.064 NUT; LOCK,PIVOT USA	8-97807-652-0	01	1	9811-0012	●
19	16.064 NUT; LOCK,PIVOT USA	8-97255-297-0	01	1	9811-0012		●
19	16.064 NUT; LOCK,PIVOT USA	8-97255-297-0	01	1	0101-		●
20	16.064 WASHER; PIVOT,WIPER MOTOR USA	8-97807-651-0	01	1	9811-0012	●
20	16.064 WASHER; PIVOT,WIPER MOTOR USA	8-97255-296-0	01	1	9811-0012		●
20	16.064 WASHER; PIVOT,WIPER MOTOR USA	8-97255-296-0	01	1	0101-		●
38	16.065 NOZZLE ASM; RR WASHER USA	8-91145-331-0	01	1	9811-0012	●
83	16.064 COVER; LOCK NUT USA	8-94144-752-0	01	1	9811-0012	●
83	16.064 COVER; LOCK NUT USA	8-97255-298-0	01	1	9811-0012		●
83	16.064 COVER; LOCK NUT USA	8-97255-298-0	01	1	0101-		●
99	16.064 BOLT; WIPER MOTOR 02.334 M6X25 FLANGE	0-28680-625-0	02	1	9811-0012	●	●
99	16.064 BOLT; WIPER MOTOR 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0101-		●
102	16.065 HOSE; REAR WASHER USA	8-97137-281-1	01	1	9811-0012	●

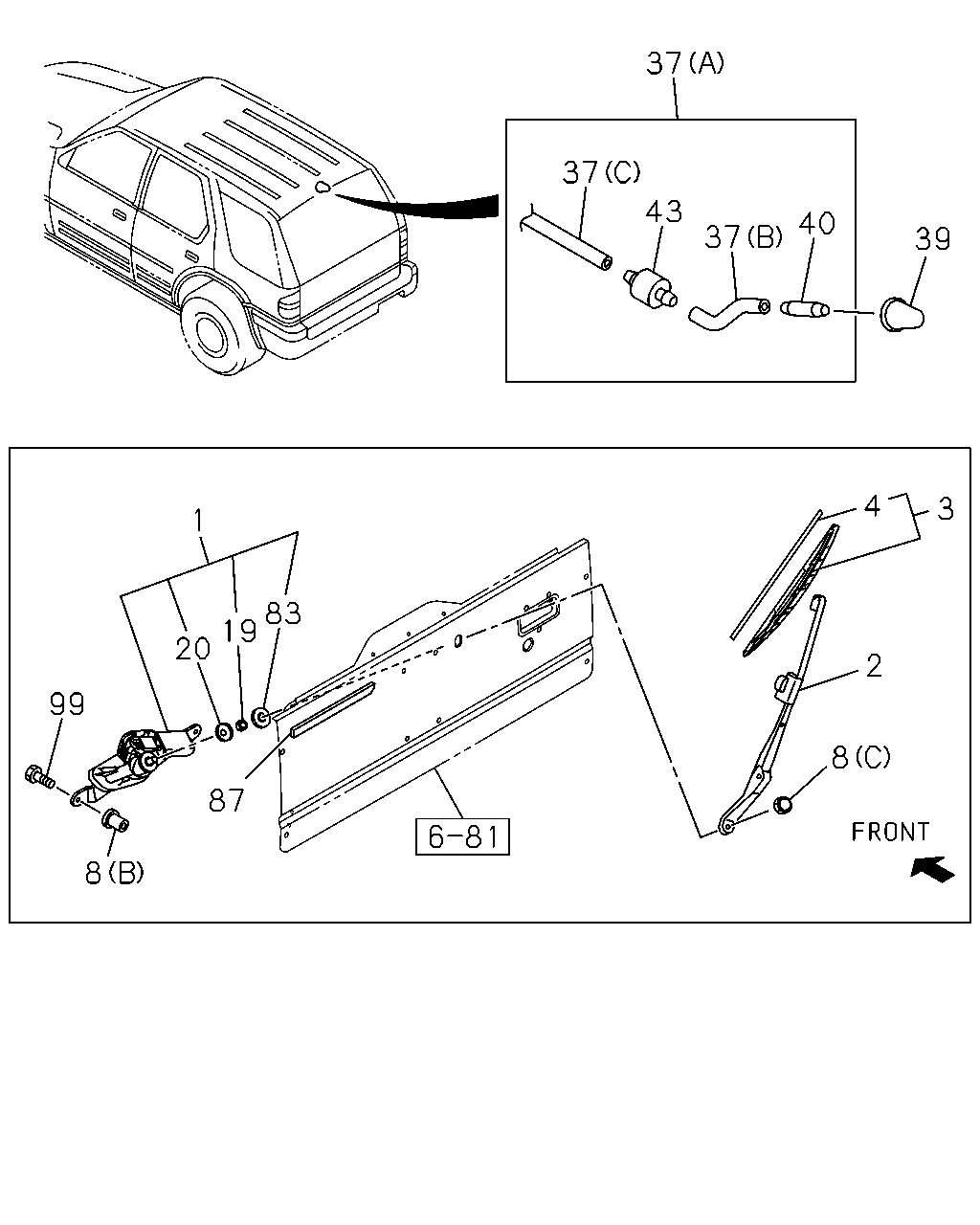

37 37 43 40 37 39 4 3 1 83 19 20 2 99 8 87 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.064 MOTOR ASM; RR WIPER USA	8-97144-146-0	01	1	9811-0012	●
1	16.064 MOTOR ASM; RR WIPER USA	8-97138-357-2	01	1	9811-0012		●
1	16.064 MOTOR ASM; RR WIPER USA	8-97138-357-3	01	1	0101-		●
2	16.064 ARM ASM; REAR WIPER USA	8-97189-124-0	01	1	9811-0012	●
2	16.064 ARM ASM; REAR WIPER USA	8-97178-850-0	01	1	9811-0012		●
2	16.064 ARM ASM; REAR WIPER USA	8-97178-850-0	01	1	0101-		●
3	16.062 BLADE ASM; REAR WIPER USA	8-97178-853-0	01	1	9811-0012	●	●
3	16.062 BLADE ASM; REAR WIPER USA	8-97178-853-0	01	1	0101-		●
4	16.062 RUBBER; BLADE,RR WIPER USA	8-97178-848-0	01	1	9811-0012	●	●
4	16.062 RUBBER; BLADE,RR WIPER USA	8-97178-848-0	01	1	0101-		●
8	16.064 NUT; RR WIPER ARM TO WIPER MOTOR 16.800 (A) M6 FLANGE	1-09984-127-0	01	1	9811-0012	●
8	16.064 NUT; RR WIPER ARM TO WIPER MOTOR (B)	8-97138-431-0	02	1	9811-0012	●	●
8	16.064 NUT; RR WIPER ARM TO WIPER MOTOR (B)	8-97138-431-0	02	1	0101-		●
8	16.064 NUT; RR WIPER ARM TO WIPER MOTOR 16.069 (C) M8 FLANGE	1-09984-126-0	01	1	9811-0012		●
8	16.064 NUT; RR WIPER ARM TO WIPER MOTOR 16.069 (C) M8 FLANGE	1-09984-126-0	01	1	0101-		●
19	16.064 NUT; LOCK,PIVOT USA	8-97807-652-0	01	1	9811-0012	●
19	16.064 NUT; LOCK,PIVOT USA	8-97255-297-0	01	1	9811-0012		●
19	16.064 NUT; LOCK,PIVOT USA	8-97255-297-0	01	1	0101-		●
20	16.064 WASHER; PIVOT,WIPER MOTOR USA	8-97807-651-0	01	1	9811-0012	●
20	16.064 WASHER; PIVOT,WIPER MOTOR USA	8-97255-296-0	01	1	9811-0012		●
20	16.064 WASHER; PIVOT,WIPER MOTOR USA	8-97255-296-0	01	1	0101-		●
37	16.064 HOSE; WASHER TANK,RR (A) USA	8-97125-168-1	01	1	9811-		●
37	16.064 HOSE; WASHER TANK,RR (B) USA	8-97178-861-0	01	1	9811-		●
37	16.064 HOSE; WASHER TANK,RR (C) USA	8-97178-862-0	01	1	9811-		●
39	16.065 NOZZLE; RR WINDSHIELD,WASHER USA	8-97125-063-0	01	1	9811-0004		●
39	16.065 NOZZLE; RR WINDSHIELD,WASHER USA	8-97255-418-0	01	1	0005-0012		●
39	16.065 NOZZLE; RR WINDSHIELD,WASHER USA	8-97302-306-0	01	1	0101-		●
40	16.065 JOINT; RR WASHER TANK HOSE 10.155 2WAY USA	8-94239-402-0	01	1	9811-		●
43	16.065 VALVE; CHECK,RR WASHER TANK HOSE 02.780 USA	8-97807-641-0	01	1	9811-		●
83	16.064 COVER; LOCK NUT USA	8-94144-752-0	01	1	9811-0012	●
83	16.064 COVER; LOCK NUT USA	8-97255-298-0	01	1	9811-0012		●
83	16.064 COVER; LOCK NUT USA	8-97255-298-0	01	1	0101-		●
87	16.063 SEAL; PROTECT,RR WIPER BLADE USA	8-97218-449-1	01	1	9811-		●
99	16.064 BOLT; WIPER MOTOR 02.334 M6X25 FLANGE	0-28680-625-0	02	1	9811-0012	●	●
99	16.064 BOLT; WIPER MOTOR 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0101-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
