8-80 — WINDSHIELD WIPER AND WASHER (#32694) — 90 parça

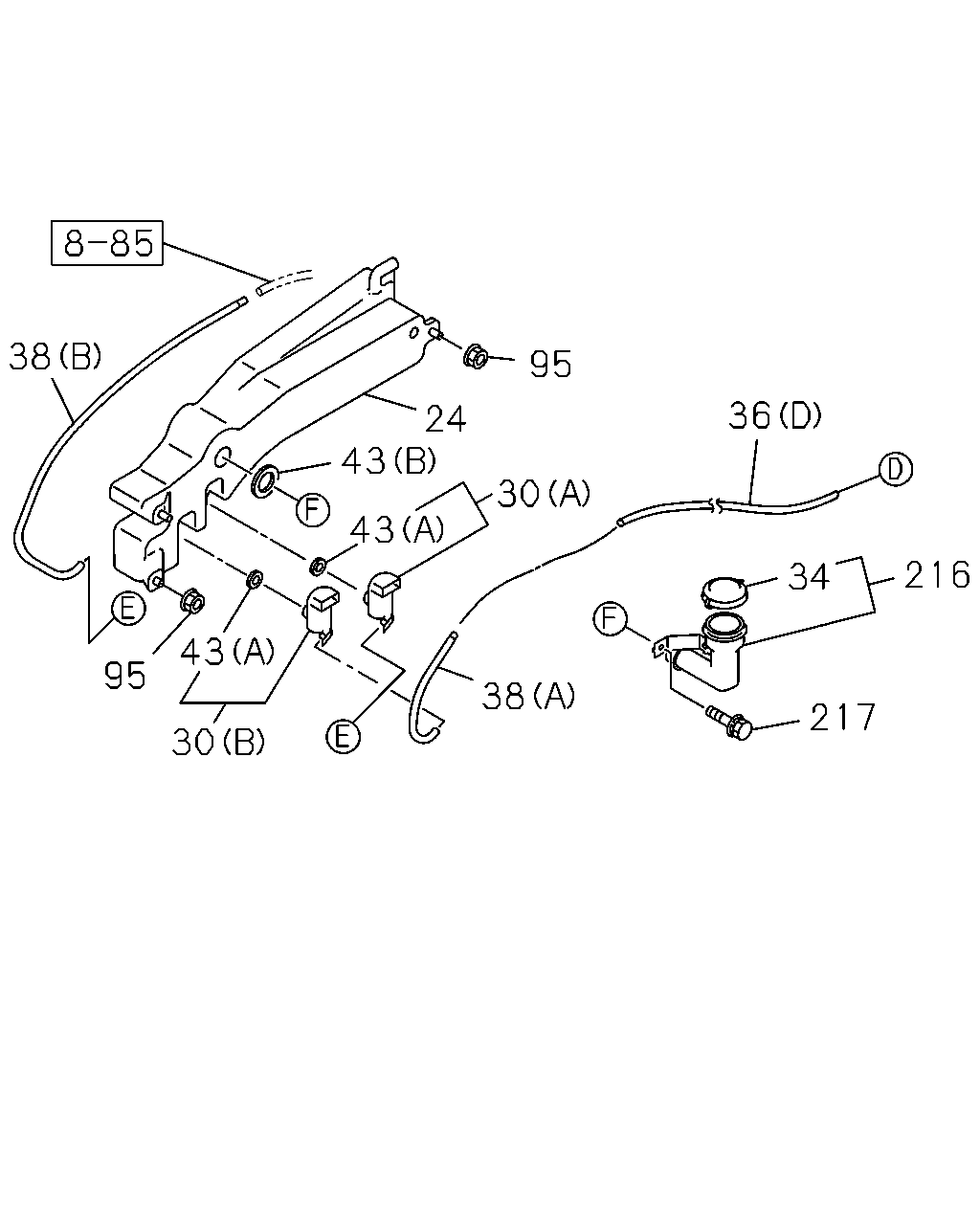

38 95 36 24 43 30 43 216 34 43 5 38 217 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	16.063 ARM; WIPER USA	8-97143-283-0	02	1	9811-0012	●	●
5	16.063 ARM; WIPER USA	8-97143-283-1	02	1	0101-		●
24	16.065 TANK ASM; WASHER USA	8-97178-923-0	01	1	9811-0012	●	●
24	16.065 TANK ASM; WASHER USA	8-97178-923-0	01	1	0101-		●
30	16.065 MOTOR ASM; FRT WASHER TANK (A) USA	8-97178-922-0	01	1	9811-0012	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK (A) USA	8-97178-922-0	01	1	0101-		●
30	16.065 MOTOR ASM; FRT WASHER TANK (B) USA	8-97855-138-0	01	1	9811-0012	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK (B) USA	8-97855-138-0	01	1	0101-0108		●
30	16.065 MOTOR ASM; FRT WASHER TANK (B) USA	8-97302-255-0	01	1	0109-		●
34	16.065 CAP; WASHER TANK USA	8-97138-452-0	01	1	9811-0012	●	●
34	16.065 CAP; WASHER TANK USA	8-97138-452-0	01	1	0101-		●
36	16.065 HOSE; WASHER (D) USA	8-97176-177-1	01	1	9811-0012	●	●
36	16.065 HOSE; WASHER (D) USA	8-97176-177-1	01	1	0101-		●
36	16.065 HOSE; WASHER (A) USA	8-97178-843-0	01	1	9811-0012	●	●
36	16.065 HOSE; WASHER (A) USA	8-97178-843-0	01	1	0101-		●
36	16.065 HOSE; WASHER (B) USA	8-97178-844-0	01	1	9811-0004	●	●
36	16.065 HOSE; WASHER (F) USA	8-97264-627-0	02	1	0005-0012	●	●
36	16.065 HOSE; WASHER (F) USA	8-97264-627-0	02	1	0101-		●
36	16.065 HOSE; WASHER (C) USA	8-97178-846-0	01	1	9811-0004	●	●
36	16.065 HOSE; WASHER (C) USA	8-97264-628-0	01	1	0005-0012	●	●
36	16.065 HOSE; WASHER (C) USA	8-97264-628-0	01	1	0101-		●
36	16.065 HOSE; WASHER (E) USA	8-97264-629-0	01	1	0005-0012	●	●
36	16.065 HOSE; WASHER (E) USA	8-97264-629-0	01	1	0101-		●
38	16.065 HOSE; JOINT,TANK (A) USA	8-97178-925-0	01	1	9811-0012	●	●
38	16.065 HOSE; JOINT,TANK (A) USA	8-97178-925-0	01	1	0101-		●
38	16.065 HOSE; JOINT,TANK (B) USA	8-97178-926-0	01	1	9811-0012	●	●
38	16.065 HOSE; JOINT,TANK (B) USA	8-97178-926-0	01	1	0101-		●
43	16.065 RUBBER; GASKET,TANK 10.154 (A) USA	8-94352-050-0	02	1	9811-0012	●	●
43	16.065 RUBBER; GASKET,TANK 10.154 (A) USA	8-94352-050-0	02	1	0101-		●
43	16.065 RUBBER; GASKET,TANK 12.188 (B) USA	8-94380-533-0	01	1	9811-0012	●	●
43	16.065 RUBBER; GASKET,TANK 12.188 (B) USA	8-94380-533-0	01	1	0101-		●
95	16.065 NUT; WASHER TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	9811-0012	●	●
95	16.065 NUT; WASHER TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	0101-0111		●
95	16.065 NUT; WASHER TANK 16.547 M6 W/DISHED WASHER USA	8-97018-399-1	02	1	0112-		●
216	16.065 FILLER; WASHER TANK USA	8-97127-280-1	01	1	9811-0012	●	●
216	16.065 FILLER; WASHER TANK USA	8-97127-280-1	01	1	0101-		●
217	16.065 BOLT; FILLER NECK 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9811-0012	●	●
217	16.065 BOLT; FILLER NECK 06.635 M6X16 FLANGE	0-28480-616-0	01	1	0101-		●

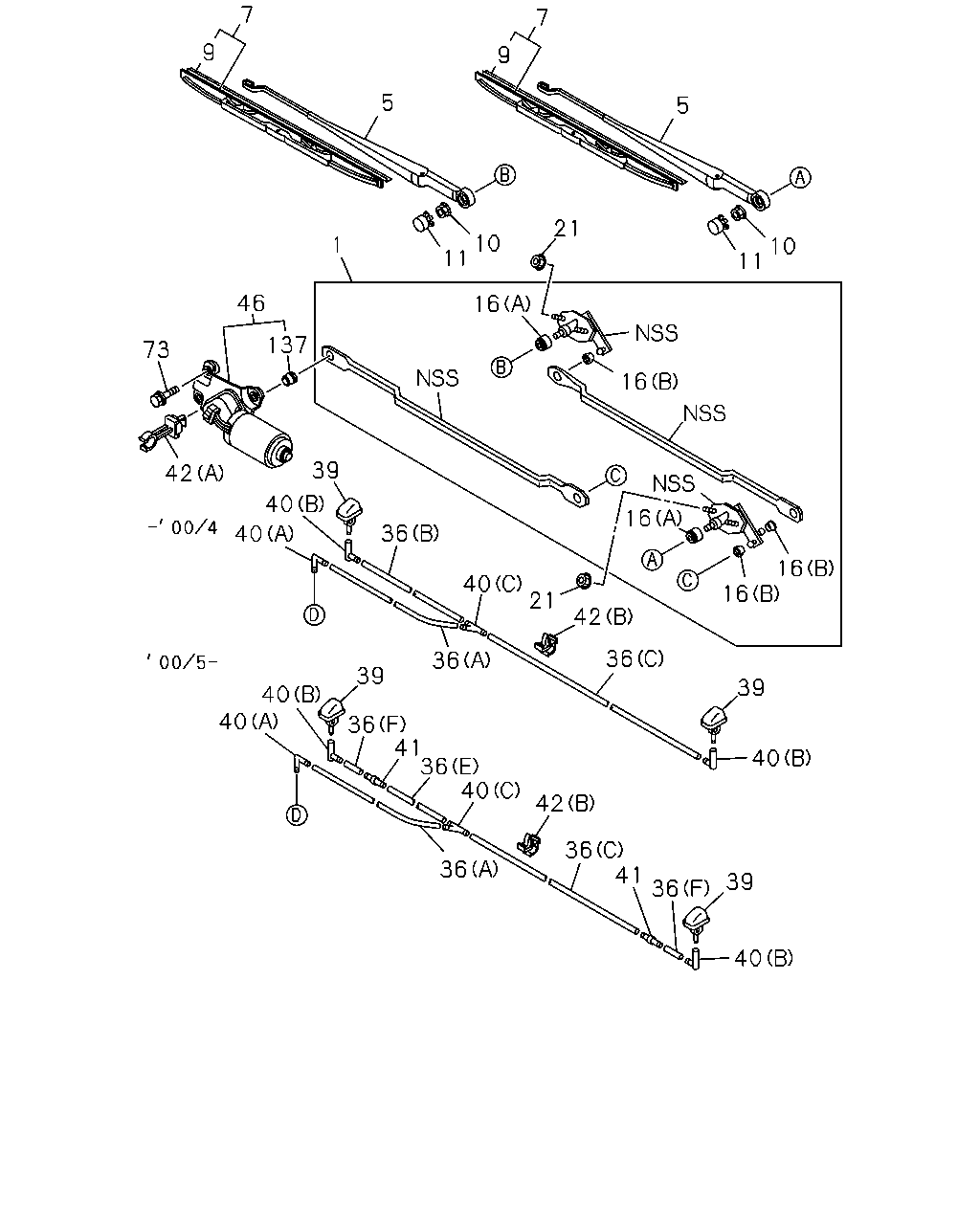

7 7 9 9 5 5 21 10 1 10 11 11 46 16 137 73 16 39 42 16 40 36 40 16 16 40 21 42 36 36 39 39 40 40 36 41 36 40 40 42 36 41 36 39 36 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.063 LINK ASM; FRT WIPER USA	8-97124-667-1	01	1	9811-0012	●	●
1	16.063 LINK ASM; FRT WIPER USA	8-97303-866-1	01	1	0101-0302		●
1	16.063 LINK ASM; FRT WIPER USA	8-97365-747-0	01	1	0303-		●
5	16.063 ARM; WIPER USA	8-97143-283-0	02	1	9811-0012	●	●
5	16.063 ARM; WIPER USA	8-97143-283-1	02	1	0101-		●
7	16.062 BLADE; WIPER USA	8-97143-286-0	02	1	9811-0007	●	●
7	16.062 BLADE; WIPER USA	8-97260-433-0	02	1	0008-0012	●	●
7	16.062 BLADE; WIPER USA	8-97260-433-1	02	1	0101-		●
9	16.062 RUBBER; FRT WIPER BLADE USA	8-97178-856-0	02	1	9811-0007	●	●
9	16.062 RUBBER; FRT WIPER BLADE USA	8-97260-277-0	02	1	0008-0012	●	●
9	16.062 RUBBER; FRT WIPER BLADE USA	8-97260-277-1	02	1	0101-		●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 00.349 M8 FLANGE USA	9-09844-190-0	02	1	9811-0012	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 00.349 M8 FLANGE USA	9-09844-190-0	02	1	0101-		●
11	16.063 COVER; WIPER ARM	8-94460-965-0	02	1	9811-0012	●	●
11	16.063 COVER; WIPER ARM	8-94460-965-0	02	1	0101-		●
16	16.063 SEAL; BALL JOINT (A) USA	8-94319-016-0	02	1	9811-		●
16	16.063 SEAL; BALL JOINT 10.159 (B) USA	8-97025-889-0	03	1	0109-		●
21	16.063 NUT; WIPER LINK PIVOT 10.147 M6 W/DISHED WASHER	8-94423-325-0	04	1	9811-0012	●	●
21	16.063 NUT; WIPER LINK PIVOT 10.147 M6 W/DISHED WASHER	8-94423-325-0	04	1	0101-		●
36	16.065 HOSE; WASHER (D) USA	8-97176-177-1	01	1	9811-0012	●	●
36	16.065 HOSE; WASHER (D) USA	8-97176-177-1	01	1	0101-		●
36	16.065 HOSE; WASHER (A) USA	8-97178-843-0	01	1	9811-0012	●	●
36	16.065 HOSE; WASHER (A) USA	8-97178-843-0	01	1	0101-		●
36	16.065 HOSE; WASHER (B) USA	8-97178-844-0	01	1	9811-0004	●	●
36	16.065 HOSE; WASHER (F) USA	8-97264-627-0	02	1	0005-0012	●	●
36	16.065 HOSE; WASHER (F) USA	8-97264-627-0	02	1	0101-		●
36	16.065 HOSE; WASHER (C) USA	8-97178-846-0	01	1	9811-0004	●	●
36	16.065 HOSE; WASHER (C) USA	8-97264-628-0	01	1	0005-0012	●	●
36	16.065 HOSE; WASHER (C) USA	8-97264-628-0	01	1	0101-		●
36	16.065 HOSE; WASHER (E) USA	8-97264-629-0	01	1	0005-0012	●	●
36	16.065 HOSE; WASHER (E) USA	8-97264-629-0	01	1	0101-		●
39	16.065 NOZZLE; WINDSHIELD WASHER USA	8-94447-235-0	02	1	9811-0012	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER USA	8-94447-235-0	02	1	0101-		●
40	16.065 JOINT; WASHER HOSE (A) USA	8-97039-660-0	01	1	9811-0012	●	●
40	16.065 JOINT; WASHER HOSE (A) USA	8-97039-660-0	01	1	0101-		●
40	16.065 JOINT; WASHER HOSE (B) USA	8-97178-847-0	02	1	9811-0012	●	●
40	16.065 JOINT; WASHER HOSE (B) USA	8-97178-847-0	02	1	0101-		●
40	16.065 JOINT; WASHER HOSE 02.780 (C) USA	8-97807-642-0	01	1	9811-0012	●	●
40	16.065 JOINT; WASHER HOSE 02.780 (C) USA	8-97807-642-0	01	1	0101-		●
41	16.065 VALVE; CHECK,WASHER TANK USA	8-97215-344-0	02	1	0005-0012	●	●
41	16.065 VALVE; CHECK,WASHER TANK USA	8-97215-344-0	02	1	0101-		●
42	16.065 CLIP; WASHER HOSE 10.156 (A) L=46	8-94154-654-1	01	1	9811-0012	●	●
42	16.065 CLIP; WASHER HOSE 10.156 (A) L=46	8-94154-654-1	01	1	0101-		●
42	16.065 CLIP; WASHER HOSE 04.342 (B) ID=6.5	8-94206-730-0	01	1	9811-0012	●	●
42	16.065 CLIP; WASHER HOSE 04.342 (B) ID=6.5	8-94206-730-0	01	1	0101-		●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER USA	8-97126-166-0	01	1	9811-0012	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER USA	8-97126-166-0	01	1	0101-0302		●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER USA	8-97365-749-0	01	1	0303-		●
73	16.063 BOLT 01.287 M6X25 W/LK&PL WASHER USA	8-94416-136-0	04	1	9811-0012	●	●
73	16.063 BOLT 01.287 M6X25 W/LK&PL WASHER USA	8-94416-136-0	04	1	0101-		●
137	16.063 SEAL; JOINT,WIPER MOTOR 10.159 USA	8-97025-889-0	01	1	9811-0012	●	●
137	16.063 SEAL; JOINT,WIPER MOTOR 10.159 USA	8-97025-889-0	01	1	0101-		●
