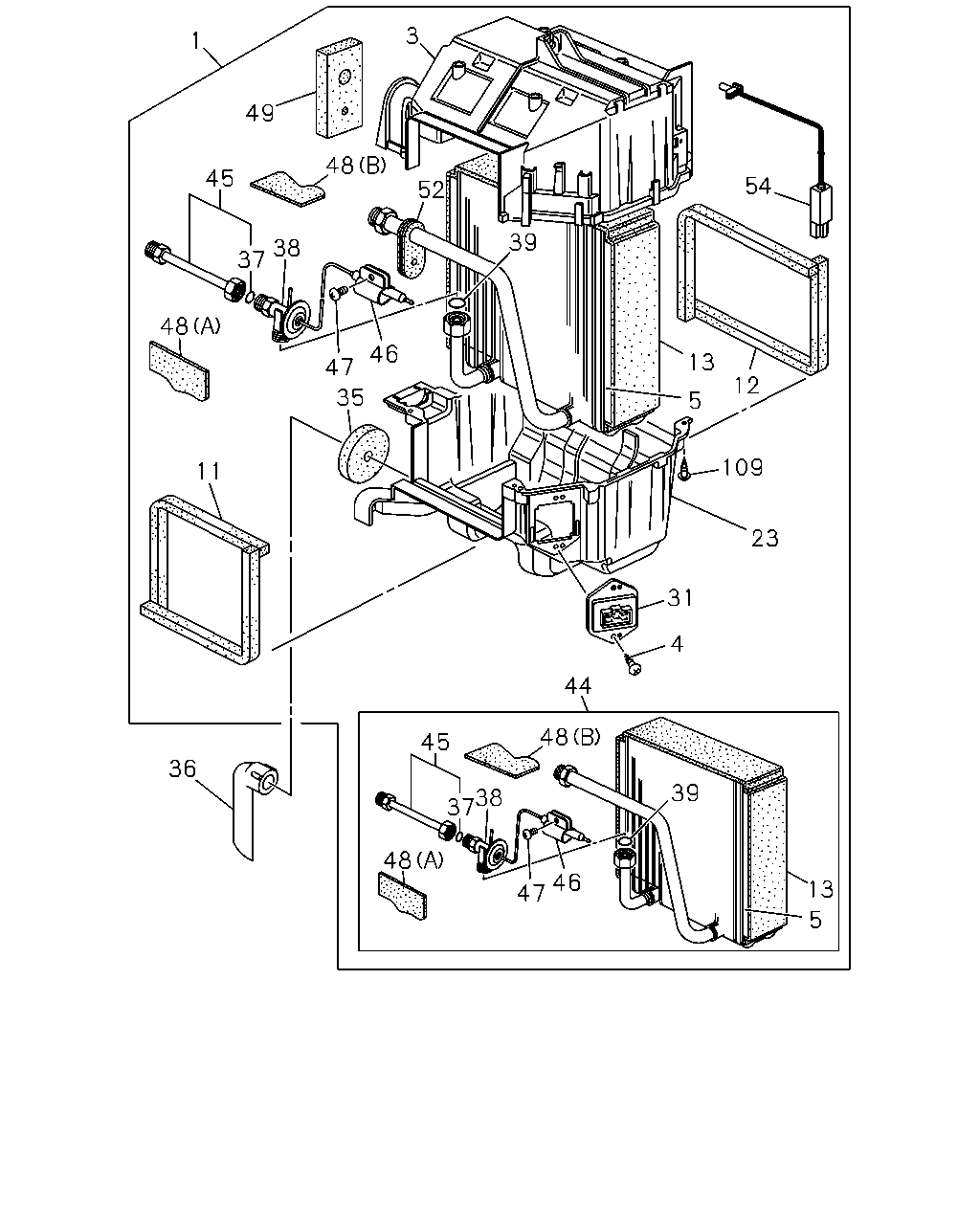

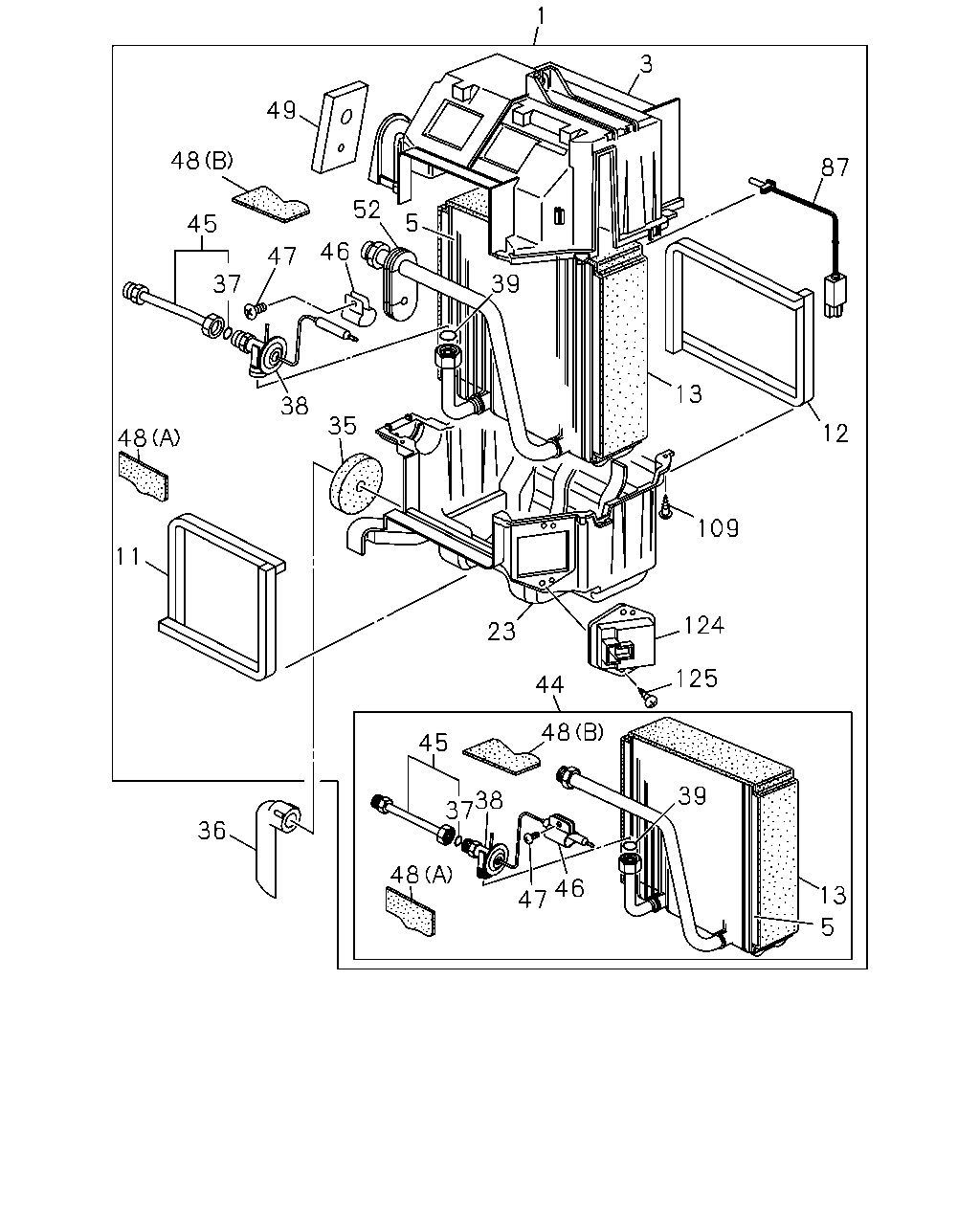

8-74 — EVAPORATOR (#32692) — 130 parça

1 3 49 48 87 52 5 45 46 47 39 37 13 38 35 12 48 109 11 124 23 125 44 48 45 39 38 37 36 48 46 47 13 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.210 EVAPORATOR ASM USA	8-97180-710-1	01	1	9811-9907	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) USA	8-97180-710-1	01	1	9811-9907		●
1	09.210 EVAPORATOR ASM USA	8-97223-666-1	01	1	9908-0012	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) USA	8-97223-666-1	01	1	9908-0012		●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) USA	8-97223-666-1	01	1	0101-		●
1	09.210 EVAPORATOR ASM AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97176-116-2	01	1	9811-		●
3	09.211 CASE; EVAP,UPR USA	8-97170-797-0	01	1	9811-0012	●	●
3	09.211 CASE; EVAP,UPR USA	8-97170-797-0	01	1	0101-		●
5	09.210 EVAPORATOR USA	8-97170-791-0	01	1	9811-0012	●	●
5	09.210 EVAPORATOR USA	8-97170-791-0	01	1	0101-		●
11	09.211 LINING; EVAP A/C USA	8-97103-724-0	01	1	9811-0012	●	●
11	09.211 LINING; EVAP A/C USA	8-97103-724-0	01	1	0101-		●
12	09.211 LINING; EVAP USA	8-97103-723-0	01	1	9811-0012	●	●
12	09.211 LINING; EVAP USA	8-97103-723-0	01	1	0101-		●
13	09.211 SEAL; EVAP T=4.0 USA	8-97165-293-0	01	1	9811-0012	●	●
13	09.211 SEAL; EVAP T=4.0 USA	8-97165-293-0	01	1	0101-		●
23	09.211 CASE; EVAP,LWR USA	8-97170-801-0	01	1	9811-0012	●	●
23	09.211 CASE; EVAP,LWR USA	8-97170-801-0	01	1	0101-		●
35	09.211 GROMMET; EVAP,LOW USA	8-97182-655-0	01	1	9811-0012	●	●
35	09.211 GROMMET; EVAP,LOW USA	8-97182-655-0	01	1	0101-		●
36	09.211 HOSE; DRAIN EVAP USA	8-94371-554-0	01	1	9811-0012	●	●
36	09.211 HOSE; DRAIN EVAP USA	8-94371-554-0	01	1	0101-		●
37	09.214 GASKET; EVAP 09.195 ID=6.07 USA	8-94461-902-0	01	1	9811-0012	●	●
37	09.214 GASKET; EVAP 09.195 ID=6.07 USA	8-94461-902-0	01	1	0101-		●
38	09.213 VALVE; EXPANSION USA	8-97170-788-0	01	1	9811-0012	●	●
38	09.213 VALVE; EXPANSION USA	8-97170-788-0	01	1	0101-		●
39	09.214 GASKET; EVAP USA	8-94481-717-0	01	1	9811-0012	●	●
39	09.214 GASKET; EVAP USA	8-94481-717-0	01	1	0101-		●
44	09.210 EVAPORATOR ASM; A/C USA	8-97221-071-0	01	1	9906-0002	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) USA	8-97221-071-0	01	1	9906-0002		●
44	09.210 EVAPORATOR ASM; A/C USA	8-97221-071-0	01	1	0003-0012	●	●
44	09.210 EVAPORATOR ASM; A/C USA	8-97221-071-0	01	1	0101-		●
44	09.210 EVAPORATOR ASM; A/C USA	8-97170-792-0	01	1	9811-9905	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97170-792-0	01	1	9906-0002		●
45	09.220 PIPE; EXPANSION VLV USA	8-97165-292-0	01	1	9811-0012	●	●
45	09.220 PIPE; EXPANSION VLV USA	8-97165-292-0	01	1	0101-		●
46	09.214 CLIP; EXPANSION VLV 02.559 ID=8X2 USA	8-94344-881-1	01	1	9811-0012	●	●
46	09.214 CLIP; EXPANSION VLV 02.559 ID=8X2 USA	8-94344-881-1	01	1	0101-		●
47	09.214 SCREW; EVAP USA	8-97130-601-0	01	1	9811-0012	●	●
47	09.214 SCREW; EVAP USA	8-97130-601-0	01	1	0101-		●
48	09.214 INSULATOR; EVAP (A) USA	8-97103-725-0	01	1	9811-9905	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) USA	8-97103-725-0	01	1	9811-9905		●
48	09.214 INSULATOR; EVAP 09.211 (B) T=3.0 USA	5-83569-104-0	01	1	9906-0002	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) T=3.0 USA	5-83569-104-0	01	1	9906-0002		●
48	09.214 INSULATOR; EVAP 09.211 (B) T=3.0 USA	5-83569-104-0	01	1	0003-0012	●	●
48	09.214 INSULATOR; EVAP 09.211 (B) T=3.0 USA	5-83569-104-0	01	1	0101-		●
48	09.214 INSULATOR; EVAP (A) USA	8-97103-725-0	01	1	9908-0012	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) USA	8-97103-725-0	01	1	9908-0012		●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) USA	8-97103-725-0	01	1	0101-		●
48	09.214 INSULATOR; EVAP AIR CONDITIONER AUTOMATIC CONT(C61) (A) USA	1-83579-784-0	01	1	9811-9905		●
48	09.214 INSULATOR; EVAP (A) USA	1-83579-784-0	01	1	9906-9907	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER AUTOMATIC CONT(C61) (A) USA	1-83579-784-0	01	1	9908-		●
49	09.211 GROMMET; EVAP USA	8-97182-654-0	01	1	9811-0012	●	●
49	09.211 GROMMET; EVAP USA	8-97182-654-0	01	1	0101-		●
52	09.242 GROMMET; EVAP,A/C USA	8-94324-801-0	01	1	9811-0012	●	●
52	09.242 GROMMET; EVAP,A/C USA	8-94324-801-0	01	1	0101-		●
87	09.211 SENSOR; EVAP AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97170-787-0	01	1	9811-		●
109	09.211 BOLT; EVAP 08.852 M4X16 USA	8-94324-850-0	06	1	9811-0012	●	●
109	09.211 BOLT; EVAP 08.852 M4X16 USA	8-94324-850-0	06	1	0101-		●
124	09.211 TRANSISTOR; POWER,EVAP AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97111-797-0	01	1	9811-		●
125	09.211 SCREW; TRANSISTOR AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA	8-94324-850-0	02	1	9811-		●

3 1 49 48 45 54 52 39 38 37 48 46 13 47 12 35 5 109 11 23 31 4 44 48 45 36 39 38 37 48 46 47 13 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.210 EVAPORATOR ASM USA	8-97180-710-1	01	1	9811-9907	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) USA	8-97180-710-1	01	1	9811-9907		●
1	09.210 EVAPORATOR ASM USA	8-97223-666-1	01	1	9908-0012	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) USA	8-97223-666-1	01	1	9908-0012		●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) USA	8-97223-666-1	01	1	0101-		●
1	09.210 EVAPORATOR ASM AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97176-116-2	01	1	9811-		●
3	09.211 CASE; EVAP,UPR USA	8-97170-797-0	01	1	9811-0012	●	●
3	09.211 CASE; EVAP,UPR USA	8-97170-797-0	01	1	0101-		●
4	09.211 SCREW; RESISTOR TO CASE 08.852 M4X16 USA	8-94324-850-0	02	1	9811-0012	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 USA	8-94324-850-0	02	1	9811-0012		●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 USA	8-94324-850-0	02	1	0101-		●
5	09.210 EVAPORATOR USA	8-97170-791-0	01	1	9811-0012	●	●
5	09.210 EVAPORATOR USA	8-97170-791-0	01	1	0101-		●
11	09.211 LINING; EVAP A/C USA	8-97103-724-0	01	1	9811-0012	●	●
11	09.211 LINING; EVAP A/C USA	8-97103-724-0	01	1	0101-		●
12	09.211 LINING; EVAP USA	8-97103-723-0	01	1	9811-0012	●	●
12	09.211 LINING; EVAP USA	8-97103-723-0	01	1	0101-		●
13	09.211 SEAL; EVAP T=4.0 USA	8-97165-293-0	01	1	9811-0012	●	●
13	09.211 SEAL; EVAP T=4.0 USA	8-97165-293-0	01	1	0101-		●
23	09.211 CASE; EVAP,LWR USA	8-97170-801-0	01	1	9811-0012	●	●
23	09.211 CASE; EVAP,LWR USA	8-97170-801-0	01	1	0101-		●
31	09.277 RESISTOR; POWER EVAP USA	8-97083-136-1	01	1	9811-0012	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) USA	8-97083-136-1	01	1	9811-0012		●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) USA	8-97083-136-1	01	1	0101-		●
35	09.211 GROMMET; EVAP,LOW USA	8-97182-655-0	01	1	9811-0012	●	●
35	09.211 GROMMET; EVAP,LOW USA	8-97182-655-0	01	1	0101-		●
36	09.211 HOSE; DRAIN EVAP USA	8-94371-554-0	01	1	9811-0012	●	●
36	09.211 HOSE; DRAIN EVAP USA	8-94371-554-0	01	1	0101-		●
37	09.214 GASKET; EVAP 09.195 ID=6.07 USA	8-94461-902-0	01	1	9811-0012	●	●
37	09.214 GASKET; EVAP 09.195 ID=6.07 USA	8-94461-902-0	01	1	0101-		●
38	09.213 VALVE; EXPANSION USA	8-97170-788-0	01	1	9811-0012	●	●
38	09.213 VALVE; EXPANSION USA	8-97170-788-0	01	1	0101-		●
39	09.214 GASKET; EVAP USA	8-94481-717-0	01	1	9811-0012	●	●
39	09.214 GASKET; EVAP USA	8-94481-717-0	01	1	0101-		●
44	09.210 EVAPORATOR ASM; A/C USA	8-97221-071-0	01	1	9906-0002	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) USA	8-97221-071-0	01	1	9906-0002		●
44	09.210 EVAPORATOR ASM; A/C USA	8-97221-071-0	01	1	0003-0012	●	●
44	09.210 EVAPORATOR ASM; A/C USA	8-97221-071-0	01	1	0101-		●
44	09.210 EVAPORATOR ASM; A/C USA	8-97170-792-0	01	1	9811-9905	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97170-792-0	01	1	9906-0002		●
45	09.220 PIPE; EXPANSION VLV USA	8-97165-292-0	01	1	9811-0012	●	●
45	09.220 PIPE; EXPANSION VLV USA	8-97165-292-0	01	1	0101-		●
46	09.214 CLIP; EXPANSION VLV 02.559 ID=8X2 USA	8-94344-881-1	01	1	9811-0012	●	●
46	09.214 CLIP; EXPANSION VLV 02.559 ID=8X2 USA	8-94344-881-1	01	1	0101-		●
47	09.214 SCREW; EVAP USA	8-97130-601-0	01	1	9811-0012	●	●
47	09.214 SCREW; EVAP USA	8-97130-601-0	01	1	0101-		●
48	09.214 INSULATOR; EVAP (A) USA	8-97103-725-0	01	1	9811-9905	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) USA	8-97103-725-0	01	1	9811-9905		●
48	09.214 INSULATOR; EVAP 09.211 (B) T=3.0 USA	5-83569-104-0	01	1	9906-0002	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) T=3.0 USA	5-83569-104-0	01	1	9906-0002		●
48	09.214 INSULATOR; EVAP 09.211 (B) T=3.0 USA	5-83569-104-0	01	1	0003-0012	●	●
48	09.214 INSULATOR; EVAP 09.211 (B) T=3.0 USA	5-83569-104-0	01	1	0101-		●
48	09.214 INSULATOR; EVAP (A) USA	8-97103-725-0	01	1	9908-0012	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) USA	8-97103-725-0	01	1	9908-0012		●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) USA	8-97103-725-0	01	1	0101-		●
48	09.214 INSULATOR; EVAP AIR CONDITIONER AUTOMATIC CONT(C61) (A) USA	1-83579-784-0	01	1	9811-9905		●
48	09.214 INSULATOR; EVAP (A) USA	1-83579-784-0	01	1	9906-9907	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER AUTOMATIC CONT(C61) (A) USA	1-83579-784-0	01	1	9908-		●
49	09.211 GROMMET; EVAP USA	8-97182-654-0	01	1	9811-0012	●	●
49	09.211 GROMMET; EVAP USA	8-97182-654-0	01	1	0101-		●
52	09.242 GROMMET; EVAP,A/C USA	8-94324-801-0	01	1	9811-0012	●	●
52	09.242 GROMMET; EVAP,A/C USA	8-94324-801-0	01	1	0101-		●
54	09.172 THERMOSTAT; A/C USA	8-97170-805-0	01	1	9811-9907	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) USA	8-97170-805-0	01	1	9811-9907		●
54	09.172 THERMOSTAT; A/C USA	8-97223-415-0	01	1	9908-0012	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) USA	8-97223-415-0	01	1	9908-0012		●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) USA	8-97223-415-0	01	1	0101-		●
109	09.211 BOLT; EVAP 08.852 M4X16 USA	8-94324-850-0	06	1	9811-0012	●	●
109	09.211 BOLT; EVAP 08.852 M4X16 USA	8-94324-850-0	06	1	0101-		●
